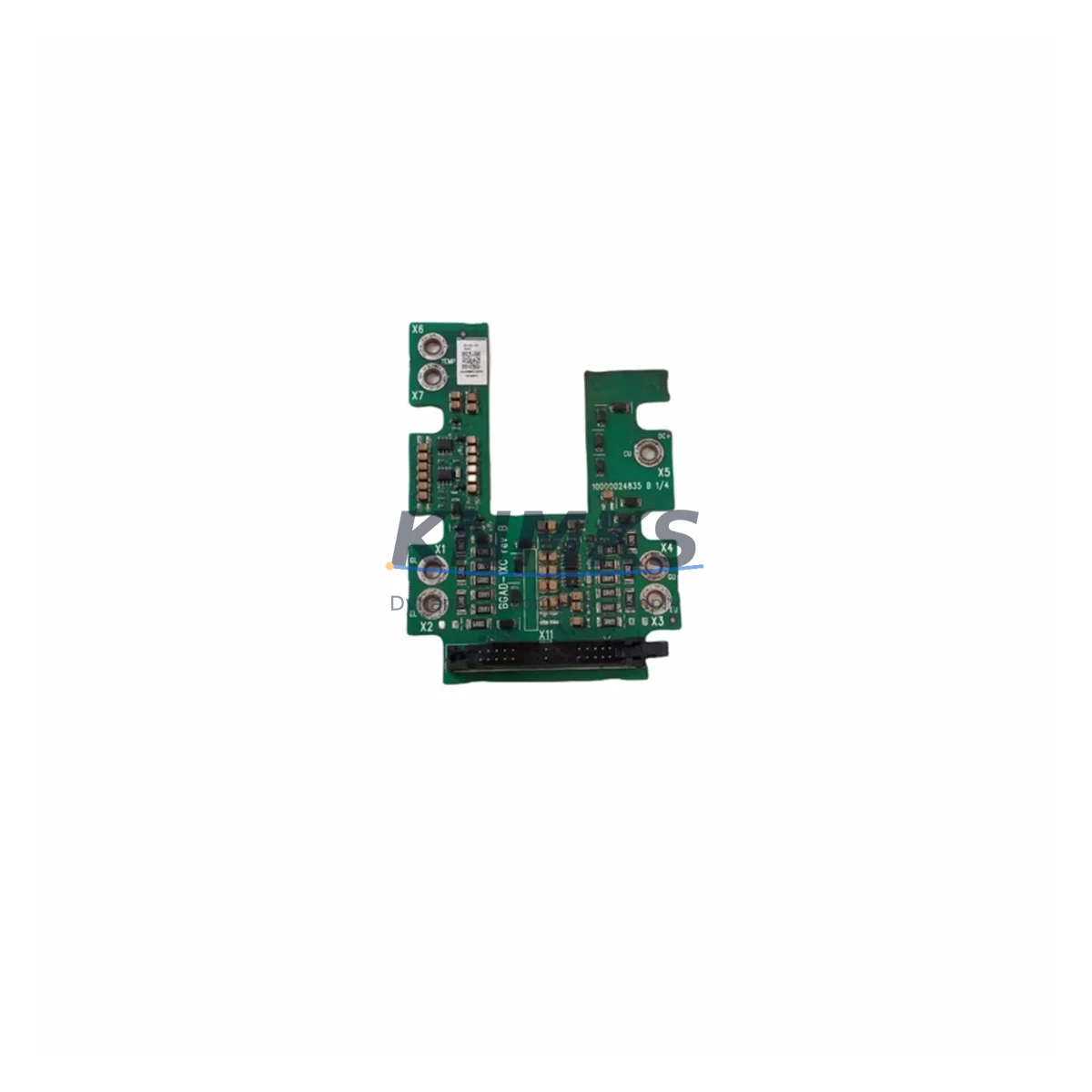

ABB 3AUA0000112491 IGBT Gate Drive for ACS800 Legacy

Overview

ABB 3AUA0000112491 IGBT Gate Drive for ACS800 Legacy System Migration

The ABB 3AUA0000112491 is a migration-ready IGBT Gate Drive Board engineered for direct replacement within the ACS800 series variable frequency drive platform. As legacy ACS800 installations approach end-of-service milestones, procurement teams and automation engineers increasingly rely on verified spare parts to extend operational life, defer full drive replacement, and maintain production continuity. This board addresses the most critical failure point in ACS800 power electronics: gate signal integrity between the control section and the IGBT power module stack.

The 3AUA0000112491 is compatible with a broad range of ACS800 frame sizes and is designed to interface directly with the existing drive’s DC bus, fiber-optic gate signal channels, and fault feedback circuits. Before installation, engineers should confirm the drive’s firmware revision against the gate drive hardware generation — ACS800 firmware versions prior to 7.x may require a parameter reset after board swap to re-calibrate switching frequency and dead-time compensation. The board’s 15V isolated gate supply rails and short-circuit protection logic are factory-set and do not require field adjustment under standard replacement conditions.

When planning a retrofit around this component, the surrounding power section must be evaluated in parallel. The ACS800’s RINT-5514C rectifier bridge module and the APOW-01 auxiliary power supply board are common co-failure items in aging drives and should be inspected or replaced during the same maintenance window to avoid repeat downtime. The RDCU-02C drive control unit, which manages the IGBT firing sequence via DDCS fiber links, must be confirmed operational before commissioning the replacement gate drive board — a faulty RDCU will generate persistent overcurrent faults even with a new 3AUA0000112491 installed.

For sites running ACS800 drives in multi-drive cabinet configurations with an NDBU-95C branching unit, the gate drive replacement procedure must account for the shared DC bus architecture. Isolating the affected drive section without interrupting adjacent drive units requires careful sequencing of the main contactor and pre-charge circuit. The BAMU-01 bus adapter module connections should be documented before any board removal to ensure correct restoration of the inter-drive communication topology.

In applications where the ACS800 interfaces with a DCS or SCADA system via PROFIBUS-DP using an RPBA-01 adapter module, the communication link should be verified post-replacement using the drive’s panel or DriveWindow software. Gate drive faults can corrupt the drive’s parameter memory in some firmware versions, and a full parameter backup-and-restore cycle is recommended as part of the commissioning checklist.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 gate drive retrofit requires a structured bill-of-materials review before the maintenance window opens. Beyond the 3AUA0000112491 itself, the following components are commonly evaluated or replaced in the same project scope:

• APOW-01 Auxiliary Power Supply Board — Provides isolated 24V logic power to the drive control section. Capacitor aging in this board is a leading cause of intermittent drive faults in installations over eight years old.
• RINT-5514C Rectifier Bridge Module — Handles AC-to-DC conversion upstream of the IGBT stack. Thermal stress from repeated overload events can degrade this module in parallel with gate drive wear.
• RDCU-02C Drive Control Unit — The central processor managing all firing sequences and fault logic. Must be confirmed fully functional before the new gate drive board is commissioned.
• RPBA-01 PROFIBUS-DP Adapter — If the drive communicates with a DCS or PLC via PROFIBUS, this adapter’s node address and baud rate settings must be re-verified after any control board replacement.
• NDBU-95C Branching Unit — Used in multi-drive cabinet topologies to distribute DDCS fiber signals. Fiber connector condition should be inspected during the gate drive swap to rule out signal integrity issues.
• ACS800 Control Panel (CDP312R) — Useful for on-site parameter backup, fault history review, and post-replacement commissioning without a laptop connection to DriveWindow software.

Terminal wiring on the gate drive board should be photographed before removal. Connector keying on the 3AUA0000112491 prevents most mis-insertion errors, but fiber-optic TX/RX orientation must be confirmed manually. Installation space within the drive cabinet is typically sufficient for a direct swap without mechanical modification, but cable routing should be checked to avoid contact with heat sink surfaces.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 gate drive replacement begins with preparation completed before the drive is de-energized. A full parameter upload using DriveWindow or the CDP312R panel should be performed and stored offline — this protects the motor control tuning, speed reference scaling, and fault response configuration that may have been customized over years of operation. The parameter file should be labeled with the drive tag number, firmware version, and date of backup.

DC bus discharge time for ACS800 drives varies by frame size and capacitor bank condition. Engineers should measure bus voltage directly with a calibrated meter rather than relying solely on the drive’s discharge indicator, particularly in older installations where capacitor ESR may affect discharge rate. A minimum of five minutes after main power isolation is the standard practice before any board contact.

Once the 3AUA0000112491 is installed and fiber connections are restored, the drive should be powered up in local control mode with the motor disconnected. The IGBT self-test routine available through the drive’s diagnostic menu will confirm gate signal integrity before any load is applied. Only after a clean self-test result and parameter restore should the motor contactor be closed and the drive returned to remote/DCS control. This staged commissioning sequence typically allows a complete gate drive replacement to be completed within a two-to-four hour planned outage window, preserving the original control logic and HMI display configurations without reprogramming.

Retrofit Support FAQ

Q: Is the 3AUA0000112491 a direct drop-in replacement for the original ABB part?
A: Yes. The 3AUA0000112491 supplied by KNMKS is an OEM-equivalent replacement board with identical connector layout, gate signal interface, and electrical ratings. No mechanical modification or wiring adaptation is required for standard ACS800 frame installations.

Q: What pre-shipment testing is performed on this board?
A: Each unit undergoes functional gate signal output verification, isolated power supply voltage check, and short-circuit protection response testing before dispatch. A test report is available upon request.

Q: How should I verify compatibility with my specific ACS800 drive serial number?
A: Provide your drive’s type code and serial number to [email protected]. Our technical team will confirm compatibility against the ACS800 hardware revision database and advise on any firmware considerations before you commit to the order.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated parameters. Support requests are processed within five business days of fault confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3AUA0000112491
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3AUA0000112491
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
