ABB 3AUA0000110431 Maintenance-Proven Spare Part for ACS800: Reliable Drive Control for Continuous Factory Uptime

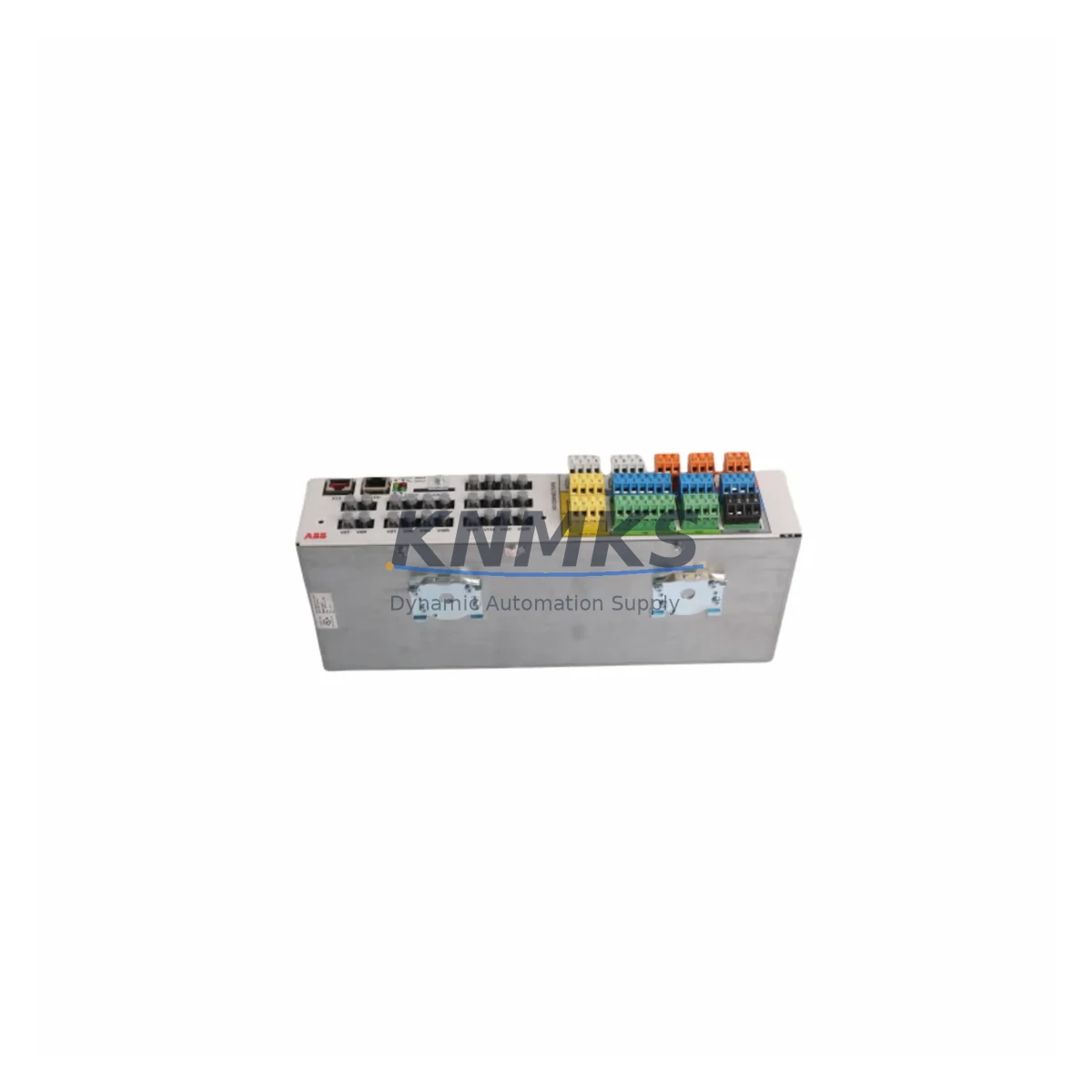

The ABB 3AUA0000110431 (BCU-22) is a drive control unit engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across process automation, material handling, and heavy manufacturing environments. As a maintenance-proven spare part, the BCU-22 control unit governs core drive logic, I/O coordination, fieldbus communication, and motor control algorithms that keep production lines running without interruption. When an ACS800 drive trips unexpectedly or exhibits erratic control behavior, the BCU-22 is frequently the first component targeted during fault isolation. Stocking a verified replacement unit is a fundamental element of any responsible spare parts strategy for facilities operating ACS800 drives.

This unit is supplied as an original ABB spare, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation. Global dispatch is available from multi-region stock, supporting both emergency breakdown recovery and planned annual maintenance cycles. Whether you are managing a single drive cabinet or a fleet of ACS800 units across multiple production lines, the 3AUA0000110431 BCU-22 provides the compatibility assurance and supply reliability that maintenance engineers and procurement teams require.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3AUA0000110431 BCU-22 in an ACS800 drive cabinet is rarely an isolated task. Maintenance engineers conducting a thorough site inspection should simultaneously evaluate the condition of adjacent components that share the same electrical circuit and control architecture. The AINT-02C or AINT-11C inverter control boards, which interface directly with the BCU-22 for gate pulse distribution and DC bus monitoring, should be inspected for thermal stress and solder joint integrity. If the drive has experienced a sustained overcurrent or ground fault event, the AGPS-21C gate driver power supply board may also require replacement alongside the control unit.

Power supply integrity is critical in ACS800 cabinets. The APOW-01C auxiliary power supply module provides the internal 24 VDC rail that feeds the BCU-22 and associated I/O boards; a degraded APOW-01C can cause intermittent control faults that mimic BCU-22 failure. Procurement teams should maintain buffer stock of both units to avoid misdiagnosis delays during emergency callouts. Similarly, the AIMA-01C I/O extension module and RDCO-03C DDCS communication option board are frequently co-located with the BCU-22 in multi-drive configurations and should be included in annual inspection checklists.

For facilities using PROFIBUS or Modbus fieldbus architectures, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter modules should be verified for firmware compatibility whenever the BCU-22 is replaced. Fieldbus parameter sets stored on the old control unit are not automatically transferred and must be re-commissioned. Fuse protection on the 24 VDC auxiliary circuit and the main AC input should also be checked — blown or weakened fuses are a common secondary finding during ACS800 drive fault investigations. Maintaining a structured spare parts kit that includes the BCU-22, auxiliary power supply, I/O extension, and communication adapter ensures that your team can restore full drive functionality within a single maintenance window, minimizing production downtime and reducing the risk of repeat callouts.

Site Replacement Workflow

Step 1 — Fault Confirmation: Retrieve active and historical fault codes from the ACS800 control panel (CDP-312R or equivalent). BCU-22-related faults typically present as F-0001 (overcurrent), F-0002 (DC overvoltage), or communication loss alarms. Confirm that the fault is not caused by an upstream power quality issue before proceeding with board replacement.

Step 2 — Safe Isolation: Isolate the drive from the main AC supply and engage the DC bus discharge procedure per ABB ACS800 Hardware Manual. Verify DC bus voltage is below 50 VDC using a calibrated multimeter before opening the drive cabinet. Do not rely solely on the drive’s internal discharge indicator.

Step 3 — Parameter Backup: If the existing BCU-22 is still partially functional, use the CDP-312R control panel or DriveWindow software to upload and save the full parameter set. Store the backup file with the equipment maintenance record for traceability.

Step 4 — Board Removal and Installation: Disconnect all ribbon cables, I/O connectors, and fieldbus interface cables from the existing BCU-22. Note connector positions with photographic documentation before removal. Install the 3AUA0000110431 replacement unit, reconnect all cables in sequence, and verify that the DDCS fiber optic links (if present) are seated correctly.

Step 5 — Parameter Restore and Commissioning: Restore the saved parameter set to the new BCU-22. Verify motor control parameters (Group 99), I/O configuration (Groups 10–15), and fieldbus settings (Group 51–53) before energizing. Perform a no-load test run and confirm drive response before returning the motor to full production load.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the old unit serial number, new unit part number (3AUA0000110431), date of replacement, and technician sign-off. This supports support requests and future fault trend analysis.

Spare Parts Support FAQ

Q1: Is the 3AUA0000110431 BCU-22 compatible with all ACS800 drive variants?
The BCU-22 is designed for the ACS800 single-drive and multi-drive series. Compatibility depends on the specific ACS800 frame size and firmware revision. Always cross-reference the drive’s type designation plate and existing BCU firmware version before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the unit tested before shipment?
Each 3AUA0000110431 unit undergoes functional verification testing prior to dispatch. This includes power-on self-test, I/O channel verification, and communication interface checks. A test report is available upon request. The unit is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for ACS800 spare parts?
For facilities operating three or more ACS800 drives, we recommend maintaining at least one BCU-22 unit in on-site stock alongside an APOW-01C auxiliary power supply and the relevant fieldbus adapter module. This combination covers the majority of control-side failure scenarios and enables same-shift recovery without waiting for external procurement. Annual stock review aligned with planned maintenance shutdowns is advised.

Q4: Can you support long-term supply for legacy ACS800 installations?
Yes. We maintain multi-region stock of ACS800 series spare parts, including the 3AUA0000110431 BCU-22, to support facilities with extended equipment lifecycles. Long-term supply agreements and scheduled delivery programs are available for procurement teams managing large drive fleets or multi-site maintenance contracts. Contact our sales team to discuss volume pricing and supply continuity options.
