ABB 3AUA0000074145 BGDR-01C Maintenance Spare for ACS800: Keeping Your Drive System Running

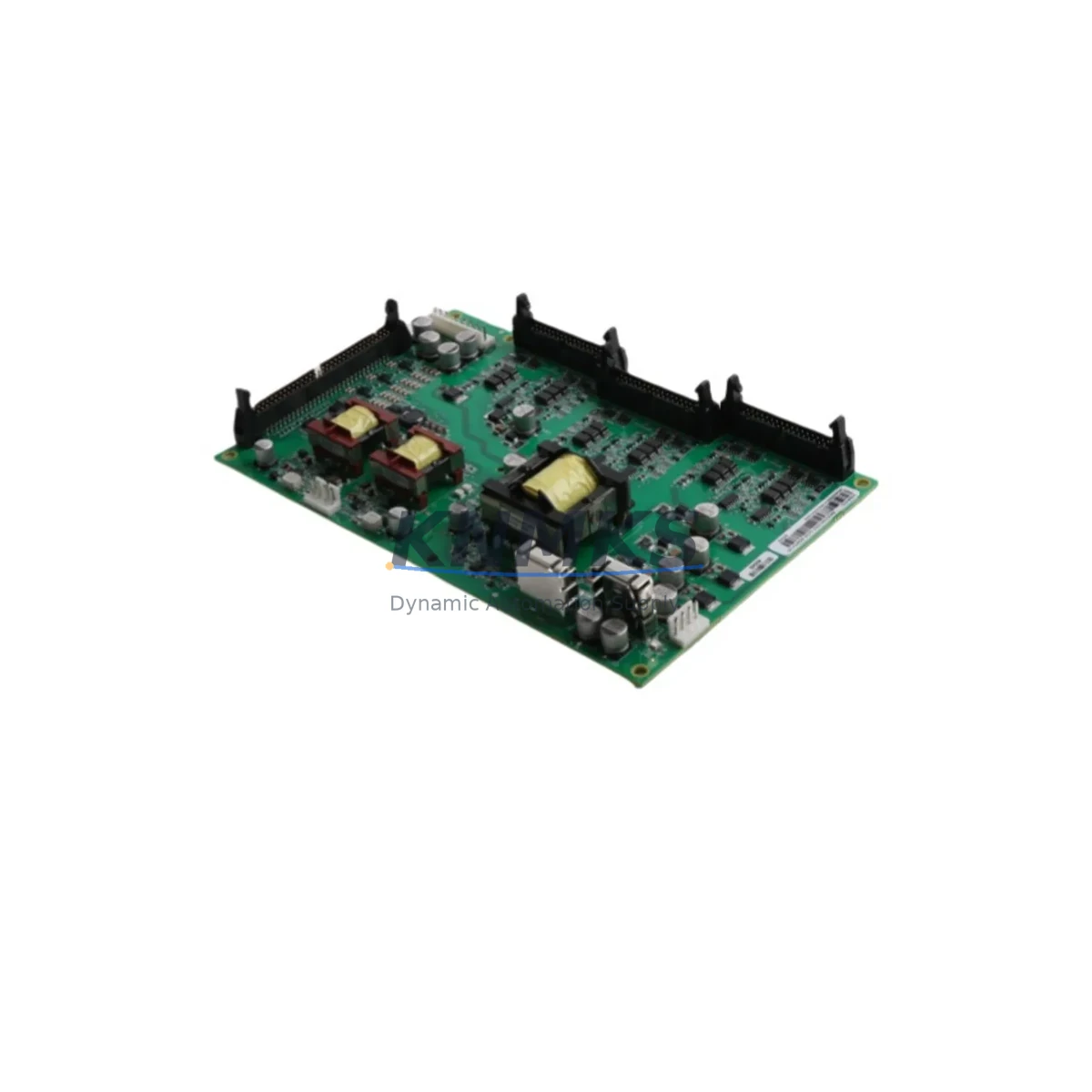

The ABB 3AUA0000074145 / BGDR-01C is an original IGBT Gate Driver Board designed for the ABB ACS800 series of industrial AC drives. As a critical power electronics interface between the drive control logic and the IGBT power modules, the BGDR-01C directly governs switching performance, fault protection, and thermal management of the inverter stage. When this board fails, the entire drive is rendered inoperable — making a verified, ready-to-ship spare an essential element of any industrial maintenance strategy.

At KNMKS, every 3AUA0000074145 BGDR-01C unit is sourced from authorized channels, inspected against ABB’s original specifications, and tested prior to shipment. We support maintenance engineers and procurement teams across manufacturing, oil & gas, water treatment, pulp & paper, and heavy industry with delivery details confirmed by RFQ, long-term supply continuity, and a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing ACS800 installations, the BGDR-01C rarely fails in isolation. A gate driver fault is often symptomatic of upstream or downstream stress — and a thorough site inspection during replacement is the most effective way to prevent repeat failures and unplanned downtime.

When replacing the 3AUA0000074145 BGDR-01C, begin by verifying the APOW-01 or APOW-02 auxiliary power supply board, which provides the 24 VDC rail feeding the gate driver. A degraded APOW board can deliver unstable voltage that stresses the BGDR-01C and causes premature failure. Inspect the AINT-02 or AINT-11 inverter control board as well — the fiber optic communication link between the AINT and BGDR boards is a common failure point in high-vibration environments, and damaged fiber connectors or cracked cables should be replaced simultaneously.

Check the IGBT power module itself for signs of thermal stress, gate-emitter leakage, or collector-emitter breakdown. A failed IGBT can destroy a new gate driver board within seconds of energization if not identified beforehand. Use a dedicated IGBT tester or consult the ACS800 hardware manual for the correct static test procedure before reinstalling the drive.

Inspect the RDCU-02C or RDCU-12C drive control unit for firmware integrity and parameter backup. After a gate driver replacement, re-upload the drive parameters from your backup to avoid commissioning errors. If the drive is part of a multi-drive cabinet, also verify the RDCO-03 DDCS communication module for correct fiber ring topology and address settings.

From a cabinet-level perspective, check the main contactor, input fuses (e.g., ABB OFAF or equivalent IEC class gG fuses), and DC bus capacitor bank condition. Swollen or leaking capacitors in the DC link are a leading cause of recurring gate driver stress. Ensure the cabinet’s cooling fans and heat exchanger are operational — the BGDR-01C is sensitive to elevated junction temperatures, and inadequate airflow will shorten its service life significantly.

For procurement engineers, maintaining a minimum stock of one BGDR-01C per ACS800 drive frame type in your facility reduces mean time to repair (MTTR) from days to hours. Pair this with a spare APOW board and a set of fiber optic jumpers to cover the most common ACS800 failure modes without waiting for international shipping.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the ACS800 drive, open the main isolator, and apply LOTO. Wait a minimum of 5 minutes for the DC bus capacitors to discharge below 50 VDC before opening the cabinet.

Step 2 — Fault Code Documentation: Before removing any boards, record all active and historical fault codes from the ACS800 panel (CDP-312R or DriveWindow) or from the RDCU control unit. Fault codes F-0022 (IGBT overtemperature), F-0001 (overcurrent), and F-0009 (DC overvoltage) are commonly associated with BGDR-01C degradation.

Step 3 — IGBT Module Pre-check: Perform a static IGBT test using a multimeter or dedicated tester. Do not install the new BGDR-01C until the IGBT module passes the gate-emitter and collector-emitter checks. This step is critical to protecting the replacement board.

Step 4 — Board Removal & Replacement: Disconnect the fiber optic cables from the BGDR-01C carefully — do not bend the fibers beyond their minimum bend radius. Remove the board using the correct ESD precautions. Install the new 3AUA0000074145 BGDR-01C, reconnect fiber cables, and verify all gate driver connectors are fully seated.

Step 5 — Power-up & Verification: Re-energize the drive in local control mode. Monitor the ACS800 startup sequence for any new fault codes. Verify output current symmetry across all three phases using a clamp meter before returning the drive to production.

Step 6 — Parameter Restore & Handover: Restore drive parameters from backup, confirm motor control mode (DTC or scalar), and document the replacement in the maintenance log. Update your spare parts inventory accordingly.

This workflow minimizes downtime, protects the new spare from installation damage, and ensures the ACS800 returns to full rated performance — compatible with the original system without any firmware or hardware modification.

Spare Parts Support FAQ

Q1: Is the 3AUA0000074145 BGDR-01C compatible with all ACS800 frame sizes?
The BGDR-01C is used across multiple ACS800 frame sizes, but compatibility depends on the specific drive variant and IGBT module type. Please provide your full drive type code (e.g., ACS800-01-0105-3) when ordering so we can confirm the correct gate driver revision for your application.

Q2: How is the unit tested before shipment?
Each BGDR-01C unit undergoes functional verification including power supply input check, gate signal output test, and fiber optic interface continuity. Units are packed in anti-static ESD bags and foam-padded cartons to prevent transit damage. A test report is available upon request.

Q3: What is the support terms coverage and what does it include?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or failure to replace a defective IGBT module prior to installation.

Q4: Can KNMKS support long-term or repeat supply of the BGDR-01C?
Yes. KNMKS maintains ongoing stock of ACS800 spare parts including the BGDR-01C, APOW boards, AINT boards, and RDCU control units. We support blanket purchase orders and annual maintenance contracts for facilities with multiple ACS800 drives. Contact our team to discuss volume pricing and reserved stock arrangements.
