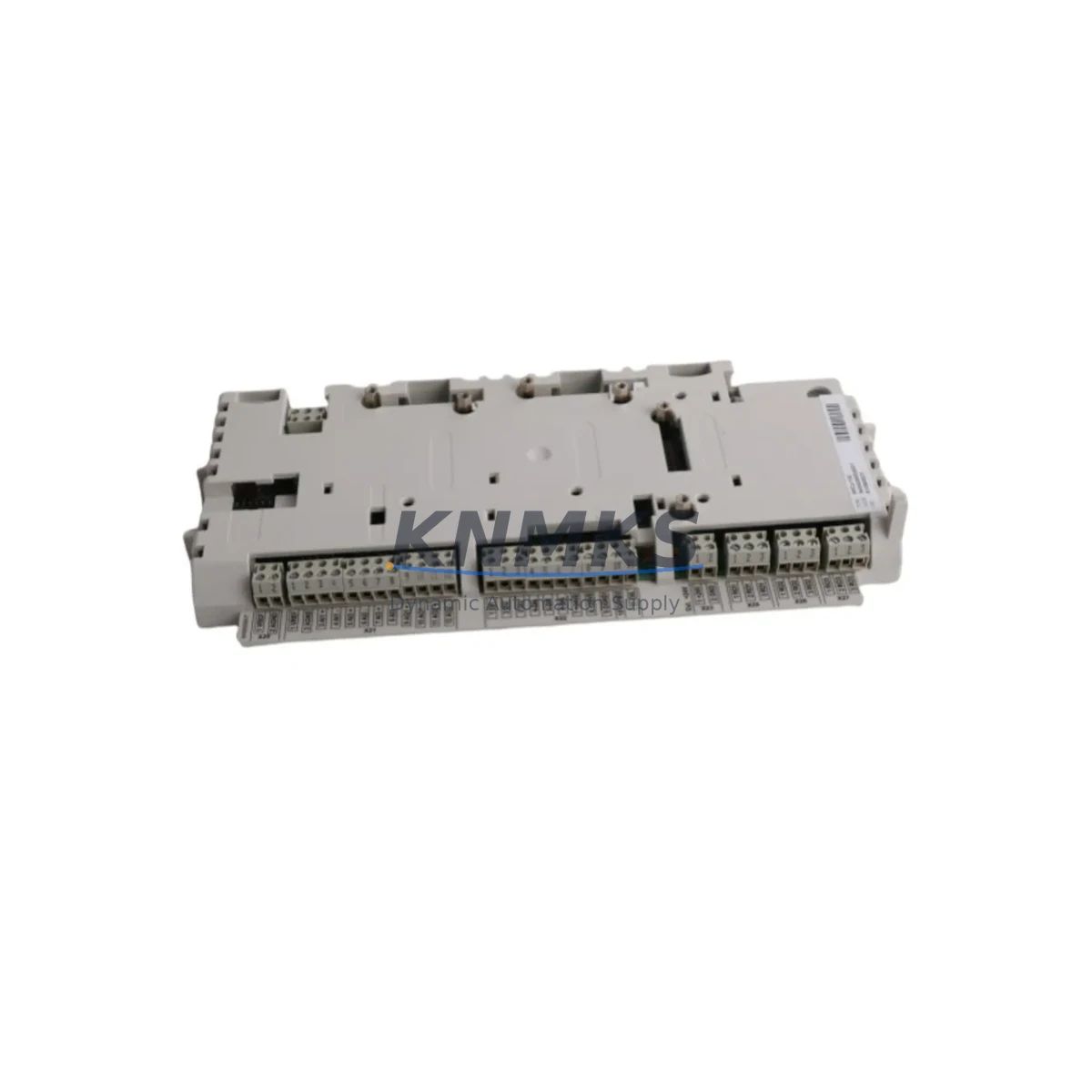

ABB 3AUA0000036521 BDCU-12C Spare Part for ACS800: Maintenance-Proven for Factory Uptime

The ABB 3AUA0000036521 (BDCU-12C) is the dedicated drive control unit for the ABB ACS800 series variable frequency drive platform — one of the most widely deployed industrial drive families in process automation, material handling, and heavy manufacturing environments worldwide. As a maintenance-proven spare part, the BDCU-12C serves as the central intelligence of the ACS800 drive, managing motor control algorithms, I/O coordination, fieldbus communication, and fault diagnostics. When this board fails or degrades, the entire drive becomes inoperable, making it a critical item in any industrial spare parts inventory strategy.

At KNMKS, every 3AUA0000036521 / BDCU-12C unit is sourced as an original ABB component, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. We maintain long-term stock availability to support both emergency breakdown recovery and planned annual maintenance programs across global industrial sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BDCU-12C control board is rarely an isolated task. In a well-structured ACS800 drive maintenance workflow, the control unit sits at the center of a broader electrical ecosystem. Maintenance engineers and procurement teams should treat a BDCU-12C replacement as an opportunity to inspect and, where necessary, pre-stock the surrounding components that are subject to similar wear cycles or that share the same failure modes.

The ACS800 power supply board (APOW-01) provides the internal DC rail that feeds the BDCU-12C and other logic boards. A degraded APOW-01 can cause intermittent resets or corrupt parameter memory on the control unit — symptoms that are often misdiagnosed as a BDCU-12C failure. Always verify the power supply output voltages before condemning the control board.

The AINT-02 / AINT-14 inverter control interface board works in close coordination with the BDCU-12C to manage gate drive signals and current feedback. If the drive trips on overcurrent or IGBT fault codes after a BDCU-12C swap, the AINT board should be the next component under investigation.

For sites running fieldbus-integrated ACS800 drives, the RPBA-01 PROFIBUS adapter or RDNA-01 DeviceNet adapter modules connect directly to the BDCU-12C’s option slot. These adapters should be inspected for firmware compatibility whenever the control board is replaced, as parameter mapping and node addressing may need to be reconfigured.

The RDIO-01 digital I/O extension module is commonly used in ACS800 installations requiring additional discrete I/O beyond the base BDCU-12C capacity. During a control board replacement, verify that all RDIO-01 connections are reseated and that the I/O configuration parameters are correctly restored from the drive’s backup file or parameter printout.

Finally, the ACS800 control panel (CDP312R or ACS-CP-C) serves as the primary HMI for parameter entry, fault history review, and drive commissioning. Keeping a spare control panel in the maintenance kit ensures that technicians can access drive diagnostics even if the installed panel is damaged or unavailable during an emergency repair.

A complete spare parts kit for an ACS800 installation should also include appropriately rated input line fuses (gR or aR type, matched to drive frame size), EMC filter capacitors, and DC bus capacitor banks — all of which have defined service life intervals and should be replaced proactively during scheduled shutdowns rather than reactively during unplanned outages.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow your site’s lockout/tagout (LOTO) procedure. Confirm that the ACS800 DC bus has fully discharged (minimum 5 minutes after power removal, or verify with a calibrated voltmeter) before opening the drive cabinet.

Step 2 — Document current parameters: If the drive is still partially functional, upload the full parameter set to the CDP312R control panel or to DriveWindow software before removing the BDCU-12C. This backup is essential for restoring motor control settings, PID tuning, and fieldbus node configuration after the replacement board is installed.

Step 3 — Remove the faulty BDCU-12C: Disconnect all ribbon cables, option module connectors, and the DDCS fiber optic links (if applicable) in sequence. Note the cable routing and connector positions with photographs before removal to simplify reinstallation.

Step 4 — Install the replacement 3AUA0000036521: Seat the new BDCU-12C firmly into the drive chassis, reconnect all cables in reverse order, and verify that option modules (fieldbus adapters, I/O extensions) are properly engaged in their slots.

Step 5 — Restore parameters and commission: Download the saved parameter set to the new board. Verify motor nameplate data, control mode selection, and all application-specific parameters before energizing. Perform a no-load test run before returning the drive to full production load.

Step 6 — Verify and document: Confirm that all fault codes are cleared, that fieldbus communication is re-established, and that the drive responds correctly to speed references from the DCS or PLC. Update the site maintenance log with the replacement date, new board serial number, and any parameter changes made during commissioning.

This structured replacement workflow minimizes the risk of secondary faults, reduces total downtime, and ensures that the repaired drive meets the same performance standard as the original installation — protecting both production continuity and equipment support terms coverage.

Spare Parts Support FAQ

Q1: Is the 3AUA0000036521 / BDCU-12C compatible with all ACS800 drive frame sizes?
The BDCU-12C is the standard control unit for the ACS800 single-drive series across multiple frame sizes (R2 through R8 and larger cabinet drives). Compatibility depends on the specific ACS800 variant and firmware revision installed at your site. We recommend confirming your drive’s type designation (found on the drive nameplate) before ordering. Our technical team can assist with compatibility verification based on your drive’s full type code.

Q2: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Every BDCU-12C unit shipped from KNMKS undergoes pre-shipment functional testing to verify board-level operation, communication interface integrity, and absence of physical damage. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s specified environmental ratings. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q3: Can KNMKS support long-term or recurring procurement of ACS800 spare parts?
Yes. KNMKS maintains standing inventory of ACS800 series spare parts — including control boards, power supply modules, I/O extensions, and fieldbus adapters — to support both emergency single-unit orders and scheduled annual maintenance procurement programs. We can provide quotations for multi-unit blanket orders, offer consignment stock arrangements for high-volume maintenance sites, and guarantee consistent supply for legacy ACS800 installations that are no longer covered by ABB’s standard spare parts program.

Q4: What information should I provide to confirm the correct spare part for my ACS800 drive?
To ensure you receive the correct replacement board, please provide: (1) the full ACS800 type designation from the drive nameplate (e.g., ACS800-01-0016-3), (2) the firmware version currently installed if known, (3) any option modules fitted (fieldbus adapters, I/O extensions), and (4) the fault codes or symptoms that led to the control board diagnosis. This information allows our team to confirm compatibility and, where applicable, pre-configure the replacement unit to match your site’s parameter requirements.
