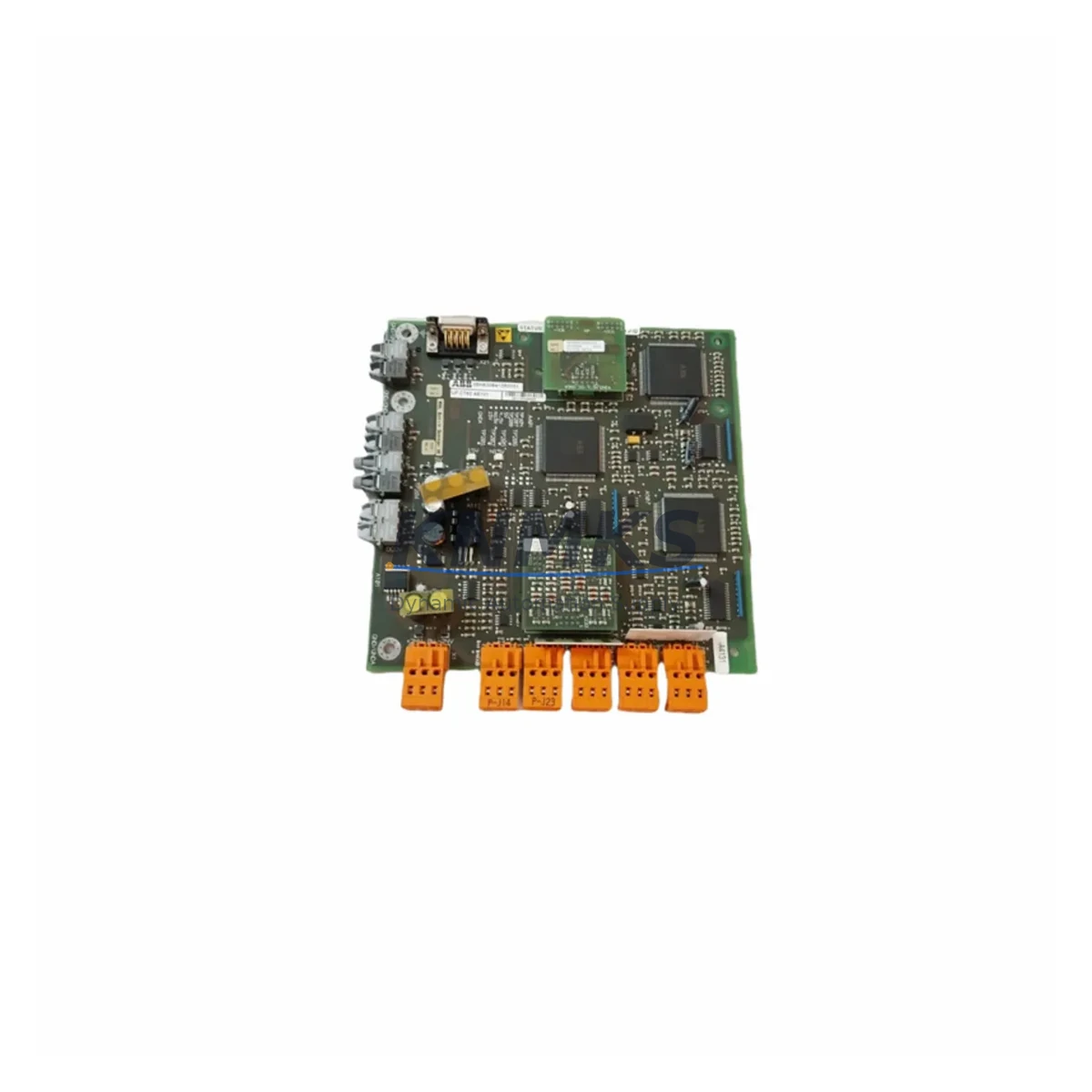

ABB 3002916R0101 UFC721AE101 Spare Part for UFC700 DCS: Maintenance-Proven for Factory Uptime

The ABB 3002916R0101 (UFC721AE101) is a certified original spare part for the ABB UFC700 Distributed Control System — a platform widely deployed in power generation, chemical processing, pulp and paper, and heavy industrial facilities. When a UFC700 controller node experiences a fault, unplanned downtime can cascade across the entire process loop. Stocking a verified, pre-tested 3002916R0101 module eliminates the lead-time risk that typically extends outages from hours into days.

At KNMKS, every 3002916R0101 unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation. Multi-region inventory ensures same-week availability for emergency replacements and scheduled annual shutdowns alike. Whether you are executing a planned outage, responding to a mid-shift fault alarm, or building a long-term spare parts buffer, this module ships ready to install.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A UFC700 controller node is rarely a standalone component. During routine point inspections and fault-isolation procedures, maintenance engineers should treat the 3002916R0101 replacement as the trigger for a broader cabinet audit. The UFC700 backplane carries power, communication, and I/O signals to every module in the rack; a failing control module often masks secondary degradation in adjacent components.

Begin with the rack power supply — the UFC700 system relies on a dedicated 24 VDC power module to maintain stable bus voltage. Voltage ripple or marginal output from an aging power supply can cause intermittent resets that mimic a faulty UFC721AE101. Verify supply output under load before condemning the control module. Similarly, inspect the backplane itself for bent pins, corrosion, or cracked PCB traces at the module slot.

Communication integrity is equally critical. The UFC700 typically interfaces with field devices and supervisory systems via PROFIBUS DP or proprietary ABB communication modules. If the UFC721AE101 fault coincides with loss of fieldbus communication, the PROFIBUS coupler or communication gateway module should be tested in parallel. Termination resistors at both ends of the PROFIBUS segment are a common failure point and are inexpensive to stock as consumables.

On the I/O side, review the analog and digital I/O modules connected to the same controller node. A shorted field device or wiring fault on an I/O channel can inject transient currents that stress the control module. Isolate each I/O channel systematically before re-energizing the replacement 3002916R0101. Signal isolators between field instruments and I/O modules provide an additional protection layer worth inspecting during the same maintenance window.

For facilities running HMI workstations connected to the UFC700 network, verify that the OPC server or DDE link re-establishes correctly after the module swap. HMI communication loss after a controller replacement is frequently caused by stale node address tables rather than hardware faults. Finally, check fuse ratings and fuse condition in the 24 VDC distribution rail — a blown fuse on the controller supply circuit is a silent failure mode that can be overlooked during a rushed emergency replacement.

Recommended co-stocking items for UFC700 maintenance kits: UFC700 rack power supply module, PROFIBUS DP communication module, analog I/O expansion module, backplane termination resistor set, 24 VDC DIN-rail power supply (redundant feed), and signal isolator cards for critical analog loops.

Site Replacement Workflow

Step 1 — Fault Confirmation: Confirm the UFC721AE101 fault via the UFC700 diagnostic display or engineering workstation. Log the fault code and timestamp before any intervention.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedure. Place the controller node in manual or fallback mode if the process permits. Do not remove the module under live bus power unless the UFC700 hot-swap capability has been verified for this slot.

Step 3 — Module Removal: Release the module locking lever, extract the UFC721AE101 from the rack slot, and inspect the backplane connector for damage before inserting the replacement 3002916R0101.

Step 4 — Replacement Installation: Insert the new 3002916R0101 module firmly until the locking lever engages. Verify the module LED status sequence matches the UFC700 startup diagnostic pattern described in the system manual.

Step 5 — Configuration Restore: If the UFC700 stores controller configuration on the module (firmware-dependent), restore the configuration from the engineering workstation backup. Confirm firmware version compatibility between the replacement module and the existing rack firmware baseline.

Step 6 — Loop Verification: Bring the process loop back online in manual mode. Verify all I/O channels, communication links, and HMI tags are reading correctly before returning to automatic control.

Step 7 — Documentation: Record the replacement in the site maintenance log with the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the 3002916R0101 a direct drop-in replacement for the UFC721AE101 without firmware changes?
In most UFC700 installations, the 3002916R0101 order code maps directly to the UFC721AE101 module and is a hardware-compatible replacement. However, firmware version alignment between the replacement module and the existing rack baseline should always be verified via the ABB UFC700 engineering workstation before returning the loop to automatic control. KNMKS can advise on known firmware compatibility ranges based on your system revision.

Q2: What is the lead time for emergency orders, and do you hold stock for immediate dispatch?
KNMKS maintains multi-region inventory of the 3002916R0101 to support same-week emergency dispatch globally. For critical unplanned outages, contact [email protected] or call +86 18359268345 to confirm real-time stock availability and arrange priority shipment.

Q3: How is each unit tested before shipment, and what does the support terms confirmed by quotation cover?
Every 3002916R0101 unit undergoes pre-shipment functional verification to confirm module initialization, bus communication, and I/O channel integrity. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Units that fail on arrival or within the confirmed support period are replaced or refunded without dispute.

Q4: Can KNMKS support long-term supply agreements for UFC700 spare parts beyond a single order?
Yes. KNMKS offers long-term supply agreements for facilities managing aging UFC700 systems through extended service life or phased migration programs. Framework agreements can cover annual volume commitments, reserved stock allocation, and priority dispatch SLAs — reducing procurement risk for sites where the UFC700 platform will remain in service for 3–10 years.
