ABB 2MBI1400VXB-120P-50 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 2MBI1400VXB-120P-50 Maintenance-Proven Spare Part for Factory Uptime

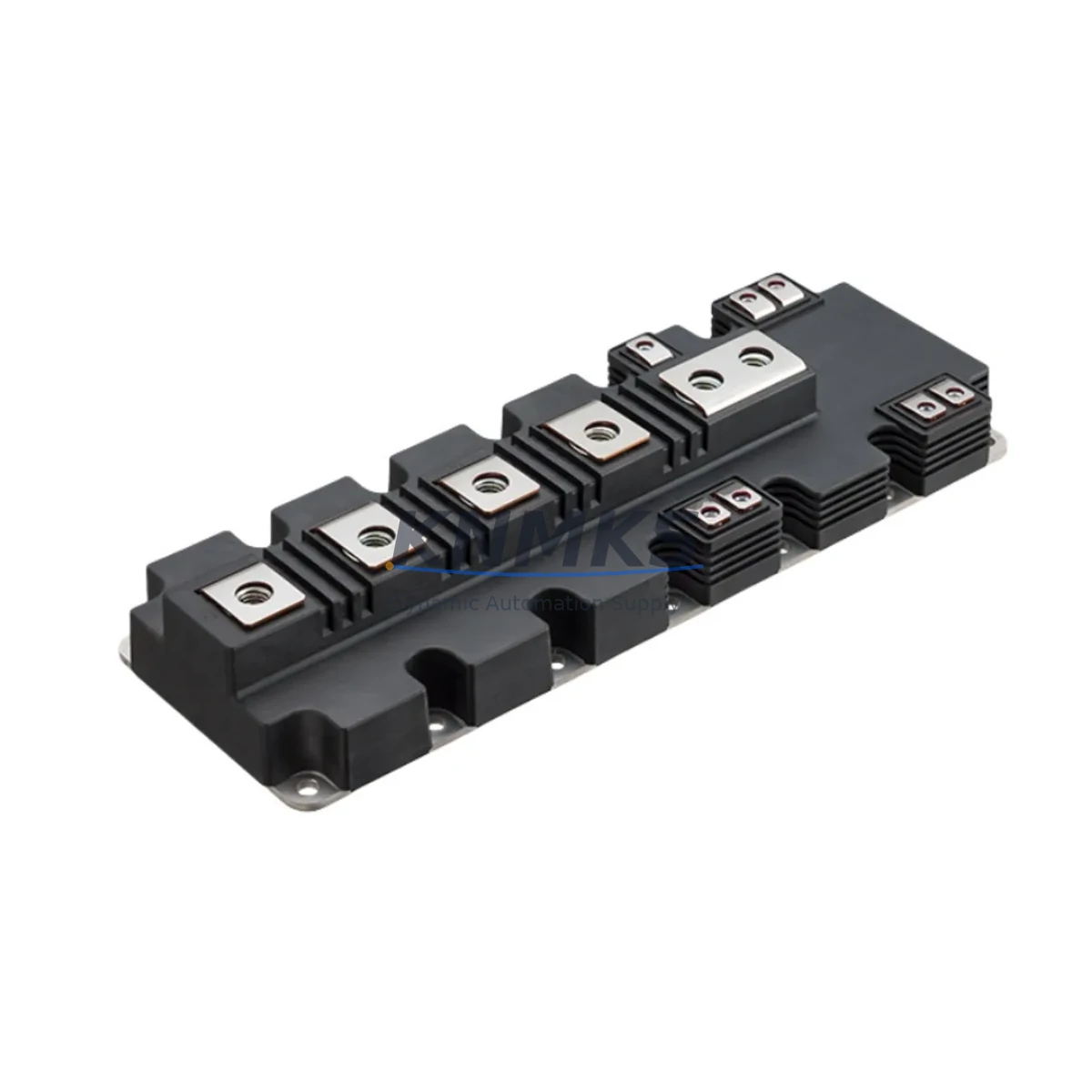

The ABB 2MBI1400VXB-120P-50 is a high-current IGBT power module rated at 1200V / 1400A, belonging to the VXB series platform widely deployed in ABB ACS880 and ACS580 variable frequency drives, as well as in heavy-duty industrial converters and regenerative braking units across steel, cement, mining, and petrochemical sectors. As a maintenance-proven spare part, this module is essential for any facility running ABB drive systems where unplanned downtime carries significant production and safety risk. KNMKS supplies this module as an original-grade component, fully tested prior to shipment, backed by a support terms confirmed by quotation, and available for long-term procurement programs to support your site’s spare parts inventory strategy.

Maintenance engineers and procurement teams managing aging ACS880 or ACS580 drive cabinets understand that the IGBT power module is the highest-risk single point of failure in the power stack. When a module fails — whether from thermal cycling fatigue, gate drive fault, or overcurrent event — the drive is immediately offline. Having a verified, pre-tested 2MBI1400VXB-120P-50 on the shelf is the single most effective way to reduce mean time to repair (MTTR) from days to hours.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2MBI1400VXB-120P-50 in an ACS880 or ACS580 drive cabinet, a disciplined maintenance engineer does not stop at the IGBT module itself. The surrounding power circuit and control infrastructure must be inspected and verified to prevent repeat failures and ensure the replacement module operates within its rated parameters from the first power-on.

Begin with the gate driver board — the PCB that interfaces directly with the IGBT gate terminals. A faulty or degraded gate driver is one of the most common root causes of IGBT failure, and installing a new module without inspecting the driver risks immediate re-failure. Check gate resistor values, driver output voltage levels (typically +15V / -8V for this class of module), and verify there are no signs of burnt components or cracked solder joints.

Next, inspect the DC bus capacitor bank. In ACS880 drives of this power class, the DC link capacitors absorb switching transients and support the intermediate voltage rail. Capacitors that have drifted in capacitance or ESR will stress the new IGBT module during every switching cycle. Measure capacitance and ESR if possible, or replace as a scheduled maintenance item if the drive has been in service for more than five years.

The thermal management system deserves equal attention. Inspect the heatsink surface for corrosion, debris, or residual thermal compound from the failed module. Apply fresh, high-performance thermal interface material (TIM) to the new module’s baseplate before mounting. Verify that the cooling fan or liquid cooling circuit is operating correctly — a blocked or degraded cooling path will shorten the new module’s service life significantly.

For the control side, check the RDCU or AINT control unit (depending on ACS880 configuration) for any stored fault codes that may indicate upstream issues — overcurrent trips, earth fault events, or thermal warnings that preceded the module failure. These codes provide critical diagnostic context. Similarly, inspect the I/O terminal blocks and signal wiring for loose connections, insulation damage, or moisture ingress, particularly in cement or mining environments where vibration and contamination are constant factors.

If the drive cabinet includes a du/dt filter or sine filter on the output side, inspect filter inductors and capacitors for signs of overheating. Output filter components are often overlooked during IGBT replacement but can be a contributing factor in module stress. Also verify the input fuses or circuit breakers — a blown or weakened fuse on the AC input side may have contributed to the fault condition and should be replaced as a precaution.

Finally, for sites running multiple ACS880 drives in parallel or in a common DC bus configuration, confirm that the fiber optic communication links between the RDCU and the AINT boards are intact and that the drive’s firmware version is compatible with the replacement module’s switching characteristics. Firmware mismatches in high-power ABB drives can cause unexpected gate timing issues that stress new IGBT modules.

Site Replacement Workflow

The 2MBI1400VXB-120P-50 is a direct replacement for the same SKU in ACS880 and ACS580 drive stacks. No firmware modification or parameter change is required when replacing a like-for-like module, making this one of the more straightforward high-power IGBT replacements in the ABB drive ecosystem.

Step 1 — Isolation and discharge: Isolate the drive from the AC supply and engage the DC bus discharge procedure per ABB ACS880 hardware manual. Confirm DC bus voltage is below 50V before opening the power module compartment. This typically requires a minimum of 5 minutes after isolation for drives in this power class.

Step 2 — Module removal: Disconnect gate driver connectors, DC bus busbars, and output phase busbars from the failed module. Note torque values for busbar bolts (typically 10–25 Nm depending on busbar cross-section). Remove module mounting bolts and extract the module from the heatsink. Inspect the heatsink surface and clean thoroughly.

Step 3 — New module preparation: Apply thermal interface material evenly to the new 2MBI1400VXB-120P-50 baseplate. Do not use excessive TIM — a thin, uniform layer of 0.1–0.2mm is optimal for this module class. Mount the module to the heatsink and torque mounting bolts to specification.

Step 4 — Reconnection and verification: Reconnect busbars and gate driver connectors. Verify all connections are secure and correctly oriented. Before energizing, perform a static gate drive test if your maintenance toolkit supports it.

Step 5 — Commissioning: Energize the drive and monitor for fault codes during the first power-on sequence. Run the drive at reduced load for 15–30 minutes and verify thermal performance via the drive’s temperature monitoring channels before returning to full production load.

This workflow minimizes downtime and ensures the replacement module is commissioned correctly, reducing the risk of early failure and protecting your support terms confirmed by quotation coverage.

Spare Parts Support FAQ

Q1: Is the 2MBI1400VXB-120P-50 supplied by KNMKS an original module or a compatible substitute?
KNMKS supplies original-grade 2MBI1400VXB-120P-50 modules sourced through verified industrial supply channels. Each unit undergoes pre-shipment electrical testing covering gate drive integrity, Vce(sat) measurement, leakage current, and thermal resistance verification. We do not supply uncertified compatible substitutes for this module class. If you require documentation of test results for your maintenance records, contact our technical team at [email protected].

Q2: What is the recommended inventory strategy for sites running multiple ACS880 drives?
For facilities operating three or more ACS880 drives of the same power class, we recommend maintaining a minimum of one 2MBI1400VXB-120P-50 module per drive bay as on-site critical stock, with a secondary buffer unit held at your regional warehouse. IGBT module lead times from OEM channels can extend to 16–26 weeks during allocation periods. KNMKS supports blanket stock agreements and scheduled delivery programs to ensure your inventory position is maintained without capital lock-up risk.

Q3: How do I confirm compatibility before ordering if my drive’s nameplate data is partially illegible?
Provide KNMKS with the drive’s serial number, rated output current, and DC bus voltage. Our technical team can cross-reference ABB’s drive-to-module mapping to confirm the correct IGBT module SKU for your specific drive revision. For ACS880 drives in the 800kW–1.2MW range at 690V AC input, the 2MBI1400VXB-120P-50 is the standard power module, but revision-specific variants exist and should be confirmed before procurement.

Q4: What does the support terms confirmed by quotation cover and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and electrical failure under normal operating conditions as defined by the module’s datasheet ratings. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. To initiate a support terms claim, contact [email protected] with your order reference, installation date, and a description of the failure mode. KNMKS will arrange return logistics and provide a replacement or credit within the agreed service timeline.
