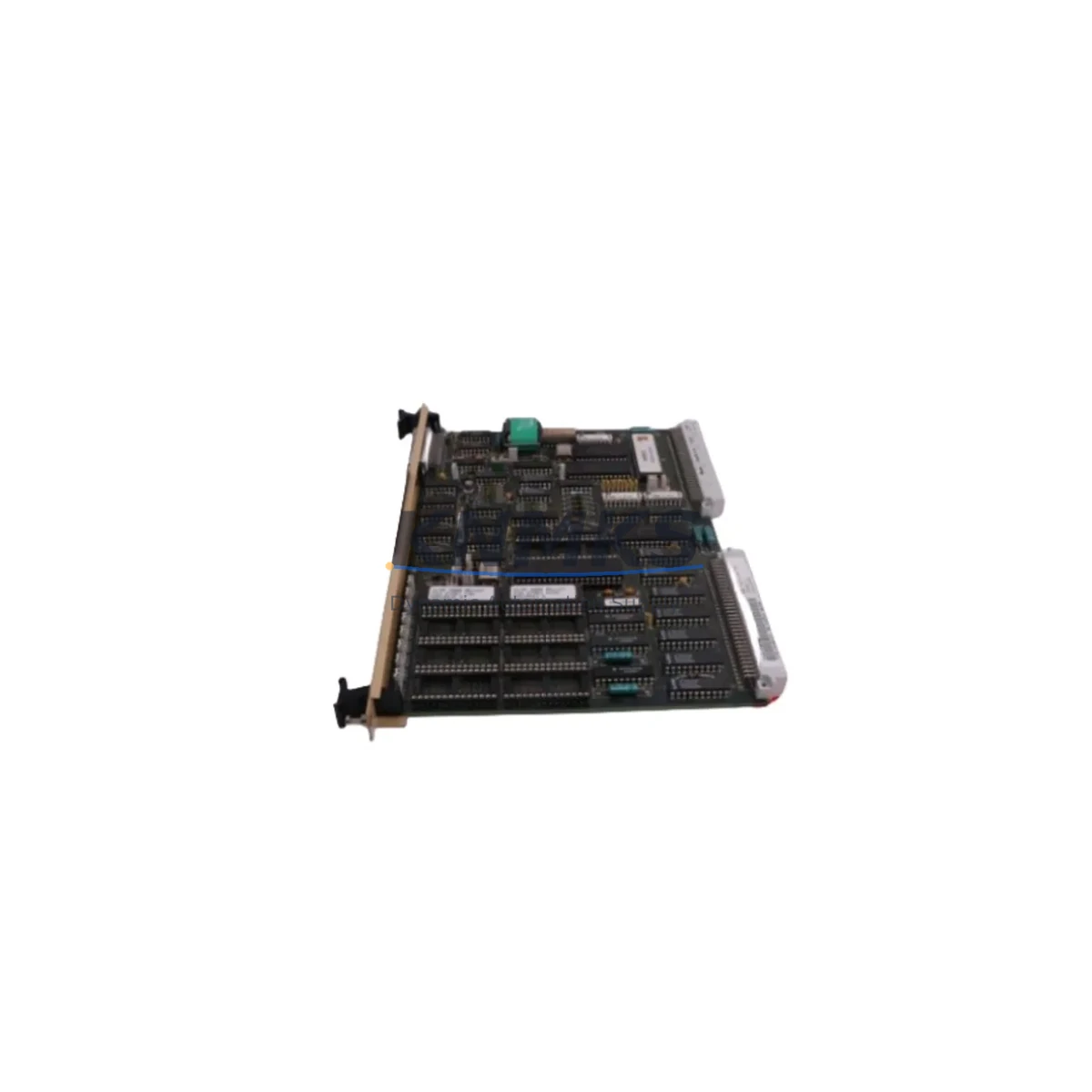

ABB 23TP22 1KGT013000R0001 Migration-Ready Comm Module

Overview

ABB 23TP22 1KGT013000R0001 Migration-Ready Comm Module: Legacy System Retrofit & Compatibility Upgrade

The ABB 23TP22 (catalog reference 1KGT013000R0001) is a communication module designed for the ABB AC500 PLC platform, widely deployed in process automation, machine control, and utility infrastructure. As original ABB AC500 communication modules approach end-of-life or become increasingly difficult to source through standard distribution channels, the 23TP22 represents a proven, migration-ready replacement that preserves existing program logic, communication topology, and field wiring without requiring a full system redesign.

For maintenance engineers and automation integrators managing aging control cabinets, the 23TP22 slots directly into the AC500 CPU rack alongside the PM5xx or PM5x3 processor modules, maintaining the same backplane interface and module addressing scheme. This means that in most retrofit scenarios, the replacement procedure does not require changes to the PLC program, I/O mapping, or HMI screen configurations — a critical advantage when minimizing planned downtime is a project constraint.

Before committing to a replacement order, site engineers should verify the following parameters against the existing installation: power supply rail capacity on the AC500 rack (the 23TP22 draws from the internal backplane bus), terminal block wiring compatibility for any external communication ports, the firmware version running on the host CPU module, and whether the communication protocol in use — typically PROFIBUS DP, Modbus RTU, or CANopen depending on the installed variant — is correctly matched to the replacement module’s factory configuration. In multi-rack installations using TB5xx bus terminal modules, the module address assignment must also be confirmed prior to hot-swap or cold-replacement procedures.

Units supplied through KNMKS are pre-tested prior to shipment using functional bench verification against the AC500 platform. Each module is confirmed for backplane communication integrity, protocol handshake response, and basic I/O signal routing before dispatch. This pre-shipment testing protocol is part of the standard support terms confirmed by quotation coverage included with every unit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC500 communication module retrofit typically involves more than a single component swap. In practice, the 23TP22 replacement is often part of a broader control cabinet modernization that may include upgrading the AC500 power supply module (PS5xx series) to ensure adequate rail capacity for the updated module configuration, replacing aging TB5xx bus terminal modules where backplane connector wear has been identified, and reviewing the I/O expansion modules (DA5xx or DC5xx digital I/O modules) for firmware alignment with the updated communication stack.

Where the existing installation uses a TP830 or TP845 operator panel as the primary HMI interface, engineers should verify that the communication driver version on the panel is compatible with the replacement module’s protocol implementation. In installations where the AC500 communicates upstream to a SCADA system via an Ethernet CP600 communication processor, the network configuration and IP addressing scheme should be documented before the module swap to avoid communication link interruption during the changeover window.

For sites running legacy PROFIBUS DP networks, the GSD file associated with the 23TP22 should be confirmed against the PROFIBUS master configuration. In some cases, a GSD file update in the master PLC or DCS is required to correctly enumerate the replacement module’s I/O data structure. Signal isolators installed on analog input channels feeding the AC500 rack should also be checked for loop power compatibility if the communication module replacement is accompanied by any changes to the I/O module configuration.

Downtime Control During System Migration

Controlling unplanned downtime is the primary operational concern in any live production environment undergoing a PLC communication module replacement. For the ABB 23TP22, the recommended approach is to perform the replacement during a scheduled maintenance window with the following preparation steps completed in advance: export and archive the current PLC program from the AC500 CPU using Automation Builder or PS501 Control Builder Plus, document all module addresses and communication parameters from the existing configuration, and photograph or record the terminal wiring on any external communication port connectors.

Where the production process permits, a cold-swap procedure — powering down the rack, replacing the module, and performing a controlled restart — is preferred over hot-swap attempts, as it eliminates the risk of backplane bus errors during module insertion. After restart, the communication link should be verified at the protocol level before returning the system to automatic mode. HMI screens referencing communication status tags should be monitored during the first production cycle to confirm that all data exchange paths have been restored correctly.

KNMKS maintains buffer stock of the 23TP22 to support urgent replacement scenarios. For sites with critical uptime requirements, advance procurement of a spare unit is recommended to eliminate lead-time risk. All units are shipped with pre-shipment test documentation and are covered by a support terms confirmed by quotation, providing a documented quality baseline for maintenance records.

Retrofit Support FAQ

Q1: Is the ABB 23TP22 (1KGT013000R0001) a direct drop-in replacement for the original ABB AC500 communication module of the same part number?
In standard AC500 rack configurations, yes. The 23TP22 uses the same backplane connector and module form factor as the original. However, engineers should verify the firmware version on the host CPU module and confirm that the communication protocol variant matches the existing network configuration before installation.

Q2: What commissioning steps are required after installing the replacement 23TP22?
After physical installation, confirm the module address assignment in the PLC configuration, verify protocol parameters (baud rate, node address, GSD file version for PROFIBUS applications), check HMI tag mapping for any communication status or diagnostic tags, and perform a controlled communication link test before returning the system to automatic operation.

Q3: Does KNMKS perform pre-shipment testing on the 23TP22?
Yes. Every unit undergoes functional bench verification prior to dispatch, including backplane communication integrity checks and protocol handshake testing. Test results are available upon request and units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: What is the typical lead time and inventory availability for the ABB 23TP22?
KNMKS maintains buffer stock of the 23TP22 to support both planned maintenance and urgent breakdown replacement scenarios. Contact the sales team for current stock levels and lead-time confirmation for your specific quantity requirement.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

23TP22 1KGT013000R0001
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 23TP22 1KGT013000R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
