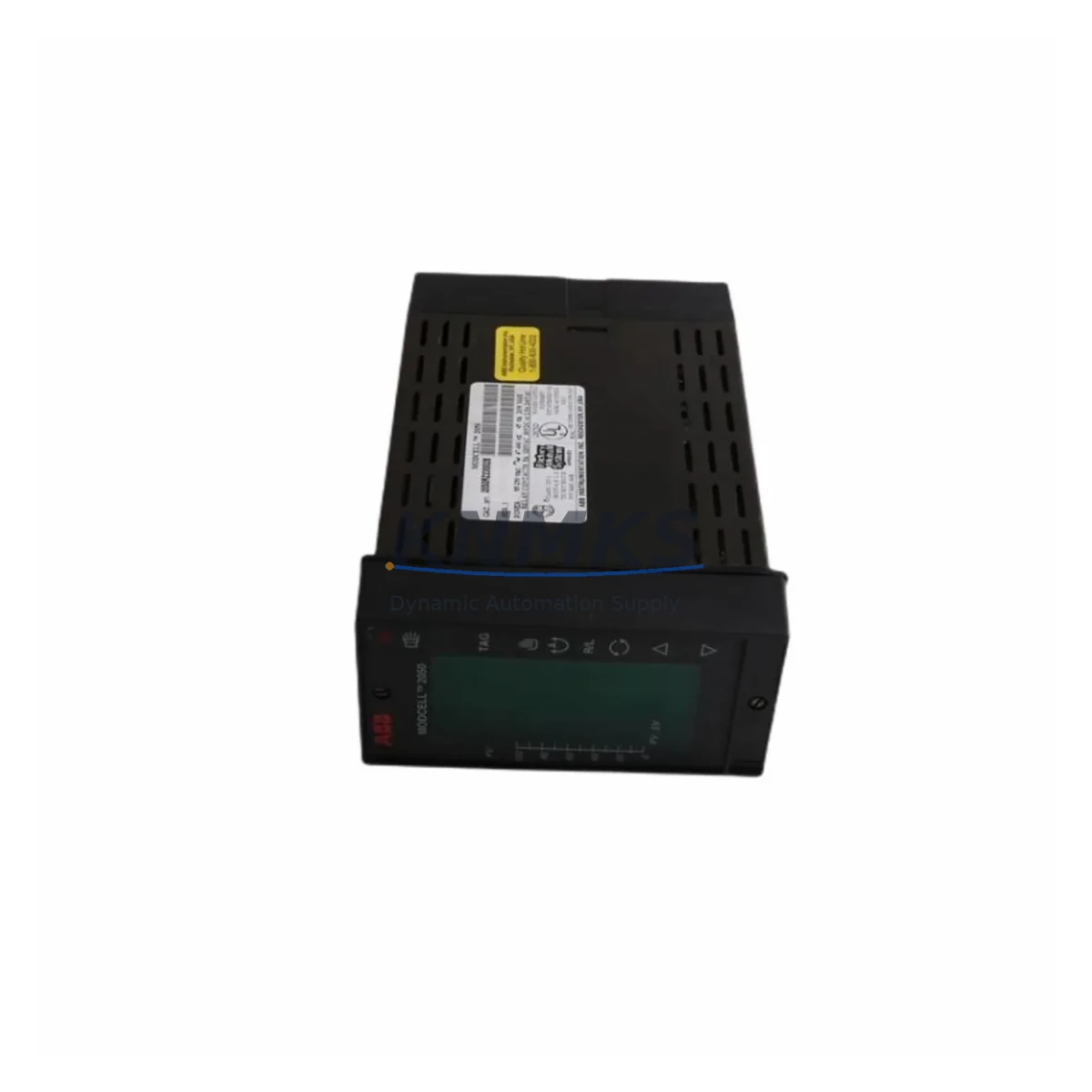

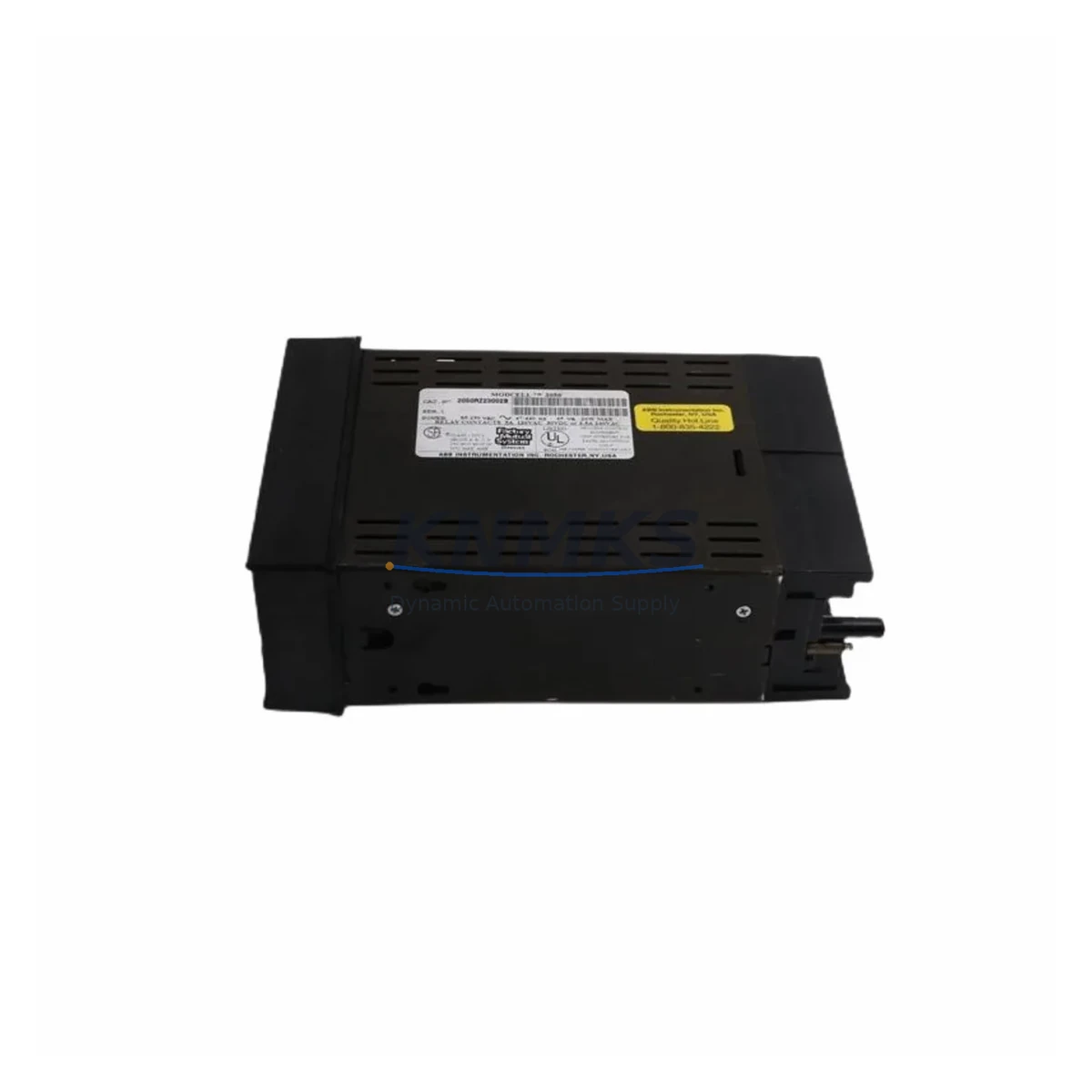

ABB 2050RZ23002B Fail-Safe Signal Conditioning Module

Overview

ABB 2050RZ23002B Fail-Safe Signal Conditioning Module: Fault Protection for Critical Industrial Control

In continuous production environments where control interruptions carry serious operational and safety consequences, the ABB 2050RZ23002B delivers the signal integrity and fault tolerance that demanding DCS architectures require. Designed for deployment in heavy-duty control cabinets across petrochemical, power generation, mining, water treatment, metallurgy, and port automation facilities, this signal conditioning module maintains stable, accurate signal transmission even under conditions of high electromagnetic interference, voltage surges, thermal stress, and mechanical vibration.

The 2050RZ23002B is engineered to address the most common failure modes in field-level signal chains: signal drift caused by ground loops, nuisance trips triggered by transient surges, and communication anomalies resulting from inadequate isolation. By providing galvanic isolation between field instruments and the DCS backplane, the module eliminates ground loop interference that frequently corrupts 4–20 mA analog signals in large industrial installations. This isolation barrier also protects upstream DCS I/O cards and controllers from destructive surge events originating in the field — a critical safeguard in environments where lightning strikes, motor switching, and welding operations generate high-energy transients.

In control cabinets housing ABB Freelance or System 800xA DCS infrastructure, the 2050RZ23002B integrates directly into the signal conditioning rail alongside compatible power distribution modules and terminal blocks. Engineers commissioning new panels or retrofitting aging cabinets will find that the module’s compact DIN-rail form factor and standard screw-terminal wiring interface minimize installation time and reduce the risk of wiring errors during changeover. When replacing older ABB DSTD 150 or DSTD 108 signal isolators in legacy Advant OCS or MOD 300 systems, the 2050RZ23002B provides a functionally equivalent signal path with improved surge immunity ratings, making it a reliable drop-in solution for cabinet modernization projects.

Signal stability under thermal and vibration stress is a defining characteristic of this module. In mining and port operations where control rooms are subject to continuous mechanical vibration from conveyor drives, crushers, and crane motors, signal conditioning components must maintain calibration without drift. The 2050RZ23002B’s sealed construction and conformal-coated PCB resist moisture ingress and particulate contamination — conditions routinely encountered in water treatment facilities, coastal installations, and dusty mineral processing plants. Its wide operating temperature range ensures consistent performance in both climate-controlled control rooms and field junction boxes exposed to ambient extremes.

For power generation and petrochemical applications where safety instrumented systems (SIS) operate in parallel with the DCS, the 2050RZ23002B supports clean signal separation between the process control loop and the safety loop. This separation is essential when the same field transmitter feeds both a DCS analog input card and a safety PLC input — a common architecture in burner management systems, emergency shutdown systems, and high-integrity pressure protection systems. Proper signal conditioning at this interface prevents a fault in one loop from propagating to the other, preserving the independence required by IEC 61511 functional safety standards.

Facilities managing long-term spare parts strategies for ABB DCS installations will find the 2050RZ23002B a practical stocking choice. Its compatibility with multiple ABB system generations — including System 800xA, Freelance, and legacy Advant platforms — means a single module type can serve as a cross-platform spare, reducing the number of distinct part numbers that maintenance teams must manage. Paired with ABB AI810 or AI820 analog input modules, ABB TB820 communication interfaces, and ABB SD821 or SD822 power supply units, the 2050RZ23002B forms part of a coherent, maintainable signal chain that can be documented, tested, and replaced by field technicians without specialized tooling.

Every 2050RZ23002B unit supplied by KNMKS undergoes pre-shipment functional verification, including signal path continuity checks, isolation resistance measurement, and surge protection integrity testing. Units are shipped with full traceability documentation and are backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Global shipping is available to support multi-site deployments and emergency spare parts requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for ABB DCS installations begins with reliable signal conditioning at every field interface. The 2050RZ23002B anchors this strategy by isolating field-side wiring from the DCS backplane, preventing ground faults and surge events from reaching sensitive I/O cards. In a typical System 800xA cabinet, the module is installed on the signal conditioning rail between field terminal blocks and ABB AI810 or AI820 analog input modules, ensuring that every 4–20 mA signal entering the DCS is clean, stable, and surge-protected before it reaches the controller.

Power supply integrity is equally critical. ABB SD821 and SD822 redundant power supply units provide the stable 24 VDC rail that the signal conditioning modules and I/O cards depend on. In high-availability installations, redundant power feeds with automatic switchover eliminate the single point of failure that an unprotected power supply represents. Alongside the power supply, ABB TB820 communication interface modules manage the PROFIBUS or Modbus links between the DCS controller and remote I/O stations — links that must remain stable even when field-side surge events occur.

For safety-critical loops, the signal path from the field transmitter through the 2050RZ23002B to the DCS analog input card must be documented and tested as part of the safety instrumented function (SIF) validation. In installations where the same transmitter also feeds a safety PLC — such as an ABB AC500-S safety controller — the signal conditioning module’s isolation barrier ensures that a fault on the DCS side cannot affect the safety channel. This architecture is standard practice in burner management, emergency shutdown, and high-integrity pressure protection applications.

Terminal block assemblies, cable shields, and grounding bars complete the cabinet protection picture. Proper shield grounding at a single point, combined with the galvanic isolation provided by the 2050RZ23002B, eliminates the ground loops that are the most common source of 4–20 mA signal noise in large industrial installations. Maintenance teams that standardize on the 2050RZ23002B as their signal conditioning spare can reduce cabinet downtime during fault diagnosis and module replacement, since the module’s standard form factor and wiring interface require no special tools or configuration procedures.

Critical Industrial Safety Applications

The ABB 2050RZ23002B is deployed across a wide range of critical industrial applications where signal integrity directly affects process safety and production continuity.

In petrochemical and refinery facilities, the module conditions analog signals from pressure transmitters, flow meters, and temperature sensors feeding DCS controllers that manage reactor temperature control, distillation column pressure regulation, and feed flow balancing. Signal drift or noise in these loops can trigger spurious shutdowns or, more dangerously, mask a genuine process deviation. The 2050RZ23002B’s galvanic isolation and surge protection ensure that the DCS receives accurate, stable signals regardless of the electrical noise generated by large motor drives and heat tracing systems in the same facility.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the module supports boiler drum level control, turbine speed monitoring, and generator excitation feedback loops. These are high-consequence control loops where signal errors translate directly into equipment damage or grid instability. The module’s wide operating temperature range and conformal coating make it suitable for installation in both air-conditioned control rooms and outdoor marshalling cabinets.

In mining and mineral processing operations, the 2050RZ23002B conditions signals from belt scale transmitters, slurry density meters, and flotation cell level sensors. The high vibration and dust levels in these environments make conformal coating and robust terminal connections essential. The module’s DIN-rail mounting and screw-terminal interface allow rapid replacement during planned maintenance shutdowns without requiring specialized technicians.

In water and wastewater treatment facilities, the module supports flow measurement, pH monitoring, and pump control loops. The humid, chemically aggressive environment in these plants demands the moisture resistance and corrosion protection that the 2050RZ23002B’s sealed construction provides.

In port and logistics automation, the module conditions signals from crane load cells, conveyor speed sensors, and positioning encoders feeding DCS or PLC controllers. The combination of high mechanical vibration, salt air corrosion, and variable power quality in port environments makes robust signal conditioning a maintenance priority rather than an afterthought.

Safety and Quality FAQ

Q: What support terms does the ABB 2050RZ23002B carry?
A: Every unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed promptly with replacement units dispatched from stock to minimize your downtime.

Q: What pre-shipment testing is performed on each unit?
A: Each 2050RZ23002B undergoes signal path continuity verification, galvanic isolation resistance measurement, and surge protection integrity testing before dispatch. Test records are available upon request for quality documentation purposes.

Q: Is the 2050RZ23002B compatible with legacy ABB DCS systems?
A: Yes. The module is compatible with ABB System 800xA, Freelance, Advant OCS, and MOD 300 platforms. It provides a functionally equivalent signal path to legacy ABB DSTD 150 and DSTD 108 isolators, making it a reliable replacement for aging signal conditioning components in existing cabinets.

Q: Is long-term supply availability assured for this module?
A: KNMKS maintains stock of the 2050RZ23002B to support both immediate replacement requirements and long-term spare parts programs. We supply globally and can accommodate scheduled procurement for multi-site maintenance contracts. Contact admin@knmks.com or +86 18359268345 to discuss your supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

2050RZ23002B

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 2050RZ23002B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
