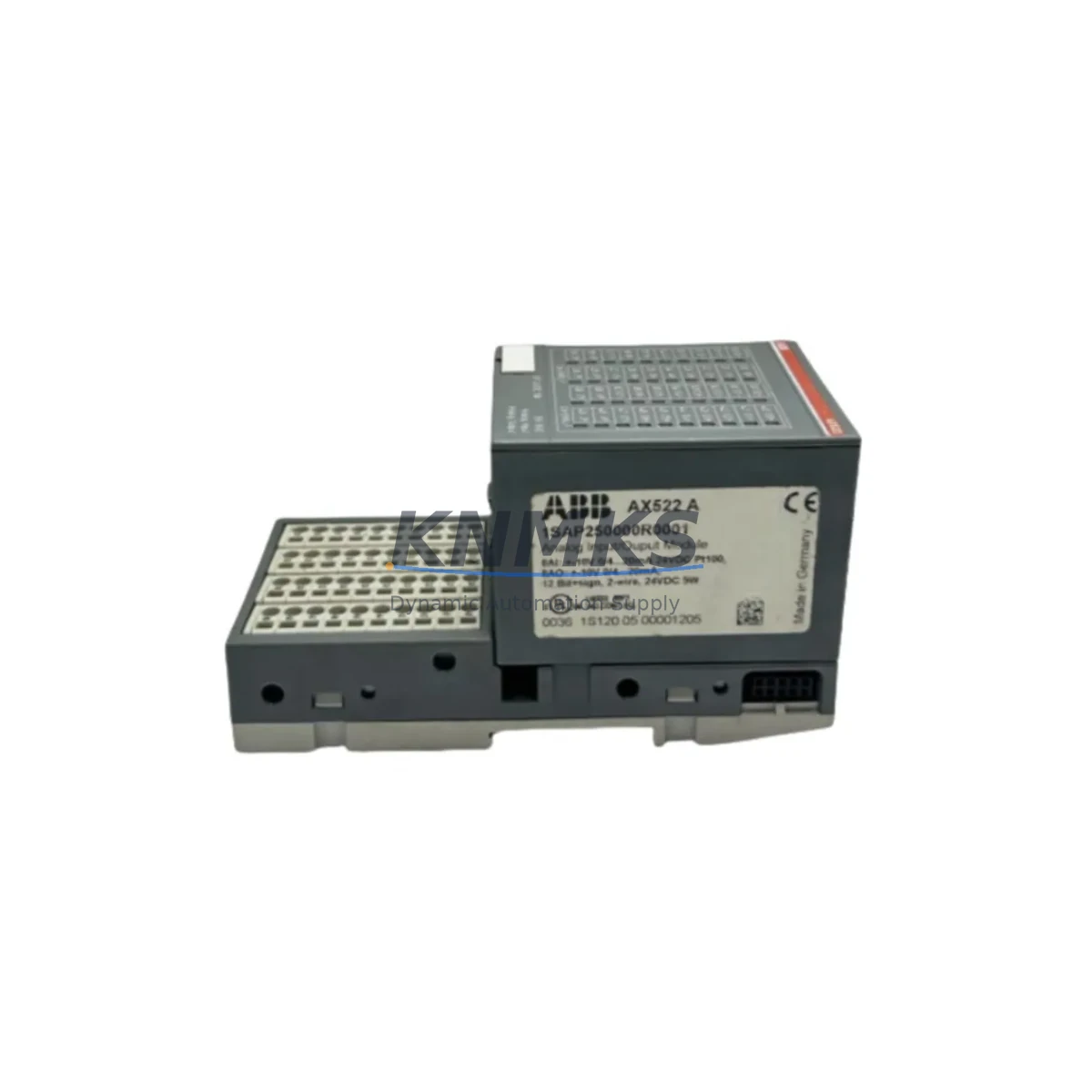

ABB 1SAP250000R0001 Migration-Ready Digital Input Module

Overview

ABB 1SAP250000R0001 Migration-Ready Digital Input Module: Legacy System Migration and Compatible Upgrade

The ABB 1SAP250000R0001 (AX522) is a 16-channel 24 VDC digital input module designed for the AC500 S500 I/O platform. As legacy AC500 installations age and original spare parts become increasingly difficult to source, the 1SAP250000R0001 serves as a verified migration-ready replacement that preserves existing wiring topology, module addressing, and PLC program logic without requiring a full system redesign. Whether you are managing a planned control cabinet upgrade or responding to an unplanned failure of a discontinued input module, this unit provides a direct-fit solution with minimal commissioning overhead.

For maintenance engineers working on brownfield sites, the AX522 module slots directly into the S500 expansion rack alongside existing components such as the AX521 digital output module and the AX561 analog input module, eliminating the need to reconfigure the backplane or modify the CPU addressing table. The module communicates over the S500 I/O bus and is fully compatible with the AC500 PM5xx and PM5xx-ETH CPU families, meaning existing CODESYS-based programs compiled for the original hardware can be reloaded without structural modification. This is a critical advantage when downtime windows are measured in hours rather than days.

Before installing the 1SAP250000R0001 as a replacement for a discontinued or failed input module, field engineers should verify the following parameters: terminal wiring polarity and cable cross-section compatibility with the 16-point terminal block, available 24 VDC supply capacity from the PS501 or PS502 power supply module feeding the rack, module slot address assignment in the hardware configuration tree, firmware version of the AC500 CPU to confirm I/O driver compatibility, and physical installation clearance within the control cabinet for heat dissipation. These checks are standard practice for any S500 I/O retrofit and can typically be completed within a single shift when documentation is available.

In multi-rack configurations where the S500 I/O bus is extended via a TB521 or TB523 bus terminal, the 1SAP250000R0001 integrates without additional configuration steps. The module’s diagnostic LED indicators provide real-time channel status feedback, which simplifies fault isolation during commissioning and reduces the time required to validate signal integrity across all 16 input channels. For sites running PROFIBUS or Modbus RTU communication alongside the S500 I/O bus, no protocol migration is required when substituting this module for an equivalent legacy unit.

HMI screens built on CP600 or CP400 operator panels that reference digital input tags mapped to the original module will continue to function correctly after replacement, provided the tag addresses are preserved in the CPU configuration. This is particularly important in process industries where HMI alarm logic and interlock displays are tied directly to specific I/O channel addresses. Retaining the original addressing structure eliminates the need for HMI project modifications and reduces the risk of introducing new faults during the migration window.

All units supplied by KNMKS are tested prior to shipment to confirm channel response, input threshold voltage, and bus communication integrity. Stock is maintained in regional warehouses to support urgent replacement requirements with short lead times. Each module is covered by a support terms confirmed by quotation against manufacturing defects, providing procurement teams with the assurance needed to approve the purchase as a long-term spare or immediate replacement unit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 1SAP250000R0001 into an existing AC500 control system begins with a structured review of the current rack layout and I/O assignment map. In most S500 installations, the digital input module occupies a fixed slot position that determines its logical address in the CPU’s hardware configuration. Before removing the failed or discontinued module, engineers should document the slot number, the associated I/O address range, and the terminal wiring diagram to ensure the replacement unit is installed in the identical position.

Power budget verification is a mandatory step in any S500 rack retrofit. The PS501 or PS502 power supply module feeding the rack must have sufficient residual capacity to support the 1SAP250000R0001 alongside other installed modules such as the AX532 digital output module or the AX542 analog output module. Exceeding the rack’s power budget can cause intermittent faults that are difficult to diagnose in the field. A simple current audit of all installed modules against the power supply’s rated output resolves this risk before the replacement module is energized.

For control cabinets that include a CM572-DP PROFIBUS master module or a CM589-PNIO PROFINET interface module, the addition or replacement of an S500 I/O module does not affect the fieldbus configuration, since the S500 I/O bus operates independently of the fieldbus layer. This separation simplifies the retrofit process and allows the digital input replacement to proceed without involving the network administrator or modifying the fieldbus device list in the SCADA or DCS host system.

Where the control system includes a CI590-CS31-HA CS31 bus coupler for remote I/O expansion, engineers should confirm that the replacement module’s I/O address does not conflict with addresses assigned to remote I/O nodes. Address conflicts are a common source of commissioning delays in multi-rack AC500 installations and can be avoided by reviewing the complete hardware configuration in the CODESYS programming environment before the physical installation begins. Once the 1SAP250000R0001 is installed and the CPU is powered, the diagnostic LEDs on the module provide immediate confirmation of bus communication and channel status, allowing the commissioning engineer to validate all 16 input channels against the field wiring within a single test cycle.

Downtime Control During System Migration

Minimizing unplanned downtime during a digital input module replacement requires preparation that begins before the maintenance window opens. The most effective approach is to pre-configure the replacement 1SAP250000R0001 offline by confirming its compatibility with the existing CPU firmware version and verifying that the CODESYS hardware configuration file correctly identifies the AX522 module type in the target slot. When this preparation is complete, the physical swap can be executed in under 30 minutes for a standard S500 rack installation.

To protect the original program logic during the migration, engineers should create a verified backup of the AC500 CPU program and hardware configuration before beginning any physical work. This backup serves as the recovery baseline if an unexpected issue arises during commissioning. In installations where the CPU supports online change functionality, it may be possible to perform the module replacement without a full CPU restart, further reducing the impact on the production process.

Field control continuity during the migration window can be maintained by placing the affected control loop in manual mode at the DCS or SCADA level before removing the failed module. This prevents the control system from generating spurious alarms or executing unintended actuator commands while the input channel is offline. Once the 1SAP250000R0001 is installed and all 16 channels are confirmed active via the diagnostic LEDs, the control loop can be returned to automatic mode and the migration is complete. The entire process, from cabinet access to loop restoration, is typically achievable within a single planned maintenance shift when the replacement module is available on-site.

Retrofit Support FAQ

Q1: Is the 1SAP250000R0001 a direct replacement for other discontinued ABB S500 digital input modules?
The AX522 (1SAP250000R0001) is the current production digital input module for the AC500 S500 I/O platform and serves as the replacement for earlier S500 digital input variants that share the same backplane interface and addressing structure. Compatibility should be confirmed against the specific part number being replaced by reviewing the AC500 S500 I/O system manual or contacting KNMKS technical support with the original module’s part number.

Q2: Can I reuse the existing terminal wiring when installing the 1SAP250000R0001?
In most cases, yes. The AX522 uses a standard 16-point terminal block that is compatible with the wiring conventions used across the S500 I/O range. Engineers should verify cable cross-section, polarity, and terminal torque specifications against the module’s installation datasheet before reconnecting field wiring to ensure signal integrity and compliance with the original design documentation.

Q3: What pre-shipment testing is performed on each unit?
Every 1SAP250000R0001 supplied by KNMKS is tested prior to dispatch to verify channel response across all 16 inputs, input threshold voltage compliance, and S500 I/O bus communication integrity. Test results are available on request. Each unit is shipped with a support terms confirmed by quotation covering manufacturing defects, and stock is maintained in regional warehouses to support urgent replacement requirements.

Q4: Do I need to modify my CODESYS program after replacing the module?
No program modification is required if the replacement 1SAP250000R0001 is installed in the same rack slot as the original module and the CPU hardware configuration correctly identifies the AX522 module type. The existing I/O address mapping, variable declarations, and program logic remain valid. A full program download or online change may be required depending on the CPU’s current operating state, but no structural changes to the application code are necessary.
