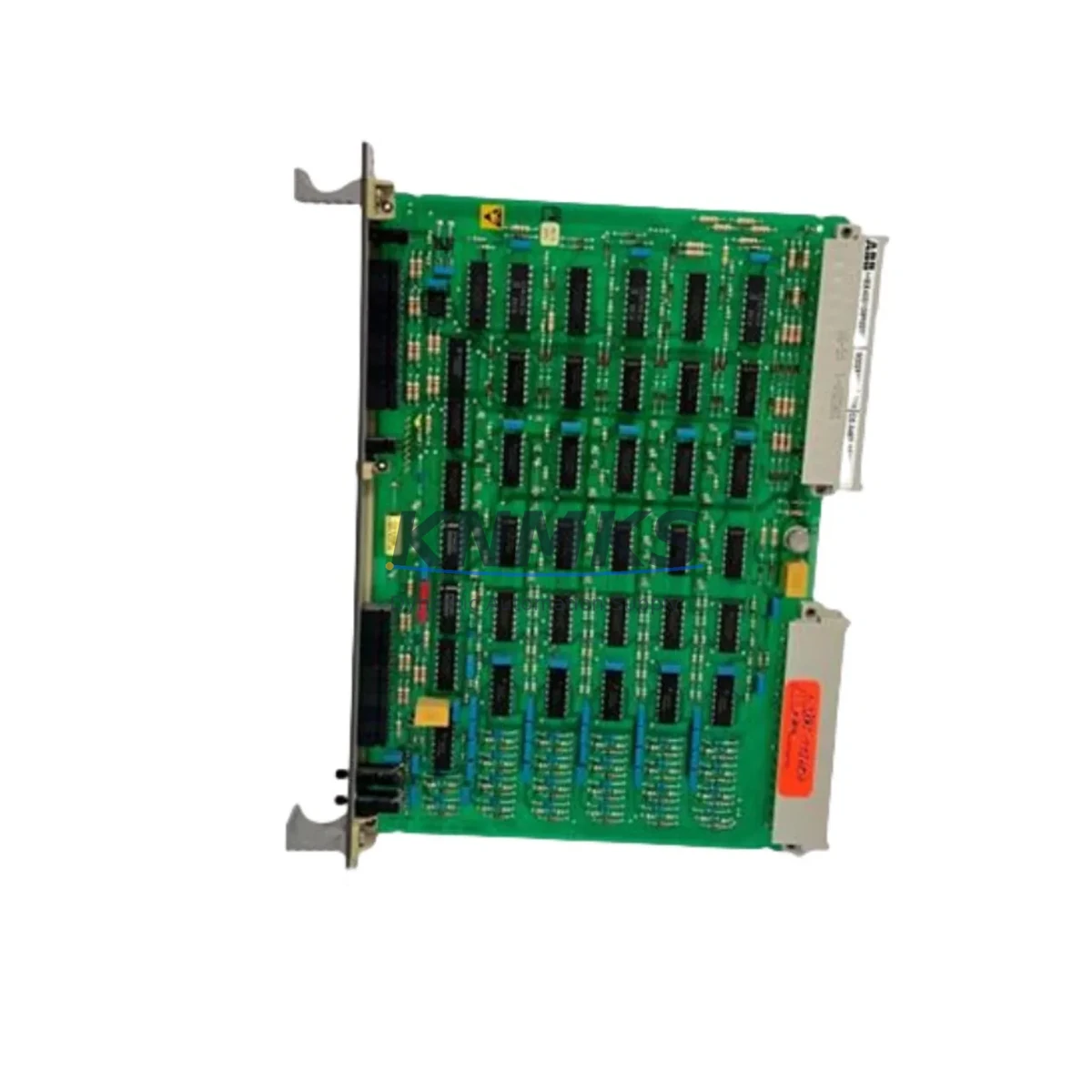

ABB 1KHL015502R0004 Migration-Ready I/O Coupler for Legacy Systems

Overview

ABB 1KHL015502R0004 Migration-Ready I/O Coupler for Legacy Control Systems

The ABB 1KHL015502R0004 (N4BDTEBIT) is a migration-ready I/O coupler module engineered for the AC500 PLC platform, purpose-built to address the growing demand for reliable spare parts and drop-in replacements in aging distributed control architectures. As industrial facilities face increasing pressure to extend the operational life of legacy automation systems — or execute structured migrations to modern control platforms — this module provides a verified, field-tested solution that minimizes engineering risk and reduces unplanned downtime.

Originally designed for high-density I/O expansion within ABB’s AC500 ecosystem, the 1KHL015502R0004 serves as a direct replacement for discontinued coupler variants across multiple AC500 sub-series. Its compact form factor, standardized backplane interface, and broad firmware compatibility make it a preferred choice for maintenance engineers managing retrofit projects across process industries, power generation, water treatment, and discrete manufacturing environments.

When integrating this module into an existing control cabinet, engineers must confirm several critical parameters before commissioning: the available 24 VDC power budget on the I/O rail, terminal block wiring assignments relative to the legacy coupler’s pinout, backplane slot addressing and module position within the AC500 rack, and the firmware revision loaded on the CPU module — typically a PM573, PM583, or PM595 — to ensure full register-map compatibility. Mismatched firmware versions between the CPU and coupler can result in communication faults that are difficult to diagnose without a reference configuration backup.

For sites running PROFIBUS DP or Modbus RTU communication links, the 1KHL015502R0004 maintains protocol transparency, allowing existing HMI screen mappings and SCADA tag databases to remain intact without reprogramming. This is particularly valuable in brownfield upgrades where the CP600 or CP620 HMI panels are retained and only the I/O layer is being refreshed. Engineers should verify that the GSD file version registered in the PROFIBUS master configuration matches the module’s hardware revision to avoid address conflicts during network initialization.

Installation space confirmation is a non-negotiable step in retrofit planning. The 1KHL015502R0004 occupies a standard AC500 I/O slot and is mechanically compatible with TB521, TB523, and TB541 terminal base units. If the existing cabinet layout uses a mixed-rack configuration alongside analog input modules such as the AI523 or digital output modules such as the DO523, slot sequencing must be preserved to maintain the I/O address map defined in the original Control Builder Plus project. Any deviation in slot order will require a full address remapping and program re-download, significantly extending the commissioning window.

For projects involving communication protocol migration — for example, transitioning from a legacy serial RS-485 link to an Ethernet-based PROFINET topology — the 1KHL015502R0004 can be deployed as a stable I/O anchor point while the communication layer is upgraded in parallel. This phased approach allows the field I/O to remain operational during the network transition, reducing the risk of a full-system outage. In such scenarios, the CM589-PNIO PROFINET communication module or the CM572-DP PROFIBUS master module may be introduced into the same rack to handle the new communication stack without disrupting existing I/O assignments.

All units supplied by KNMKS are sourced from authorized distribution channels or verified surplus stock, subjected to incoming inspection, functional power-on testing, and outgoing quality verification prior to shipment. Each 1KHL015502R0004 module is covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. Expedited shipping is available for emergency breakdown situations, with same-day dispatch for in-stock units confirmed before 14:00 CST.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing control cabinet. Before the 1KHL015502R0004 is physically installed, the engineering team should document the current rack layout, including the position of every module in the AC500 chassis. In a typical mid-size process control panel, this may include a PM583 or PM595 CPU module, one or more AI523 analog input modules, DO523 digital output modules, and a CM572-DP PROFIBUS master for field device communication. Each of these components has a fixed address assignment in the Control Builder Plus project, and any disruption to the slot sequence will cascade into I/O mapping errors that require a full program re-download and re-verification.

Power budget analysis is equally critical. The I/O rail supplying the 1KHL015502R0004 must have sufficient current headroom after accounting for all co-installed modules. If the existing PS501 or PS502 power supply unit is already operating near its rated output, adding or replacing a coupler module without recalculating the load distribution can result in intermittent undervoltage faults — a failure mode that is notoriously difficult to reproduce during bench testing but appears reliably under full-load field conditions.

For sites where the control system communicates with field instruments via a PROFIBUS DP segment, the replacement procedure must include a GSD file audit. The PROFIBUS master — typically the CM572-DP — maintains a configuration database that maps each slave device to a specific station address. When the 1KHL015502R0004 is introduced as a replacement, the GSD file associated with the new hardware revision must be imported into the master configuration and the slave address re-confirmed. Failure to update the GSD file is one of the most common causes of post-replacement communication faults in PROFIBUS-based AC500 installations.

Where the retrofit scope extends to the HMI layer, engineers working with CP600 or CP620 operator panels should export and archive the existing panel project before any hardware changes are made. If the I/O address map is preserved — which is achievable when the 1KHL015502R0004 is installed in the same slot as its predecessor — the HMI project requires no modification, and the operator interface will resume normal operation immediately after the CPU re-establishes communication with the refreshed I/O layer. This zero-HMI-rework outcome is one of the primary advantages of selecting a migration-ready replacement module over a cross-brand alternative that would require full tag remapping.

Downtime Control During System Migration

Minimizing production downtime during a module replacement is the single most important operational constraint in any brownfield retrofit. For the 1KHL015502R0004, the recommended approach is a pre-staged swap procedure: the replacement module is configured, addressed, and bench-tested against a copy of the live Control Builder Plus project before the maintenance window begins. This pre-staging step eliminates the most time-consuming phase of the replacement — firmware verification and address configuration — from the critical path of the actual shutdown.

During the maintenance window itself, the sequence should follow a strict protocol: first, export and archive the current CPU program and I/O configuration; second, power down the I/O rail in a controlled sequence that preserves the CPU’s last-known state in non-volatile memory; third, physically swap the coupler module and verify mechanical seating on the terminal base; fourth, restore power and allow the CPU to re-establish communication with the I/O bus before initiating a warm restart. This sequence typically achieves a total swap time of 15 to 30 minutes for a single module replacement, well within the maintenance windows available in most continuous process environments.

For facilities that cannot tolerate any interruption to field control — such as those operating critical safety instrumented systems or continuous chemical processes — a parallel commissioning approach is available. In this configuration, the 1KHL015502R0004 is installed in a shadow rack alongside the live system, and I/O signals are mirrored via signal isolators until the replacement module is fully verified. Once verification is complete, the cutover is executed as a single, instantaneous switchover rather than a sequential replacement, reducing the actual control interruption to seconds rather than minutes.

Post-replacement, a structured commissioning checklist should be completed before returning the system to automatic control: verify all I/O channel assignments against the original wiring schedule, confirm PROFIBUS or Modbus communication status on the CPU diagnostic display, validate HMI tag readings against field instrument values, and document the firmware versions of all modules in the refreshed rack for future maintenance reference. KNMKS provides pre-shipment functional test reports for all 1KHL015502R0004 units upon request, which can be used as a baseline reference during post-installation commissioning.

Retrofit Support FAQ

Q1: Is the 1KHL015502R0004 a direct drop-in replacement for earlier AC500 I/O coupler variants?
In most AC500 installations, yes. The 1KHL015502R0004 uses the standard AC500 backplane interface and is mechanically compatible with TB521, TB523, and TB541 terminal bases. However, engineers should verify the firmware version on the host CPU (PM573, PM583, or PM595) and confirm that the GSD file version matches the module’s hardware revision before installation. KNMKS can provide hardware revision documentation upon request to support pre-installation compatibility verification.

Q2: What pre-shipment testing is performed on each unit?
Every 1KHL015502R0004 unit dispatched by KNMKS undergoes incoming inspection, functional power-on testing, and outgoing quality verification. A test report is available upon request and can be used as a commissioning baseline. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions.

Q3: Can this module be used in a PROFINET-based AC500 system, or is it limited to PROFIBUS DP?
The 1KHL015502R0004 operates on the AC500 internal I/O bus and is independent of the fieldbus communication layer. It can coexist in the same rack with a CM589-PNIO PROFINET communication module or a CM572-DP PROFIBUS master without conflict. The choice of fieldbus protocol is determined by the communication module installed in the CPU slot, not by the I/O coupler itself.

Q4: What is the typical lead time, and is emergency stock available?
KNMKS maintains regional inventory of the 1KHL015502R0004 to support emergency breakdown situations. In-stock units are available for same-day dispatch for orders confirmed before 14:00 CST. For planned maintenance programs or blanket stock agreements, contact our sales team to discuss reserved inventory arrangements and volume pricing. All inquiries are handled within one business day.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

1KHL015502R0004(N4BDTEBIT)
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 1KHL015502R0004(N4BDTEBIT)
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
