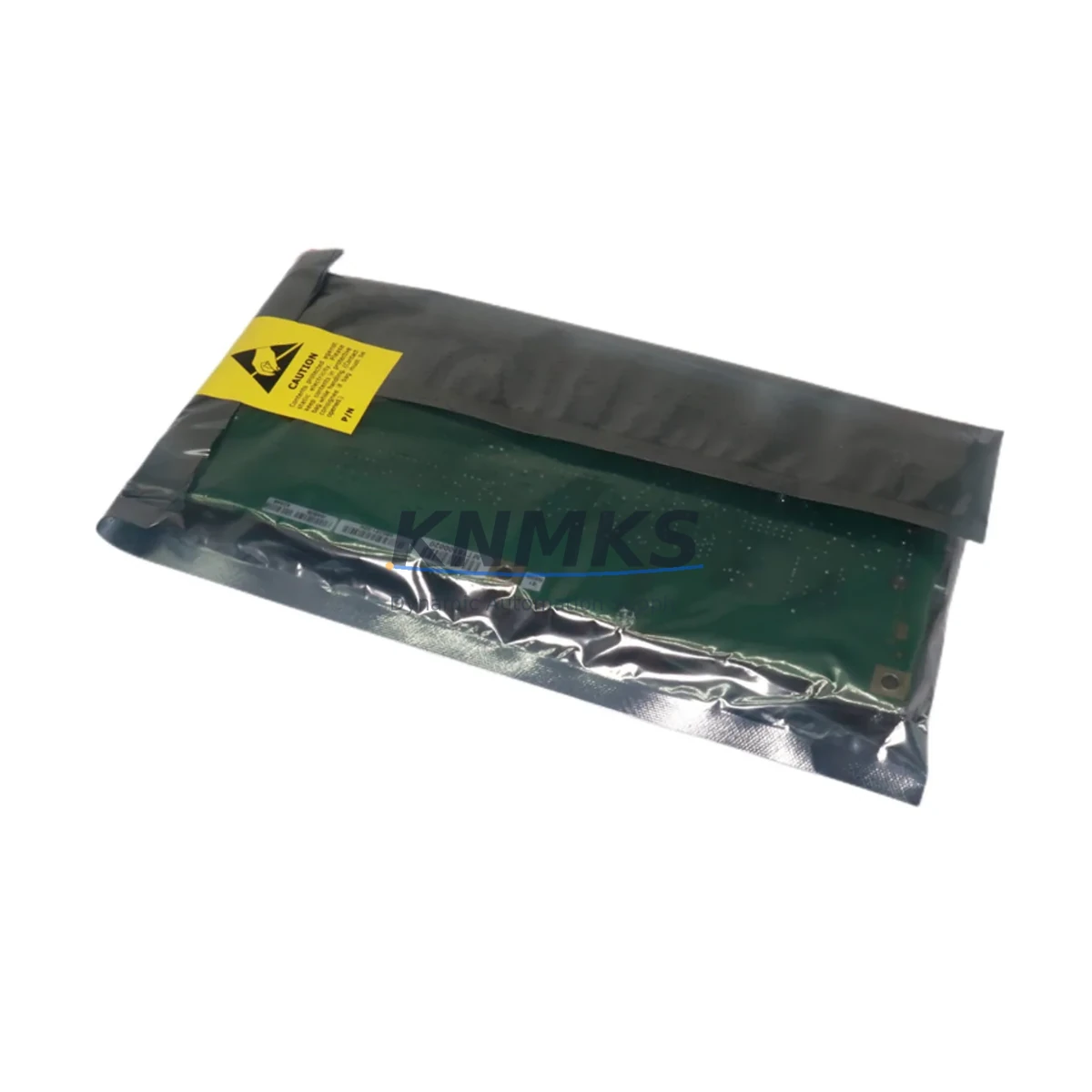

ABB 086351-504 Retrofit-Ready Drive Control for ACS Control Systems

Overview

ABB 086351-504 Retrofit-Ready Drive Control for ACS Control Systems

The ABB 086351-504 is a migration-ready drive control board engineered for direct replacement of the discontinued 086351-004 in ABB ACS series variable frequency drive (VFD) systems. As legacy ACS drives approach end-of-service milestones, plant engineers and system integrators face increasing pressure to source verified replacement boards that maintain full electrical and functional compatibility without requiring extensive reprogramming or mechanical modification. The 086351-504 addresses this challenge by preserving the original backplane interface, terminal layout, and firmware handshake protocol of its predecessor, enabling controlled, low-risk retrofits across a wide range of installed ACS drive platforms.

Before initiating a replacement, engineers should confirm the power supply rail voltages feeding the control board — typically 24 VDC auxiliary and the internal SMPS outputs — to ensure the new board operates within its rated input tolerance. Terminal wiring assignments on the 086351-504 are pin-compatible with the 086351-004, but field teams should cross-reference the existing wiring diagram against the updated terminal block layout to catch any revision-level differences introduced in later manufacturing runs. Backplane connector seating should be verified with the drive chassis powered down and locked out, and the module address configuration — where applicable in multi-drive cabinet arrangements — must be confirmed before energization.

Program logic compatibility is a critical checkpoint in any ACS drive retrofit. If the existing application program was developed on an older ACS firmware version, the replacement board’s firmware revision should be verified against the drive’s parameter set before the first test run. In installations where an ABB Panel Bus or DDCS fiber-optic communication link connects the drive to a supervisory PLC or DCS, the communication module — such as an RDCO-02 or RDCO-04 option board — must remain seated and its address settings preserved throughout the swap. HMI screen parameter mappings tied to drive-specific parameter numbers should be reviewed to confirm that any parameter index changes between firmware versions do not cause display errors or control faults after the board is replaced.

Physical installation space within the drive cabinet should be measured prior to ordering. The 086351-504 conforms to the same form factor as the 086351-004, but cabinet configurations that have been modified for additional I/O expansion — for example, through the addition of an RAIO-01 analog I/O extension module or an RDIO-01 digital I/O extension module — may have reduced clearance around the control board slot. Confirm that all option modules are fully removed before extracting the legacy board, and reinstall them in sequence after the new board is seated and secured.

For installations where the ACS drive interfaces with a Profibus DP network via an RPBA-01 adapter or a DeviceNet network via an RDNA-01 adapter, the communication protocol configuration stored in the drive’s parameter memory must be backed up before the board swap. After installation, the communication link should be re-established and verified at the network master before returning the drive to automatic control. In multi-drive systems sharing a common DC bus or operating in master-follower configurations, the follower drive’s control board replacement should be completed and verified before the master drive is returned to service.

Downtime planning for a drive control board replacement in a continuous-process environment typically targets a two- to four-hour maintenance window, assuming the replacement board has been pre-tested, the wiring documentation is current, and a qualified drive technician is on site. Pre-shipment functional testing of the 086351-504 is performed at our facility before dispatch, covering power-up self-diagnostics, communication interface verification, and I/O channel continuity checks. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS drive control board retrofit begins well before the maintenance window opens. System integrators working on legacy production lines typically start by auditing the full drive cabinet bill of materials — identifying not just the control board but also the associated power supply module, I/O extension modules, and communication adapters that interact with it. In ACS drive cabinets, the AINT-02 or AINT-14 inverter control interface board often works in conjunction with the drive control board to manage the IGBT gate signals and DC bus feedback; confirming that these boards are in serviceable condition before replacing the control board avoids a second unplanned outage.

For plants running ABB AC500 or AC31 series PLCs as the supervisory controller, the drive control board replacement should be coordinated with the PLC program owner to ensure that any drive-specific function blocks or parameter polling routines are temporarily suspended during the swap. If the drive is connected to an ABB CP600 or CP620 HMI panel, the operator screen should be placed in manual override mode to prevent spurious alarms during the board replacement and re-commissioning sequence.

Signal isolation between the drive control board and field instrumentation — particularly for analog speed references and process feedback signals — should be verified using a signal isolator or loop calibrator before the drive is returned to automatic control. In installations where the 4–20 mA speed reference originates from a DCS analog output card, the signal continuity through the terminal strip and into the RAIO-01 analog I/O module should be confirmed with the drive in local control mode before switching to remote. Programming cables such as the OPCA-01 or a standard USB-to-RS232 adapter may be required to access drive parameters during commissioning if the Panel Bus link is not yet active.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive control board replacement requires a structured pre-work checklist and a clearly defined rollback plan. Before the maintenance window begins, the existing drive parameter set should be uploaded and saved using DriveWindow or Drive Composer software, creating a verified backup that can be restored if the replacement board exhibits unexpected behavior during commissioning. The backup file should include all application-specific parameter groups, communication settings, and any custom macro configurations that have been applied to the drive over its service life.

During the physical swap, the original board should be handled with ESD precautions and retained on site until the replacement board has completed its first full production cycle without fault. This provides a fallback option if a latent compatibility issue is discovered after the maintenance window closes. The replacement board’s firmware version should be recorded and compared against the drive’s existing parameter backup to identify any parameter index differences that may require manual correction before the drive accepts the restored parameter set.

After the board is installed and the drive is energized, the commissioning sequence should follow the drive manufacturer’s recommended startup procedure: verify power supply voltages, confirm communication link status, perform a no-load motor rotation test in local control, and then transfer to remote control with the process at minimum load before ramping to full production speed. This staged approach protects the original program logic, maintains field control continuity, and reduces the risk of a process upset during the transition from legacy to replacement hardware. With a pre-tested 086351-504 board and a current parameter backup in hand, most experienced drive technicians complete the full replacement and re-commissioning within a single four-hour shift.

Retrofit Support FAQ

Q: Is the ABB 086351-504 a direct drop-in replacement for the 086351-004?
A: Yes. The 086351-504 is the current production replacement for the discontinued 086351-004. It shares the same backplane connector, terminal layout, and form factor. Firmware and parameter index differences between production revisions should be verified before restoring a parameter backup from the legacy board.

Q: What pre-shipment testing is performed on the 086351-504?
A: Each unit undergoes functional testing at our facility prior to dispatch, including power-up self-diagnostics, communication interface verification, and I/O channel continuity checks. A test report is available upon request. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failures under normal operating conditions.

Q: Do I need to reconfigure the communication settings after replacing the board?
A: Communication settings stored in the drive’s parameter memory — including Profibus node address, DeviceNet MAC ID, or DDCS channel configuration — should be backed up before the board swap and verified after installation. Option boards such as the RPBA-01 or RDNA-01 retain their own configuration and do not need to be reprogrammed, but their connection to the new control board should be confirmed before the communication link is re-established.

Q: What is the typical lead time and do you maintain stock?
A: We maintain inventory of the 086351-504 to support urgent replacement requirements. Standard orders ship within 1–3 business days. For large-quantity orders or scheduled maintenance programs requiring multiple units, please contact our sales team to confirm availability and arrange priority allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

086351-504 086351-004
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 086351-504 086351-004
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
