ABB 086318-002 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 086318-002 Maintenance-Proven Spare Part for Factory Uptime

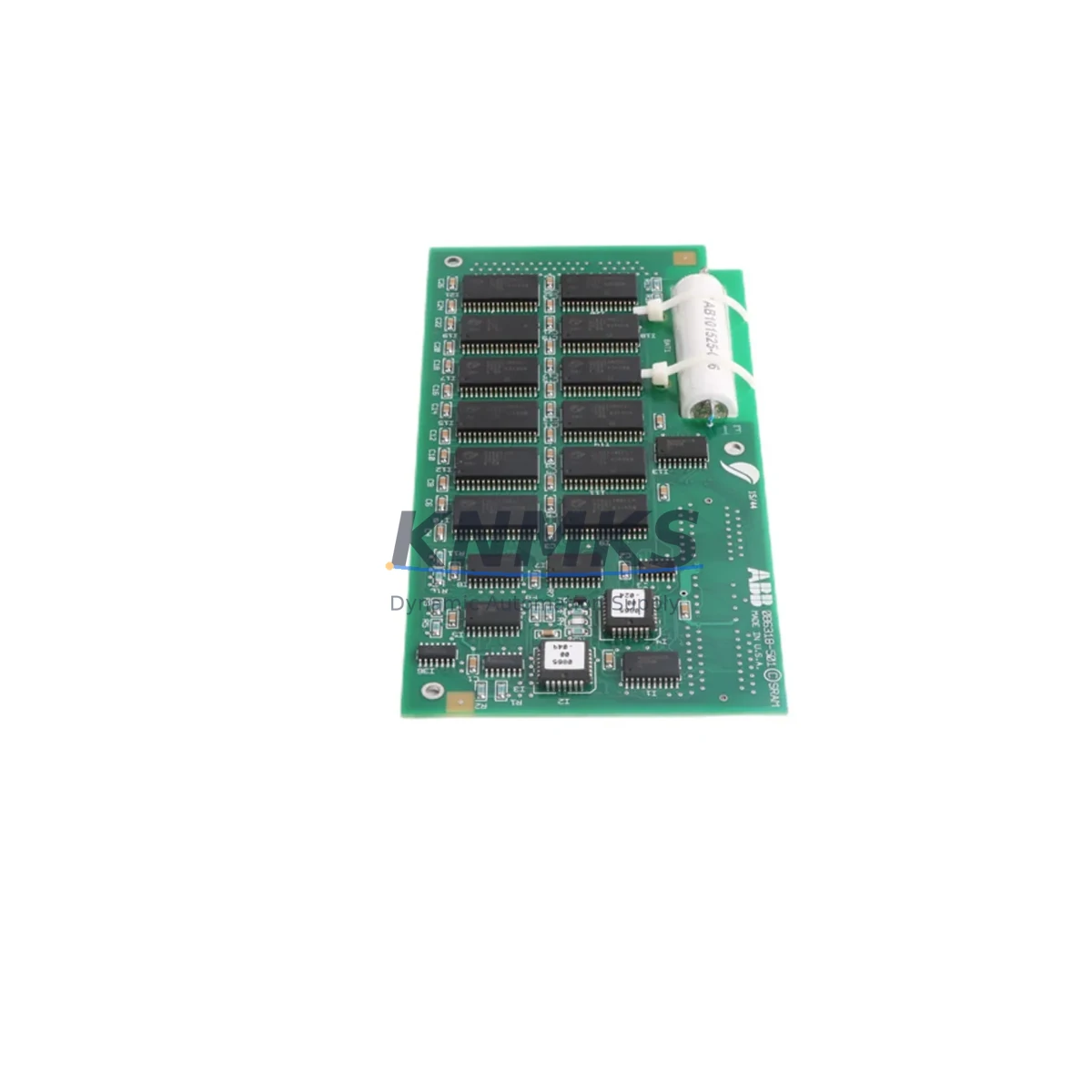

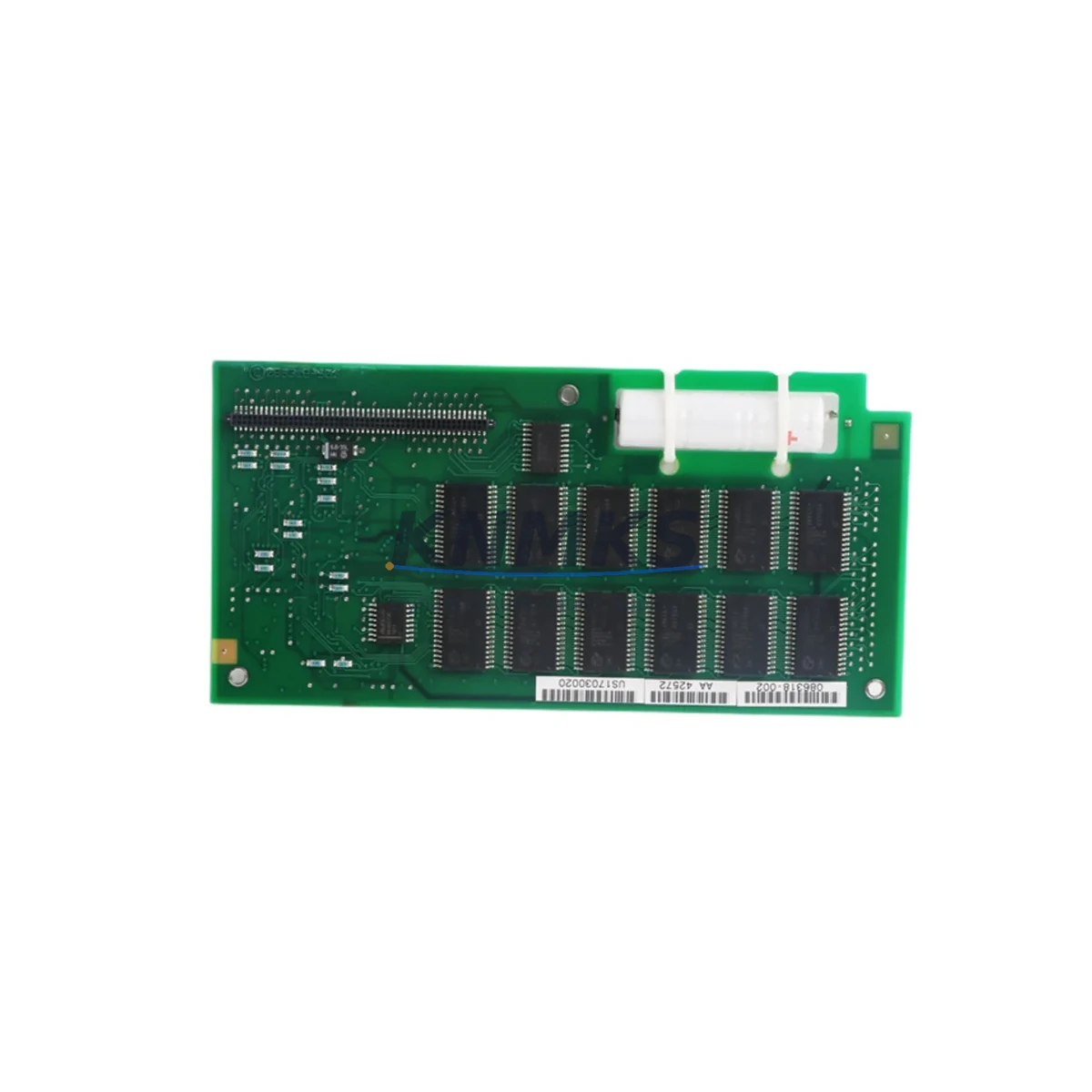

The ABB 086318-002 is an original drive control board engineered for continuous-duty industrial environments. Designed for integration within ABB’s ACS and DCS drive series, this control board serves as a critical spare component for maintenance engineers managing high-availability production lines, process automation systems, and motor drive cabinets. Whether you are executing a planned annual overhaul, responding to an unscheduled drive fault, or building a strategic spare parts inventory, the 086318-002 delivers the electrical reliability and OEM compatibility required to restore system operation with minimal downtime.

For maintenance and procurement engineers operating in sectors such as oil and gas, pulp and paper, metals processing, water treatment, and discrete manufacturing, sourcing a verified original ABB control board is non-negotiable. Counterfeit or incompatible boards introduce firmware mismatch risks, parameter loss, and potential drive damage. The 086318-002 supplied by KNMKS is sourced through authorized industrial channels, inspected prior to shipment, and backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a drive control board such as the ABB 086318-002 is identified as a fault point during routine diagnostics or emergency troubleshooting, experienced maintenance engineers know that the board itself is rarely the only component requiring attention. A systematic inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure a durable repair.

Begin by verifying the integrity of the drive’s internal switch-mode power supply (SMPS), which provides the 24 VDC logic rail to the control board. A degraded SMPS can cause intermittent control board resets, parameter corruption, or false fault codes that mimic board failure. If the SMPS output voltage is outside tolerance, replace it concurrently with the 086318-002 to avoid a repeat callout.

Next, inspect the I/O terminal blocks and signal wiring connected to the control board’s analog and digital input channels. Loose terminations, corroded contacts, or shielding failures on signal cables are common root causes of control board stress in industrial environments. For drives integrated into PROFIBUS or Modbus RTU networks, verify the communication module — such as the ABB RPBA-01 PROFIBUS adapter or RMBA-01 Modbus module — for firmware version compatibility with the replacement board.

The drive’s gate driver board and IGBT power module should also be inspected during any control board replacement. A shorted IGBT or degraded gate driver can send destructive voltage transients back to the control board, causing premature failure of the new spare. Similarly, check the DC bus capacitor bank for capacitance loss or ESR drift, particularly in drives that have been in service for more than five years.

For cabinet-level maintenance, inspect the 24 VDC auxiliary power supply feeding the control circuit, any signal isolators on analog feedback loops (4–20 mA current signals from sensors or transducers), and the fuse or circuit breaker protecting the control voltage circuit. An ABB S200 series miniature circuit breaker or equivalent DIN-rail protection device should be verified for correct rating and trip condition. Finally, if the drive interfaces with an ABB CP600 or CP400 series HMI panel, confirm that the HMI communication parameters are re-entered correctly after the control board swap, as some drive variants do not retain HMI configuration in non-volatile memory on the board itself.

Maintaining a minimum stock of one 086318-002 board per drive family in your spare parts cabinet — alongside a matched SMPS module, a communication adapter, and a set of I/O terminal blocks — is a recognized best practice for facilities with zero-tolerance downtime requirements.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the drive cabinet and apply LOTO per site safety procedures. Allow the DC bus to fully discharge (minimum 5 minutes after power-off, verify with a calibrated multimeter across the DC bus terminals).

Step 2 — Parameter Backup: Before removing the existing control board, use the ABB Drive Composer PC tool or the drive’s keypad to upload and save the full parameter set. Store the backup file with the equipment maintenance record. This step is critical — the 086318-002 ships without pre-loaded parameters.

Step 3 — Board Removal: Disconnect all ribbon cables, I/O connectors, and communication cables from the existing control board in sequence. Photograph the connector layout before disconnection. Remove the board from the drive chassis using the appropriate ESD-safe handling procedure.

Step 4 — Inspection of Mating Connectors: Inspect all connectors on the drive chassis side for bent pins, corrosion, or heat damage. Clean with contact cleaner if required. Do not install the new board into a chassis with damaged connectors.

Step 5 — Installation of ABB 086318-002: Seat the replacement board firmly into the chassis, reconnect all cables in reverse order of removal, and verify that all locking clips are engaged.

Step 6 — Parameter Restore and Commissioning: Re-energize the drive and restore the saved parameter set via Drive Composer or keypad upload. Perform a no-load test run, verify I/O signal mapping, confirm fieldbus communication status, and run a loaded test cycle before returning the drive to production service.

Step 7 — Documentation: Record the replacement in the equipment maintenance log, including the new board serial number, date of installation, and technician name. Update the spare parts inventory to trigger a replenishment order for the consumed 086318-002.

Spare Parts Support FAQ

Q1: Is the ABB 086318-002 compatible with both ACS and DCS series drives?
The 086318-002 is designed for use within ABB’s ACS and DCS drive platforms. Compatibility depends on the specific drive model and firmware revision. Before ordering, provide your full drive nameplate data (model number, firmware version, and serial number) to our technical team at admin@knmks.com for a compatibility confirmation. We do not recommend installing a control board without verifying the exact drive variant.

Q2: What pre-shipment testing is performed on the 086318-002?
Every unit undergoes a functional power-on test and signal integrity verification before dispatch. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement. All units are shipped in ESD-protective packaging with moisture barrier protection.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or use outside the specified operating environment. To initiate a support terms claim, contact admin@knmks.com with your order number, a description of the fault, and any available fault log data from the drive. We will arrange return shipping and provide a replacement or refund within the agreed service timeline.

Q4: Can KNMKS support long-term supply of the 086318-002 for multi-site maintenance programs?
Yes. KNMKS maintains stock of the ABB 086318-002 and can support blanket purchase orders, scheduled releases, and consignment stock arrangements for facilities with recurring spare parts requirements. For multi-site or multi-unit procurement, contact our sales team to discuss volume pricing, lead time commitments, and dedicated inventory reservation. Long-term supply agreements are available with fixed pricing for 12-month contract periods.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

086318-002

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 086318-002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
