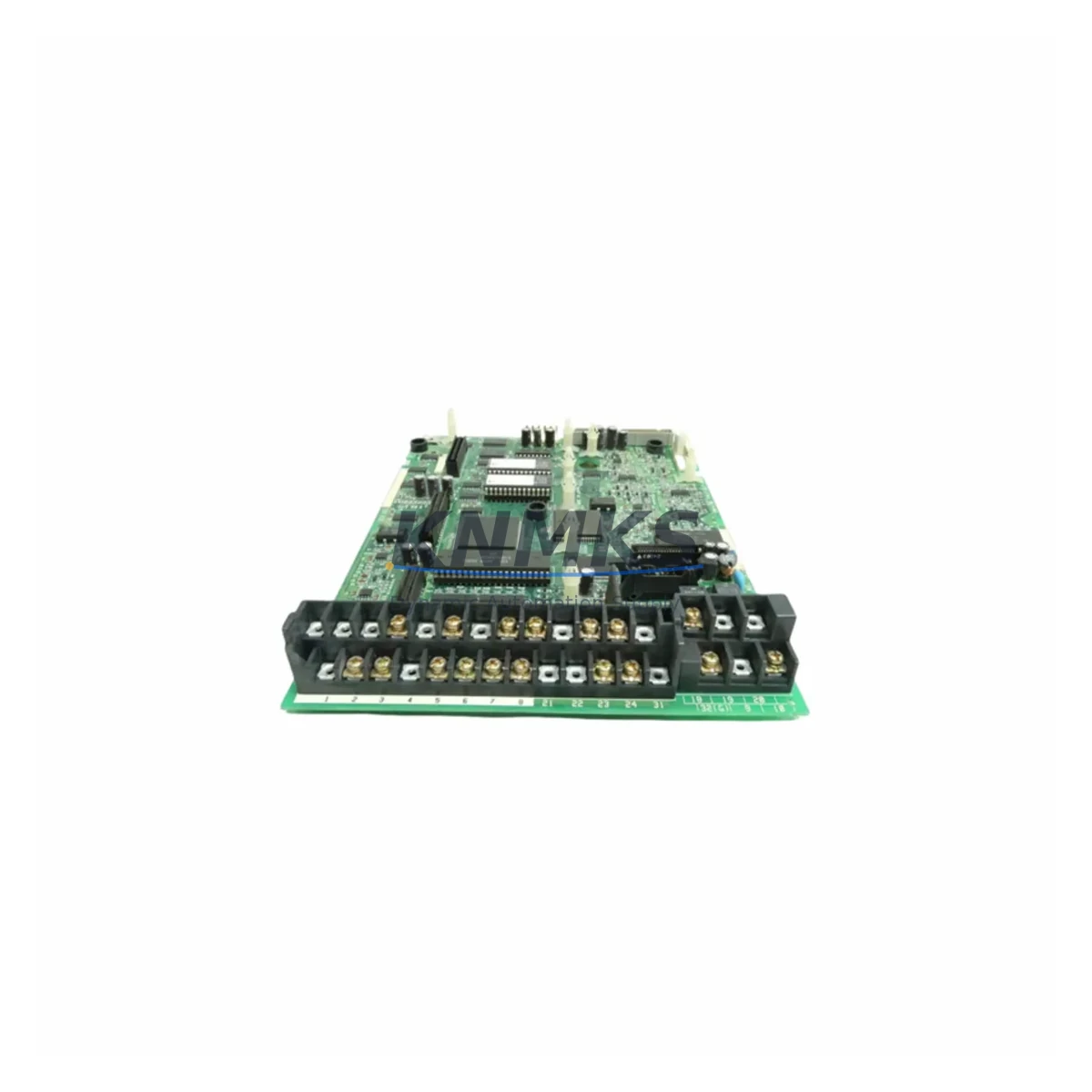

YASKAWA YPHT31359-1A Migration-Ready Control Board for Legacy Servo Systems

Overview

YASKAWA YPHT31359-1A Migration-Ready Control Board for Legacy Servo Systems

The YASKAWA YPHT31359-1A is a retrofit-ready servo drive control board engineered for direct replacement within the Sigma-Series servo drive platform. As legacy Sigma-I and Sigma-II servo drives approach end-of-service milestones, maintenance engineers and system integrators increasingly rely on verified replacement boards like the YPHT31359-1A to restore drive functionality without triggering a full system overhaul. This board supports the critical interface layer between the servo amplifier’s power stage and its command processing logic, making it a high-priority spare for any facility running YASKAWA-based motion control infrastructure.

When planning a board-level replacement, engineers must confirm power supply rail compatibility — the YPHT31359-1A operates within the internal DC bus architecture of the host drive and does not require external power conditioning. Terminal block pinout and ribbon cable connector positions must be verified against the original drive’s wiring diagram before installation. Backplane interface alignment is critical: the board seats into a fixed-position connector within the drive chassis, and any misalignment during insertion can damage the edge connector or corrupt firmware initialization on first power-up.

Module addressing is handled automatically by the drive’s internal firmware upon board recognition. However, if the host drive is integrated into a MECHATROLINK-II or MECHATROLINK-III motion network — common in multi-axis gantry and pick-and-place systems — the node address and axis assignment must be re-confirmed in the servo parameter table (Pn settings) after board swap. Drives communicating via EtherCAT or PROFINET in newer hybrid installations may require a parameter upload from the YASKAWA SigmaWin+ programming tool to restore the original axis configuration.

HMI screen mapping should be reviewed if the replaced drive feeds position feedback to a YASKAWA MP3000 or MP2000 series machine controller, or if the axis is monitored through a third-party SCADA panel. Encoder feedback wiring — typically a 2500 PPR or 17-bit serial encoder — must remain intact and shielded to prevent noise-induced position errors after the board is seated. In installations where the SGDV or SGDH servo amplifier chassis is retained, the YPHT31359-1A integrates without mechanical modification, preserving the original installation footprint and DIN rail or panel-mount configuration.

For facilities managing a broader servo system migration, the YPHT31359-1A is frequently sourced alongside the YASKAWA SGDV-R70A01A servo amplifier as a matched replacement pair, the JZRCR-NPP01B regenerative resistor unit for high-inertia axis applications, and the JUSP-NS600 MECHATROLINK-II option card where network communication modules require simultaneous replacement. In multi-axis cabinets, the SGDV-2R8A01A and SGDV-5R5A01A amplifier variants share compatible control board architecture, allowing a single YPHT31359-1A stock position to cover multiple axis ratings within the same control cabinet.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for YPHT31359-1A deployment begins with a full audit of the existing servo drive cabinet. Engineers should document the current Pn parameter set using SigmaWin+ before any hardware is disturbed — this backup is essential for restoring axis tuning, torque limits, speed references, and I/O signal assignments after the board swap. In cabinets where multiple servo axes share a common 24VDC control power bus, the power supply module capacity must be verified to confirm it can sustain inrush current during simultaneous drive initialization after maintenance.

Terminal wiring for the control signal connector — including forward/reverse run commands, servo-on signal, alarm output, and encoder Z-phase — should be photographed and labeled before disconnection. In older installations using the SGDH amplifier series, the CN1 and CN2 connector pinouts differ from the SGDV series, and any wiring adapter or breakout board in the signal path must be retained or replaced in kind. Where a JUSP-NS600 or JUSP-NS115 communication option card is installed in the drive, it should be removed and reseated after the YPHT31359-1A is installed to ensure proper board-to-option-card handshake on power-up.

I/O expansion modules connected to the servo system — such as digital input/output terminal blocks on the machine controller side — do not require reconfiguration if the axis address and parameter set are correctly restored. However, if the system uses a YASKAWA MP3000 series controller with a 218IF-01 or 260IF-01 motion module, the axis definition file in the controller project should be verified to confirm it references the correct servo axis number and communication cycle time after the board replacement.

Downtime Control During System Migration

Minimizing production downtime during a YPHT31359-1A board swap requires pre-staging all replacement components and tools before the maintenance window opens. The board should be removed from anti-static packaging only at the point of installation, and all ESD precautions — wrist strap, grounded mat — must be observed throughout the procedure. A pre-tested, pre-configured spare board reduces commissioning time from hours to minutes: the YPHT31359-1A supplied by KNMKS undergoes functional verification prior to shipment, confirming that the board initializes correctly and communicates with the drive’s power stage before it leaves the warehouse.

To protect original program logic, the SigmaWin+ parameter backup file should be loaded onto the replacement board immediately after installation, before the drive is powered up in servo-on state. This preserves all tuning parameters, I/O assignments, and communication settings, eliminating the need for field re-tuning in most standard replacement scenarios. If the drive is part of a synchronized multi-axis motion sequence, the axis should be brought online in manual jog mode first to confirm encoder feedback and direction of rotation before returning it to automatic program control. This staged commissioning approach maintains field control continuity and reduces the risk of axis collision or program fault during the first automatic cycle after maintenance.

Retrofit Support FAQ

Q: Is the YPHT31359-1A a direct replacement for the original YASKAWA control board in the SGDH and SGDV series?
A: Yes. The YPHT31359-1A is designed as a board-level replacement for the Sigma-Series servo drive control board. It matches the original connector layout and backplane interface. Parameter restoration via SigmaWin+ is recommended after installation to confirm all axis settings are correctly applied.

Q: What commissioning steps are required after installing the YPHT31359-1A?
A: After seating the board, restore the Pn parameter backup using SigmaWin+, verify the encoder feedback signal, confirm the node address on the MECHATROLINK or EtherCAT network, and perform a manual jog test before returning the axis to automatic operation. HMI screen mapping should also be checked if the axis feeds a position display or alarm panel.

Q: Does KNMKS provide pre-shipment testing for the YPHT31359-1A?
A: Yes. Every YPHT31359-1A unit is functionally tested prior to shipment to confirm board initialization and power stage communication. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the YPHT31359-1A?
A: The YPHT31359-1A is maintained in multi-region stock to support emergency replacement requirements. Standard orders ship within 1–3 business days. For urgent requirements, contact the sales team directly to confirm same-day dispatch availability from the nearest stocking location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

YASKAWA
Assorted Brands

Model / Series

YPHT31359-1A
Assorted Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: YASKAWA YPHT31359-1A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
