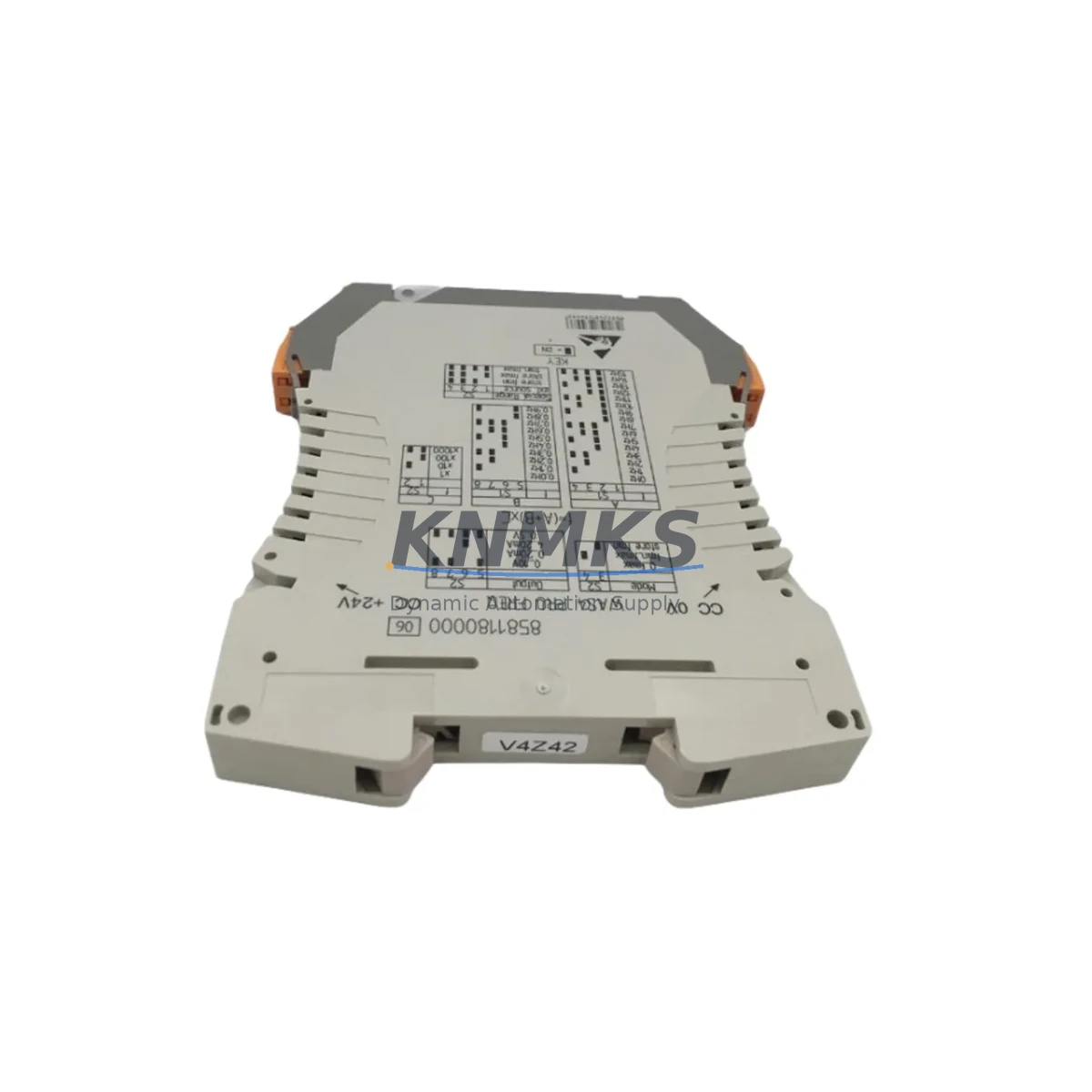

WEIDMULLER 8581180000 ACT20X Migration-Ready Signal Isolator

Overview

WEIDMULLER 8581180000 ACT20X Migration-Ready Signal Isolator for Legacy Control Systems

The WEIDMULLER 8581180000 is a frequency signal isolator from the ACT20X series, engineered as a direct migration-ready replacement for aging ACT20 and legacy signal conditioning modules deployed across petrochemical plants, power generation facilities, water treatment stations, and port automation systems. As original ACT20 series modules approach end-of-life and spare parts become increasingly scarce, the 8581180000 provides a validated, stock-backed upgrade path that preserves existing wiring infrastructure while delivering improved signal integrity and long-term serviceability.

Designed for DIN rail mounting within standard control cabinets, the ACT20X 8581180000 accepts frequency and pulse input signals and delivers isolated analog output signals — making it a critical interface component in retrofit projects where legacy sensors, flow meters, and rotating machinery transmitters must be integrated into modernized PLC platforms such as Siemens S7-300/S7-400 migration to S7-1500, or Allen-Bradley SLC 500 to ControlLogix upgrade paths. The module’s compact 6.2 mm housing width allows direct slot-for-slot replacement in densely populated marshalling cabinets without requiring additional rail space or cabinet expansion.

During retrofit planning, engineers must verify several critical parameters before commissioning the 8581180000 as a replacement unit. Power supply compatibility — typically 24 VDC from the existing ACT20 bus or a dedicated WEIDMULLER PRO M power supply — must be confirmed against the cabinet’s available current budget. Terminal wiring assignments on the ACT20X follow the same functional layout as the predecessor ACT20 series, but field technicians should cross-reference the terminal block pinout against the original loop drawings to confirm signal polarity and shielding continuity. Where the original installation used WEIDMULLER ZDU or SAK terminal blocks, these remain fully compatible with the ACT20X’s screw-clamp connection interface.

For systems integrating the 8581180000 into a Siemens ET 200SP or ET 200M distributed I/O architecture, the module operates as a passive signal conditioner upstream of the analog input card — no backplane address configuration or GSD file update is required. However, where the legacy system used a WEIDMULLER ACT20P or ACT20C variant with HART pass-through capability, engineers should confirm whether the replacement application requires HART communication continuity, as the 8581180000 is optimized for standard frequency/pulse isolation without HART overlay. In such cases, a parallel WEIDMULLER ACT20X-HART variant should be evaluated during the bill-of-materials review stage.

Communication link integrity is a key concern during phased migration. Where the 8581180000 feeds signal data into a PROFIBUS DP or PROFINET network via a remote I/O gateway, the analog output scaling (4–20 mA or 0–10 V) must be re-verified in the PLC program after module swap to prevent process variable drift. Firmware version compatibility on the receiving analog input module — whether a Siemens SM 331, an ABB S800 I/O card, or a Honeywell HC900 analog input module — should be confirmed before live commissioning to avoid range mismatch alarms.

Installation space confirmation is straightforward for most ACT20X retrofit scenarios: the 8581180000 occupies a standard 6.2 mm DIN rail slot, identical to the original ACT20 footprint. However, in cabinets where thermal management has been upgraded with additional fan units or where cable duct routing has been modified, technicians should verify that the new module’s ventilation clearance meets WEIDMULLER’s recommended 15 mm top and bottom spacing. Pre-shipment functional testing — including input frequency sweep, output linearity verification, and isolation resistance measurement — is completed on every unit before dispatch, reducing on-site commissioning risk and protecting against infant mortality failures in critical process loops.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACT20X 8581180000 retrofit begins with a structured bill-of-materials audit of the existing control cabinet. In a typical legacy marshalling cabinet serving a flow measurement loop, the signal path runs from a turbine or vortex flow meter through the ACT20 frequency isolator, into an analog input card on a Siemens S7-300 SM 331 or an Allen-Bradley 1746-NI4 SLC 500 analog input module. When migrating this architecture to a modern platform, the 8581180000 preserves the field wiring and sensor interface while the PLC-side analog input card is upgraded to a Siemens S7-1500 AI 8xU/I HS or an Allen-Bradley 1756-IF16 ControlLogix analog input module.

Power distribution within the cabinet should be reviewed during the retrofit. Where the original ACT20 modules were powered from a WEIDMULLER PRO M 24V/10A power supply unit, the existing PSU capacity should be validated against the total current draw of the replacement ACT20X modules plus any newly added components such as a WEIDMULLER IE-SW-VL05M-5TX Ethernet switch for PROFINET connectivity or additional WEIDMULLER ACT20X-UI-UI-S signal conditioners for analog-to-analog isolation on non-frequency loops. Overloading the existing PSU is a common oversight in phased retrofit projects and can cause intermittent supply voltage dips that manifest as spurious process alarms.

Where the legacy system included a WEIDMULLER ACT20 series programming cable for module parameterization, the ACT20X series uses the same ACT20X-PROG-CABLE interface, ensuring continuity of the configuration workflow. Engineers familiar with the legacy ACT20 parameterization software can apply the same frequency scaling, output range, and filter time constant settings to the 8581180000 without retraining, reducing project risk and commissioning time on multi-loop retrofit campaigns.

Downtime Control During System Migration

Minimizing unplanned downtime during ACT20X module replacement requires a structured hot-swap protocol. Because the 8581180000 is a passive signal conditioner with no internal program memory or fieldbus node address, it can be replaced without PLC program modification in the majority of retrofit scenarios. The recommended procedure is to place the affected control loop in manual mode at the DCS or PLC HMI screen before disconnecting the legacy ACT20 module, ensuring that the downstream control valve or actuator holds its last commanded position during the swap interval.

Field technicians should document the existing terminal wiring with a photograph before removal, then transfer the field cable connections to the replacement 8581180000 terminal block in sequence. After reconnection, the loop should be verified by injecting a known frequency signal at the field terminal and confirming the expected 4–20 mA output at the PLC analog input card using a calibrated loop calibrator. Once the output reading matches the expected engineering unit value on the HMI screen, the loop can be returned to automatic mode. This procedure typically requires 15–30 minutes per loop, allowing multi-loop retrofit campaigns to be executed during scheduled maintenance windows without extending planned outage durations.

For critical process loops where even brief manual-mode operation is unacceptable, a parallel-run strategy can be employed: the replacement 8581180000 is wired in parallel with the legacy ACT20 module using a WEIDMULLER terminal block jumper bridge, allowing both modules to operate simultaneously while the output of the new module is verified against the legacy module’s output before the final cutover. This approach eliminates the risk of process upsets caused by wiring errors or output scaling mismatches and is particularly recommended for safety-instrumented loops where SIL integrity must be maintained throughout the migration.

Retrofit Support FAQ

Q: Is the WEIDMULLER 8581180000 ACT20X a direct replacement for the legacy ACT20 frequency isolator?
A: Yes. The 8581180000 is designed as a migration-ready replacement for the ACT20 series frequency signal isolator. It shares the same 6.2 mm DIN rail footprint, 24 VDC supply voltage, screw-clamp terminal interface, and 4–20 mA / 0–10 V output range. In most installations, the field wiring can be transferred directly without modification. Output scaling should be re-verified at the PLC analog input card after installation.

Q: Does the 8581180000 require any firmware update or software configuration before commissioning?
A: The 8581180000 is factory-configured for standard frequency-to-analog conversion. If the application requires custom frequency scaling, output range adjustment, or filter time constant modification, parameterization is performed via the ACT20X-PROG-CABLE and the WEIDMULLER ACT20X configuration software — the same toolchain used for the legacy ACT20 series. No firmware update is required for standard drop-in replacement applications.

Q: What pre-shipment testing is performed on the 8581180000 before dispatch?
A: Every unit undergoes a full functional test sequence before shipment, including input frequency sweep across the rated 0.1 Hz – 10 kHz range, output linearity verification at 4–20 mA and 0–10 V, isolation resistance measurement at 1500 V AC, and supply voltage tolerance check across the 19.2–30 VDC operating range. Test records are available upon request for quality-critical procurement processes.

Q: What support terms coverage applies to the WEIDMULLER 8581180000?
A: All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects in materials and workmanship. In the event of a support terms claim, KNMKS provides full replacement or repair at no additional cost. Support terms coverage supports long-term spare parts planning for multi-site retrofit programs and reduces the total cost of ownership for aging automation infrastructure.
