VAT 20446-UE24-ACQ1 Maintenance-Proven Spare Part for Factory Uptime

Overview

VAT 20446-UE24-ACQ1 Maintenance-Proven Spare Part for Factory Uptime

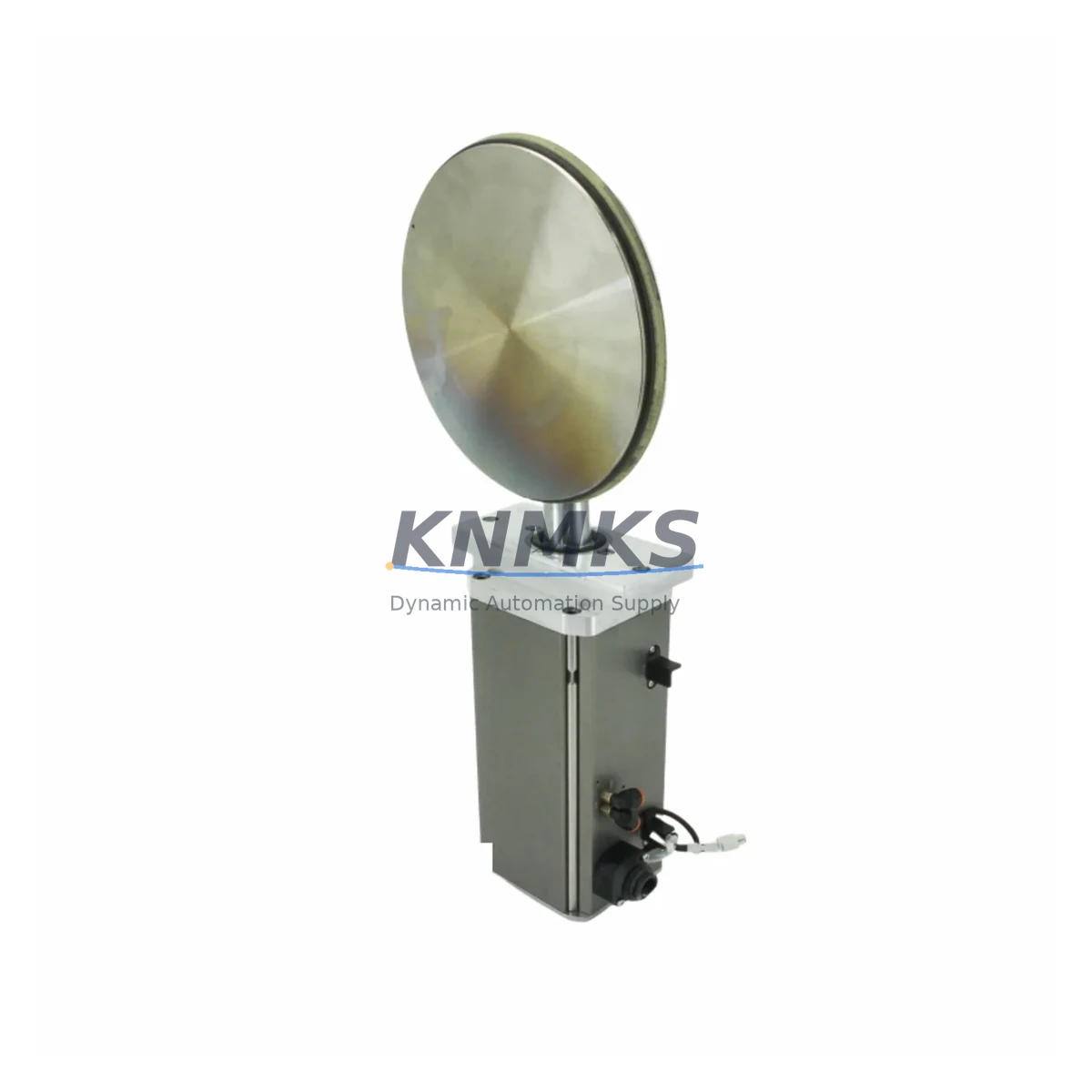

The VAT 20446-UE24-ACQ1 is a precision vacuum throttle valve engineered for the VMUS-2 series, widely deployed in semiconductor fabrication, thin-film deposition, and high-vacuum process chambers. As a maintenance-proven spare part, it is designed to restore process integrity and factory uptime with minimal intervention. KNMKS stocks this component as a ready-to-ship replacement, backed by a support terms confirmed by quotation and pre-shipment functional testing to ensure every unit meets OEM performance specifications before leaving our facility.

Maintenance engineers and procurement teams operating legacy vacuum systems understand the critical role of the throttle valve in pressure regulation and gas flow control. When the 20446-UE24-ACQ1 shows signs of wear — including sluggish response, seal degradation, or actuator failure — rapid replacement is essential to prevent extended process downtime. KNMKS maintains buffer stock of this SKU to support emergency replacement cycles, annual overhaul schedules, and long-term spare parts programs across global facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the VAT 20446-UE24-ACQ1 in a live vacuum system is rarely an isolated task. Experienced maintenance engineers treat throttle valve replacement as a trigger for a broader inspection of the surrounding vacuum circuit. The ACQ1 analog control module — which governs valve positioning feedback — should be verified for signal integrity and zero-drift calibration before the new valve is commissioned. If the ACQ1 shows erratic output or communication faults, it should be replaced concurrently to avoid repeat downtime.

The 24V DC power supply feeding the UE24 actuator should be load-tested during the maintenance window. Voltage sag or ripple on the actuator supply line is a common root cause of premature valve wear and positioning errors. Inline fuses and surge protection devices on the actuator circuit should be inspected and replaced if they show signs of thermal stress.

For systems using a VAT Series 64 or MONOVAT isolation valve upstream of the throttle valve, the isolation valve’s seal condition and actuator response time should be confirmed. A degraded upstream isolation valve can expose the throttle valve to particulate contamination, accelerating wear on the valve seat and sealing surfaces. Similarly, the downstream roughing pump connection and its associated flexible bellows or corrugated tubing should be inspected for micro-leaks that could compromise base pressure recovery after valve replacement.

In multi-zone vacuum systems, the pressure transducer or Baratron gauge monitoring the throttle valve’s downstream chamber should be zero-checked and recalibrated. Inaccurate pressure feedback will cause the control loop to over-drive the valve, shortening its service life. If the system uses a VAT pressure controller or a third-party PID controller for closed-loop pressure regulation, the controller’s setpoint and PID parameters should be re-validated after valve replacement to ensure stable process pressure.

Procurement engineers building annual spare parts kits for VMUS-2 installations should consider stocking the ACQ1 control module, the UE24 actuator seal kit, and at least one upstream isolation valve alongside the 20446-UE24-ACQ1 throttle valve. This approach eliminates secondary sourcing delays during emergency shutdowns and supports a predictable maintenance budget cycle.

Site Replacement Workflow

Step 1 — Isolation and Venting: Close the upstream isolation valve and vent the chamber to atmospheric pressure through the designated vent port. Confirm chamber pressure with the installed Baratron or capacitance manometer before breaking any vacuum connections.

Step 2 — Actuator Disconnection: Disconnect the UE24 actuator’s 24V DC power and the ACQ1 analog signal cable. Label all connectors to prevent mis-wiring during reassembly. Photograph the wiring configuration if the system documentation is incomplete.

Step 3 — Valve Removal: Unbolt the throttle valve from the chamber flange and the downstream pump line. Use clean-room compatible gloves and handle the valve body to avoid contaminating the sealing surfaces. Cap all open flanges immediately with clean blanking plates.

Step 4 — Inspection and Cleaning: Inspect the mating flanges for particulate contamination, corrosion, or O-ring groove damage. Replace all interface O-rings with OEM-specification elastomers. Do not reuse O-rings removed during disassembly.

Step 5 — New Valve Installation: Install the VAT 20446-UE24-ACQ1 replacement, torquing all flange bolts to the manufacturer’s specified values in a cross-pattern sequence. Reconnect the UE24 actuator power and ACQ1 signal cable, verifying polarity and signal range.

Step 6 — Leak Check and Commissioning: Perform a helium leak check or rough pump-down test to confirm vacuum integrity. Verify actuator full-open and full-close positions against the control system’s position feedback. Re-run the pressure controller calibration routine before returning the chamber to production.

This workflow is compatible with legacy VAT VMUS-2 installations and can be adapted for systems where the 20446-UE24-ACQ1 replaces an older Series 64 throttle valve with appropriate flange adapters. Downtime for a prepared maintenance team is typically 2–4 hours, including leak verification.

Spare Parts Support FAQ

Q1: Is the VAT 20446-UE24-ACQ1 compatible with older VMUS-2 systems that use a different control interface?
A: The ACQ1 control module on this variant uses a standard analog 0–10V or 4–20mA interface, which is compatible with most VMUS-2 generation controllers and third-party PID pressure controllers. If your system uses a digital fieldbus interface (e.g., DeviceNet or PROFIBUS), please contact our technical team to confirm compatibility or identify the correct variant.

Q2: What is included in the support terms confirmed by quotation, and does it cover field installation damage?
A: The support terms confirmed by quotation cover manufacturing defects, actuator failure, and seal integrity under normal operating conditions. It does not cover damage resulting from improper installation, contamination from the process environment, or operation outside the specified pressure and temperature range. All units are functionally tested before shipment, and test records are available upon request.

Q3: How does KNMKS ensure long-term supply availability for this SKU?
A: KNMKS maintains a dedicated buffer stock program for high-demand VAT VMUS-2 components, including the 20446-UE24-ACQ1. We source directly from authorized distribution channels and maintain traceability documentation for every unit. For facilities requiring guaranteed annual supply, we offer blanket order agreements with reserved stock allocation.

Q4: Can this spare part be used to replace a VAT Series 64 throttle valve in an upgraded system?
A: Direct mechanical substitution requires flange compatibility verification. The VMUS-2 series uses ISO-K or CF flange standards depending on the installation generation. In many upgrade scenarios, a flange adapter kit is required. KNMKS can provide compatibility guidance and, where applicable, source the necessary adapter hardware to support a seamless migration from Series 64 to VMUS-2 specification components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

20446-UE24-ACQ1 VMUS-2 3870-04172 99F0065
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Other Brands 20446-UE24-ACQ1 VMUS-2 3870-04172 99F0065
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
