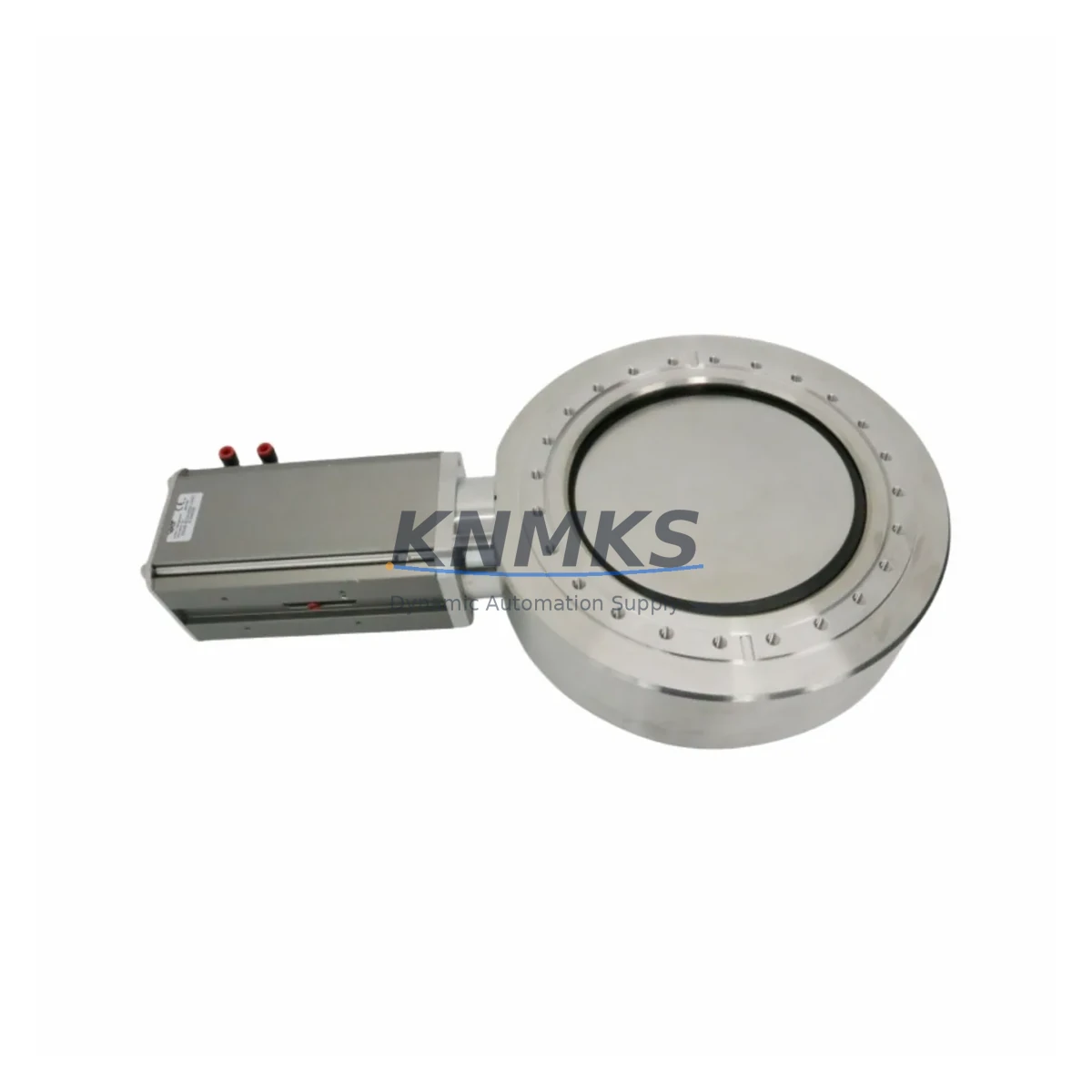

VAT 20046-XE24-ABB1 Fail-Safe Pneumatic Butterfly Valve

Overview

VAT 20046-XE24-ABB1 Fail-Safe Pneumatic Butterfly Valve: Fault-Proof Isolation for Critical Industrial Sites

The VAT 20046-XE24-ABB1 is a precision-engineered pneumatic butterfly valve from VAT Group AG’s Series 20 platform, purpose-built for fail-safe isolation and shutoff in demanding industrial control environments. Designed to maintain process integrity under abnormal conditions — including power loss, pneumatic supply failure, and high electromagnetic interference — this valve is a cornerstone component for safety instrumented systems (SIS), emergency shutdown (ESD) loops, and critical process isolation across continuous manufacturing, petrochemical, power generation, and heavy industrial facilities.

With its spring-return actuator mechanism (XE24 configuration), the valve defaults to a defined safe position upon loss of control signal or air supply, eliminating the risk of uncontrolled process flow during unplanned shutdowns. The ABB1 body configuration ensures compatibility with standard DN-series pipeline flanges and supports bi-directional sealing for both on/off and modulating control duties. Manufactured in Switzerland to VAT’s exacting quality standards, the 20046-XE24-ABB1 undergoes full factory acceptance testing (FAT) before shipment, ensuring every unit meets dimensional, leakage, and actuation performance specifications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-stakes control cabinet environments, the VAT 20046-XE24-ABB1 does not operate in isolation — it functions as part of a coordinated safety and control architecture. When integrated with a Siemens ET 200SP distributed I/O module or an ABB AC500 safety PLC, the valve’s 24 VDC solenoid interface allows direct digital output control with sub-100ms response times, critical for emergency shutdown sequences. The spring-return actuator ensures that even a complete loss of the control cabinet’s 24 VDC bus — caused by a blown fuse, UPS failure, or bus fault — will drive the valve to its safe position without any software intervention.

Surge protection is equally important in field-connected cabinets. Pairing the solenoid pilot circuit with a Phoenix Contact TRABTECH surge arrester (e.g., PT 2X2-24DC-ST series) protects the XE24 solenoid coil from transient overvoltages induced by nearby motor starts, lightning coupling, or VFD switching noise. For installations in dusty, humid, or chemically aggressive environments, the IP65-rated actuator housing of the 20046-XE24-ABB1 provides robust ingress protection, but cabinet-level protection should be reinforced with appropriate Rittal or Hoffman enclosure sealing and filtered ventilation units to prevent particulate contamination of positioner feedback components.

In pneumatic supply circuits, the valve’s reliable actuation depends on clean, dry instrument air. Upstream installation of a SMC AF40 series air filter-regulator with auto-drain ensures moisture and particulate removal, preventing solenoid valve seat erosion and actuator seal degradation over extended service intervals. For SIS-rated loops requiring proof-test capability, the 20046-XE24-ABB1 can be paired with a partial stroke testing (PST) device — such as a Rotork Pakscan or Biffi ICON2000 positioner — to validate valve movement without full process interruption, maintaining SIL 2 loop integrity between scheduled shutdowns. Communication health of the broader safety loop can be monitored via HART-enabled I/O cards or a dedicated Pepperl+Fuchs FieldConnex segment coupler, providing real-time diagnostics on solenoid current draw, position feedback, and supply pressure anomalies before they escalate to unplanned trips.

Critical Industrial Safety Applications

The VAT 20046-XE24-ABB1 is deployed across the most demanding process industries where valve failure is not an option:

Petrochemical and Refinery Plants: Used in emergency depressurization headers, flare isolation, and reactor feed shutoff loops where fail-safe closure on ESD signal is mandatory. The bubble-tight shutoff prevents hydrocarbon leakage during emergency venting sequences, reducing fire and explosion risk in classified hazardous areas.

Power Generation (Thermal and Nuclear Balance-of-Plant): Installed in cooling water isolation, steam bypass, and auxiliary feedwater systems. The spring-return mechanism ensures safe isolation during turbine trip events, protecting heat exchangers and condensers from thermal shock caused by uncontrolled flow continuation.

Mining and Mineral Processing: Applied in slurry isolation, reagent dosing shutoff, and tailings pond overflow prevention. The robust PTFE/EPDM seating withstands abrasive and chemically aggressive media, while the IP65 housing resists the high-dust, high-humidity conditions typical of underground and open-pit mining environments.

Water and Wastewater Treatment: Deployed in chlorination dosing isolation, filter backwash control, and pump protection bypass loops. Fail-safe closure on power loss prevents chemical overdosing incidents and protects downstream membrane filtration systems from hydraulic surge damage.

Metallurgy and Steel Production: Used in cooling circuit isolation, quench water control, and furnace atmosphere gas shutoff. High-temperature media compatibility and vibration-qualified construction ensure reliable operation adjacent to induction furnaces, rolling mills, and continuous casting lines where mechanical shock and thermal cycling are constant.

Port, Marine, and Offshore Facilities: Installed in ballast water treatment systems, cargo loading isolation, and fire suppression deluge headers. The corrosion-resistant body materials and IP65 protection make the 20046-XE24-ABB1 suitable for salt-air and high-humidity marine environments where standard industrial valves rapidly degrade.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the VAT 20046-XE24-ABB1?
Every unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, actuation mechanism failures, and solenoid coil faults under normal operating conditions. Support requests are supported with replacement units from in-stock inventory to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
All VAT 20046-XE24-ABB1 valves undergo factory acceptance testing (FAT) including leakage testing to ANSI/FCI 70-2 Class VI, actuation cycle testing (open/close/fail-safe), solenoid coil continuity and insulation resistance checks, and dimensional verification against VAT engineering drawings. Test records are available upon request for SIS documentation packages.

Q3: Is the 20046-XE24-ABB1 compatible with existing VAT Series 20 pipeline installations?
Yes. The ABB1 body configuration maintains full dimensional interchangeability with standard VAT Series 20 wafer and lug-style installations. The ISO 5211 actuator interface ensures compatibility with third-party positioners and manual override handwheels. No pipeline modification is required for direct replacement of existing Series 20 units.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
KNMKS maintains dedicated buffer stock of the VAT 20046-XE24-ABB1 and associated Series 20 spare parts — including solenoid coil assemblies, seat seal kits, and actuator spring cartridges — to support 12-month maintenance planning cycles. For critical installations requiring guaranteed availability, blanket order agreements with reserved inventory allocation are available. Contact our technical sales team to discuss your site’s spare parts strategy.
