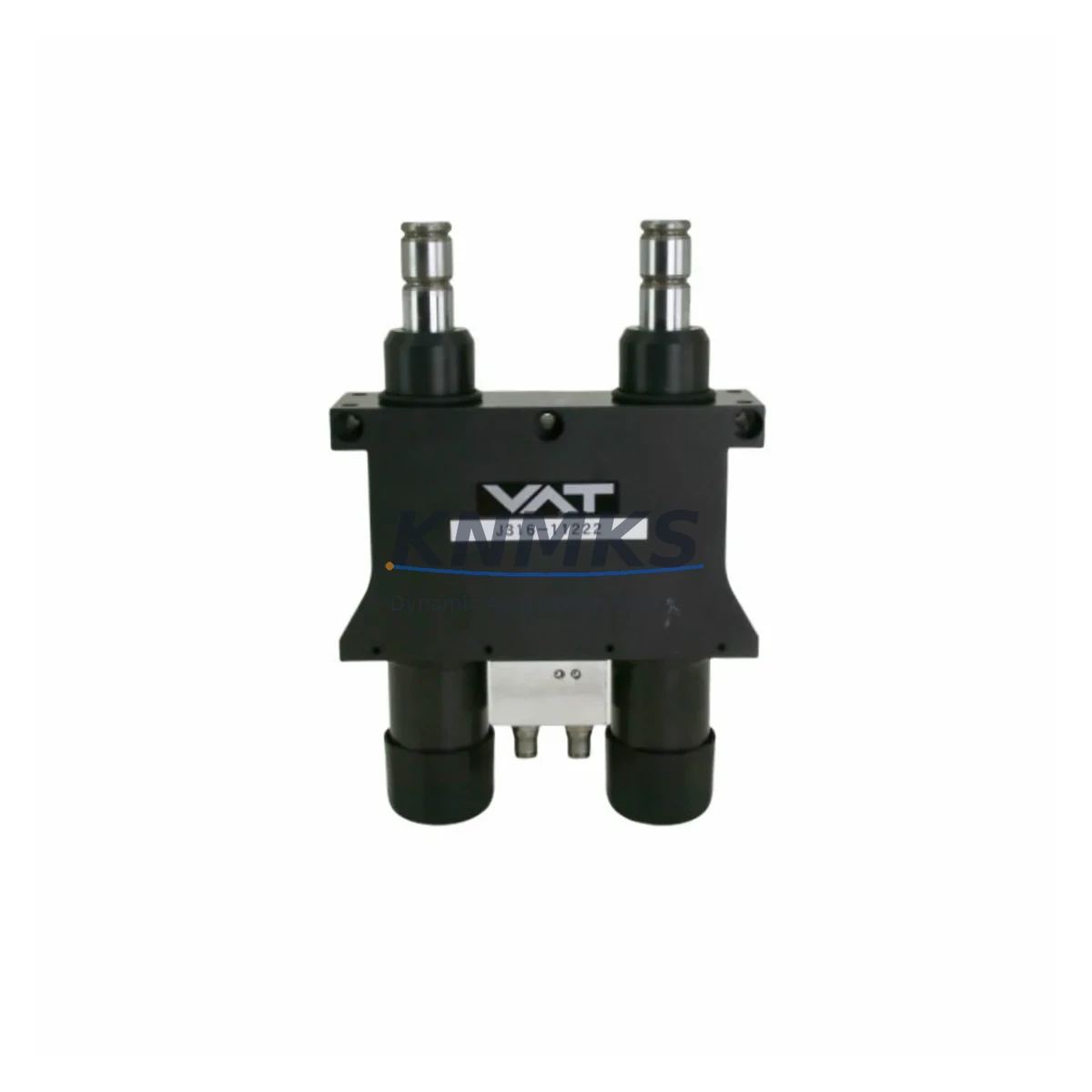

VAT 0750X-VE24 Migration-Ready Actuator for Legacy Vacuum Systems

Overview

VAT 0750X-VE24 Migration-Ready Actuator for Legacy Vacuum Systems

The VAT 0750X-VE24 (also referenced as 949-608-00, LA608, C2148, P166/64, 8COM, and 02-116798-00) is a precision pneumatic actuator engineered for drop-in replacement and retrofit integration within VAT L-VAT Series vacuum valve assemblies. As semiconductor fabs, flat-panel display lines, solar cell manufacturers, and industrial vacuum process systems face the end-of-life of legacy control architectures, the 0750X-VE24 provides a validated migration path that preserves existing valve body geometry, port dimensions, and control signal interfaces — dramatically reducing retrofit engineering time and unplanned downtime.

This actuator is specifically designed to address the growing challenge of obsolete spare parts in long-lifecycle vacuum process environments. When the original VAT actuator assembly reaches end-of-production status, facilities must choose between costly full valve replacement or a targeted actuator swap. The 0750X-VE24 is purpose-built for the latter: a mechanically and electrically compatible replacement that restores full valve function without requiring modifications to the valve body, process chamber flange, or downstream control wiring.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the VAT 0750X-VE24 into an existing vacuum process line requires a structured pre-retrofit assessment. Engineers should begin by auditing the current control cabinet layout to confirm available space for the actuator assembly and to verify that the existing pneumatic supply line — typically routed from a centralized compressed air manifold — delivers clean, dry air within the actuator’s rated pressure range. In many legacy installations, the pneumatic supply is shared with other valve actuators on the same process module, so pressure drop calculations should account for simultaneous actuation events.

On the electrical side, the 24 VDC solenoid coil of the 0750X-VE24 connects directly to the digital output channel of the existing PLC rack. In systems running on older SIMATIC S5 or early S7-300 series controllers, the digital output module — such as a 6ES7 322-series DO card — typically sources or sinks 24 VDC at sufficient current to drive the solenoid without any relay interposing. However, engineers should verify the output current rating against the solenoid inrush specification, particularly in installations where multiple valves are switched simultaneously during pump-down sequences.

For systems that have already migrated to newer control platforms — such as Allen-Bradley ControlLogix or Siemens S7-1500 — the 0750X-VE24 integrates equally well, as the 24 VDC discrete interface is universal. In these environments, the valve control logic typically resides in a structured text or ladder rung that monitors chamber pressure via an analog input module connected to a Pirani or capacitance manometer gauge. The open/close command to the actuator solenoid is issued based on pressure setpoint thresholds, and the position feedback — provided by reed switch or proximity sensor mounted on the actuator body — is read back through a digital input module to confirm valve state before the next process step proceeds.

Where the legacy system includes a VAT Series 61 or Series 65 gate valve body, the 0750X-VE24 actuator mounts directly to the existing valve bonnet without adapter plates. This is a critical advantage over generic actuator substitutes, which often require custom machined adapter flanges that introduce alignment risk and extend retrofit lead time. The original mounting bolt pattern, actuator stem thread, and drive pin geometry are preserved, allowing a trained technician to complete the mechanical swap in under two hours with standard tooling.

In multi-zone vacuum systems — such as those found in cluster tool platforms with multiple process chambers — the retrofit plan should address each zone’s valve independently. A phased approach, replacing one actuator per maintenance window, allows production to continue on adjacent chambers while the retrofit is underway. This is particularly important in facilities where the VAT 590 series isolation valve or the VAT 012 series angle valve is used in parallel with the L-VAT assembly, as these components share the same pneumatic supply header and must remain operational during partial system shutdowns.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a vacuum valve actuator in an active process environment. The VAT 0750X-VE24 retrofit procedure is designed to be executed within a planned preventive maintenance window, typically scheduled during a wafer lot changeover or a scheduled chamber vent cycle. Before beginning the swap, the control system should be placed in manual override mode to prevent automated sequences from issuing valve commands during the replacement procedure.

The existing PLC program logic does not require modification when replacing a like-for-like actuator. The ladder logic rungs or function block diagrams that govern valve open/close sequencing, interlock conditions, and alarm monitoring remain fully valid, as the 0750X-VE24 presents the same electrical interface and mechanical response characteristics as the original assembly. This is a significant advantage over full valve body replacements, which may require updates to HMI faceplates, alarm tag databases, and process recipe parameters.

To further protect program integrity, engineers should export and archive the current PLC program version before beginning any physical work. In Siemens TIA Portal environments, this means saving the project to an offline backup; in Rockwell Studio 5000 environments, an ACD file backup should be created and stored on a secure network share. This precaution ensures that if any unexpected control behavior is observed after the actuator swap, the original program can be restored within minutes.

Position feedback sensor realignment is the most common source of post-retrofit commissioning delays. The reed switch or inductive proximity sensor that signals valve open and closed positions must be repositioned on the new actuator body to match the original trigger points. This adjustment should be performed with the valve in a known state — fully open or fully closed — and verified against the HMI display before the system is returned to automatic mode. Once confirmed, the system can resume normal operation with no changes to the process recipe or control narrative.

For facilities that maintain a spare parts buffer, stocking one or two VAT 0750X-VE24 units per process tool significantly reduces mean time to repair (MTTR) in the event of an unplanned actuator failure. Given the support terms confirmed by quotation coverage and the long-term availability commitment from our inventory, facilities can establish a consignment or scheduled replenishment program to ensure continuous spare parts supply without tying up excessive capital in on-site stock.

Retrofit Support FAQ

Q1: Is the VAT 0750X-VE24 a direct replacement for the original 949-608-00 actuator?
Yes. The 0750X-VE24 is the current production equivalent of the 949-608-00 and its associated cross-references (LA608, C2148, P166/64, 8COM, 02-116798-00). It is mechanically and electrically interchangeable with the original assembly and requires no modifications to the valve body, pneumatic supply lines, or control wiring.

Q2: What commissioning steps are required after installation?
After mechanical installation, verify compressed air supply pressure at the actuator inlet port (typically 4–7 bar clean dry air). Confirm solenoid wiring polarity and apply 24 VDC to cycle the actuator through open and close positions. Adjust the position feedback sensor (reed switch or proximity sensor) to match the original trigger points, and verify correct state indication on the HMI before returning the system to automatic mode.

Q3: Has the unit been tested before shipment?
Yes. Every VAT 0750X-VE24 unit undergoes functional testing prior to shipment, including solenoid actuation verification, pneumatic cycle testing, and position feedback sensor check. A test report is available upon request. Units are packaged in anti-static, moisture-resistant packaging suitable for international air and sea freight.

Q4: What support terms and supply continuity terms apply?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions. We maintain dedicated inventory for the VAT 0750X-VE24 and its cross-reference SKUs to support ongoing spare parts programs. For volume orders or scheduled replenishment agreements, please contact our sales team directly.
