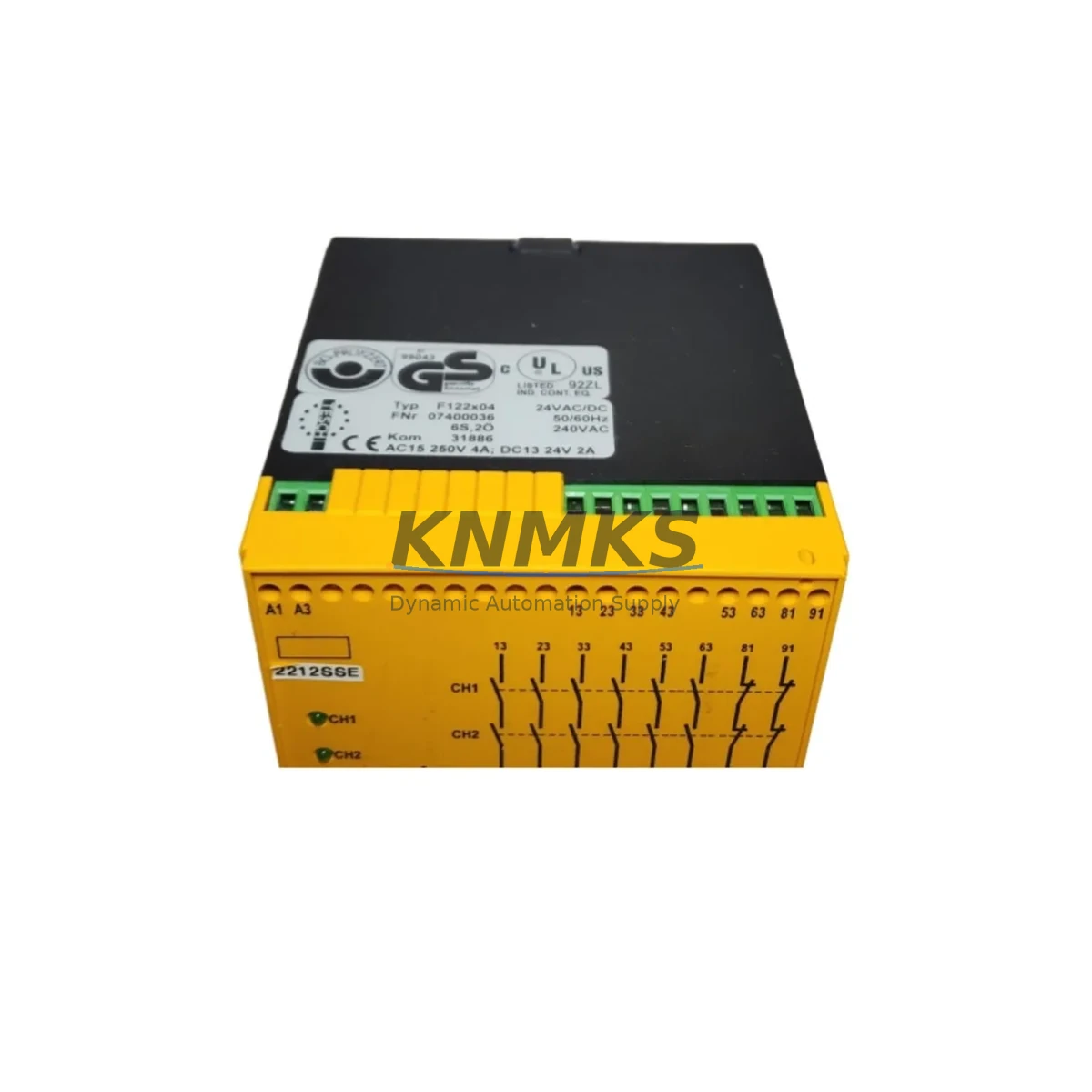

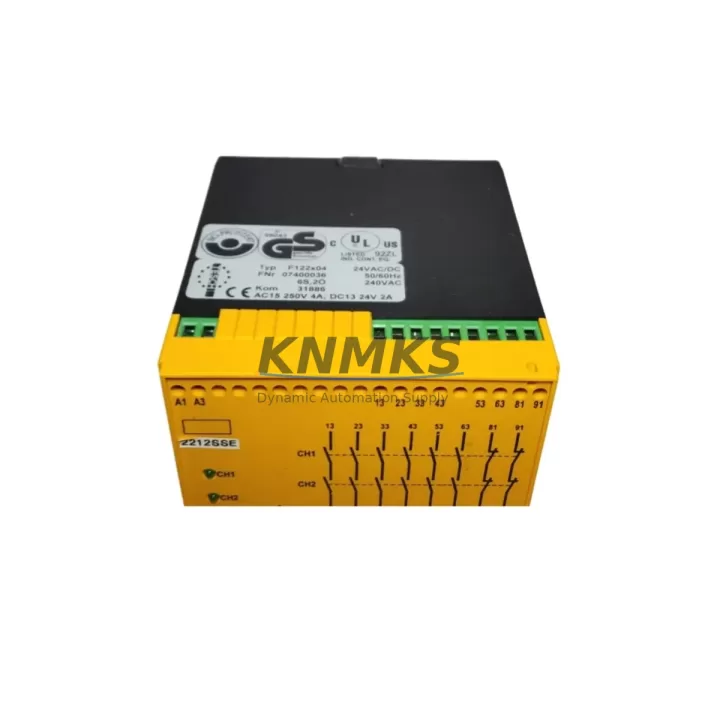

TESCH F12304 Fail-Safe Safety Relay for Industrial Control

Overview

TESCH F12304 Fail-Safe Safety Relay for Industrial Control Reliability

In continuous production environments where a single control failure can cascade into unplanned downtime, equipment damage, or personnel injury, the TESCH F12304 dual-channel fail-safe safety relay delivers the circuit-level protection that modern industrial control cabinets demand. Engineered to IEC 62061 and EN ISO 13849-1 standards, the F12304 is rated to Safety Integrity Level 2 (SIL 2) and Performance Level d (PLd), making it a trusted backbone component in emergency-stop loops, safety gate interlocks, light curtain interfaces, and two-hand control circuits across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, marine, and continuous manufacturing facilities.

Unlike general-purpose relays that offer no self-monitoring, the TESCH F12304 continuously cross-monitors both input channels for welded contacts, short circuits, and signal drift. If either channel deviates from its expected state, the module forces a safe output de-energization before a hazardous motion or process can occur. This architecture eliminates the single-point failure modes that cause spurious trips and undetected dangerous failures — the two most costly reliability problems in safety-critical control loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The TESCH F12304 is most effective when integrated as part of a layered control cabinet protection strategy. In high-electromagnetic-interference environments — such as those found near variable frequency drives, large contactors, or arc furnaces — the F12304’s IEC 61000-4-3 Level 3 EMC immunity prevents signal drift and false de-energization that would otherwise cause nuisance trips on the safety loop. Pairing the F12304 with a TESCH F12300 series monitoring relay on the 24 V DC supply rail ensures that power fluctuations and micro-interruptions do not propagate into the safety circuit. For cabinets operating in dusty or humid environments such as cement plants or coastal port facilities, a TESCH F12310 enclosure-rated relay extension module can be added downstream to maintain IP54 protection at the field terminal level.

In applications where the safety loop must interface with a Siemens S7-300 or S7-1500 PLC safety CPU, the F12304’s potential-free output contacts connect directly to the digital input modules without additional signal conditioning. For Rockwell ControlLogix or GuardLogix architectures, the relay’s auxiliary NC contact provides real-time feedback to the controller’s safety input card, enabling diagnostic coverage that satisfies IEC 62061 SILCL 2 requirements. Where communication-based safety is required, a PILZ PNOZ m B0 base unit or a Schmersal SRB-E-301ST can serve as a complementary safety controller, with the F12304 handling the hardwired output stage. In surge-prone installations — particularly outdoor substations or coastal marine control rooms — adding a Phoenix Contact TRABTECH PT 2X2-24DC-ST surge protection device upstream of the F12304 supply input provides an additional layer of transient immunity beyond the module’s built-in protection.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous process plants where emergency shutdown (ESD) systems must respond within defined safe states, the TESCH F12304 is deployed in the hardwired safety instrumented system (SIS) layer alongside SIL-rated pressure transmitters and solenoid valve drivers. Its ≤ 20 ms de-energization response satisfies the process safety time requirements of most ESD loops without requiring additional timing relays.

Power Generation & Utilities: Turbine control panels and high-voltage switchgear rooms subject the safety relay to sustained vibration and wide temperature swings. The F12304’s IEC 60068-2-6 vibration rating and -25 °C to +55 °C operating range ensure contact integrity is maintained across seasonal extremes and mechanical resonance conditions common in generator hall environments.

Mining & Mineral Processing: Underground conveyor systems and surface crushing circuits require safety relays that tolerate coal dust, silica particulate, and high-humidity conditions. The F12304’s sealed relay body and cross-channel monitoring architecture prevent dust-induced contact contamination from causing undetected dangerous failures on belt-stop and pull-cord circuits.

Water & Wastewater Treatment: Pump station control panels in outdoor or semi-outdoor enclosures experience condensation cycles and corrosive atmospheres. The F12304’s 5–95% RH non-condensing humidity tolerance and corrosion-resistant contact materials maintain reliable operation in these environments, protecting personnel from rotating equipment hazards during maintenance access.

Metallurgy & Steel: Rolling mill and casting line control cabinets are exposed to radiated heat, inductive load switching, and high-frequency EMI from thyristor drives. The F12304’s Level 3 EMC immunity and 6 A contact rating handle the inductive loads of safety gate solenoids and light curtain power supplies without contact welding or signal corruption.

Port Logistics & Marine: Ship-to-shore crane control systems and vessel engine room panels demand safety components that meet marine classification society requirements. The F12304’s SIL 2 rating and dual-channel architecture align with DNV GL and Lloyd’s Register guidance for safety-related control systems in marine and offshore applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the TESCH F12304?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional deviations from the published specification under normal operating conditions. If the unit fails to perform its safety function within the confirmed support period, KNMKS will provide a replacement unit or documented resolution support. Support requests are processed within 5 business days of receiving the returned unit.

Q2: How is the TESCH F12304 tested before shipment?
Every TESCH F12304 unit dispatched by KNMKS undergoes 100% pre-shipment functional testing, including input channel cross-monitoring verification, output contact continuity and insulation resistance measurement, and supply voltage tolerance testing at ±15% of nominal. A test record is available upon request for quality-critical procurement processes.

Q3: Is the TESCH F12304 compatible with my existing safety PLC or safety controller?
Yes. The F12304’s potential-free relay outputs are compatible with any safety PLC or safety controller that accepts dry-contact digital inputs, including Siemens SIMATIC Safety, Rockwell GuardLogix, Schneider Electric Modicon Safety, and PILZ PNOZmulti platforms. No special interface modules or signal converters are required for standard hardwired safety loop integration.

Q4: Can KNMKS guarantee long-term supply and replacement support for the F12304?
KNMKS maintains dedicated stock of the TESCH F12304 and its series equivalents to support ongoing maintenance, planned replacement cycles, and emergency breakdown procurement. For facilities with critical spare parts programs, KNMKS can provide scheduled supply agreements and advance replacement units to minimize unplanned downtime risk. Contact our technical sales team to discuss your site’s specific inventory requirements.
