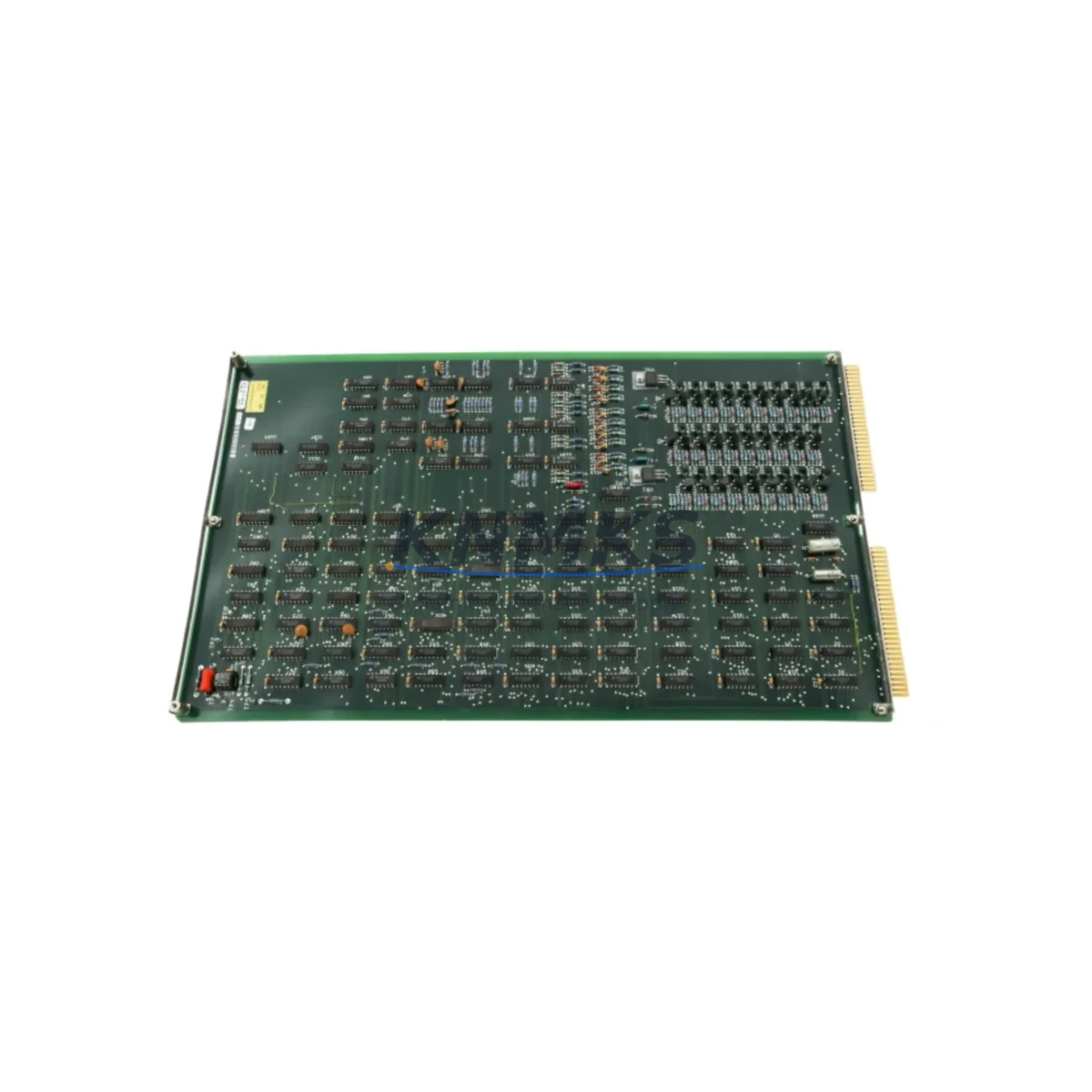

TERADYNE 879-363-00 AD363 Handler Interface for 810NM ATE

Overview

TERADYNE 879-363-00 AD363 Handler Interface for 810NM ATE: Legacy System Migration & Compatible Upgrade

The TERADYNE 879-363-00 (AD363) is a handler interface board engineered for the TERADYNE 810NM Automatic Test Equipment (ATE) platform. As semiconductor test facilities face increasing pressure to extend the operational life of legacy 810NM systems or migrate to modern equivalents, the 879-363-00 serves as a critical migration-ready spare part — enabling direct drop-in replacement of discontinued OEM modules including the 15-118976-00 and 02-134263-00 interface assemblies.

This board manages the electrical handshake between the 810NM test head and the device handler, coordinating start-of-test, end-of-test, bin-sort, and safety interlock signals. Facilities running high-volume production on TERADYNE 810NM platforms depend on this interface for uninterrupted throughput. When the original module fails or reaches end-of-life, sourcing a verified replacement with confirmed firmware compatibility and tested signal integrity is essential to avoid extended downtime.

Before installing the 879-363-00 as a replacement, engineers should confirm the following: the handler interface connector pinout matches the target handler model; the board revision is compatible with the installed 810NM system firmware version; the interlock signal voltage levels (typically 5V TTL or 24V DC depending on handler configuration) are within specification; and the physical mounting dimensions align with the existing card cage slot. In systems where the handler interface board communicates via a dedicated backplane bus, the module address DIP switch settings must be verified against the original configuration to prevent address conflicts with adjacent I/O modules or communication cards.

For facilities undertaking a broader 810NM system upgrade, the 879-363-00 is typically deployed alongside other platform components. The TERADYNE 810NM mainframe backplane, pin electronics cards, and the system controller board are common co-replacement items when the test cell is being refurbished rather than simply repaired. In cases where the handler itself is being upgraded — for example, migrating from an older gravity-feed handler to a modern pick-and-place handler — the interface board must be re-validated against the new handler’s I/O specification, as signal timing and handshake protocols may differ between handler generations.

Communication link integrity is another key consideration during migration. The 810NM platform uses a proprietary system bus for inter-module communication. When replacing the handler interface board, the system bus termination resistors and cable assemblies connecting the test head to the handler should be inspected and replaced if degraded. Failure to address bus signal integrity issues can result in intermittent test failures or handler synchronization errors that are difficult to diagnose after the new board is installed.

Program compatibility should be verified before returning the system to production. Existing test programs written for the 810NM platform reference handler interface parameters including bin-sort output assignments and end-of-test signal polarity. If the replacement board introduces any change in signal behavior — even within specification — test program engineers should perform a correlation run against a known-good reference system before releasing the upgraded cell to production. HMI screens that display handler status or bin-sort results should also be reviewed to confirm that signal mapping remains consistent with the new board’s output configuration.

Installation space within the 810NM test head card cage is fixed, and the 879-363-00 is designed to occupy the same slot footprint as the original handler interface assembly. No mechanical modification to the card cage or cable routing is required for a direct replacement. However, if the system has been previously modified — for example, if a custom cable harness was installed to accommodate a non-standard handler — the harness should be inspected and updated to match the replacement board’s connector specification.

All units supplied by KNMKS are functionally tested prior to shipment. Testing includes signal continuity verification, interlock circuit validation, and where applicable, system-level bench testing against a reference 810NM platform. Each unit is shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained to support urgent replacement requirements, with expedited shipping available for critical production environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 810NM handler interface retrofit requires coordinated planning across multiple system layers. Beyond the 879-363-00 handler interface board itself, engineers should assess the condition of the 810NM mainframe backplane, which carries power and communication signals to all installed modules. A degraded backplane can cause intermittent failures that are incorrectly attributed to the new interface board. Similarly, the pin electronics cards installed in adjacent slots should be inspected for contamination or connector wear, as these modules share the same system bus and power rails.

Power supply capacity is a critical checkpoint. The 810NM system power supply must be capable of supporting the full module complement after the retrofit. If additional I/O expansion modules or a new communication card have been added to the system as part of the upgrade, the power budget should be recalculated to confirm that the supply is not operating near its rated limit. Overloaded power supplies are a common source of intermittent system faults in legacy ATE platforms.

For facilities migrating from an older handler to a modern pick-and-place or gravity-feed handler, the handler cable harness connecting the test head to the handler must be verified against the new handler’s I/O specification. In some cases, a custom cable assembly or a signal isolation module may be required to bridge differences in signal voltage or timing between the 810NM interface and the new handler. Signal isolators are also useful when the handler and test head are located in electrically noisy environments, as they prevent ground loop interference from corrupting handler handshake signals.

If the retrofit includes an upgrade to the system controller or the addition of a new communication module — for example, to enable SECS/GEM host communication for MES integration — the handler interface board’s bin-sort output assignments must be re-mapped in the test program to align with the new communication architecture. This is a common oversight in 810NM upgrades that can result in incorrect bin-sort results being reported to the host system.

Programming cables and diagnostic tools specific to the 810NM platform should be on hand during the retrofit to support firmware verification and module diagnostics. Having the correct programming cable available eliminates delays caused by incompatible interfaces during on-site commissioning.

Downtime Control During System Migration

Minimizing downtime during a handler interface board replacement on a production 810NM ATE system requires a structured approach. The first priority is to capture the current system configuration before any hardware is removed. This includes documenting the DIP switch settings on the existing handler interface board, photographing the cable harness routing and connector assignments, and saving a backup of the current test program set. These steps ensure that the replacement board can be configured to match the original setup without relying on memory or incomplete documentation.

Where possible, the replacement board should be pre-configured and bench-tested before the production system is taken offline. Pre-configuration includes setting the module address DIP switches to match the original board, verifying the interlock circuit continuity, and confirming that the board powers up correctly in a bench test fixture or a spare 810NM chassis. This approach reduces the time the production system is offline to the minimum required for physical swap and final commissioning.

During the swap, the handler should be placed in a safe state — typically with the handler’s safety interlock circuit open — before the interface board is removed. This prevents unintended handler motion during the board exchange. After the new board is installed and the system is powered up, the interlock circuit should be verified before the handler is returned to automatic mode.

The final commissioning step is a correlation run using a known-good lot of devices to confirm that the replacement board produces bin-sort results consistent with the pre-retrofit baseline. Any deviation in bin-sort results should be investigated before the system is released to production. Maintaining a log of the retrofit steps, configuration settings, and correlation results provides a traceable record that supports future maintenance and audit requirements.

Retrofit Support FAQ

Q: Is the TERADYNE 879-363-00 a direct replacement for the 15-118976-00 and 02-134263-00?
A: Yes. The 879-363-00 (AD363) is the migration-ready replacement for both the 15-118976-00 and 02-134263-00 handler interface assemblies on the TERADYNE 810NM ATE platform. Verify the board revision and DIP switch address settings before installation to ensure compatibility with your specific system configuration.

Q: What commissioning steps are required after installing the replacement board?
A: After physical installation, verify the module address DIP switch settings, confirm interlock circuit continuity, validate bin-sort signal outputs against the test program specification, and perform a correlation run with a known-good device lot before returning the system to production.

Q: How do I confirm wiring and connector compatibility with my handler model?
A: Compare the handler cable harness pinout on the 879-363-00 against your handler’s I/O specification. Signal voltage levels (5V TTL or 24V DC) and timing parameters should be verified against the handler manufacturer’s interface specification. Contact KNMKS technical support if a custom cable assembly or signal isolation module is required.

Q: What support terms and stock availability does KNMKS provide?
A: All TERADYNE 879-363-00 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Units are functionally tested prior to shipment. Stock is maintained for immediate dispatch, with expedited shipping available for urgent production requirements. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
