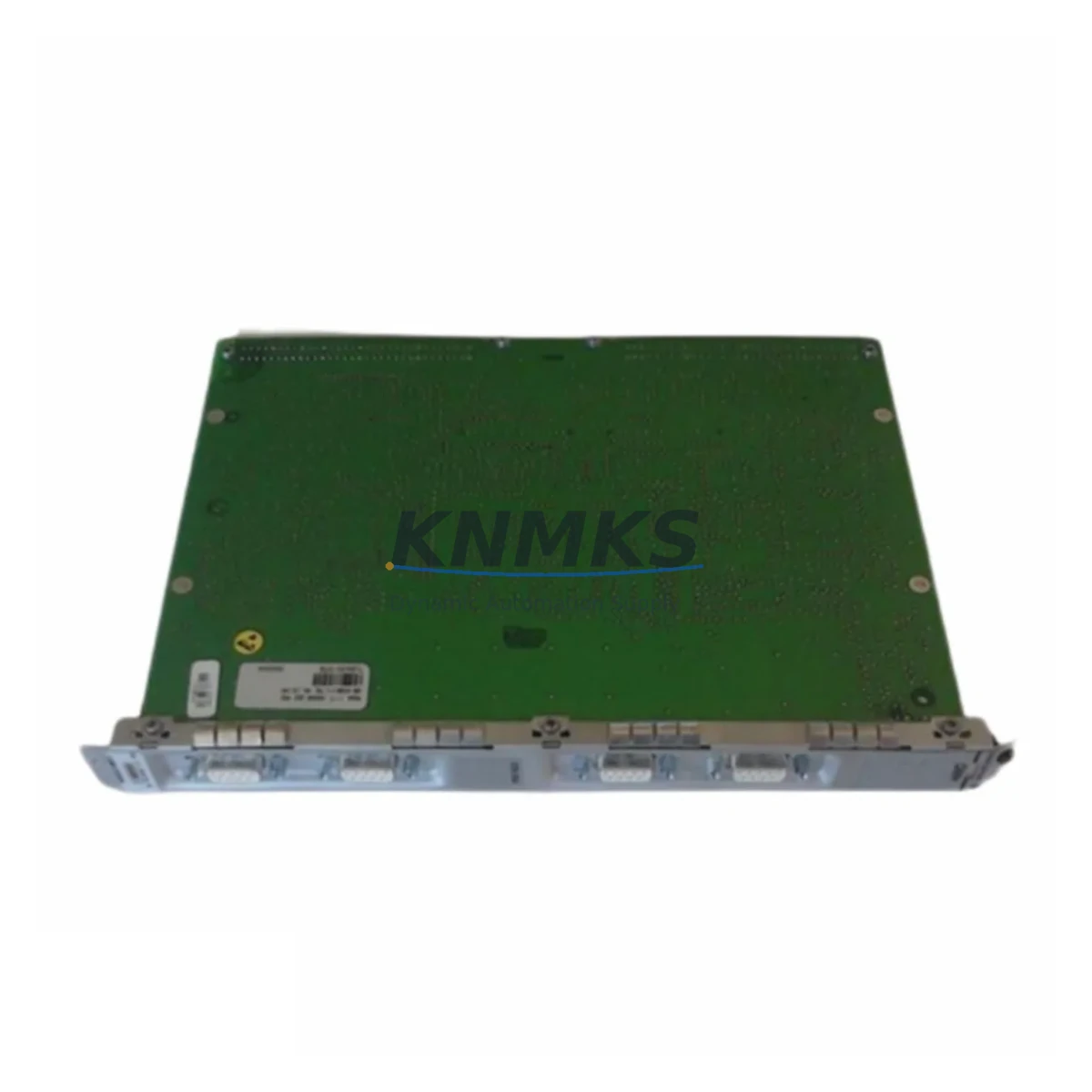

TELLABS G703-120-Q HMQ509V31 Maintenance Spare Part

Overview

TELLABS G703-120-Q HMQ509V31 Maintenance Spare Part for Factory Uptime

The TELLABS G703-120-Q HMQ509V31 is a G.703-compliant 120Ω E1 interface module designed for the HMQ-509 series telecom and industrial automation platforms. As a maintenance-proven spare part, it supports continuous factory uptime by enabling rapid in-situ replacement of degraded or failed E1 interface cards without requiring system reconfiguration or extended downtime. This module is sourced as an original spare, pre-shipment tested to G.703 electrical specifications, and backed by a support terms confirmed by quotation — making it a reliable choice for maintenance engineers managing legacy control and transmission infrastructure.

For facilities operating TELLABS HMQ-509 or HMQ-509-V31 equipped cabinets, maintaining at least one G703-120-Q HMQ509V31 in the local spare parts inventory is a recognized best practice. E1 interface failures are among the leading causes of unplanned communication outages in industrial and telecom environments, and the mean time to repair (MTTR) is directly tied to spare availability. Procurement engineers sourcing this module should confirm the HMQ509V31 revision suffix to ensure hardware compatibility with the installed base.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the G703-120-Q HMQ509V31 in an HMQ-509 cabinet, a thorough site inspection of the surrounding electrical environment is essential to prevent repeat failures and confirm system integrity. Maintenance engineers should begin by verifying the cabinet’s DC power supply rail — typically a -48V DC rectifier or distributed power module — since voltage sags or ripple on the supply bus are a common root cause of E1 interface card degradation. If the power module is original equipment from the same installation era as the HMQ-509 chassis, it should be evaluated for replacement or load testing during the same maintenance window.

The backplane connector and card-edge contacts should be inspected for oxidation, mechanical wear, or contamination before inserting the replacement G703-120-Q HMQ509V31. In high-humidity or coastal industrial environments, contact corrosion is a frequent secondary failure mode. Cleaning with isopropyl alcohol and verifying backplane slot integrity takes less than five minutes and significantly reduces the risk of a repeat card failure.

E1 signal cabling — typically 120Ω balanced twisted pair terminated at RJ-45 or screw terminal blocks — should be tested for continuity, impedance match, and correct polarity before the replacement module is powered. A mismatched or degraded cable will cause the new G703-120-Q HMQ509V31 to report alarm conditions immediately after insertion, which can be misdiagnosed as a faulty spare. Cable test results should be logged in the maintenance record.

In HMQ-509 systems with multiple E1 ports, the adjacent interface modules — such as other G.703 line cards or tributary interface units sharing the same backplane segment — should be checked for alarm status. A single degraded E1 port can propagate AIS (Alarm Indication Signal) or LOS (Loss of Signal) conditions upstream, affecting connected multiplexers, cross-connect equipment, or PLC communication gateways. If the system includes a TELLABS HMQ-509 system controller or supervisory card, its event log should be reviewed for recurring alarms prior to the replacement.

For cabinets that also house relay output modules, signal isolators, or terminal strip assemblies connected to the E1 interface, these components should be inspected for correct wiring and insulation integrity. Fuse holders and miniature circuit breakers protecting the E1 interface circuit should be tested for continuity and rated current. Procurement engineers building annual maintenance kits for HMQ-509 installations are advised to include at least one G703-120-Q HMQ509V31, a set of replacement fuses for the interface circuit, and spare RJ-45 patch cables of the correct impedance rating.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed module SKU matches G703-120-Q HMQ509V31 (check the label on the card faceplate or the system BOM). Verify the HMQ-509 chassis slot assignment and document the current alarm state from the system controller.

Step 2 — Safe removal: Follow the HMQ-509 maintenance manual for card extraction. If the slot supports hot-swap, inhibit the E1 port from the system controller before physical removal to prevent AIS propagation. If hot-swap is not supported, schedule removal during a planned maintenance window.

Step 3 — Inspect and clean: Inspect the backplane slot contacts and the cable termination. Clean as required. Verify the replacement G703-120-Q HMQ509V31 is undamaged and matches the revision suffix (V31) of the removed card.

Step 4 — Insert and configure: Insert the replacement module firmly into the backplane slot. Re-enable the E1 port from the system controller. Verify that the module’s status LEDs indicate normal operation (no LOS, AIS, or RAI alarms) within 30 seconds of insertion.

Step 5 — Post-replacement test: Confirm end-to-end E1 circuit continuity using a BER (Bit Error Rate) test if test equipment is available. Log the replacement in the maintenance record, including the date, technician name, and new module serial number. Update the spare parts inventory to reflect consumption of one G703-120-Q HMQ509V31 unit.

This workflow applies equally to planned annual overhauls and emergency fault recovery scenarios. Maintaining a documented replacement procedure reduces technician response time and supports consistent maintenance quality across multi-site installations.

Spare Parts Support FAQ

Q1: Is the G703-120-Q HMQ509V31 compatible with all HMQ-509 chassis variants?
The G703-120-Q HMQ509V31 is designed for the TELLABS HMQ-509 and HMQ-509-V31 series. The V31 revision suffix indicates a specific hardware revision; always verify the revision label on the installed card before ordering. If the installed card carries a different suffix, contact our sales team to confirm cross-compatibility before procurement.

Q2: What pre-shipment testing is performed on each unit?
Each G703-120-Q HMQ509V31 unit undergoes electrical verification against G.703 120Ω E1 specifications prior to shipment, including impedance, signal level, and functional interface testing. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module be used as a long-term spare for an end-of-life system?
Yes. We maintain stock of the G703-120-Q HMQ509V31 specifically to support legacy HMQ-509 installations that are beyond the original manufacturer’s active production period. Long-term supply commitments are available for customers managing multi-year maintenance contracts or large installed bases. Contact our team to discuss volume pricing and reserved stock arrangements.

Q4: What is the recommended spare parts holding strategy for HMQ-509 installations?
For critical infrastructure, we recommend holding a minimum of one G703-120-Q HMQ509V31 per installed chassis on-site, with a secondary buffer at a regional warehouse or maintenance depot. Annual consumption should be reviewed against failure rate data from the maintenance log. For sites with high E1 port density or harsh environmental conditions, a higher holding ratio is advisable. Our team can assist with spare parts planning based on your installed base size and MTTR targets.
