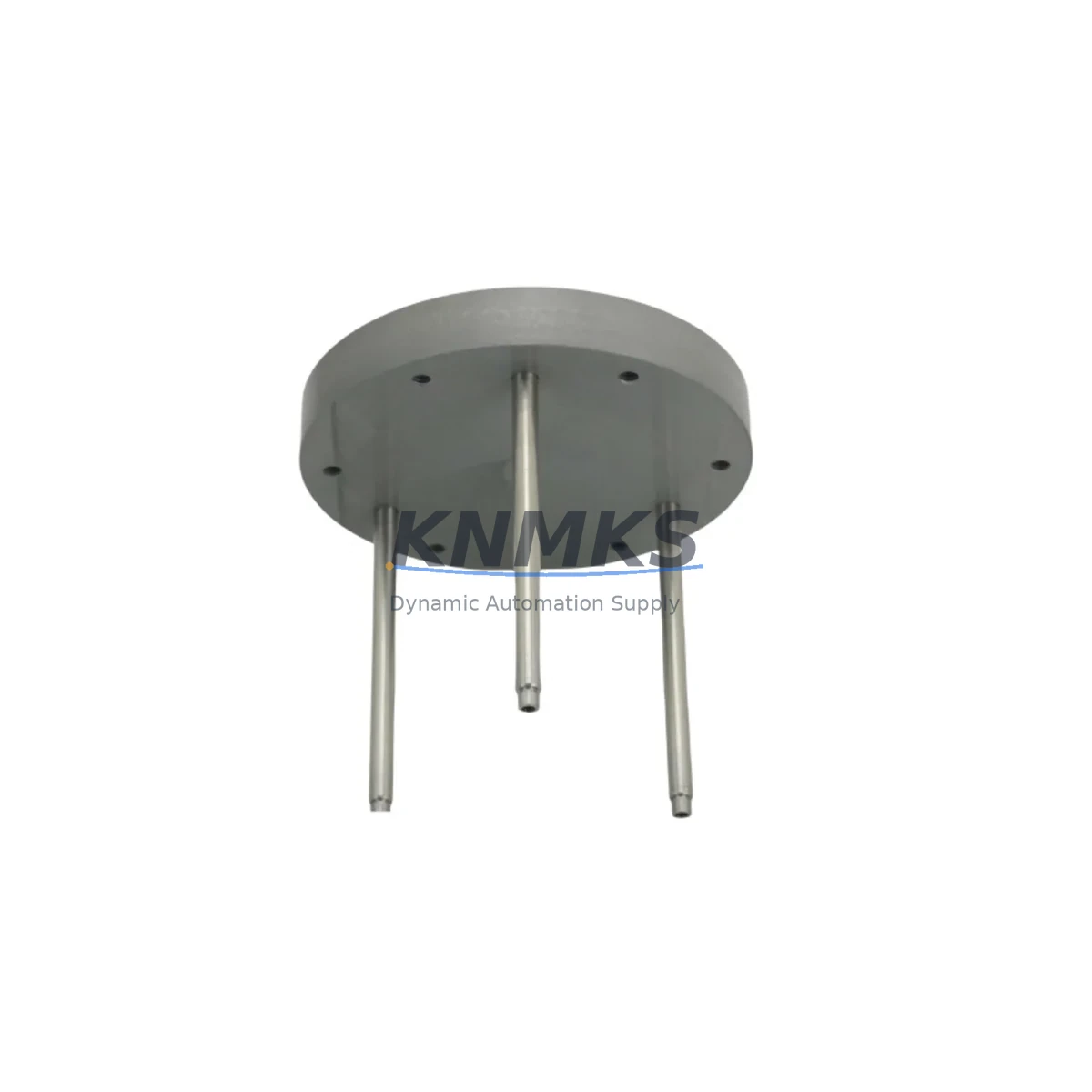

TEL TF906276-001 Migration-Ready Pin Base for Legacy PM Systems

Overview

TEL TF906276-001 Migration-Ready Pin Base for Legacy PM Systems

The TEL TF906276-001 is a migration-ready pin base assembly engineered for legacy process module (PM) chamber upgrades within Tokyo Electron (TEL) Trias TMH-064 platforms. As semiconductor fabs push to extend tool life and defer capital expenditure on new equipment, the TF906276-001 serves as a critical retrofit component — enabling direct replacement of discontinued assemblies such as the 414713-001 and 0010-33417 without requiring chamber redesign or process re-qualification.

Dimensioned at 480mm × 190mm and rated for PM P02 360 TMH 064 configurations, this pin base maintains full mechanical and positional compatibility with the original chamber footprint. Engineers performing chamber-level overhauls or unscheduled PM replacements can install the TF906276-001 with confidence, knowing that wafer lift pin alignment, process repeatability, and chamber sealing geometry are preserved to OEM specification.

For facilities managing multi-chamber Trias tool sets, the TF906276-001 is frequently sourced alongside the TEL Trias TMH-064 lower electrode assembly, chamber liner kits, and lift pin guide modules — all of which share the same PM maintenance cycle and are typically replaced as a coordinated set to minimize repeat downtime. Procurement teams consolidating spare parts for planned PM overhauls should also consider stocking the TEL process kit for TMH-064 and associated O-ring seal sets to complete the chamber restoration scope in a single intervention.

Supply chain continuity is a primary concern when sourcing discontinued TEL components. KNMKS maintains forward inventory of the TF906276-001 and its cross-reference equivalents, with pre-shipment functional verification and documentation of lot traceability. Each unit ships with a support terms confirmed by quotation covering material and workmanship defects, supported by rapid global dispatch to North America, Europe, and Asia-Pacific.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Trias TMH-064 PM retrofit begins well before the chamber is vented. Maintenance engineers should first audit the full PM bill of materials against the current tool configuration, confirming that the TF906276-001 pin base is the correct revision for the specific chamber serial number and process module position. In multi-chamber tools, PM P01 and PM P02 configurations may carry different part revisions — cross-referencing the tool’s engineering change history is essential before ordering.

During retrofit planning, the following components are commonly evaluated in parallel with the TF906276-001:

• TEL Trias TMH-064 lower electrode assembly — shares the same PM maintenance interval; replacement is often coordinated to avoid a second chamber vent cycle.
• Chamber liner and shield kit — deposition buildup on liners accelerates pin base wear; liner replacement at the same PM interval protects the new pin base.
• Lift pin guide and sleeve set — worn guides cause pin misalignment that can damage the pin base seating surface; inspect and replace as a set.
• TEL process kit (O-rings, seals, and gaskets) — chamber integrity after reassembly depends on fresh sealing components; always replace during a full PM.
• Wafer transfer arm calibration kit — after pin base replacement, end-effector height and wafer handoff positions must be re-verified to maintain transfer accuracy.

Installation space within the Trias process module is constrained. Confirm that the 480mm × 190mm footprint of the TF906276-001 clears all adjacent hardware before committing to the retrofit scope. Torque specifications for mounting fasteners should be sourced from the TEL Trias maintenance manual applicable to the tool’s current software revision.

Downtime Control During System Migration

Unplanned chamber downtime is one of the highest-cost events in a semiconductor fab. When the TF906276-001 is being installed as an emergency replacement for a failed 414713-001 or 0010-33417, the priority is to restore PM functionality with the shortest possible mean time to repair (MTTR).

Key practices for downtime control during this migration include:

• Pre-stage the replacement unit before venting the chamber. Confirm part number, revision, and dimensional match against the tool’s current configuration documentation before breaking chamber vacuum.
• Preserve original process parameters. Because the TF906276-001 is a form/fit/function replacement, no recipe changes are required. The tool’s process controller, recipe library, and HMI screens remain unchanged — eliminating the risk of process drift from parameter re-entry errors.
• Document lift pin height measurements before and after installation. Even a drop-in replacement can introduce minor positional variance; a quick pin height verification with a calibrated gauge confirms wafer seating geometry before the first production wafer.
• Coordinate with the tool’s host system. Notify the fab MES or equipment management system of the PM event and expected return-to-service time to allow production scheduling to route wafers to alternate chambers during the maintenance window.
• Conduct a dry-run wafer transfer using a dummy wafer before releasing the chamber to production. This confirms that the pin base, lift pin guides, and transfer arm are correctly aligned and that no mechanical interference exists.

With pre-staged inventory and a structured PM procedure, the TF906276-001 replacement can typically be completed within a single scheduled maintenance window, avoiding the extended downtime associated with sourcing discontinued OEM parts on short notice.

Retrofit Support FAQ

Q1: Is the TF906276-001 a direct drop-in replacement for the 414713-001 and 0010-33417?
Yes. The TF906276-001 is a migration-ready cross-reference for both the 414713-001 and 0010-33417 pin base assemblies. It shares the same 480mm × 190mm footprint, lift pin pattern, and PM P02 360 TMH-064 chamber interface. No mechanical modification or process re-qualification is required.

Q2: What pre-shipment testing is performed on the TF906276-001?
Each unit undergoes dimensional inspection and visual quality verification before dispatch. Lot traceability documentation is available upon request. All units are shipped with a support terms confirmed by quotation covering material and workmanship defects from the date of delivery.

Q3: How do I confirm wiring and interface compatibility before installation?
The TF906276-001 is a passive mechanical assembly with no active electrical connections. There are no wiring harnesses, signal cables, or firmware dependencies to verify. Installation requires only mechanical fastening per the TEL Trias TMH-064 maintenance procedure for the applicable tool revision.

Q4: What is the typical lead time and stock availability?
KNMKS maintains in-stock inventory of the TF906276-001 for immediate dispatch. Standard global shipping lead times apply by destination region. For urgent unplanned downtime situations, expedited shipping options are available. Contact the sales team to confirm current stock levels and dispatch timelines for your location.
