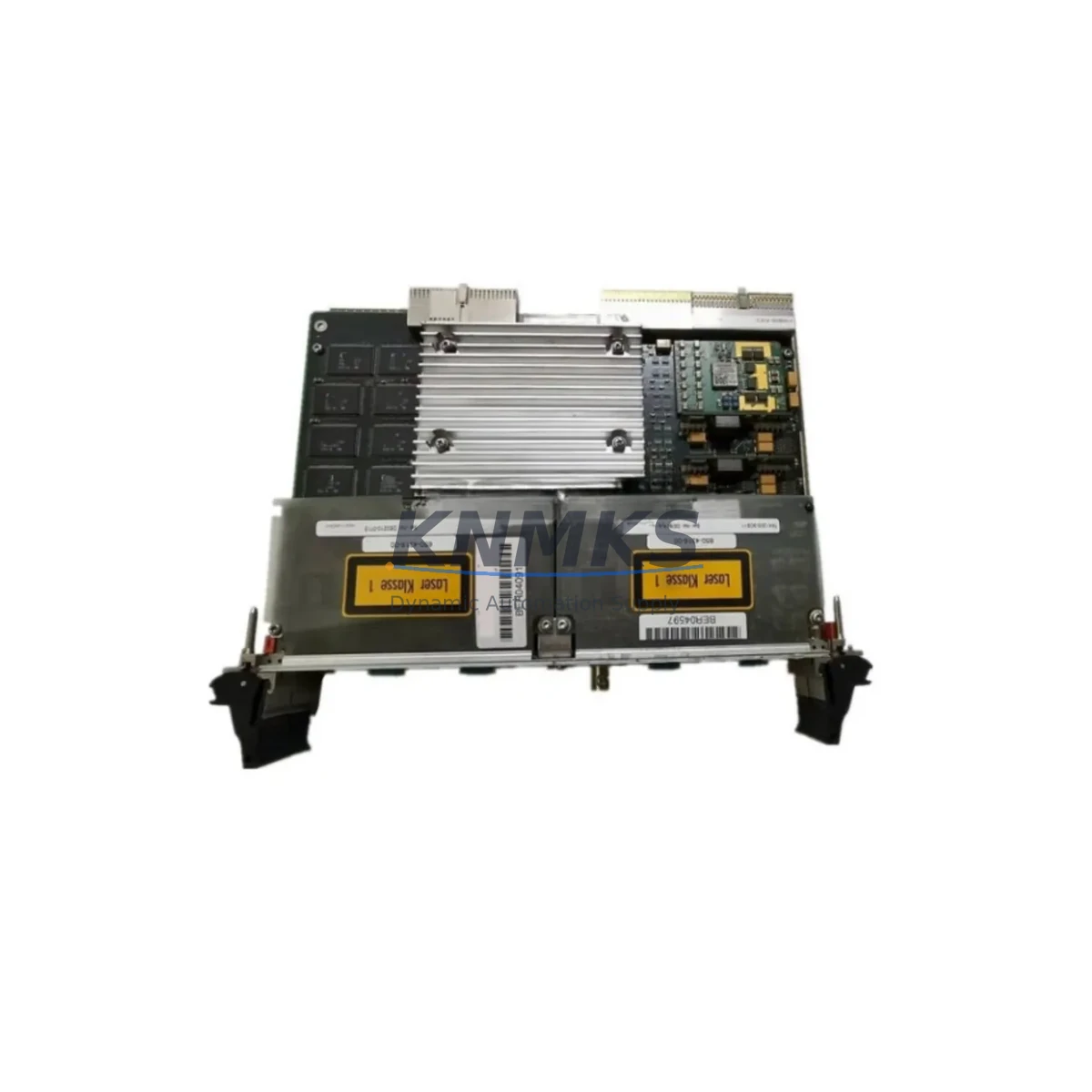

Tektronix PCE-2 LIF-1 K15SB000 Migration-Ready Logic Interface

Overview

Tektronix PCE-2 LIF-1 K15SB000 Migration-Ready Logic Interface for Legacy Control Systems

The Tektronix PCE-2 LIF-1 K15SB000 (part numbers 039-0137-00 / 657-0000-00) is a migration-ready logic interface board engineered for direct replacement within the PCE-2 series instrumentation and control platform. As Tektronix PCE-2 series components reach end-of-life and OEM support is discontinued, maintenance engineers and system integrators face increasing pressure to source verified replacement boards that preserve existing backplane architecture, signal routing, and firmware compatibility without requiring full system redesign.

This logic interface board serves as the critical communication bridge between the PCE-2 mainframe backplane and downstream control logic, managing signal arbitration, bus timing, and interface handshaking for connected I/O modules and peripheral cards. When the original LIF-1 board fails or degrades, the entire PCE-2 chassis loses its ability to coordinate module communication — making rapid, verified replacement essential to restoring system uptime.

Before installing the K15SB000 replacement, engineers should confirm the following: backplane slot assignment and address jumper configuration must match the original board’s settings; power rail voltages (+5V, ±12V) at the PCE-2 backplane connector should be verified within tolerance before seating the new board; and any firmware revision dependencies tied to the host controller or companion boards such as the PCE-2 CPU module or PCE-2 display interface card should be reviewed against the replacement board’s hardware revision level. Connector pinout and termination resistance on the logic bus should also be checked to prevent signal integrity issues after swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful PCE-2 platform retrofit projects typically involve more than a single board swap. In practice, the LIF-1 logic interface board operates in close coordination with the PCE-2 CPU module, which manages program execution and communicates with the logic interface via the internal backplane bus. If the CPU module is also approaching end-of-life, it is advisable to assess its condition concurrently to avoid a secondary failure shortly after the LIF-1 replacement is completed.

The PCE-2 chassis backplane itself should be inspected for oxidized connector pins, damaged slot guides, or cracked traces — particularly in installations where the original equipment has been in service for more than a decade. Companion boards such as the PCE-2 analog input module and PCE-2 digital output module share the same backplane bus and may exhibit communication errors if the logic interface board has been operating in a degraded state for an extended period; these modules should be re-initialized and their diagnostic status confirmed after the LIF-1 replacement is installed.

For systems where the PCE-2 platform interfaces with an external HMI or SCADA layer via a serial communication module, the communication link parameters — baud rate, parity, stop bits, and station address — must be re-verified after board replacement, as some firmware revisions reset communication registers to default values on first power-up. If the installation includes a PCE-2 power supply module, its output voltages should be load-tested under normal operating conditions before the replacement board is considered fully commissioned. Signal isolators installed between the PCE-2 I/O and field devices should also be checked to confirm that signal levels remain within the logic interface board’s input threshold specifications.

Downtime Control During System Migration

Minimizing unplanned downtime during a PCE-2 logic interface board replacement requires structured preparation before the maintenance window begins. The first priority is to capture a complete backup of the existing control program from the PCE-2 CPU module using the appropriate programming cable and software utility, ensuring that all ladder logic, function block configurations, and I/O address mappings are preserved and can be reloaded if the replacement board triggers any program memory reset.

Prior to removing the original LIF-1 board, document the physical jumper positions and any DIP switch settings visible on the board surface. Photograph the backplane slot and adjacent module positions to confirm correct reinstallation orientation. During the swap, avoid touching the edge connector contacts and handle the board by its card frame to prevent electrostatic discharge damage to the logic interface circuitry.

After seating the replacement K15SB000 board, power the PCE-2 chassis in a controlled sequence — backplane power first, then module enable — and monitor the system status indicators for any fault flags before enabling field I/O. If the system includes a watchdog timer or safety relay tied to the PCE-2 logic interface output, confirm that the watchdog reset sequence is executed correctly before returning the system to automatic control mode. A structured commissioning checklist covering bus communication verification, I/O module handshake confirmation, HMI screen data refresh, and field device response testing will reduce the risk of residual faults going undetected after the maintenance window closes.

Retrofit Support FAQ

Q: Is the K15SB000 a direct replacement for all LIF-1 variants in the PCE-2 series?
A: The K15SB000 (039-0137-00 / 657-0000-00) is the primary LIF-1 logic interface board for the PCE-2 platform. Confirm the part number on the original board’s label before ordering. If your system uses a hardware revision variant, contact us with the full label information for compatibility confirmation prior to shipment.

Q: What commissioning steps are required after installing the replacement board?
A: After installation, verify backplane bus communication with the PCE-2 CPU module, confirm I/O module address recognition, re-check serial communication link parameters if an external SCADA or HMI is connected, and run a full I/O functional test before returning the system to production. Refer to the original PCE-2 service documentation for detailed commissioning procedures.

Q: Has this board been tested before shipment?
A: Yes. Each PCE-2 LIF-1 K15SB000 unit undergoes pre-shipment functional testing covering logic bus integrity, interface signal levels, and connector condition. A support terms confirmed by quotation is included with every unit.

Q: What is the typical lead time and do you maintain stock?
A: Units are maintained availability confirmed by RFQ for rapid global dispatch. Contact us to confirm current availability and lead time for your region. Emergency replacement orders are supported with expedited shipping options.
