SMC VV5Q11-10-X3105V Maintenance-Proven Spare Part for Factory Uptime

Overview

SMC VV5Q11-10-X3105V Maintenance-Proven Spare Part for Factory Uptime

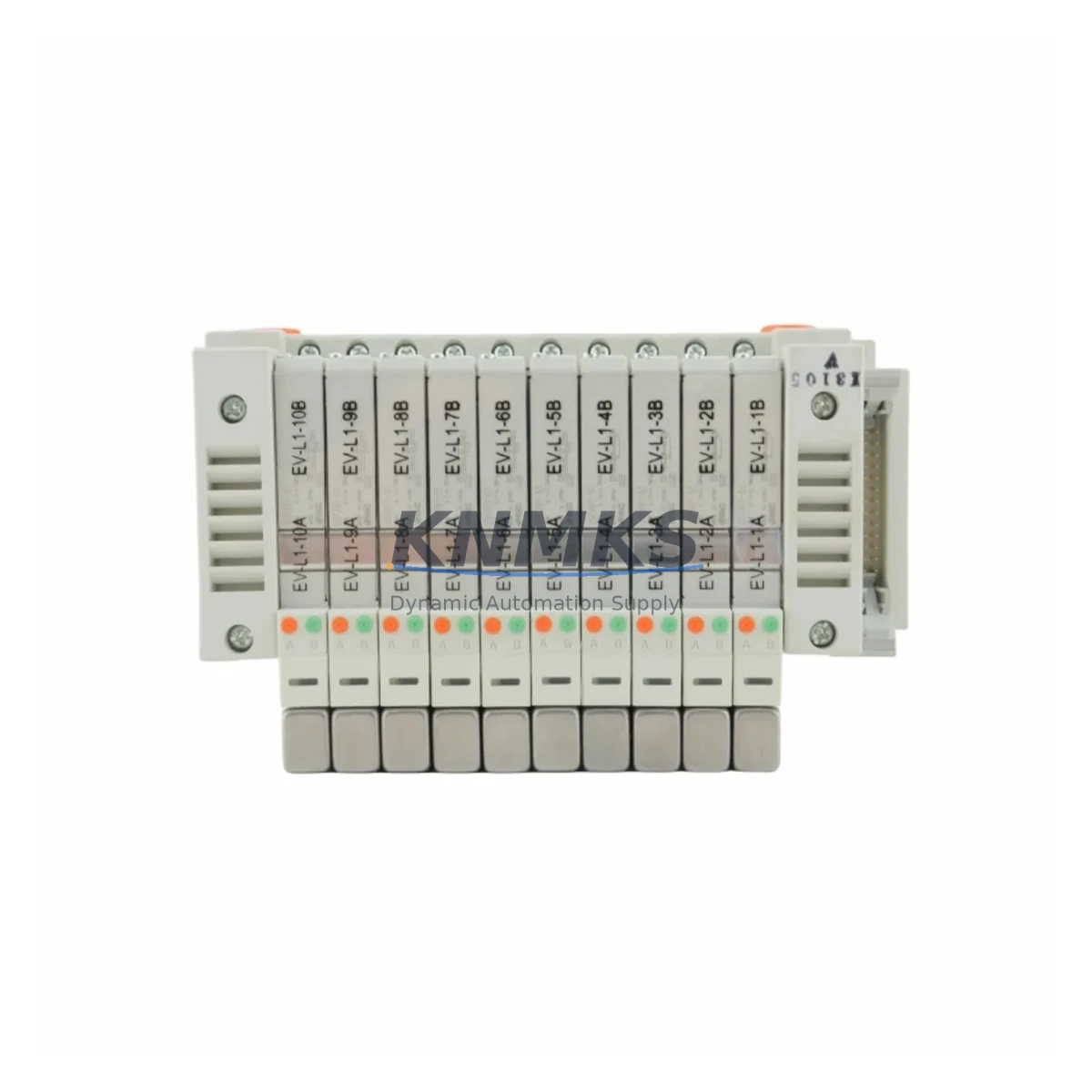

The SMC VV5Q11-10-X3105V is a 10-station pneumatic valve manifold engineered for continuous-duty automation environments. As a direct original spare for VV5Q11 Series systems, this manifold supports high-density solenoid valve integration across assembly lines, packaging machinery, material handling systems, and process automation cells. Sourced from SMC Corporation’s verified manufacturing network in Japan, each unit is inspected and tested prior to dispatch to ensure drop-in compatibility and immediate operational readiness.

For maintenance engineers managing aging pneumatic control cabinets, the VV5Q11-10-X3105V represents a critical stocking item. Its 10-station configuration accommodates a wide range of actuator circuits, and the X3105V suffix designates specific wiring and connector options suited to multi-solenoid control architectures. Whether you are executing a planned annual overhaul, responding to an unscheduled line stoppage, or building a preventive maintenance spare parts buffer, this manifold delivers the dimensional and functional compatibility required to restore production without system redesign.

KNMKS maintains ready stock of the VV5Q11-10-X3105V to support urgent replacement cycles. All units ship with a support terms confirmed by quotation and full pre-shipment electrical and pneumatic verification. Global logistics coverage ensures delivery to manufacturing sites across Asia-Pacific, Europe, and North America within standard lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the VV5Q11-10-X3105V manifold during a scheduled or emergency maintenance event, a thorough inspection of the surrounding pneumatic and electrical circuit is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity to audit the entire valve island assembly and its upstream/downstream dependencies.

Begin by verifying the compressed air supply quality upstream of the manifold. A clogged or degraded SMC AF / AFF series filter-regulator can introduce moisture or particulate contamination that accelerates seal wear inside the new manifold. Replace filter elements and drain bowls as part of the same work order. Check the pressure regulator setpoint — operating above the rated 0.7 MPa ceiling will shorten manifold service life significantly.

Inspect all solenoid valve coils mounted on the manifold stations. On a 10-station VV5Q11 assembly, individual coil failures are common in high-cycle environments. SMC SY3000 or SY5000 series solenoid valves sharing the same manifold base should be tested for coil resistance and insulation integrity before the system is returned to service. A single shorted coil can cause nuisance tripping on the PLC output card driving that station.

Review the wiring harness and connector condition at the X3105V multi-pin interface. Connector pins corrode in humid or chemically aggressive environments. Clean or replace the mating connector housing and verify pin-to-pin continuity against the station wiring diagram. If the manifold is connected to a fieldbus or DeviceNet node — common in VV5Q11 multi-station configurations — confirm that the node address and termination resistor settings are correctly restored after reconnection.

On the electrical side, check the 24 VDC solenoid power supply feeding the manifold. A marginal power supply with excessive ripple or voltage drop under load can cause intermittent solenoid actuation faults that are difficult to diagnose. If the supply is shared with other loads in the control cabinet, verify that the total current draw remains within the supply’s rated output. Fuse or circuit breaker protection for the solenoid circuit should also be inspected — replace any discolored or thermally stressed fuse holders.

Finally, confirm that all pneumatic tubing connections at the manifold ports are leak-free using a soap solution or ultrasonic leak detector after pressurization. Document the replacement in the site maintenance log, including the new unit’s serial number, installation date, and pre-commissioning test results, to support the support terms confirmed by quotation claim process if required.

Site Replacement Workflow

Step 1 — Isolation: De-energize the solenoid power supply and exhaust all pneumatic pressure from the manifold circuit using the manual override or lockout/tagout procedure. Confirm zero-energy state before disconnecting any tubing or wiring.

Step 2 — Documentation: Photograph the existing wiring harness connector orientation, tubing port assignments, and any fieldbus node labels before disassembly. This prevents reassembly errors on a 10-station manifold where port numbering is critical to actuator sequencing.

Step 3 — Removal: Disconnect the X3105V wiring harness, label each solenoid valve if they are to be transferred to the new manifold base, and remove the manifold from its mounting rail or panel. Inspect the mounting surface for corrosion or mechanical damage.

Step 4 — Installation: Mount the replacement VV5Q11-10-X3105V, reconnect tubing in port-number order, and reattach the wiring harness. Verify that the connector is fully seated and the locking tab is engaged.

Step 5 — Commissioning: Restore air supply gradually and check for leaks at all port connections. Energize the solenoid power supply and perform a station-by-station functional test from the PLC or manual override. Confirm actuator response matches the original sequence before releasing the line to production.

Step 6 — Record: Update the CMMS or maintenance log with the replacement date, unit serial number, and test results. Initiate a reorder for the consumed spare to maintain your buffer stock level.

Spare Parts Support FAQ

Q1: Is the VV5Q11-10-X3105V a direct drop-in replacement for my existing manifold?
In most VV5Q11 Series installations, yes — provided the station count (10), connector type (X3105V), and port configuration match your current assembly. Always cross-reference the full part number including suffix codes against your OEM documentation or the label on the removed unit before installation. KNMKS technical support can assist with compatibility verification prior to order.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, seal integrity failures, and solenoid coil faults attributable to the unit itself under normal operating conditions. It does not cover damage caused by contaminated air supply, overpressure, incorrect installation, or electrical overvoltage. All support requests are supported by the pre-shipment test records issued with each unit.

Q3: How quickly can KNMKS ship the VV5Q11-10-X3105V for an emergency line-down situation?
KNMKS maintains ready stock of high-demand SMC VV5Q11 series manifolds. Emergency orders placed before the daily logistics cutoff are typically dispatched same day. Express air freight options are available for Asia-Pacific, European, and North American destinations. Contact [email protected] or call +86 18359268345 to confirm current stock and arrange priority shipment.

Q4: Can KNMKS support long-term supply agreements for VV5Q11-10-X3105V as part of an annual maintenance contract?
Yes. KNMKS offers blanket order arrangements and scheduled delivery programs for maintenance teams managing multi-site or high-volume spare parts programs. Long-term supply agreements include price stability, reserved stock allocation, and dedicated account support to eliminate procurement risk for critical pneumatic components.

—
© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

SMC
Assorted Brands

Model / Series

4060-00949 VV5Q11-10-X3105V UT-CNN-01 H1001426001A 3620-00122 CDN127-1
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: SMC 4060-00949 VV5Q11-10-X3105V UT-CNN-01 H1001426001A 3620-00122 CDN127-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
