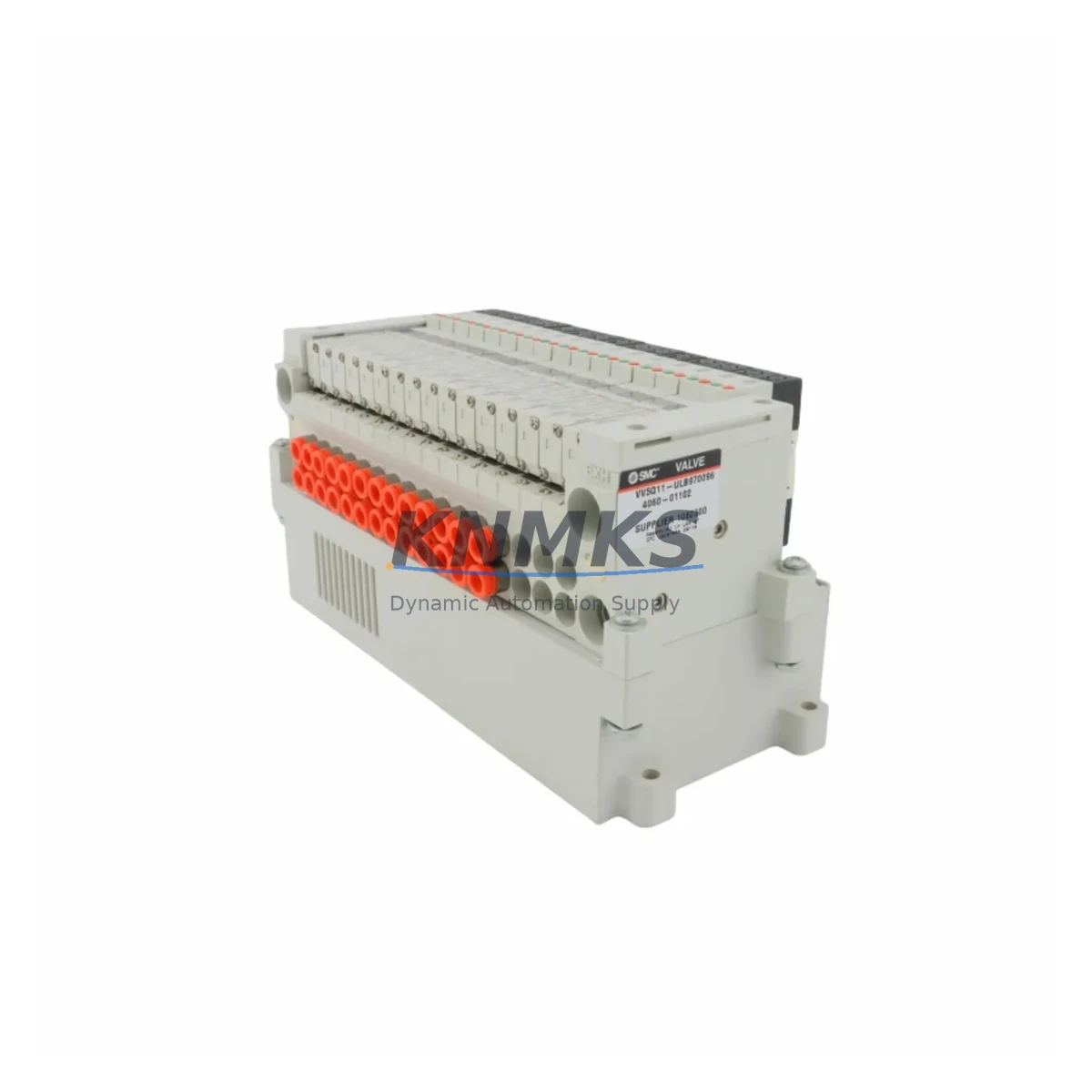

SMC DBL4N00950-0R2-000-S40 Migration-Ready Manifold for Legacy Control Systems

Overview

SMC DBL4N00950-0R2-000-S40 Migration-Ready Manifold for Legacy Control Systems

The SMC DBL4N00950-0R2-000-S40 is a migration-ready pneumatic manifold engineered for direct replacement and compatibility upgrade within legacy DBL series pneumatic control systems. As industrial facilities face increasing pressure to modernize aging automation infrastructure — including discontinued valve islands, obsolete solenoid manifolds, and end-of-life pneumatic distribution blocks — this manifold provides a verified drop-in solution that minimizes engineering rework, reduces downtime exposure, and preserves existing tubing layouts and port configurations.

When planning a retrofit involving the DBL4N00950-0R2-000-S40, engineers must confirm several critical parameters before committing to installation. Port thread standards (typically G1/8 or NPT) must match the existing manifold body to avoid adapter fittings that introduce pressure drop. Station count and valve island width must align with the existing DIN rail or panel cutout dimensions. Supply and exhaust port sizing should be verified against the pneumatic circuit’s flow demand, particularly in high-cycle applications where pressure recovery time is critical. Solenoid coil voltage — commonly 24VDC in modern PLC-controlled systems — must be confirmed against the existing I/O output card specifications, such as those found on Siemens ET 200SP digital output modules or Allen-Bradley 1734-OB8 POINT I/O cards.

In systems where the DBL series manifold interfaces with a fieldbus communication node — such as an SMC EX600 series SI unit or a Festo CPX terminal — the manifold’s station addressing and node configuration must be re-validated after physical replacement. Fieldbus parameters including node address, baud rate, and diagnostic byte mapping should be backed up from the original configuration before removal. If the control system uses a Profibus DP or EtherNet/IP network, the GSD or EDS file associated with the original manifold assembly must be reviewed to confirm compatibility with the replacement unit’s electronic signature.

For facilities operating legacy Mitsubishi MELSEC or Omron CJ-series PLCs, the I/O mapping associated with the manifold’s solenoid outputs should be documented and cross-referenced against the replacement unit’s wiring terminal layout. Any differences in terminal block pitch or connector type — for example, transitioning from a 2.5mm pitch terminal strip to a push-in spring clamp connector — must be addressed during the pre-installation planning phase to avoid field wiring modifications under time pressure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the DBL4N00950-0R2-000-S40 typically requires coordination across several interconnected components. The manifold’s solenoid outputs connect directly to the PLC’s digital output section — in many legacy installations, this means interfacing with a Siemens S7-300 SM 322 digital output module or an equivalent card in a Rockwell ControlLogix chassis. Before disconnecting the original manifold, all solenoid coil assignments should be mapped and labeled to prevent wiring errors during reinstallation.

The pneumatic supply circuit feeding the manifold — typically routed through an SMC AW series filter-regulator-lubricator (FRL) unit — should be isolated and depressurized before removal. Supply pressure settings, usually between 0.15 and 0.7 MPa for DBL series manifolds, must be re-established and verified after installation using a calibrated pressure gauge at the manifold inlet port.

In multi-zone control cabinets where the DBL manifold shares a DIN rail with terminal blocks, power distribution modules, and signal isolators, physical space must be confirmed before ordering the replacement. The DBL4N00950-0R2-000-S40’s body width and station count determine the total manifold length, which must fit within the available rail segment without displacing adjacent components such as Phoenix Contact TRIO power supplies or Weidmüller WDU terminal blocks.

If the system includes an HMI — such as a Siemens TP700 Comfort or Proface GP4000 series panel — solenoid status indicators and valve position feedback screens should be reviewed post-replacement to confirm that I/O tag assignments remain valid. Any changes to the manifold’s fieldbus node address will require corresponding updates in the HMI project file and PLC program before the system can be returned to automatic mode.

For systems using SMC’s EX600 series manifold-mounted fieldbus SI unit, the replacement manifold must be confirmed compatible with the existing SI unit’s connector interface and power supply rating. The EX600’s diagnostic functions — including valve coil open-circuit detection and short-circuit protection — should be re-enabled and tested after installation to ensure full system health monitoring is restored.

Downtime Control During System Migration

Minimizing unplanned downtime during a DBL4N00950-0R2-000-S40 replacement requires a structured pre-shutdown checklist. Before the maintenance window begins, the original PLC program — including all solenoid output assignments, timer values, and interlock logic — should be backed up to an offline storage device. If the system uses a Siemens S7 CPU with a memory card, a full project archive should be saved using STEP 7 or TIA Portal. For Rockwell systems, an RSLogix 5000 or Studio 5000 project backup should be completed and verified.

During the physical swap, all pneumatic tubing connections should be labeled with numbered tags corresponding to the manifold station number and circuit function. This prevents cross-connection errors that can cause actuator misfires or sequence logic failures when the system is re-pressurized. Electrical connections — particularly solenoid coil leads and fieldbus cable connectors — should be photographed before disconnection to provide a reference during reinstallation.

After installation, a controlled power-up sequence should be followed: first restore the fieldbus communication link and confirm node recognition in the PLC’s hardware configuration, then enable solenoid outputs one station at a time while monitoring actuator response and system pressure. A full cycle test under manual mode should be completed before returning the system to automatic production mode. This approach limits exposure to sequence errors and allows any wiring or addressing issues to be identified and corrected without impacting the production schedule.

With pre-tested stock available and same-day dispatch capability, the DBL4N00950-0R2-000-S40 can be on-site within 3–5 business days for most global destinations, supporting tight maintenance windows and emergency replacement scenarios.

Retrofit Support FAQ

Q: Is the DBL4N00950-0R2-000-S40 a direct drop-in replacement for the original DBL series manifold?
A: In most cases, yes — the DBL4N00950-0R2-000-S40 is designed as a form-fit-function replacement for compatible DBL series manifold assemblies. However, engineers should verify station count, port thread standard, solenoid voltage, and fieldbus interface type before installation to confirm full compatibility with the existing system configuration.

Q: What commissioning steps are required after installing the replacement manifold?
A: After physical installation, re-validate the fieldbus node address in the PLC hardware configuration, confirm solenoid coil assignments against the original I/O mapping, restore supply pressure to the specified operating range, and perform a full cycle test in manual mode before returning to automatic operation. HMI tag assignments should also be reviewed if the manifold’s node address has changed.

Q: Does the unit ship pre-tested, and what support terms coverage is provided?
A: Yes — all units are function-tested prior to dispatch. The DBL4N00950-0R2-000-S40 is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available to support emergency replacement requirements.

Q: Can this manifold be used with third-party fieldbus SI units or only SMC’s EX600 series?
A: The DBL4N00950-0R2-000-S40 is optimized for use with SMC’s EX600 series SI units. Compatibility with third-party fieldbus interfaces depends on the connector type, power supply rating, and protocol support of the SI unit in question. Contact our technical team with your existing SI unit model number for a compatibility assessment before ordering.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

SMC
Assorted Brands

Model / Series

4060-00633 US17276 102264 DBL4N00950-0R2-000-S40 4022.436.2449 044895 W/ 4022.436.1069
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: SMC 4060-00633 US17276 102264 DBL4N00950-0R2-000-S40 4022.436.2449 044895 W/ 4022.436.1069
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
