SIPOS 2SY5010-0LB05 Maintenance-Proven Spare Part for Factory Uptime

Overview

SIPOS 2SY5010-0LB05 Maintenance-Proven Spare Part for Factory Uptime

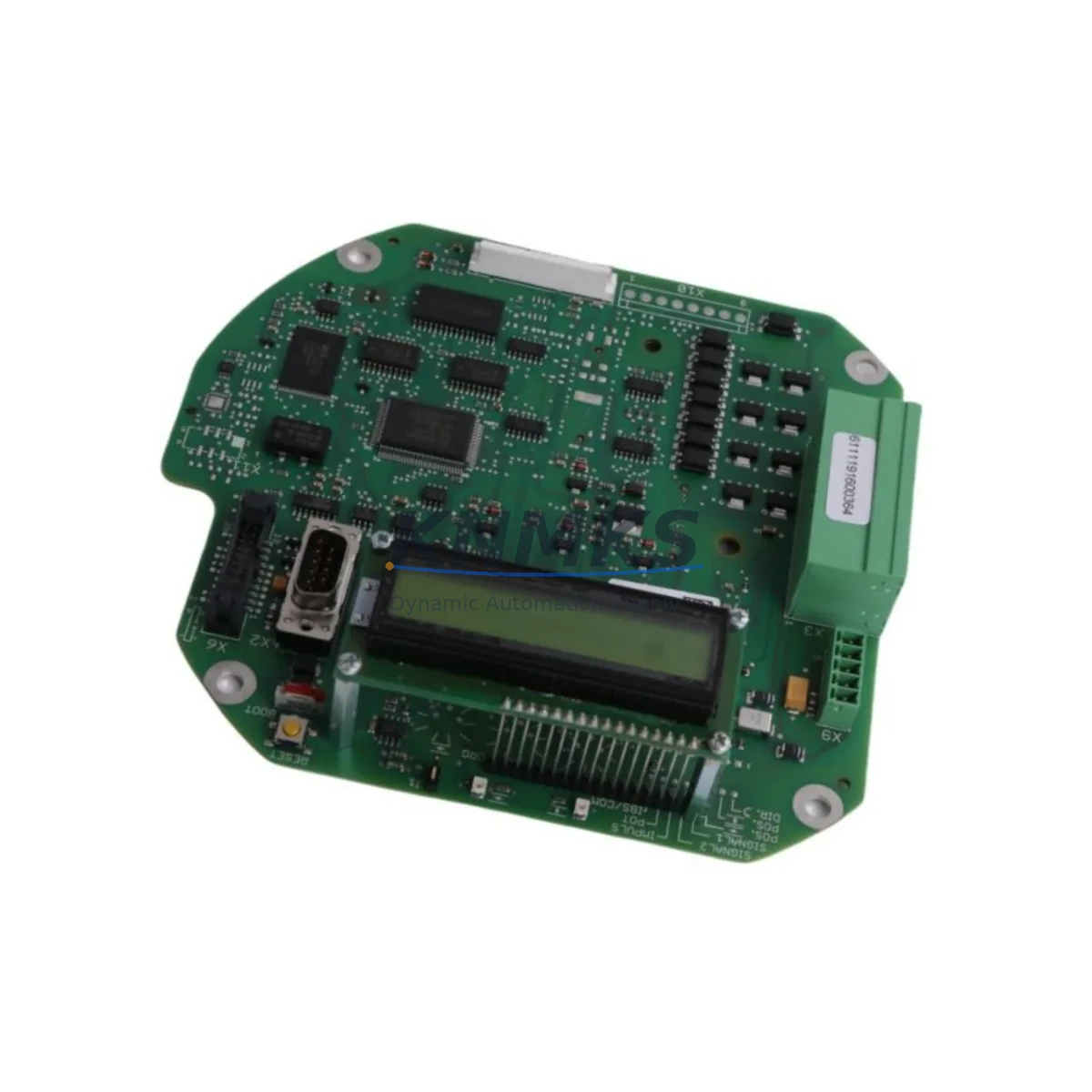

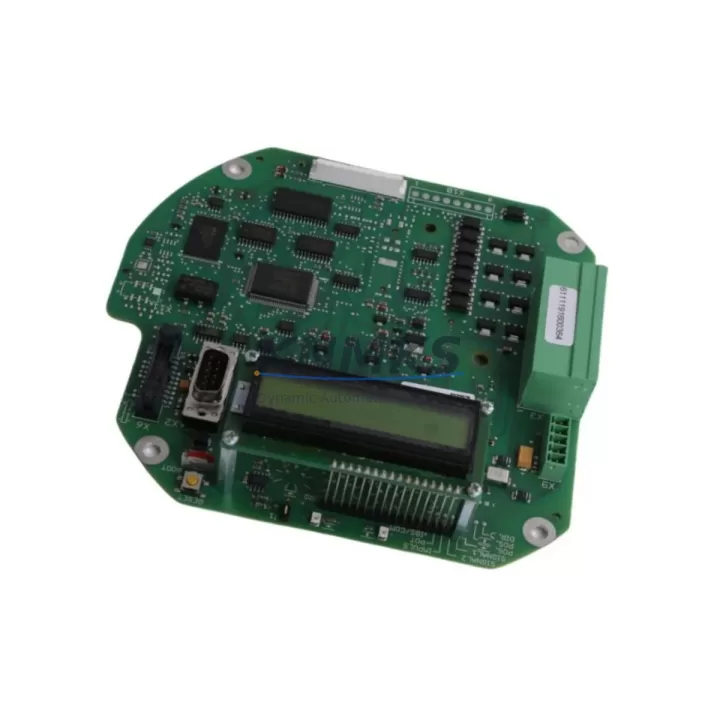

The SIPOS 2SY5010-0LB05 is an original actuator control card designed for the SIPOS 5 Flash Series electric actuator platform — one of the most widely deployed actuator families in industrial valve automation, water treatment, power generation, and chemical processing facilities worldwide. When this control card fails or degrades, the entire actuator loses its ability to execute positioning commands, process feedback signals, and communicate with the plant DCS or PLC system. Sourcing a verified replacement quickly is critical to restoring valve control and preventing extended process downtime.

At KNMKS, every 2SY5010-0LB05 unit is inspected, function-tested, and shipped with a support terms confirmed by quotation. We maintain long-term stock of this card to support both emergency breakdown orders and planned annual maintenance programs. Whether you are a maintenance engineer responding to an unplanned trip or a procurement engineer building a strategic spare parts inventory, we provide reliable supply with fast lead times and full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIPOS 2SY5010-0LB05 control card is replaced during a scheduled or emergency maintenance event, experienced maintenance engineers know that the card itself is rarely the only component that requires attention. A thorough site inspection should cover the entire actuator control circuit to prevent repeat failures and ensure long-term reliability.

Start by inspecting the 24 VDC auxiliary power supply feeding the actuator control electronics. A degraded or undersized power supply can cause intermittent resets and corrupt position feedback — symptoms that are often misdiagnosed as a faulty control card. If the actuator is integrated into a PROFIBUS DP or HART network, verify the fieldbus termination resistors and cable shielding continuity, as poor signal integrity is a common root cause of communication faults on the 5 Flash platform.

Check the local control unit (LCU) or operator panel for display errors or button contact wear, particularly on actuators that have been in service for more than five years. The LCU interfaces directly with the control card and can introduce spurious signals if its ribbon cable connector is corroded or loose. Similarly, inspect the position feedback potentiometer or encoder — a worn feedback element will cause the replacement control card to report incorrect valve position, leading to process deviations even after the card swap.

For actuators installed in hazardous area enclosures or outdoor cabinets, examine the terminal strip and wiring harness for moisture ingress, insulation cracking, or loose terminations. Corroded terminals on the I/O interface can cause the new 2SY5010-0LB05 to misread digital inputs or fail to drive output relays correctly. It is also good practice to test the torque switch and limit switch assemblies while the actuator is open, as these mechanical components interact directly with the control card logic and are subject to wear over long service cycles.

If the actuator is part of a larger valve control panel or MCC (motor control center), verify the condition of the motor protection relay and the 24 VDC fuse block supplying the control circuit. A blown or weakened fuse is sometimes the actual cause of a control card failure, and replacing the card without addressing the upstream protection will result in repeat damage. For sites running SIPOS COM software for parameterization, ensure the replacement card is configured with the correct actuator parameters — torque limits, speed settings, and fail-safe position — before returning the valve to service.

Procurement engineers managing multi-site operations should consider stocking the 2SY5010-0LB05 alongside related 5 Flash Series components such as the SIPOS 5 Flash motor module, SIPOS 5 Flash power board, and SIPOS 5 Flash encoder interface card to enable complete actuator restoration from a single spare parts kit. This approach significantly reduces mean time to repair (MTTR) and eliminates the risk of secondary delays caused by missing sub-components during a breakdown event.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Disconnect the actuator from the control power supply and confirm zero energy state using a calibrated voltage tester before opening the actuator housing.

Step 2 — Document existing configuration: Before removing the old 2SY5010-0LB05, use SIPOS COM or photograph the existing parameter settings, DIP switch positions, and wiring layout. This documentation is essential for correctly configuring the replacement card.

Step 3 — Remove and inspect: Extract the faulty control card and inspect the card slot, connector pins, and surrounding PCB area for signs of overheating, corrosion, or mechanical damage. Clean the slot with compressed air if contamination is present.

Step 4 — Install replacement card: Insert the new SIPOS 2SY5010-0LB05 into the card slot, ensuring full connector engagement. Secure any retaining screws or clips per the SIPOS 5 Flash service manual.

Step 5 — Restore parameters: Using SIPOS COM software, upload the saved parameter set or manually re-enter torque limits, speed, fail-safe position, and communication address. Verify that the actuator type and firmware version are compatible with the replacement card.

Step 6 — Functional test: Apply control power and perform a full open/close stroke test. Verify position feedback accuracy, torque switch operation, and fieldbus communication response before returning the valve to automatic control.

Step 7 — Update maintenance records: Log the replacement date, card serial number, and test results in the plant CMMS. Schedule the next inspection interval based on the actuator’s duty cycle and process criticality.

This workflow supports a direct drop-in replacement of legacy or end-of-life 5 Flash control cards without requiring actuator housing modifications or fieldbus reconfiguration, minimizing total downtime to typically under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the SIPOS 2SY5010-0LB05 a direct replacement for older 5 Flash Series control cards?
Yes. The 2SY5010-0LB05 is designed as a direct plug-in replacement for compatible SIPOS 5 Flash Series actuators. However, we recommend verifying the actuator’s firmware version and hardware revision using SIPOS COM software before installation to confirm full compatibility. Our technical team can assist with compatibility verification if you provide the actuator nameplate data.

Q2: What testing is performed before shipment?
Every 2SY5010-0LB05 unit supplied by KNMKS undergoes functional testing to verify power-up behavior, I/O response, and communication interface integrity before dispatch. Units are shipped with test records and are covered by a support terms confirmed by quotation from the date of delivery. If a unit fails within the confirmed support period, we provide a replacement or documented resolution support.

Q3: Can KNMKS support long-term or recurring supply of this spare part?
Yes. KNMKS maintains dedicated stock of the 2SY5010-0LB05 and other SIPOS 5 Flash Series components to support both emergency orders and annual maintenance procurement programs. We can provide blanket order arrangements, consignment stock agreements, and multi-site supply contracts for industrial customers with ongoing maintenance requirements.

Q4: What information should I provide when placing an order to ensure I receive the correct part?
To confirm compatibility and avoid procurement errors, please provide the full actuator model number, the existing control card part number (if readable), and the actuator’s communication protocol (PROFIBUS, HART, or hardwired). You can send this information to [email protected] or contact us at +86 18359268345 for pre-order technical support.
