SILL OPTICS S6EXZ5310/328 Maintenance-Proven Spare for Uptime

Overview

SILL OPTICS S6EXZ5310/328 Maintenance-Proven Spare for Uptime

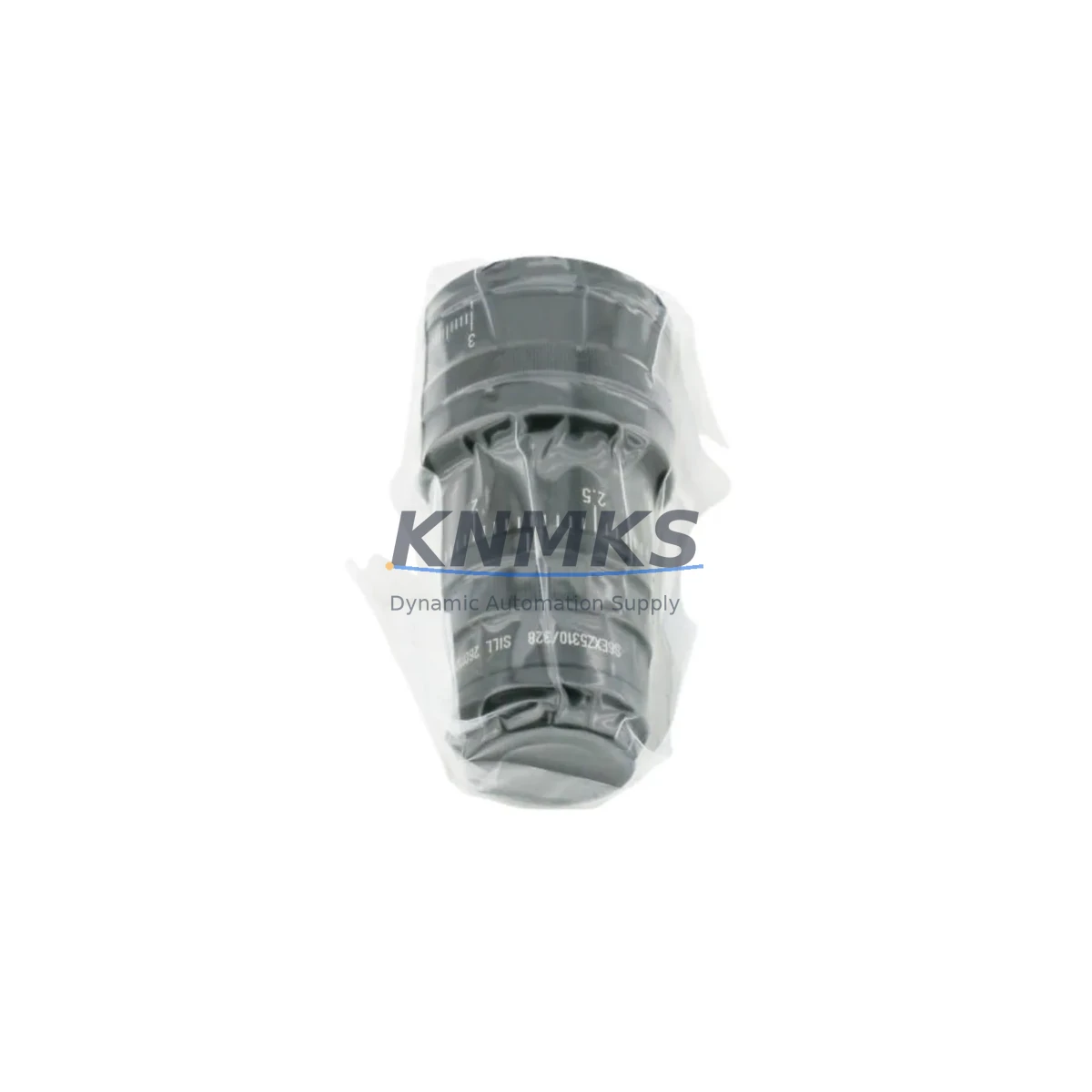

The SILL OPTICS S6EXZ5310/328 (P/N: 4022.484.0039/1, Ref: 10K 0100-71134) is a precision 1064nm, 1×–3× continuously variable zoom beam expander engineered for high-power industrial laser systems. As a maintenance-proven spare part, it is stocked and dispatched by KNMKS to support laser cutting, marking, welding, and engraving lines where unplanned downtime directly impacts production throughput and OEE targets. Whether you are executing a scheduled annual overhaul, responding to an emergency beam quality failure, or building a strategic spare parts buffer for a multi-machine facility, the S6EXZ5310/328 delivers the optical precision and mechanical reliability that maintenance engineers and procurement teams depend on.

Sourced directly from SILL OPTICS Germany, this beam expander is manufactured to the same exacting tolerances as the original OEM component installed in your laser system. Each unit dispatched by KNMKS undergoes pre-shipment functional verification and is covered by a support terms confirmed by quotation, giving your maintenance team confidence from the moment it arrives on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A beam expander failure rarely occurs in isolation. When the S6EXZ5310/328 is flagged during a routine inspection or after a beam quality alarm, experienced maintenance engineers know that a thorough cabinet and beam path audit is essential before returning the laser to production. The following components should be inspected and, where necessary, replaced as part of the same maintenance window:

Laser Power Supply & Driver Module: Fluctuations in the laser power supply — such as those found in SILL OPTICS-compatible driver boards or third-party OEM equivalents — can accelerate coating degradation on the S6EXZ5310/328 optics. Verify output stability and ripple before reinstalling the beam expander.

Beam Delivery Fiber & Fiber Connector: In fiber-coupled 1064nm systems, the delivery fiber and SMA or QBH connector should be inspected for end-face contamination or micro-cracks. A damaged fiber end-face will immediately re-contaminate a freshly installed S6EXZ5310/328, shortening its service life.

Collimation Lens Assembly: The collimation optic upstream of the S6EXZ series beam expander is a common wear item in high-duty-cycle marking and cutting heads. If the S6EXZ5310/328 shows uneven coating wear, inspect the collimator for misalignment or thermal damage.

Focusing Lens & F-Theta Scan Lens: Downstream focusing optics — including F-theta lenses used in galvo-based marking systems — should be cleaned and inspected for coating damage whenever the beam expander is serviced. These components share the same beam path and are subject to the same contamination and thermal load cycles.

Galvo Scanner & Mirror Set: In scanning laser systems, the galvo mirror coatings degrade at a rate correlated with beam quality. A degraded S6EXZ5310/328 that has been operating with a distorted beam profile may have accelerated mirror wear. Inspect mirror reflectivity and replace if below specification.

Chiller & Cooling Circuit: Thermal management is critical for 1064nm laser optics. Verify that the chiller setpoint, flow rate, and coolant quality are within specification. Inadequate cooling is a leading cause of premature beam expander failure in high-power CW fiber laser systems.

Stocking the S6EXZ5310/328 alongside these associated components as part of a structured spare parts program — covering at minimum a 12-month forward buffer — is the most effective strategy for eliminating unplanned laser downtime and reducing mean time to repair (MTTR).

Site Replacement Workflow

Replacing the SILL OPTICS S6EXZ5310/328 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically:

1. Isolate and Power Down: Follow your site LOTO (Lockout/Tagout) procedure. Disable the laser source, interlock the beam path, and allow the optical assembly to reach ambient temperature before disassembly.

2. Document the Current Zoom Setting: Record the current magnification setting of the S6EXZ5310/328 before removal. This allows the replacement unit to be set to the same position, minimising beam parameter deviation and reducing re-qualification time.

3. Remove and Inspect the Mounting Interface: Clean the mounting threads or bayonet interface. Inspect for mechanical damage that could affect the alignment of the replacement unit. Replace any damaged hardware before installing the new beam expander.

4. Install the Replacement S6EXZ5310/328: Install the new unit to the torque specification defined in the laser head service manual. Do not over-torque. Set the zoom to the previously recorded position.

5. Beam Quality Verification: Before returning to production, perform a beam profile measurement at the working distance. Confirm M² and beam diameter are within the process specification. Adjust zoom as required for the application.

6. Update Maintenance Records: Log the replacement in your CMMS or maintenance register, including the new unit’s serial number, installation date, and support terms expiry. This supports future planned maintenance scheduling and support terms claim management.

This workflow supports a direct OEM-equivalent replacement without requiring optical realignment of the broader beam delivery system, minimising production downtime to the shortest possible window.

Spare Parts Support FAQ

Q1: Is the S6EXZ5310/328 a direct OEM replacement for the original SILL OPTICS unit?
Yes. The S6EXZ5310/328 supplied by KNMKS is an original SILL OPTICS component sourced from authorised supply channels. It is a direct, like-for-like replacement for the same part number installed at the factory. No optical modification or system reconfiguration is required.

Q2: How is the unit tested before shipment?
Every S6EXZ5310/328 dispatched by KNMKS undergoes a pre-shipment functional verification. This includes visual inspection of optical coatings, mechanical inspection of the zoom mechanism, and confirmation that the part number and revision match the order specification. A support terms confirmed by quotation is provided from the dispatch date.

Q3: Can KNMKS support long-term supply for multi-machine facilities or annual maintenance contracts?
Yes. KNMKS maintains stock buffers for high-demand S6EXZ series components and can support blanket purchase orders, scheduled annual releases, and emergency same-day dispatch for critical production facilities. Contact [email protected] or call +86 18359268345 to discuss your facility’s spare parts programme.

Q4: What is the recommended inventory strategy for the S6EXZ5310/328?
For facilities operating one to three laser systems using the S6EXZ series beam expander, KNMKS recommends maintaining a minimum of one unit on-site at all times. For larger installations or facilities with extended OEM lead times, a two-unit buffer — with one installed and one in reserve — is the industry-standard approach for eliminating unplanned downtime risk. Annual review of stock levels against machine hours and inspection records is advised.
