Siemens 80190-220-01-R Migration-Ready Board for SP-SCRGD

Overview

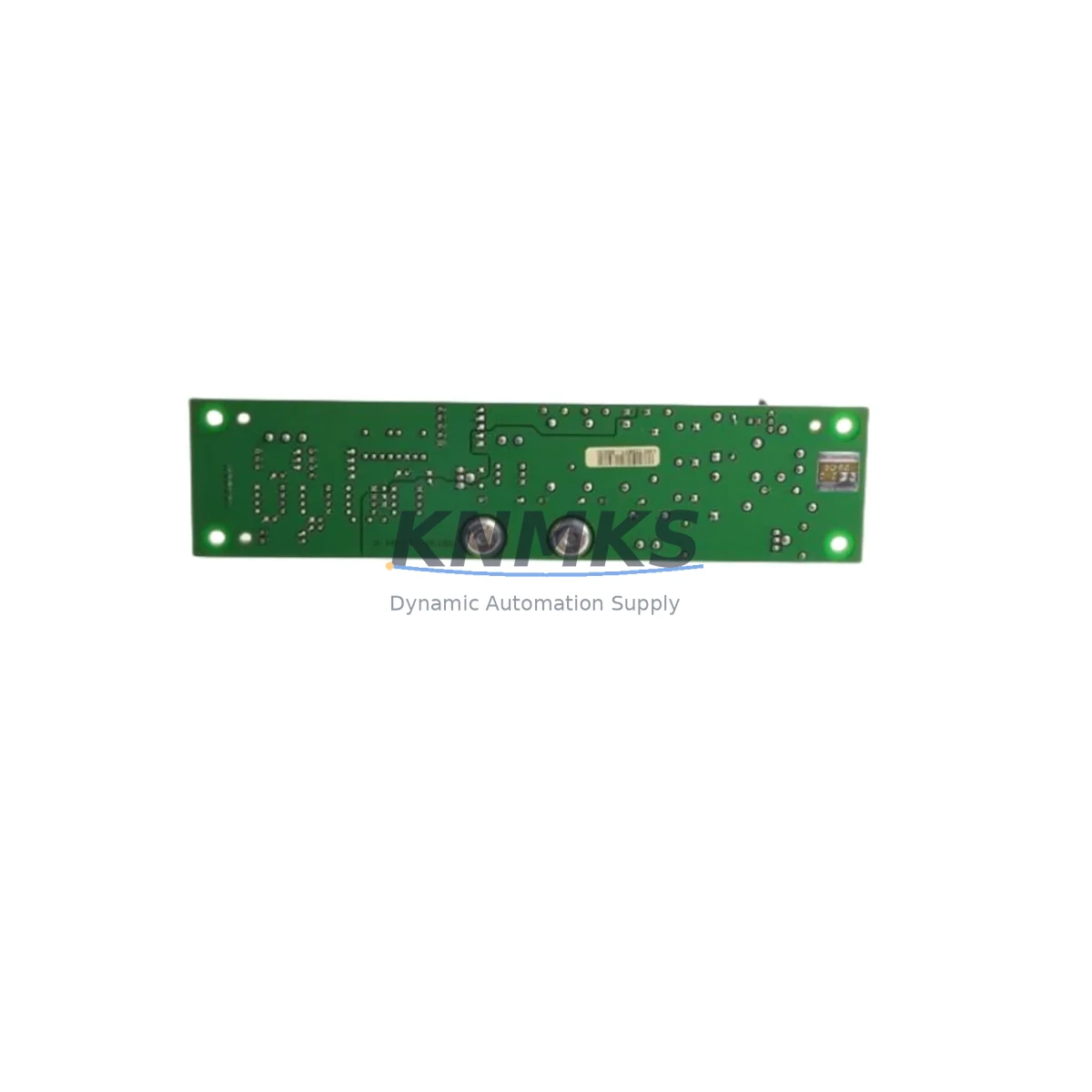

Siemens 80190-220-01-R Migration-Ready Control Board for SP-SCRGD Legacy Control Systems

The Siemens 80190-220-01-R is a retrofit-ready control board engineered for the SP-SCRGD drive and control platform — a series widely deployed across petrochemical plants, power generation facilities, water treatment stations, and heavy industrial automation environments. As Siemens progressively phases out legacy SP-SCRGD components, sourcing a validated, stock-backed replacement for the 80190-220-01-R has become a critical priority for maintenance engineers managing aging control cabinets and unplanned downtime risk.

This board serves as a direct functional replacement within the SP-SCRGD control architecture. It interfaces with the existing backplane, preserves original terminal wiring configurations, and maintains compatibility with the drive’s internal communication bus — significantly reducing the scope of field modification required during a retrofit. Engineers replacing a failed or end-of-life 80190-220-01-R can typically complete the swap without reprogramming the host controller, provided firmware revision levels are verified prior to installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 80190-220-01-R into an existing SP-SCRGD system requires a structured pre-retrofit assessment. Before removing the failed board, engineers should document the current module address assignments within the rack to ensure the replacement board is correctly configured within the control system’s I/O map. Failure to verify this step can result in address conflicts that disrupt communication between the drive controller and downstream field devices.

Power supply capacity is a frequently overlooked variable in control board replacements. The existing Siemens SP-SCRGD power supply module must be confirmed to deliver adequate current headroom for the replacement board, particularly in cabinets where additional I/O expansion modules or communication adapters have been added since the original commissioning. In systems where the power budget is marginal, a parallel review of the installed power supply module is recommended before proceeding.

Terminal wiring documentation should be captured photographically and cross-referenced against the original SP-SCRGD wiring diagram before disconnection. In many legacy installations, field modifications made during earlier maintenance cycles may not be reflected in the as-built drawings. The 80190-220-01-R replacement process also provides an opportunity to inspect and replace aging signal cables connecting the control board to field-side I/O terminals, analog input modules, and digital output modules within the same cabinet.

For systems that include a Siemens OP or TP series HMI panel connected to the SP-SCRGD drive, engineers should verify that HMI screen variable mappings remain intact after the board swap. In some configurations, the HMI communicates directly with the drive controller via a serial or PROFIBUS link, and a firmware mismatch between the replacement board and the drive’s communication module can cause screen update failures or alarm display errors. Confirming the communication link integrity — including baud rate, station address, and protocol version — is a mandatory commissioning step.

Where the SP-SCRGD system is integrated into a broader Siemens S7 or S5 PLC-based control architecture, the replacement of the 80190-220-01-R should be coordinated with a review of the PLC program logic that interfaces with the drive. I/O expansion modules connected to the same rack, PROFIBUS DP communication modules, and any installed CP communication processors should be confirmed operational before returning the system to service. A programming cable connection to the S7 CPU or S5 controller allows engineers to monitor live I/O status and confirm that the replacement board is responding correctly to control commands before full production restart.

Downtime Control During System Migration

Minimizing unplanned downtime during a control board replacement on an SP-SCRGD system requires preparation that begins well before the maintenance window. The most effective approach is to have the replacement 80190-220-01-R on-site and pre-verified before the system is taken offline. All units supplied by KNMKS undergo pre-shipment functional testing to confirm board integrity, reducing the risk of receiving a non-functional replacement that extends the outage.

Where production schedules permit, a planned maintenance window should be used rather than an emergency replacement. This allows time for a full backup of the drive’s parameter set, documentation of current terminal wiring, and a controlled shutdown sequence that protects the integrity of the original program logic stored in the host PLC. In S7-based systems, an online backup of the CPU program block should be performed and stored off-controller before the board swap begins.

For critical processes where continuous control is required, a hot-standby or redundant control architecture should be evaluated as part of the longer-term modernization plan. While the 80190-220-01-R replacement itself is a single-board swap, the broader SP-SCRGD platform may benefit from a phased migration toward a current-generation Siemens SINAMICS or SIMATIC control platform, which offers native redundancy options and extended spare parts availability horizons. Planning this migration in parallel with near-term board replacements reduces total lifecycle cost and future downtime exposure.

Field commissioning after installation should follow a structured startup sequence: power-on self-test confirmation, communication link verification, I/O status check via the PLC or HMI, and a controlled test run under reduced load before returning to full production. This sequence protects both the replacement board and the connected field devices from damage caused by undetected wiring errors or configuration mismatches.

Retrofit Support FAQ

Q: Is the 80190-220-01-R a direct replacement for the original Siemens SP-SCRGD control board?
A: Yes. The 80190-220-01-R is a direct functional replacement for the original SP-SCRGD control board. It uses the same backplane connector, terminal layout, and form factor. Firmware revision verification is required prior to installation to confirm compatibility with your specific drive firmware version.

Q: What pre-shipment testing is performed on each unit?
A: Every 80190-220-01-R supplied by KNMKS undergoes functional pre-shipment testing to verify board integrity before dispatch. Units are covered by a support terms confirmed by quotation from the date of shipment. In-stock units are available for immediate dispatch to support urgent maintenance requirements.

Q: Do I need to reprogram my PLC or HMI after replacing the board?
A: In most standard SP-SCRGD configurations, no PLC reprogramming is required. However, HMI variable mappings and communication link parameters should be verified post-installation. If the replacement board carries a different firmware revision than the original, a parameter re-entry or firmware alignment step may be required — your commissioning engineer should confirm this during the pre-retrofit assessment.

Q: What is the lead time and global shipping availability?
A: KNMKS maintains stock of the 80190-220-01-R for immediate dispatch. Global shipping is available to support multi-site deployments and international maintenance operations. Contact admin@knmks.com or call +86 18359268345 to confirm current stock levels and shipping timelines to your location.
