Siemens 7MH4910-0AA01 Maintenance-Proven Spare Part for Factory Uptime

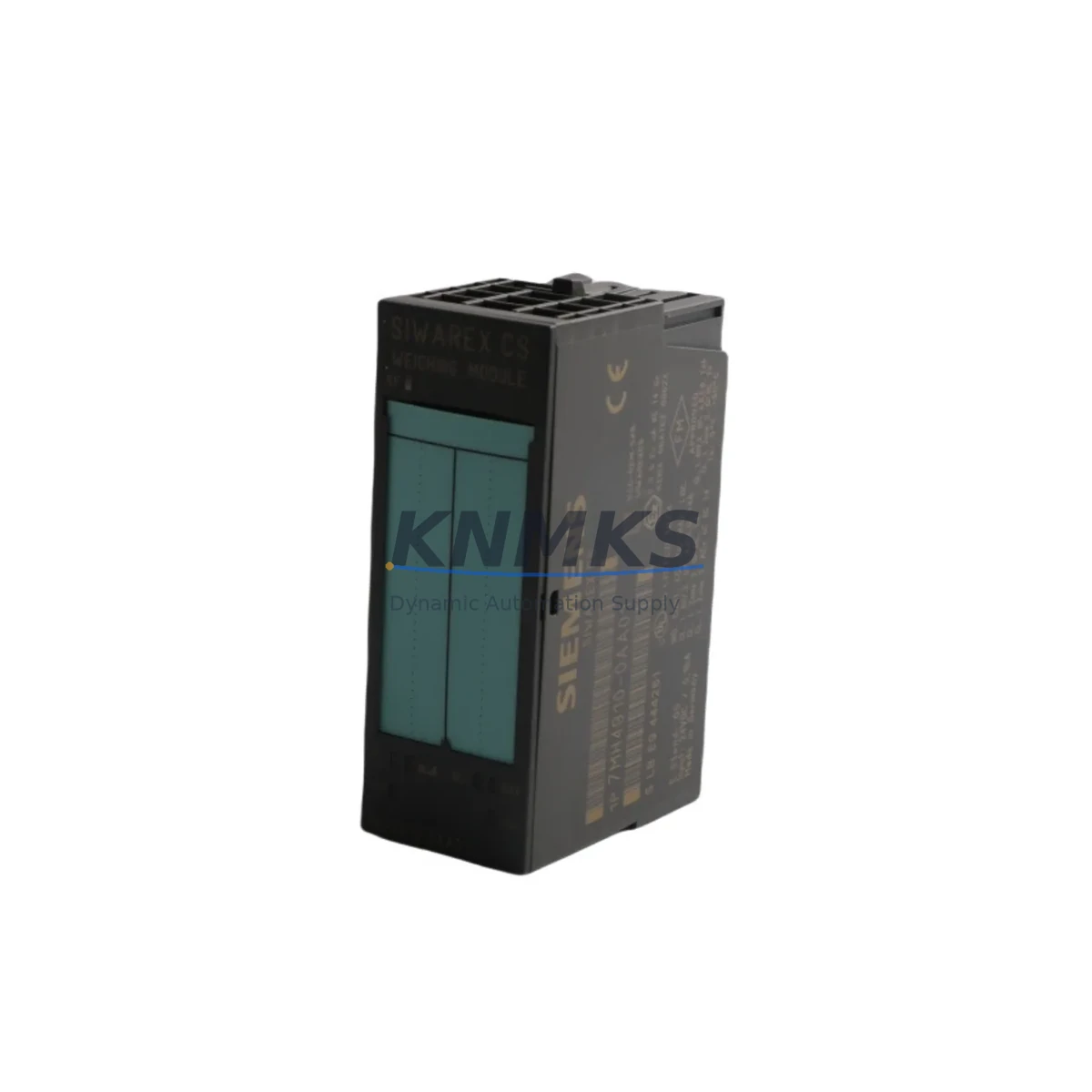

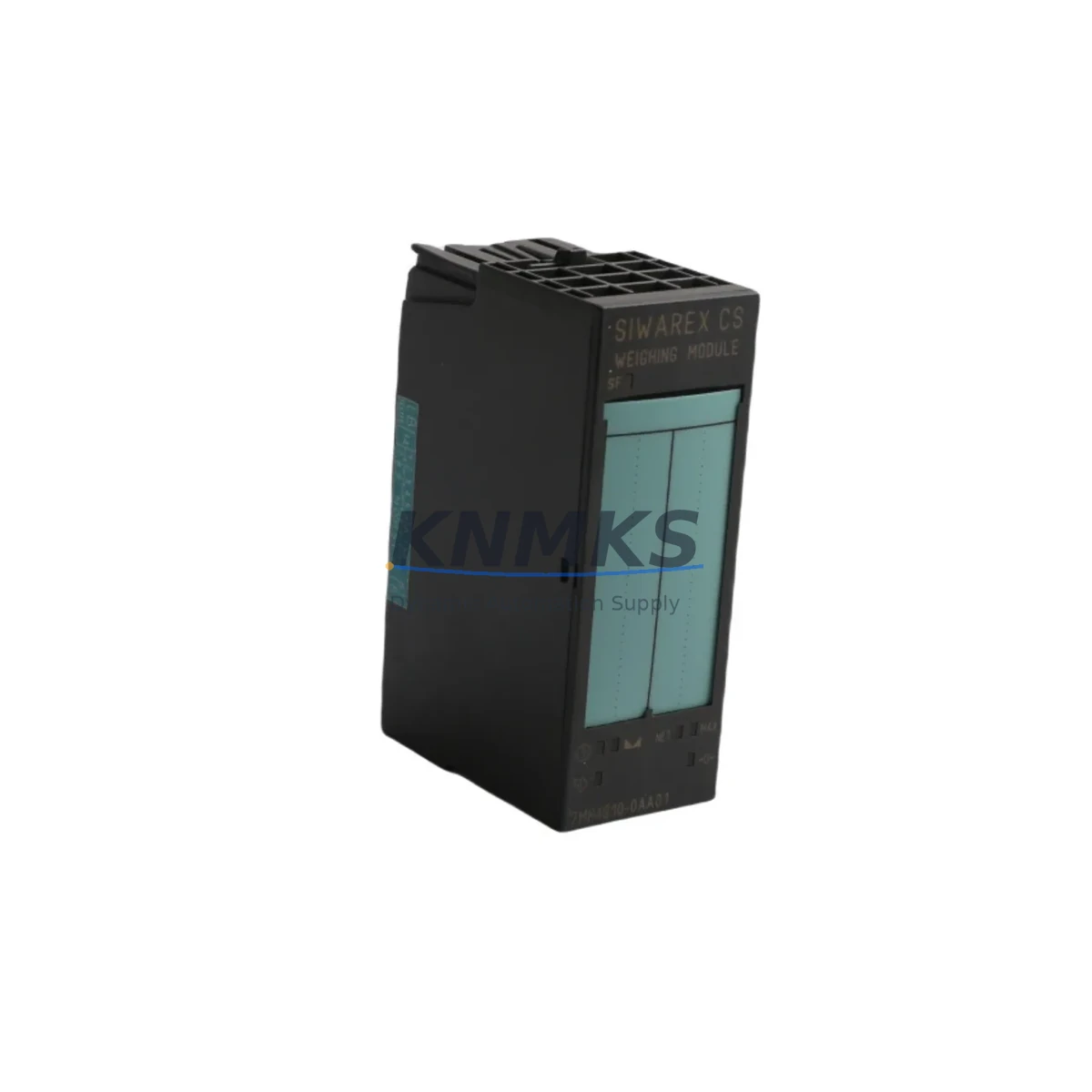

The Siemens 7MH4910-0AA01 is an original SIWAREX CS weighing module designed for integration into SIMATIC S7-300 and S7-400 automation systems. As a precision weighing and force measurement component, it plays a critical role in continuous process control, batching, filling, and checkweighing applications across food & beverage, chemical, cement, and logistics industries. When this module fails or degrades, the entire weighing loop — and often the production line — comes to a halt. Maintaining a verified spare on the shelf is the single most effective strategy for minimizing unplanned downtime.

At KNMKS, every 7MH4910-0AA01 unit is sourced from authorized supply chains, functionally tested prior to shipment, and backed by a support terms confirmed by quotation. We support maintenance engineers and procurement teams who need fast, reliable access to original Siemens SIWAREX CS spares — whether for emergency replacement, scheduled overhaul, or long-term inventory stocking.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 7MH4910-0AA01 SIWAREX CS module is flagged during routine inspection or fails during production, the replacement process should be treated as a system-level event — not just a single-component swap. Experienced maintenance engineers know that a weighing module fault often signals stress across adjacent components in the same control cabinet and electrical loop.

Before or during replacement of the 7MH4910-0AA01, the following components should be inspected and verified:

• SIMATIC S7-300 Power Supply Module (e.g., PS 307) — Verify DC 24 V rail stability. Voltage fluctuations are a leading cause of premature weighing module failure. A degraded PS 307 power supply should be replaced alongside the weighing module to prevent repeat faults.
• S7-300 Backplane Bus Connector — Inspect the bus connector on the adjacent slot for oxidation, bent pins, or mechanical damage. A faulty backplane connection can cause intermittent communication errors that mimic module failure.
• Load Cell Junction Box and Cabling — Check the 6-wire load cell cable for insulation damage, moisture ingress, and correct shielding. A compromised load cell signal directly affects the accuracy and stability of the 7MH4910-0AA01 output.
• SIMATIC S7 CPU Module (e.g., CPU 314 or CPU 315-2 DP) — Confirm firmware compatibility and that the CPU’s hardware configuration (GSD/HW Config) correctly recognizes the SIWAREX CS module after replacement. An outdated hardware configuration file is a common post-replacement commissioning issue.
• Digital Output / Relay Module for Setpoint Control — If the SIWAREX CS module drives relay outputs for filling or dosing control, verify that the associated SM 322 digital output module or relay board is functioning correctly and that setpoint parameters are retained after module swap.
• Surge Protection and Fuse Elements on the 24 V DC Rail — Inspect fuse holders and surge arresters on the cabinet’s 24 V distribution rail. A blown fuse or failed surge protector upstream of the module slot is often overlooked and can cause the replacement module to fail immediately upon power-up.

Procurement engineers sourcing the 7MH4910-0AA01 for annual maintenance kits should also consider stocking a spare CPU module, a replacement power supply, and a set of load cell cables as part of a comprehensive SIWAREX CS maintenance kit. This approach reduces mean time to repair (MTTR) and eliminates secondary sourcing delays during emergency shutdowns.

Site Replacement Workflow

Replacing the Siemens 7MH4910-0AA01 on-site is a structured process that, when followed correctly, minimizes downtime and ensures system compatibility is maintained:

1. Pre-Replacement Backup: Before powering down, use STEP 7 or TIA Portal to upload and save the current CPU program, hardware configuration, and SIWAREX CS parameter set (calibration data, setpoints, filter settings). This data is stored in the CPU, not the module, but verification prevents configuration loss.
2. Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Isolate the 24 V DC supply to the S7-300 rack. Confirm zero voltage at the module slot before removal.
3. Module Removal: Release the bus connector, unscrew the module retaining screw, and carefully slide the 7MH4910-0AA01 out of the backplane slot. Inspect the slot and bus connector for damage before inserting the replacement.
4. Replacement Installation: Insert the new 7MH4910-0AA01 into the same slot. Reconnect the bus connector and secure the retaining screw. Reconnect load cell wiring according to the original terminal diagram.
5. Recommissioning: Power up the rack and download the hardware configuration to the CPU. Use SIMATIC STEP 7 or TIA Portal with the SIWAREX CS add-on to verify module recognition, perform a zero calibration, and confirm setpoint outputs are active.
6. Functional Test: Apply a known test load to the connected load cells and verify the displayed weight matches the reference value within the specified tolerance. Log the calibration result for maintenance records.

This workflow is compatible with both direct replacement of a failed unit and planned swap-out during scheduled annual maintenance. The 7MH4910-0AA01 is a direct form-fit-function replacement for earlier SIWAREX CS revisions, ensuring backward compatibility without hardware modification.

Spare Parts Support FAQ

Q1: Is the 7MH4910-0AA01 compatible with both S7-300 and S7-400 systems?
The 7MH4910-0AA01 SIWAREX CS module is designed for the SIMATIC S7-300 backplane architecture. It is not directly compatible with S7-400 racks due to different bus connector and slot dimensions. For S7-400 systems, a different SIWAREX variant is required. Always verify your rack type and hardware configuration before ordering.

Q2: How does KNMKS verify the condition of the 7MH4910-0AA01 before shipment?
Every unit undergoes a pre-shipment functional test including power-on verification, bus communication check, and visual inspection for physical damage. Units sourced as new-in-box are verified against original Siemens packaging and labeling. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can KNMKS support long-term or recurring supply of the 7MH4910-0AA01 for annual maintenance programs?
Yes. KNMKS maintains stock and supply chain relationships to support scheduled annual procurement programs. Customers with recurring maintenance requirements can contact our sales team to arrange priority allocation, blanket order agreements, and advance shipment scheduling to ensure spare availability aligns with planned shutdown windows.

Q4: What should I do if the replacement 7MH4910-0AA01 is not recognized by the CPU after installation?
If the CPU reports a hardware configuration mismatch after installing the replacement module, first verify that the hardware configuration in STEP 7 or TIA Portal matches the installed module’s order number and firmware revision. Re-download the hardware configuration to the CPU. If the issue persists, check the backplane bus connector for damage and confirm the module is fully seated. Contact KNMKS technical support if the unit fails to initialize — support terms replacement will be arranged promptly.
