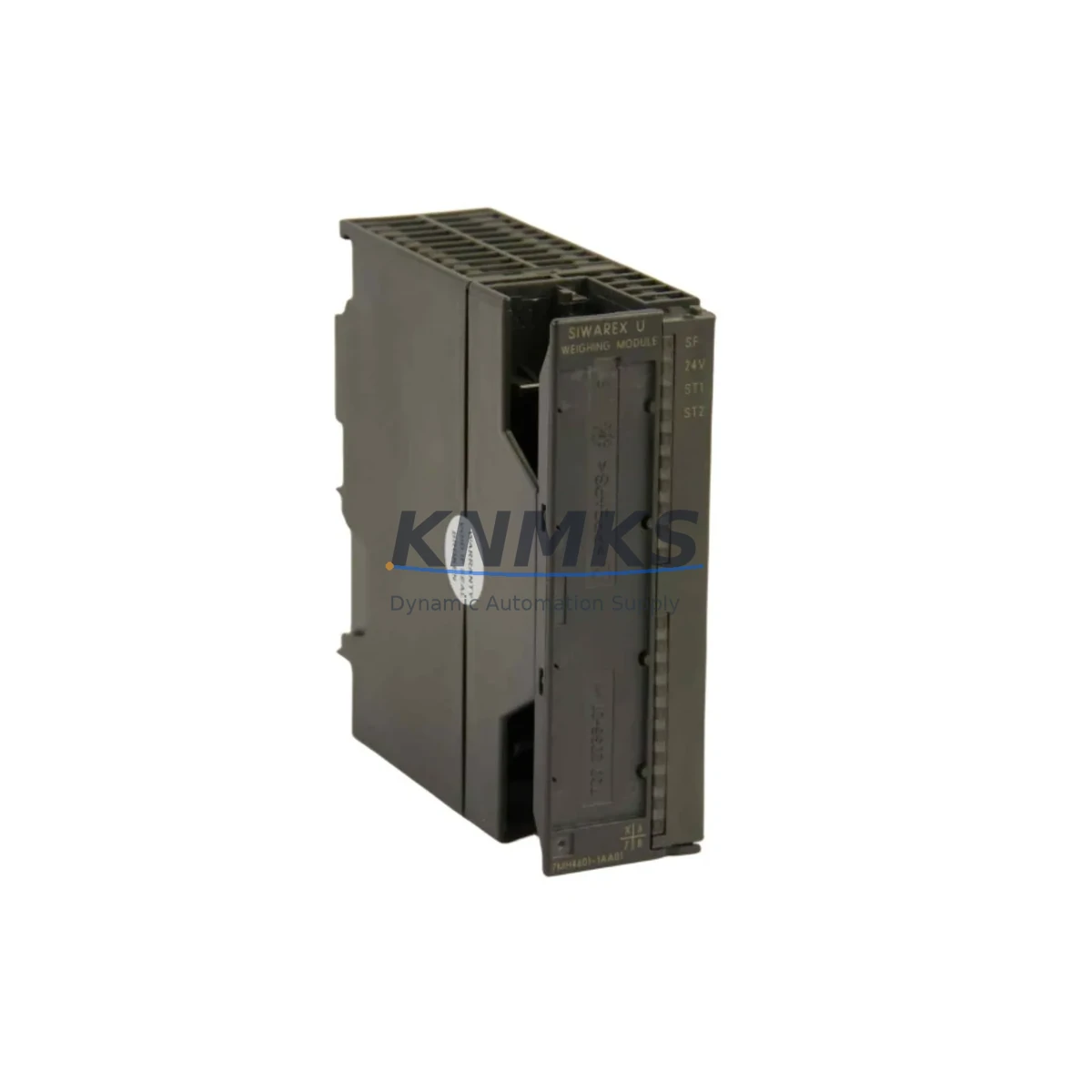

Siemens 7MH4601-1AA01 Migration-Ready Weighing Module

Overview

Siemens 7MH4601-1AA01 Migration-Ready Weighing Module for Legacy Control Systems

The Siemens 7MH4601-1AA01 is a SIWAREX WP231 series weighing module engineered for seamless integration into S7-300 and ET 200M distributed I/O platforms. As legacy weighing infrastructure ages and OEM support windows close, the 7MH4601-1AA01 has become a critical spare part and drop-in replacement for facilities managing long-cycle production lines, batching systems, and silo weighing applications. This module supports both PROFIBUS DP and PROFINET communication architectures, making it a practical upgrade path for plants transitioning from older fieldbus topologies without requiring full PLC replacement.

KNMKS maintains verified stock of the 7MH4601-1AA01 with pre-shipment functional testing, a support terms confirmed by quotation, and documented compatibility records for common retrofit scenarios. Each unit is inspected against original Siemens specifications before dispatch, ensuring that field engineers receive a module ready for installation without additional bench validation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 7MH4601-1AA01 in an active production environment requires a structured approach that accounts for the full control architecture surrounding the weighing module. In most S7-300-based installations, the module occupies a slot on a standard DIN rail alongside CPU modules such as the CPU 315-2 DP or CPU 317-2 PN/DP, and shares the backplane bus with digital and analog I/O modules. Before removing the legacy unit, engineers should document the existing hardware configuration in STEP 7 or TIA Portal, export the current DB (data block) parameters used by the weighing application, and verify that the replacement module’s firmware revision is compatible with the active project version.

Power budget verification is a mandatory pre-installation step. The PS 307 10A or equivalent power supply module must have sufficient current headroom to support the 7MH4601-1AA01 alongside co-installed modules. In high-density racks where multiple analog input modules, communication processors such as the CP 342-5 for PROFIBUS extension, or safety modules are present, a current audit of the backplane bus is essential to prevent undervoltage faults after module swap.

For plants operating on PROFIBUS DP networks, the 7MH4601-1AA01 must be assigned a unique station address before installation. This address must match the GSD file entry in the master PLC configuration. In PROFINET environments, the device name must be assigned via the TIA Portal online tools or a compatible PROFINET commissioning utility. If the existing network includes a SCALANCE X208 or similar managed switch, verify that the port configuration supports the module’s cycle time requirements without introducing jitter that could affect weighing accuracy.

Wiring adaptation is frequently required when migrating from older SIWAREX U or SIWAREX M modules. The 7MH4601-1AA01 uses a 20-pin front connector compatible with standard S7-300 wiring conventions, but load cell sense lines, excitation voltage routing, and shield grounding must be verified against the new module’s terminal assignment diagram. In applications using 4-wire or 6-wire load cell configurations, the sense line connection points differ between module generations, and incorrect wiring will result in calibration errors or span drift. Signal isolators may be required in environments with high electromagnetic interference from variable frequency drives or large motor starters sharing the same control cabinet.

HMI integration should be validated after module replacement. Facilities using SIMATIC HMI TP700 Comfort or similar panels connected via PROFINET will need to confirm that the weighing data tags mapped in WinCC Flexible or TIA Portal WinCC remain consistent with the new module’s process image output. If the legacy module used a custom function block for weight scaling, the replacement module’s data structure must be mapped to the same DB addresses to avoid HMI display errors or alarm logic failures.

Downtime Control During System Migration

Minimizing production downtime during a weighing module replacement requires preparation that begins well before the scheduled maintenance window. The most effective approach is to pre-configure the replacement 7MH4601-1AA01 offline using SIWATOOL W, loading the calibration parameters, filter settings, and limit values exported from the outgoing module. This allows the new module to be installed and brought online without requiring a full recalibration cycle under live production conditions, reducing the active intervention window to physical swap, wiring verification, and a brief functional check.

Program logic protection is critical. Before powering down the rack, the current PLC program should be uploaded and archived, including all data blocks containing weighing setpoints, tare values, and batch counters. If the control system uses a SIMATIC S7-300 CPU with memory card, verify that the program is stored on the card and not only in RAM, ensuring that a power cycle after module replacement does not result in program loss. For systems without battery backup, this step is mandatory.

In multi-rack or distributed I/O configurations using ET 200M with IM 153-2 interface modules, the weighing module can often be replaced without taking the entire remote station offline, provided the IM supports hot-swap operation and the CPU is configured for partial device failure tolerance. This approach allows adjacent I/O modules to continue operating during the swap, maintaining control continuity for non-weighing process loops. After module insertion, the CPU will automatically re-establish communication with the new module if the hardware configuration matches the installed GSD or GSDML profile.

Post-installation verification should include a live load test using certified reference weights to confirm span accuracy, a review of the process value in the HMI against the physical load, and a check of all limit alarms and interlock outputs. Field commissioning records should be documented and retained as part of the plant’s maintenance history to support future audits and support requests.

Retrofit Support FAQ

Q1: Is the 7MH4601-1AA01 a direct replacement for older SIWAREX WP231 variants?
Yes. Within the SIWAREX WP231 family, the 7MH4601-1AA01 is a direct slot-compatible replacement. The hardware configuration in STEP 7 or TIA Portal must reference the correct GSD/GSDML file for the installed firmware version. No wiring changes are required for same-family replacements, but calibration parameters should be re-entered or restored from a saved SIWATOOL W configuration file.

Q2: What commissioning tools are required after installation?
SIWATOOL W is the primary calibration and diagnostic tool for the 7MH4601-1AA01. It connects via the module’s RS-232 or USB interface (depending on firmware version) and provides access to calibration wizards, filter configuration, limit value setup, and diagnostic logs. TIA Portal or STEP 7 is required for hardware configuration and PROFIBUS/PROFINET address assignment. No additional third-party tools are required for standard commissioning.

Q3: Does KNMKS provide pre-shipment testing for the 7MH4601-1AA01?
Yes. Every unit shipped by KNMKS undergoes functional verification prior to dispatch, including power-on self-test confirmation and communication interface check. Units are packaged in anti-static protective materials with inspection documentation included. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions, with support available via admin@knmks.com or +86 18359268345.

Q4: What is the typical lead time and stock availability?
KNMKS maintains inventory of the 7MH4601-1AA01 to support urgent replacement and planned maintenance schedules. Standard lead time for in-stock units is 3–7 business days for international shipment. For projects requiring multiple units or long-term supply agreements covering 12–36 months of planned consumption, contact the sales team directly to discuss allocation and pricing terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

7MH4601-1AA01

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 7MH4601-1AA01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
