SIEMENS 7KG7000-8AA/BB Spare Part for Factory Uptime

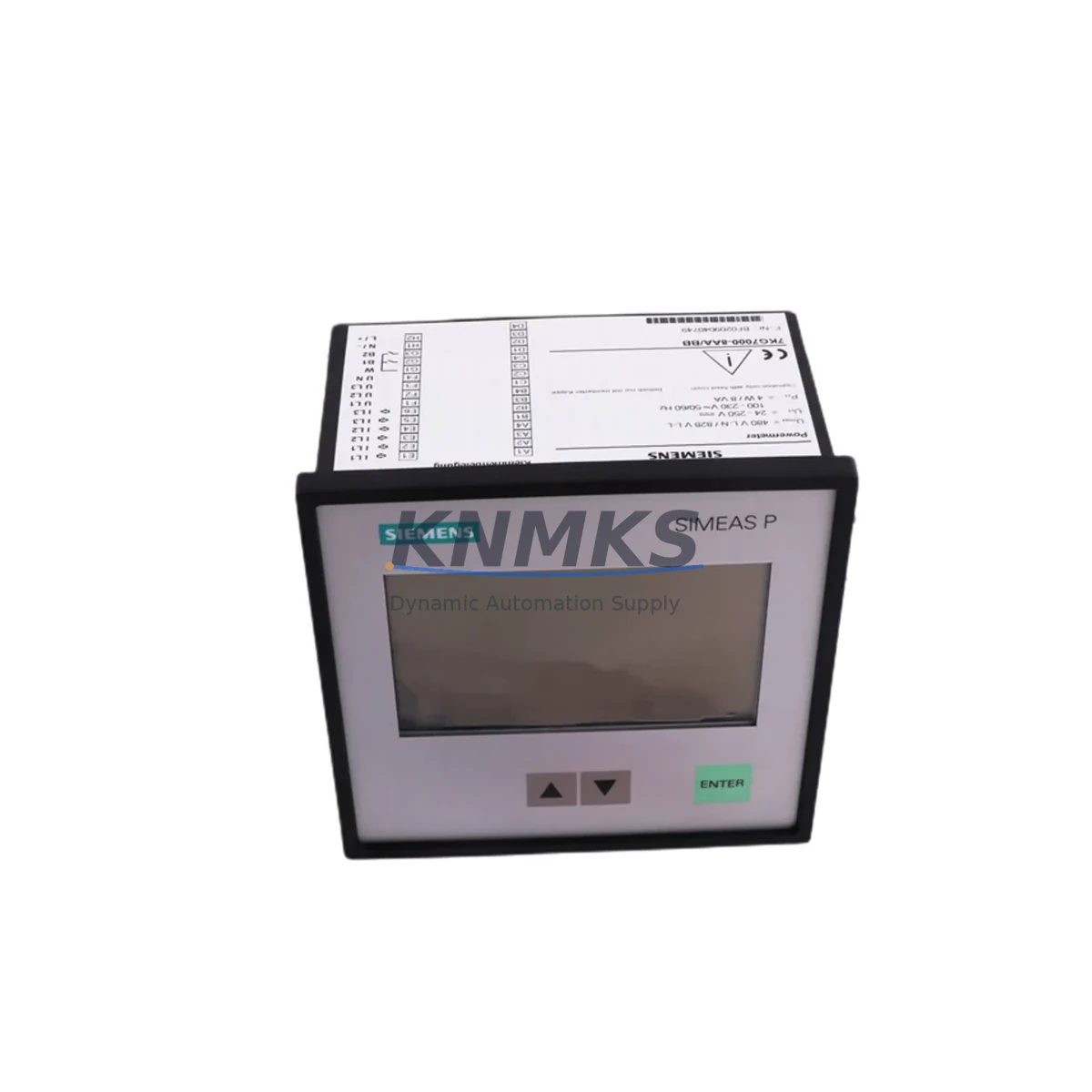

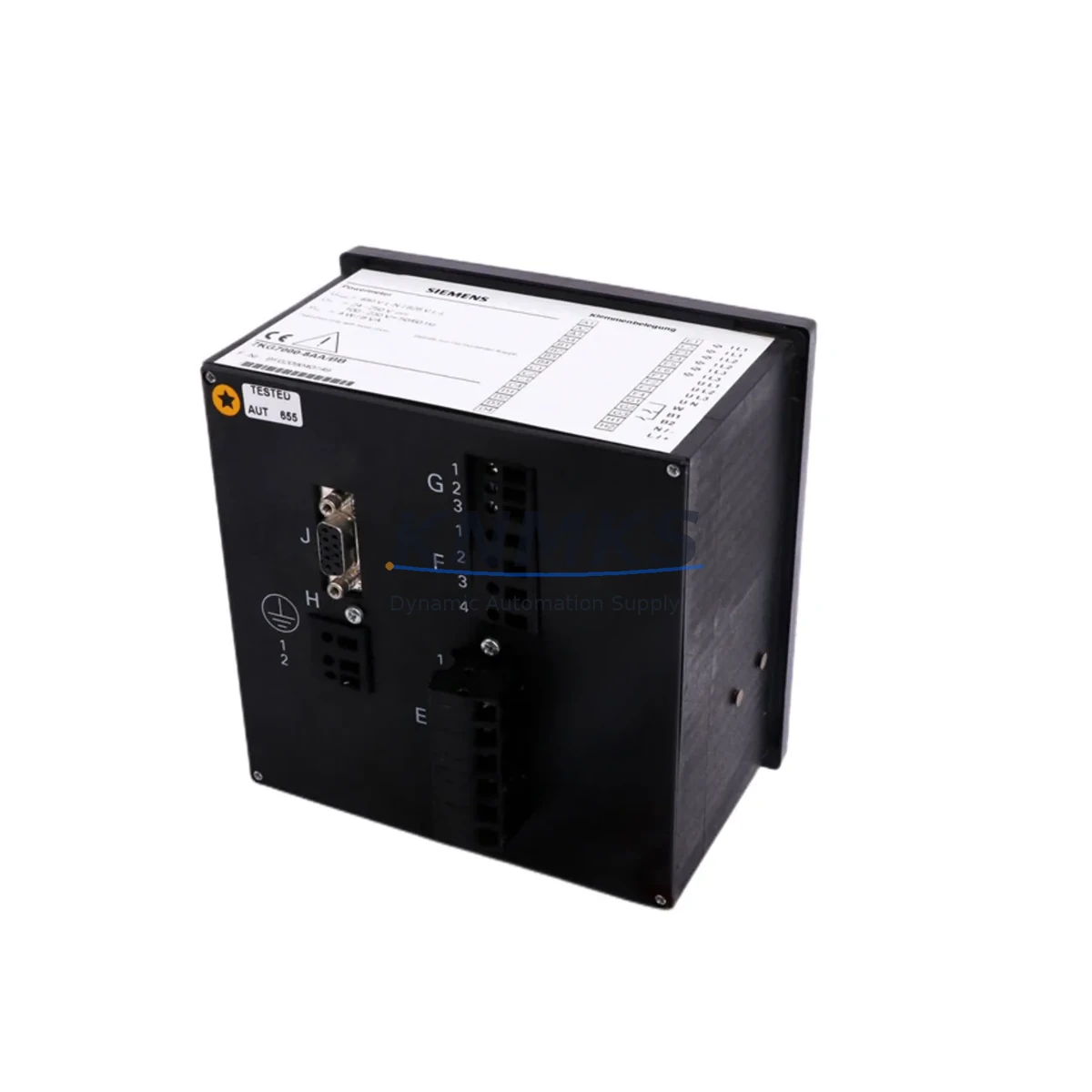

The SIEMENS 7KG7000-8AA/BB is a SENTRON series multifunction power meter engineered for continuous energy monitoring in industrial control panels, MCC cabinets, and distribution boards. As a maintenance-proven spare part, it delivers direct drop-in replacement capability for aging or failed units, enabling rapid restoration of power measurement functions without system reconfiguration. Maintenance engineers and procurement teams managing aging SIEMENS SENTRON installations rely on this meter to sustain factory uptime, meet energy audit requirements, and avoid costly unplanned shutdowns.

The 7KG7000-8AA/BB supports RS-485 MODBUS RTU communication, making it fully compatible with existing SCADA, BMS, and PLC data acquisition architectures. Its measurement capabilities cover voltage, current, active/reactive/apparent power, power factor, frequency, and energy consumption — all critical parameters for load balancing, fault diagnosis, and energy cost allocation in industrial facilities.

Every unit supplied by KNMKS is sourced from verified channels, inspected against original SIEMENS specifications, and tested before shipment. A support terms confirmed by quotation is included as standard, providing procurement engineers with the confidence needed for long-term spare parts planning and MRO inventory management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 7KG7000-8AA/BB in the field, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure measurement accuracy. Maintenance engineers should verify the condition of the current transformer (CT) secondary wiring and confirm CT ratios are correctly programmed into the replacement meter before energizing. Loose or corroded CT connections are a common root cause of measurement drift and meter damage.

The RS-485 communication bus should be checked for correct termination resistance (typically 120 Ω at each end) and proper shielding continuity. If the meter is integrated into a SIEMENS SIMATIC S7 or S5 PLC system via MODBUS RTU, verify the slave address, baud rate, and parity settings match the existing network configuration. Communication modules such as the SIEMENS CP 341 or CP 343-1 may require re-parameterization if the meter address has changed.

Inspect the 24 VDC auxiliary power supply feeding the meter — a failing SITOP PSU or equivalent industrial power supply can cause intermittent meter resets and data loss. Fuse protection on the auxiliary supply circuit should also be verified; replace any 2A or 4A miniature circuit breakers (MCBs) showing signs of thermal stress. For panels using SIEMENS 3RV or 3VU series motor protection circuit breakers in the same distribution section, confirm that upstream protection coordination is maintained after meter replacement.

Where the 7KG7000-8AA/BB feeds energy data to a building management or energy management system, check the integrity of the RS-485 signal isolator (e.g., ADAM-4510 or equivalent) if long cable runs are involved. Signal isolation prevents ground loop interference that can corrupt MODBUS data frames. Terminal blocks on the RS-485 bus — particularly PHOENIX CONTACT or WAGO 280-series spring-clamp terminals — should be inspected for secure seating and re-torqued if necessary.

For facilities running annual shutdowns or planned maintenance windows, it is recommended to stock at least one 7KG7000-8AA/BB as a cold spare alongside related components: a spare SIEMENS SENTRON PAC3200 or PAC4200 for higher-tier measurement points, and a set of replacement CT secondary fuses. This spare parts strategy minimizes mean time to repair (MTTR) and supports ISO 50001 energy management compliance.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the panel section feeding the meter. Apply LOTO (Lockout/Tagout) per site safety procedures. Confirm absence of voltage on all measurement inputs using a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring, CT connections, and communication cable routing before removal. Record the current MODBUS address, baud rate, and CT ratio settings displayed on the old meter.

Step 3 — Removal: Disconnect CT secondary leads (short-circuit CTs before disconnecting to prevent open-circuit hazard), voltage measurement leads, auxiliary power, and RS-485 communication cable. Remove the meter from the panel cutout or DIN rail mount.

Step 4 — Installation of 7KG7000-8AA/BB: Mount the replacement unit. Reconnect CT secondary leads in correct phase sequence (L1, L2, L3). Reconnect voltage measurement inputs, auxiliary power, and RS-485 cable. Verify all terminal screws are torqued to specification.

Step 5 — Commissioning: Restore auxiliary power. Configure MODBUS address, baud rate, CT ratio, and VT ratio (if applicable) to match the previous settings. Restore measurement voltage inputs. Verify live readings on the meter display and confirm MODBUS communication is re-established with the SCADA or PLC host.

Step 6 — Verification: Compare meter readings against a reference clamp meter or power analyzer to confirm measurement accuracy. Log the replacement in the site maintenance record and update the spare parts inventory.

This workflow is compatible with direct replacement of legacy SIEMENS 7KG7000 variants and supports system continuity without firmware or network reconfiguration in most standard SENTRON installations.

Spare Parts Support FAQ

Q1: Is the 7KG7000-8AA/BB a direct replacement for other 7KG7000 variants?
The 7KG7000-8AA/BB is designed as a direct form-fit-function replacement within the SIEMENS SENTRON 7KG7000 series. Minor firmware or configuration differences may exist between sub-variants; always verify CT ratio, VT ratio, and MODBUS parameters during commissioning to ensure measurement continuity.

Q2: What testing is performed before shipment?
Each unit undergoes functional verification including power-on self-test, display check, communication port response, and measurement input continuity check prior to dispatch. Units are packed in anti-static, shock-resistant packaging to prevent transit damage. A support terms confirmed by quotation is included from the date of shipment.

Q3: Can KNMKS support long-term or repeat supply of this part?
Yes. KNMKS maintains ongoing sourcing relationships for SIEMENS SENTRON spare parts to support MRO procurement programs, annual maintenance contracts, and emergency replacement requirements. Contact admin@knmks.com to discuss volume pricing, lead times, and consignment stock arrangements.

Q4: How do I confirm compatibility before ordering?
Provide your existing meter’s nameplate data (full part number, firmware version if visible, and panel supply voltage) to our technical team. We will confirm compatibility and advise on any configuration differences before order confirmation. For urgent requirements, same-day quotation is available via +86 18359268345.
