Siemens 6SE7038-6GK84-1JC2 Fail-Safe PROFIBUS Module

Overview

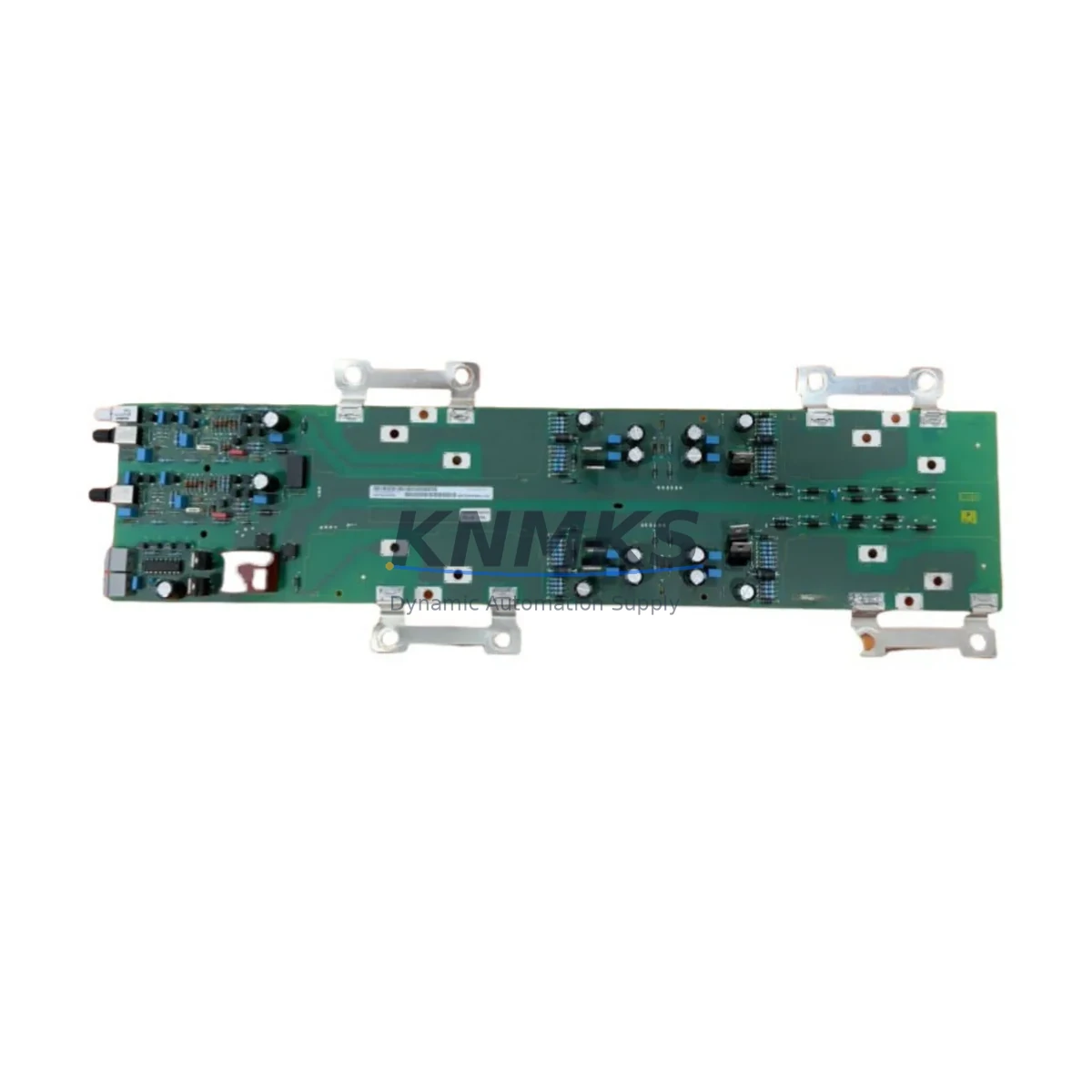

Siemens 6SE7038-6GK84-1JC2 Fail-Safe PROFIBUS Module: Fault-Protection and Critical Industrial Field Reliability

The Siemens 6SE7038-6GK84-1JC2 is a PROFIBUS DP communication module engineered for integration into Siemens MASTERDRIVES MC and VC series variable-frequency drive systems. Designed to operate reliably in demanding industrial environments — including high electromagnetic interference zones, dusty and humid process areas, high-temperature control cabinets, and continuous-production facilities — this module delivers the communication integrity and fail-safe performance that modern industrial safety architectures demand.

In critical control loops where communication interruption can trigger unplanned shutdowns, process upsets, or safety interlock failures, the 6SE7038-6GK84-1JC2 provides a hardened PROFIBUS DP interface that maintains deterministic data exchange between the drive and the PLC or DCS master. Its robust design minimizes the risk of signal drift, bus timeout faults, and spurious trip events that commonly plague lesser communication modules in high-vibration or electrically noisy environments such as petrochemical compressor stations, mining conveyor systems, and metallurgical rolling mills.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6SE7038-6GK84-1JC2 PROFIBUS module does not operate in isolation — it functions as a critical node within a layered protection architecture. When paired with a Siemens 6SE7090-0XX84-0AB0 basic interface board and a properly rated 6EP1333-3BA00 SITOP power supply module, the drive system gains both stable DC bus power and reliable fieldbus communication, reducing the risk of voltage sag-induced communication resets that can cause false fault trips in sensitive process lines.

For cabinet-level surge and transient protection, engineers frequently deploy 5SD7484-1 surge protective devices on incoming power rails alongside the MASTERDRIVES stack. This combination ensures that high-energy transients from nearby motor switching, capacitor bank operations, or lightning-induced surges do not propagate into the drive’s communication circuitry. In high-EMI environments such as arc furnace control rooms or variable-speed pump stations, additional shielded PROFIBUS cables terminated with 6XV1830-0EH10 bus connectors further suppress common-mode noise that could otherwise cause cyclic data errors or watchdog timeouts on the 6SE7038-6GK84-1JC2.

Where safety interlock integrity is paramount — such as in emergency stop circuits or safety-rated drive control loops — the module is often deployed alongside a 3SK1111-1AB30 safety relay module to provide hardwired backup trip capability independent of the PROFIBUS communication path. This dual-channel approach (fieldbus control + hardwired safety) is a recognized best practice in IEC 62061 and ISO 13849 compliant machine safety designs. For thermal management within densely populated cabinets, pairing the drive system with a 3NJ6900-4HB10 cabinet cooling unit or equivalent thermal management solution ensures the 6SE7038-6GK84-1JC2 operates within its rated temperature envelope even during peak summer ambient conditions.

Critical Industrial Safety Applications

The Siemens 6SE7038-6GK84-1JC2 is deployed across a broad spectrum of safety-critical and continuous-process industrial applications where communication reliability directly impacts operational safety and production continuity.

In petrochemical and refinery environments, MASTERDRIVES systems equipped with this PROFIBUS module control critical rotating equipment — compressors, pumps, and agitators — where a communication fault could trigger an unplanned shutdown of a distillation column or reactor feed system. The module’s deterministic PROFIBUS DP communication ensures that the DCS receives accurate speed feedback and control acknowledgment within the required cycle time, supporting safe operating envelope management.

In electric power generation and substation applications, the module enables precise speed control of auxiliary drives — cooling fans, feedwater pumps, and fuel handling conveyors — where reliable fieldbus communication is essential for coordinated plant control. The module’s EMC robustness is particularly valued in high-voltage switchgear environments where induced interference is a persistent challenge.

In mining and mineral processing operations, conveyor drives, crusher drives, and hoist systems rely on PROFIBUS-connected MASTERDRIVES for coordinated multi-drive control. The 6SE7038-6GK84-1JC2 supports high-speed parameter access (DPV1) that allows maintenance teams to perform online diagnostics and parameter adjustments without halting production — a critical capability in continuous mining operations where downtime costs are measured in tonnes per hour.

In water and wastewater treatment plants, the module supports SCADA-integrated pump and blower control, where reliable communication between the PLC and the drive is essential for maintaining flow rates, pressure setpoints, and dissolved oxygen levels within regulatory compliance limits. In port and terminal logistics, crane and conveyor drives equipped with this module benefit from the high baud rate capability (up to 12 Mbps) that supports fast, responsive load handling in time-critical cargo operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6SE7038-6GK84-1JC2?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to establish or maintain PROFIBUS communication, exhibits hardware faults, or fails functional testing within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 6SE7038-6GK84-1JC2 unit undergoes a full functional test prior to shipment, including PROFIBUS communication initialization verification, parameter read/write cycle testing, and visual inspection for connector and board integrity. Units that do not pass all test criteria are not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all MASTERDRIVES MC and VC variants, and can it replace an existing CBP2 board?
The 6SE7038-6GK84-1JC2 is designed for the Siemens MASTERDRIVES MC and VC (6SE70 series) drive family and is functionally equivalent to the CBP2 PROFIBUS communication board. It is compatible with standard PROFIBUS DP masters including Siemens S7-300, S7-400, S7-1500 PLCs and third-party PROFIBUS masters. For specific firmware version compatibility, consult the drive’s documentation or contact our technical team before ordering.

Q4: Can you guarantee long-term supply and spare part availability for this module?
Yes. We maintain dedicated stock of the 6SE7038-6GK84-1JC2 to support both immediate replacement needs and planned maintenance programs. For customers managing aging MASTERDRIVES installations, we recommend establishing a blanket order or reserved stock arrangement to ensure availability over a 12–36 month horizon. Contact our sales team to discuss long-term supply agreements tailored to your maintenance schedule.
