Siemens 6NH9720-3AA00 Migration-Ready GSM/GPRS Modem

Overview

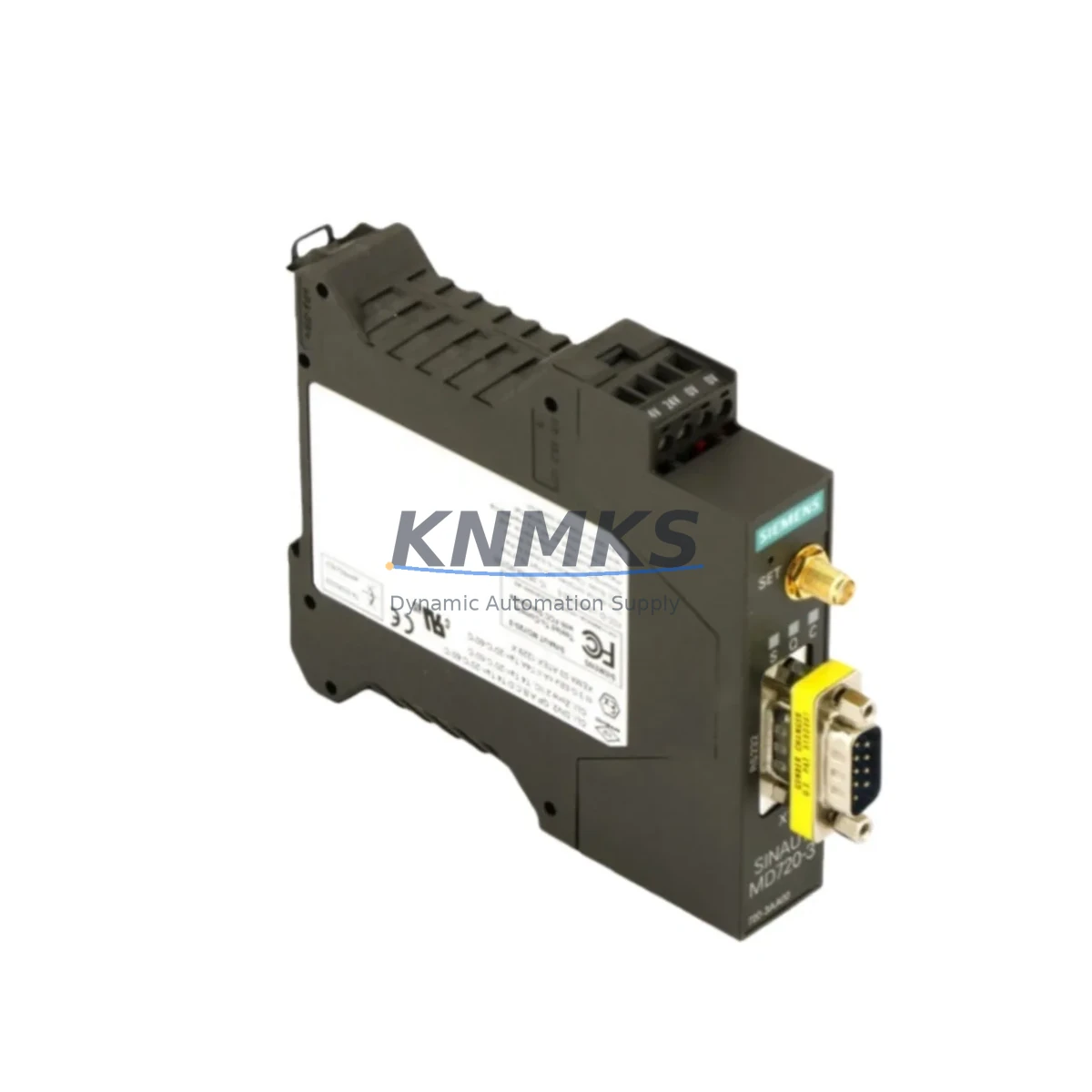

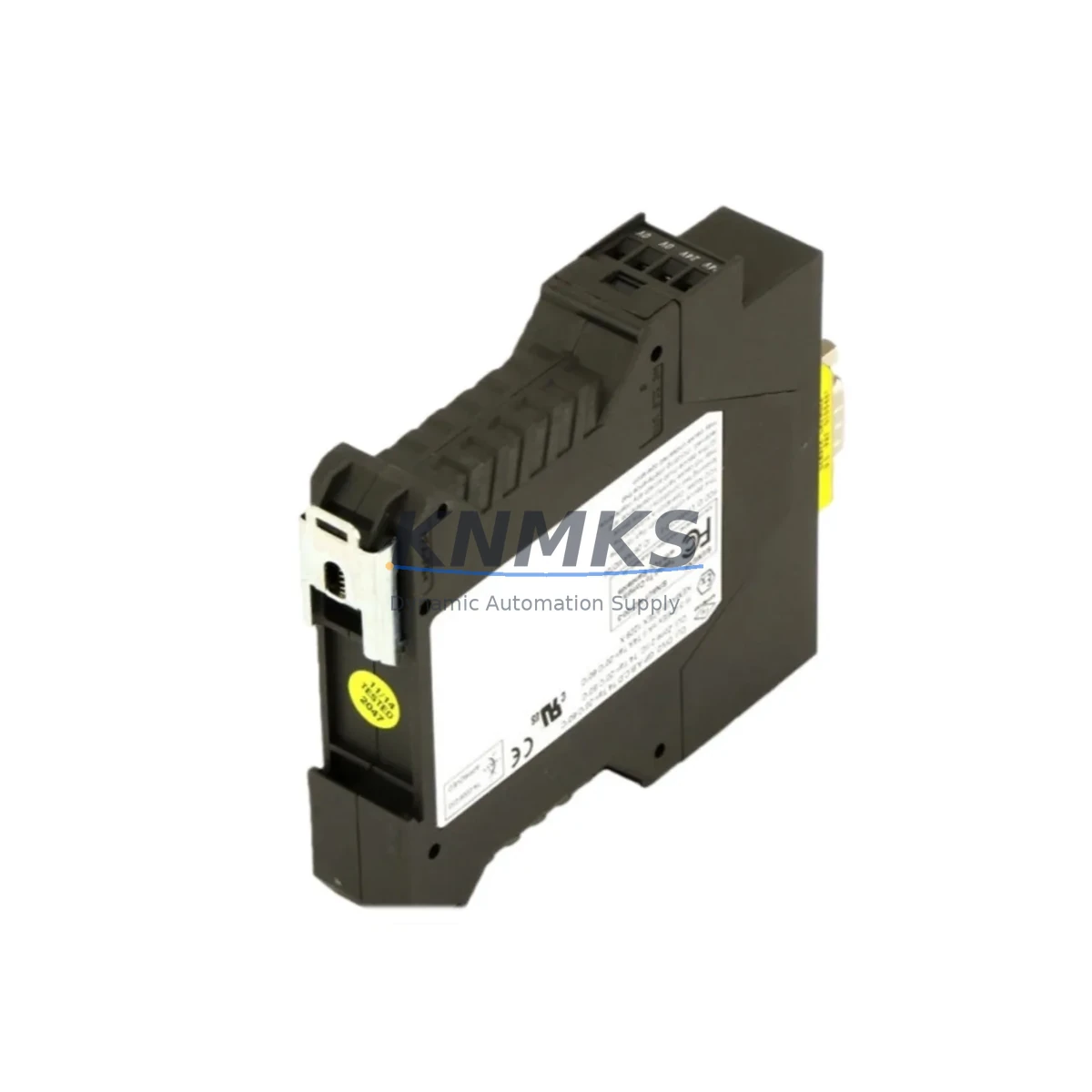

Siemens 6NH9720-3AA00 Migration-Ready GSM/GPRS Modem for Legacy Control Systems

The Siemens 6NH9720-3AA00 is a GSM/GPRS communication modem purpose-built for SINAUT ST7 telecontrol systems, and it remains one of the most sought-after components in legacy remote terminal unit (RTU) modernization projects. As aging infrastructure across water treatment plants, pipeline monitoring stations, and distributed energy networks reaches end-of-service milestones, the 6NH9720-3AA00 provides a proven, drop-in migration path that preserves existing SINAUT ST7 protocol logic while extending the operational life of the control architecture by years.

Engineers undertaking a retrofit or replacement project must carefully evaluate several critical parameters before commissioning the 6NH9720-3AA00. Power supply compatibility is the first checkpoint: the module operates on a 24 VDC nominal supply, and the existing control cabinet’s power budget must accommodate the modem’s current draw alongside co-installed components such as the Siemens SINAUT MD720-3 or MD741-1 modem variants that may already occupy the same DIN rail space. Terminal wiring must be verified against the original installation drawings, particularly the RS-232 or RS-485 serial interface connections that link the modem to the TD7 or TIM 4R-IE DNP3 telecontrol interface modules.

Backplane and rack interface considerations are equally important. In systems where the 6NH9720-3AA00 is integrated alongside Siemens S7-300 or S7-400 PLCs, the CP 341 or CP 441-2 communication processors may need firmware updates to maintain seamless data exchange over the SINAUT ST7 protocol stack. Module addressing must be re-confirmed in STEP 7 or TIA Portal after physical installation, especially when the modem replaces a unit that held a fixed station address in the telecontrol network topology. Any mismatch in station addressing will prevent the master station from polling the RTU correctly, resulting in communication timeouts that can cascade into false alarms at the SCADA level.

Program compatibility is another area requiring careful attention. The existing function blocks (FBs) and organization blocks (OBs) in the S7 CPU that handle SINAUT message framing should be reviewed for version compatibility with the replacement modem’s firmware. In many legacy installations, the HMI screens built in WinCC or SIMATIC HMI TP series panels display modem signal strength and connection status via dedicated data blocks; these DB references must remain intact after the swap to avoid blank or error-state displays on the operator interface.

Communication link integrity testing is mandatory before returning the system to automatic operation. The 6NH9720-3AA00 supports standard AT command diagnostics, allowing field engineers to verify SIM card registration, signal quality (CSQ values), and GPRS context activation without specialized test equipment. Where the legacy system used circuit-switched data (CSD) connections, migration to GPRS packet-switched communication may require updates to the APN configuration and, in some cases, coordination with the mobile network operator to ensure static IP assignment for the RTU endpoint.

Installation space confirmation is a practical but often overlooked step. The 6NH9720-3AA00 mounts on standard 35 mm DIN rail and requires adequate clearance for the SMA antenna connector and the serial cable routing. In compact control cabinets where space is shared with Siemens ET 200S distributed I/O modules or IM 151-1 interface modules, a physical mock-up or dimensional check against the cabinet layout drawing is recommended before ordering.

All units supplied by KNMKS undergo pre-shipment functional testing, including power-on verification, SIM slot inspection, serial port loopback testing, and firmware version confirmation. Stock is maintained to support urgent replacement orders, and each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing control cabinet. In a typical SINAUT ST7 remote station, the 6NH9720-3AA00 modem works in conjunction with a TIM 4R-IE DNP3 telecontrol interface module, which handles the protocol conversion between the SINAUT message layer and the S7 CPU’s data blocks. Before removing the legacy modem, engineers should export the current STEP 7 project and archive the hardware configuration, including the exact slot assignments of any CP 341 communication processors installed in the S7-300 rack.

Power distribution within the cabinet must be re-evaluated if the replacement modem draws a different peak current during GSM registration bursts. A Siemens SITOP PSU100S 24 VDC power supply unit, or equivalent, should be verified to have sufficient headroom. Where ET 200S distributed I/O modules share the same 24 VDC bus, a temporary current measurement during the modem’s registration phase will confirm that the power supply does not enter current-limiting mode, which could cause unexpected CPU stops.

Signal isolation is recommended when the serial cable run between the 6NH9720-3AA00 and the TIM module exceeds 3 meters or passes through an electrically noisy environment. A DIN rail-mounted signal isolator or RS-232 repeater can prevent ground loop interference that would otherwise corrupt SINAUT frame checksums. Similarly, the antenna cable routing should avoid parallel runs with 230 VAC power cables to maintain GSM signal integrity.

For systems that also include a Siemens IM 153-2 interface module connecting remote ET 200M I/O stations via PROFIBUS DP, the retrofit plan should confirm that the PROFIBUS segment remains unaffected during the modem swap. Since the modem replacement is a serial-layer change, PROFIBUS communication should continue uninterrupted, but a brief controlled shutdown is still recommended to allow safe re-termination of the serial connector without risk of hot-plug damage to the TIM module’s UART interface.

Where the legacy installation used a SIMATIC HMI TP177B or TP277 panel for local operator interaction, the HMI project should be reviewed to confirm that modem status tags (signal strength, connection state, error codes) are mapped to the correct DB addresses. After the modem replacement, a full HMI tag scan should be performed to verify that all communication status indicators update correctly before the system is returned to unmanned remote operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live system migration. For the 6NH9720-3AA00 replacement, the recommended approach is a staged cutover: first, configure and bench-test the replacement modem with the correct APN settings, station address, and AT command profile in a workshop environment before traveling to site. This eliminates the most common source of extended downtime — on-site configuration errors discovered only after the legacy modem has been removed.

On site, the cutover sequence should begin with a controlled CPU STOP command issued from the programming device, followed by a safe power-down of the modem supply circuit. The original modem’s serial cable, antenna, SIM card, and power terminals should be documented photographically before disconnection. The 6NH9720-3AA00 replacement unit should be installed, connected, and powered up before the CPU is returned to RUN mode, ensuring that the SINAUT ST7 communication layer is available as soon as the CPU begins executing its cyclic OBs.

After power-up, the first diagnostic step is to confirm GSM network registration using AT+CREG and signal quality using AT+CSQ via a serial terminal connected to the modem’s diagnostic port. A CSQ value above 10 indicates sufficient signal for reliable GPRS data transfer. Once network registration is confirmed, the SINAUT master station should be monitored for successful polling of the RTU station address. A successful poll response within the first two scan cycles confirms that the replacement is complete and the system is operating normally.

Original program logic in the S7 CPU does not require modification for a like-for-like modem replacement, which is one of the key advantages of the 6NH9720-3AA00 as a drop-in substitute. This preserves the integrity of the existing control program, eliminates the risk of introducing software errors during the migration, and allows the system to resume full automatic operation within a typical maintenance window of two to four hours.

Retrofit Support FAQ

Q: Is the 6NH9720-3AA00 a direct replacement for the SINAUT MD720-3?
A: Yes. The 6NH9720-3AA00 is functionally compatible with the MD720-3 in SINAUT ST7 telecontrol applications. The serial interface pinout, power supply requirements, and AT command set are equivalent, allowing a direct swap without modifications to the existing wiring or STEP 7 program. Station address configuration is retained in the TIM module, not the modem, so no re-addressing is required.

Q: What commissioning steps are required after installation?
A: After physical installation, verify GSM network registration (AT+CREG), confirm signal quality (AT+CSQ > 10), activate the GPRS context (AT+CGACT), and monitor the SINAUT master station for a successful RTU poll response. If the legacy system used CSD connections, update the dial string and APN parameters in the TIM module’s configuration to match the new GPRS bearer. A full HMI tag scan is recommended to confirm that modem status indicators are updating correctly.

Q: Does KNMKS provide pre-shipment testing and stock availability?
A: Yes. All 6NH9720-3AA00 units are tested before shipment, including power-on verification, SIM slot inspection, serial port loopback, and firmware version confirmation. Stock is maintained for immediate dispatch to support urgent replacement requirements. Each unit is covered by a support terms confirmed by quotation against manufacturing defects and functional failures under normal operating conditions.

Q: What should I check if communication fails after the modem replacement?
A: Begin with AT command diagnostics to confirm SIM registration and signal quality. Check that the APN, username, and password in the TIM module’s GPRS configuration match the mobile operator’s requirements. Verify that the station address in the SINAUT master station database matches the address configured in the TIM module. Confirm that the serial cable between the modem and TIM module is correctly wired and that no signal isolator or cable adapter has introduced a pin-swap. If the issue persists, contact KNMKS technical support at admin@knmks.com for remote diagnostic assistance.
