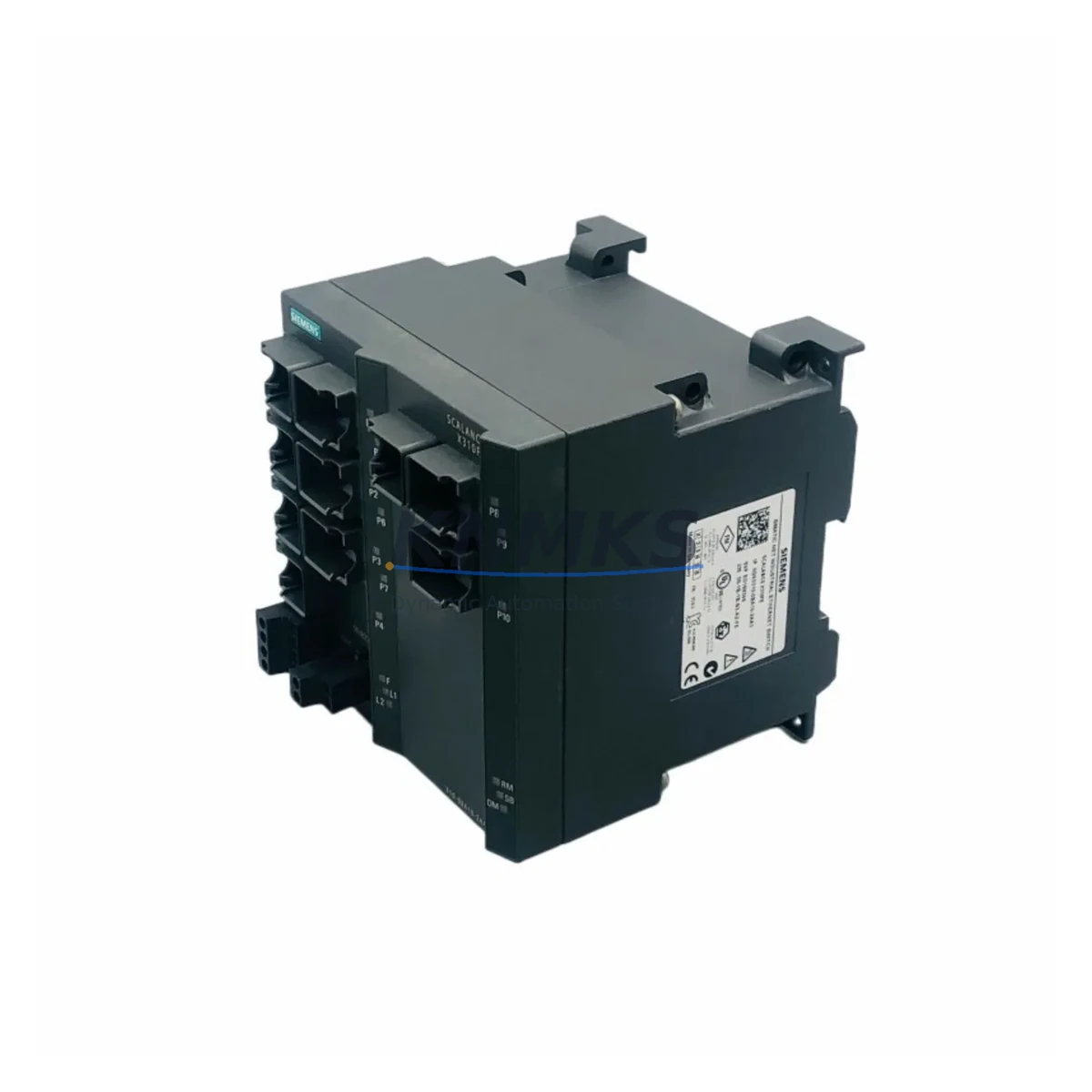

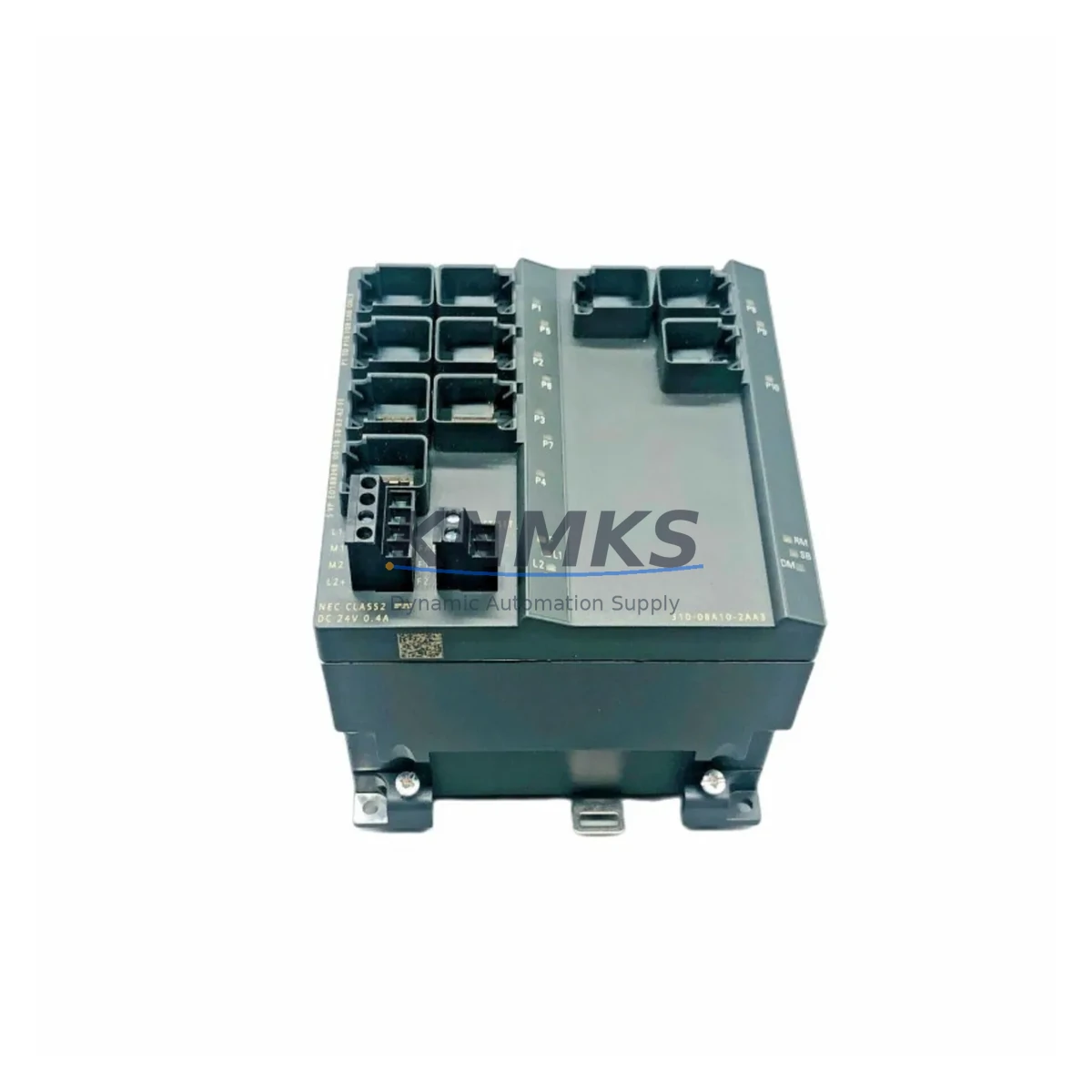

Siemens 6GK5307-3BM10-2AA3 Migration-Ready Managed Switch

Overview

Siemens 6GK5307-3BM10-2AA3 Migration-Ready Managed Switch for Legacy Control Systems

The Siemens 6GK5307-3BM10-2AA3 is a SCALANCE X-300 series managed industrial Ethernet switch engineered for demanding automation environments where network reliability, protocol compatibility, and long-term serviceability are non-negotiable. As legacy SCALANCE X-200 and X-100 series switches reach end-of-life, the 6GK5307-3BM10-2AA3 provides a validated, drop-in migration path that preserves existing wiring infrastructure, PROFINET topology, and MRP ring configurations with minimal engineering rework.

For system integrators and plant engineers managing aging control cabinets built around SIMATIC S7-300, S7-400, or early S7-1500 controllers, this switch addresses the most common retrofit pain points: port density, fiber/copper hybrid connectivity, VLAN segmentation, and PROFINET IRT/RT coexistence. The 6GK5307-3BM10-2AA3 supports up to 24 copper ports plus dedicated fiber uplinks, making it suitable for backbone ring segments and star-topology distribution layers within the same cabinet footprint as its predecessors.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6GK5307-3BM10-2AA3 begins well before the switch arrives on-site. Engineers should audit the existing network topology, document all PROFINET device names and IP address assignments, and export the current switch configuration from the legacy unit. In many S7-300 or S7-400 based lines, the network segment also includes a SIMATIC ET 200SP or ET 200M distributed I/O station connected via PROFINET — these devices are sensitive to PROFINET name changes and must be re-validated after the switch replacement.

Power budget is a frequent oversight. The 6GK5307-3BM10-2AA3 draws more current than a comparable X-200 unit under full port load. Verify that the existing SITOP PSU or equivalent 24 VDC rail supply has sufficient headroom, particularly in cabinets where the switch shares a rail with a SIMATIC S7-1500 CPU, CP 1543-1 communications processor, or IM 155-6 PN interface module. A dedicated 10 A supply is recommended for high-density port configurations.

For fiber uplink segments, confirm that existing SC or BFOC connectors and multimode/single-mode fiber runs are compatible with the X-300 SFP slots. In older installations using SCALANCE X-100 fiber variants, the fiber patch panels and cable grades may need upgrading to meet the X-300’s optical budget. This is also the right moment to introduce SCALANCE W-700 series wireless access points for mobile HMI panels or AGV integration, routing their traffic through dedicated VLANs on the new switch.

Cabinet layout should be reviewed for horizontal DIN rail clearance. The X-300 chassis is wider than the X-200 form factor. In tight cabinets, this may require relocating a SITOP power supply, a CP 343-1 Ethernet module, or a terminal block row. Plan the mechanical layout change during the same maintenance window as the network cutover to avoid a second shutdown.

Before powering up the new switch, load the updated GSDML file into TIA Portal, reassign PROFINET device names, and perform a dry-run simulation where possible. For lines using SIMATIC WinCC or WinCC Flexible HMI systems, verify that the HMI communication tags referencing network addresses remain intact after the IP reassignment. A brief HMI screen audit — checking alarm pages, trend views, and recipe download paths — prevents post-cutover surprises.

Downtime Control During System Migration

Minimizing production downtime during a network switch replacement requires a structured cutover plan. The recommended approach is a parallel-build strategy: configure the 6GK5307-3BM10-2AA3 fully offline using a laptop running TIA Portal and SINEMA Network Manager, replicating the legacy switch’s VLAN, port, and MRP settings before the maintenance window opens.

During the cutover window, label all cables on the legacy switch before disconnection. Use a structured port-mapping sheet that cross-references each physical port to its PROFINET device, IP address, and function (controller uplink, I/O drop, HMI, historian, etc.). This eliminates re-cabling errors that are the leading cause of extended downtime in switch replacements.

After physical installation, power up the 6GK5307-3BM10-2AA3 and verify link status on all ports before re-enabling the PLC’s PROFINET scan. Bring up the MRP ring last, confirming that the ring manager role is correctly assigned and that the redundancy failover time meets the application’s tolerance — typically under 200 ms for standard PROFINET RT applications. For lines with SIMATIC S7-1500 controllers using IRT communication, the ring reconfiguration time must be validated against the IRT send clock.

Every unit shipped from our inventory undergoes a pre-shipment functional test covering port link negotiation, VLAN tagging, MRP ring formation, and management interface access. This reduces on-site commissioning time and provides confidence that the hardware is field-ready before the maintenance window begins. The support terms confirmed by quotation cover the full post-installation period, with direct technical support available for commissioning queries.

Retrofit Support FAQ

Q1: Is the 6GK5307-3BM10-2AA3 a direct replacement for the SCALANCE X-208 or X-216?
The 6GK5307-3BM10-2AA3 is functionally compatible as a replacement for X-208 and X-216 units in most PROFINET RT topologies. The port count and fiber uplink capability exceed the X-200 series, so the replacement is additive rather than restrictive. The primary engineering task is updating PROFINET device names and GSDML references in TIA Portal. MRP ring configurations must be rebuilt, as the X-300 uses an updated ring protocol implementation.

Q2: What wiring changes are required during installation?
In most cases, existing RJ-45 copper patch cables and fiber runs can be reused directly. The terminal block arrangement for the 24 VDC power input differs from the X-200 series — confirm polarity and connector type before energizing. The redundant power input on the X-300 allows connection of a backup supply without additional hardware, which is recommended for critical process lines.

Q3: Has this unit been tested before shipment, and what does the support terms confirmed by quotation cover?
Yes. Each 6GK5307-3BM10-2AA3 unit undergoes a pre-shipment functional test covering Ethernet port operation, management interface access, VLAN configuration, and MRP ring formation. The support terms confirmed by quotation cover hardware defects and functional failures from the date of shipment. Technical support for commissioning and compatibility questions is available via admin@knmks.com or +86 18359268345.

Q4: Is stock available for immediate shipment?
Yes. The 6GK5307-3BM10-2AA3 is held in verified inventory and available for same-week dispatch. For urgent retrofit projects or multi-unit orders, contact our team directly to confirm lead time and arrange expedited shipping. We maintain stock of related SCALANCE X-300 accessories and compatible SIMATIC networking components to support complete retrofit bills of materials.
