Siemens 6GK5208-0BA00-2AB2 Spare Part SCALANCE X208

Overview

Siemens 6GK5208-0BA00-2AB2 Spare Part SCALANCE X208: Maintenance-Proven for Factory Uptime

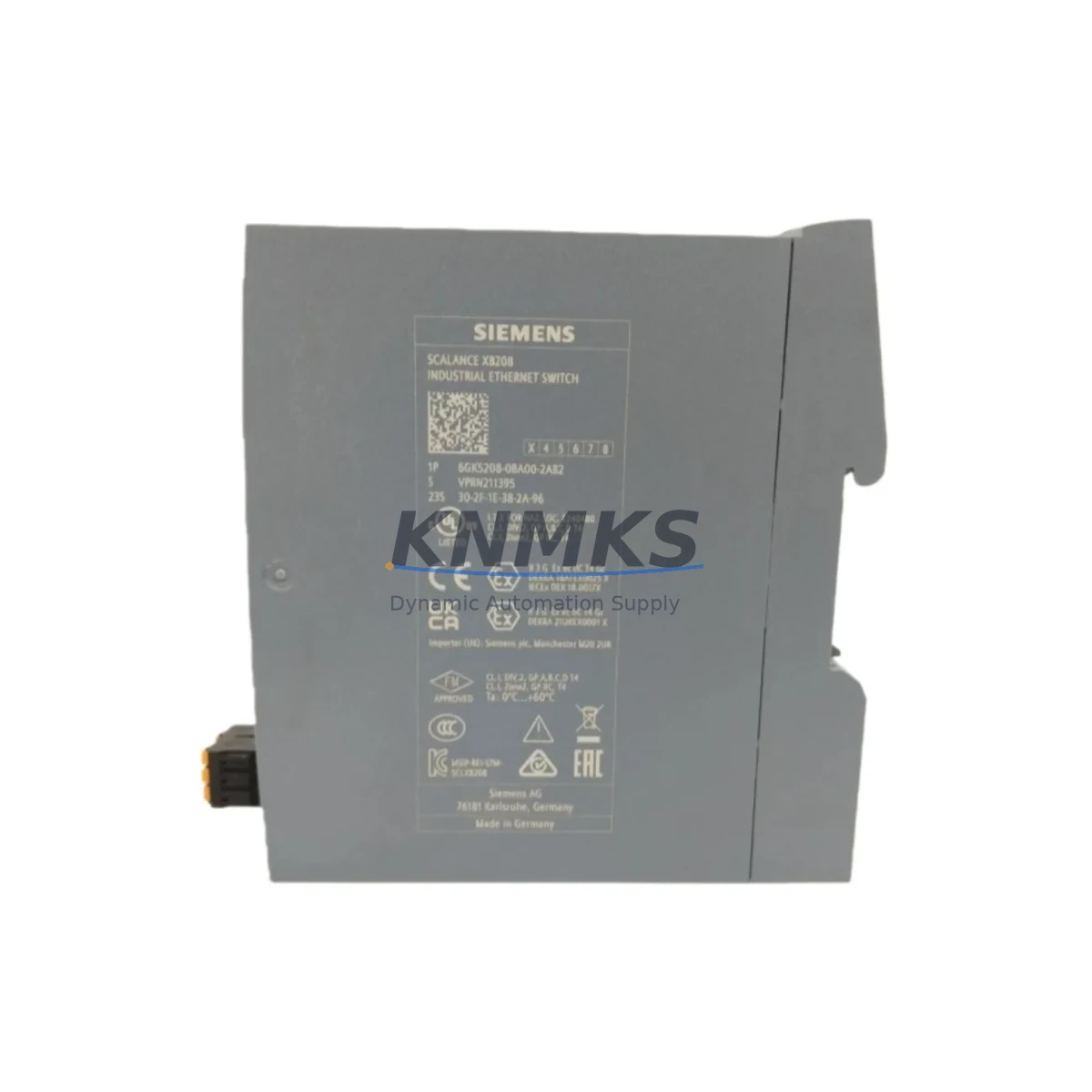

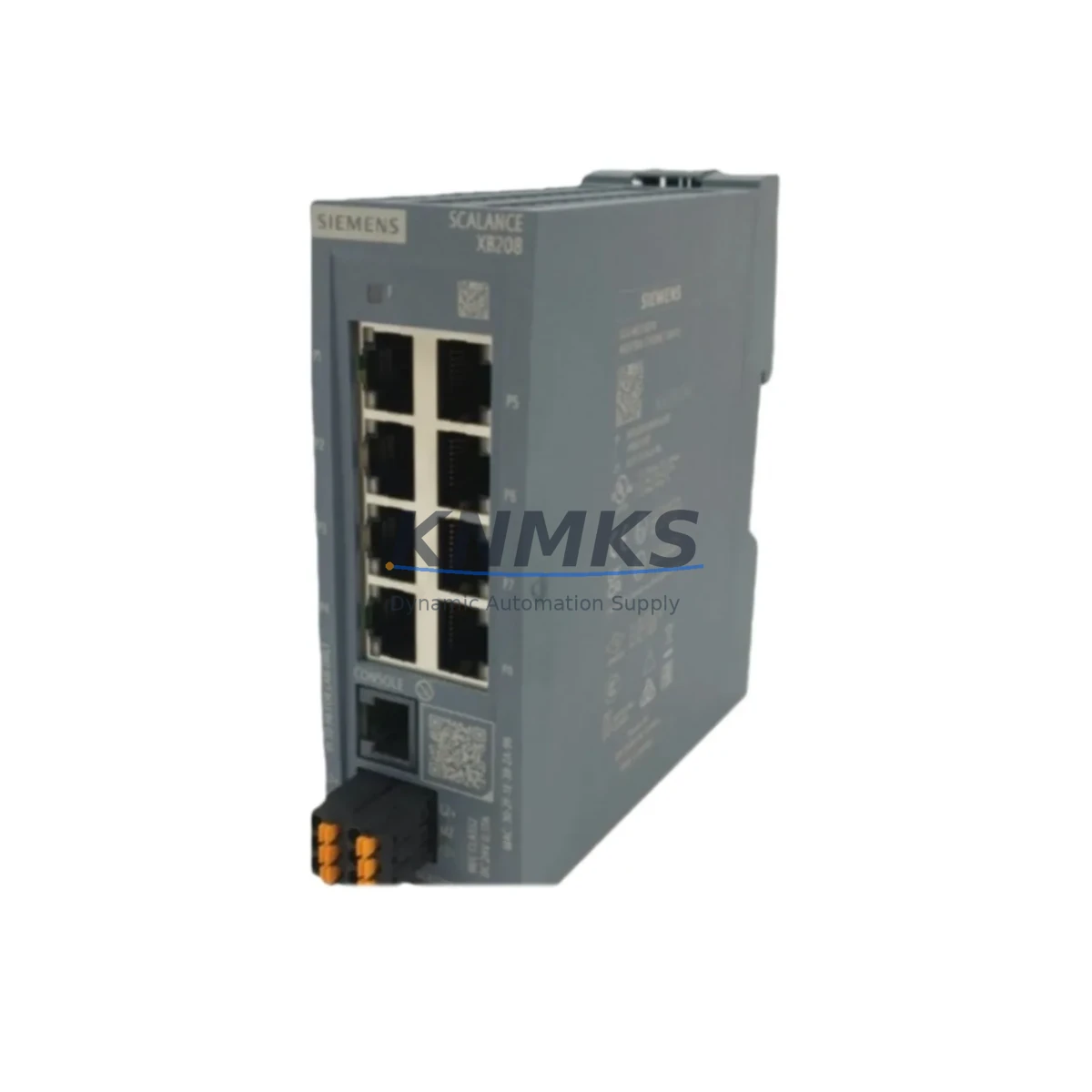

The Siemens 6GK5208-0BA00-2AB2 is an 8-port unmanaged industrial Ethernet switch from the SCALANCE X200 series, engineered for continuous operation in demanding factory environments. As a direct OEM spare part, this unit is the preferred replacement for maintenance engineers managing PROFINET-based control networks, machine-level Ethernet backbones, and distributed I/O communication loops. Whether you are responding to an unplanned network fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a critical production line, the 6GK5208-0BA00-2AB2 delivers verified drop-in compatibility with existing SCALANCE X208 installations — minimizing reconfiguration time and restoring uptime with confidence.

Sourced as an original Siemens component, each unit undergoes pre-shipment functional verification covering port link integrity, power-on self-test, and LED status confirmation. The switch supports 10/100 Mbit/s auto-negotiation on all eight RJ45 ports, operates across an extended temperature range of -20 °C to +60 °C, and is rated for 24 VDC supply input — making it suitable for standard control cabinet installations in manufacturing, petrochemical, energy distribution, and infrastructure automation sectors. DIN rail mounting is standard, and the compact form factor fits directly into existing cabinet layouts without mechanical modification.

For procurement engineers, KNMKS maintains long-term stock commitments on the SCALANCE X200 series, supporting both emergency single-unit orders and annual blanket purchase agreements. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Lead times are confirmed at order placement, and expedited dispatch is available for critical downtime recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6GK5208-0BA00-2AB2 in a live control cabinet, a disciplined maintenance scope prevents secondary faults and reduces total downtime. Begin by verifying the 24 VDC power supply feeding the switch — a Siemens SITOP PSU100S or equivalent regulated DIN rail power supply should be checked for output voltage stability and ripple before the new switch is energized. Loose or corroded terminal connections on the power input block are a common root cause of intermittent switch resets and should be re-torqued during the replacement window.

Inspect all RJ45 patch cables connected to the switch. Industrial-grade Cat5e or Cat6 cables with shielded connectors (STP) are recommended in environments with high electromagnetic interference. Damaged cable jackets, bent pins, or unlocked latch connectors should be replaced simultaneously to avoid re-entry faults after the switch is restored. If the cabinet includes a Siemens ET 200SP or ET 200M distributed I/O station communicating over PROFINET through this switch, verify that the I/O module’s PROFINET interface card — such as the IM 155-6 PN ST — is functioning correctly and that its MAC address and device name assignments are intact in the STEP 7 or TIA Portal project.

For cabinets integrating a SIMATIC S7-1500 or S7-300 CPU with onboard PROFINET, confirm that the CPU’s PN interface port link status recovers correctly after the switch replacement. If a CP 343-1 or CP 443-1 communication processor is present in the rack, check its diagnostic buffer for any stored network fault events that may indicate upstream topology issues beyond the switch itself. Signal isolators or PROFIBUS/PROFINET gateways — such as the Siemens IM 153-2 — should also be inspected for correct bus termination and address settings if they share the same network segment.

Where the control cabinet includes a SIMATIC HMI panel (KTP700, KTP900, or TP1500 series) communicating via Ethernet, verify that the HMI’s IP address and gateway settings are correctly configured after the switch replacement, particularly if the network topology uses fixed IP addressing rather than DHCP. Fuse protection on the 24 VDC rail feeding the switch should be rated at 2 A (slow-blow) and inspected for continuity. Maintaining one spare 6GK5208-0BA00-2AB2 unit per production line or control room is the recommended inventory posture for facilities operating SCALANCE X200-based networks.

Site Replacement Workflow

The 6GK5208-0BA00-2AB2 is a direct plug-and-play replacement for any installed SCALANCE X208 unit. Because the switch is unmanaged, no firmware configuration, IP address assignment, or software commissioning is required — port connections are restored by reconnecting the existing RJ45 cables in their original positions, and the switch begins forwarding traffic immediately upon power-up.

Recommended replacement sequence: (1) Document the existing cable port assignments with a photograph or port map before disconnection. (2) Isolate the 24 VDC supply to the switch using the cabinet’s dedicated circuit breaker or fuse. (3) Remove the faulty unit from the DIN rail by releasing the snap-lock clip. (4) Mount the replacement 6GK5208-0BA00-2AB2 on the DIN rail and secure the power terminal connections. (5) Reconnect all RJ45 cables per the documented port map. (6) Restore 24 VDC supply and verify that all port LEDs indicate active link status. (7) Confirm PROFINET device communication recovery in the PLC diagnostic interface or TIA Portal online view.

This workflow typically achieves full network restoration within 15–30 minutes for a trained maintenance technician, making the 6GK5208-0BA00-2AB2 one of the most efficient spare part investments for PROFINET-based production environments. For aging SCALANCE X200 installations approaching end-of-service life, stocking two units per critical network segment is advisable to support both emergency replacement and planned lifecycle refresh cycles.

Spare Parts Support FAQ

Q1: Is the 6GK5208-0BA00-2AB2 a direct drop-in replacement for an existing SCALANCE X208 installation?
Yes. The 6GK5208-0BA00-2AB2 is the current OEM part number for the SCALANCE X208 unmanaged switch. It is a direct mechanical and electrical replacement requiring no software configuration. Simply reconnect the existing power and RJ45 cable connections and restore power to resume operation.

Q2: What is the support terms coverage and how is it handled for international shipments?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are handled via return merchandise authorization (RMA). For international orders, support terms logistics are coordinated through our sales team at admin@knmks.com to minimize transit delays.

Q3: How do you verify compatibility before shipment, and what testing is performed?
Each 6GK5208-0BA00-2AB2 unit undergoes pre-shipment testing including power-on self-test, all-port link integrity verification, and LED status confirmation. Units are cross-referenced against the Siemens SCALANCE X200 product family documentation to confirm part number authenticity and revision compatibility before dispatch.

Q4: Can KNMKS support long-term or blanket purchase agreements for this part?
Yes. KNMKS maintains strategic stock of the SCALANCE X200 series to support both emergency single-unit orders and long-term supply agreements. Procurement engineers managing multi-site maintenance programs or annual MRO budgets are encouraged to contact our team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs.
