Siemens 6GK5202-2BB00-2BA3 Migration-Ready IRT Switch

Overview

Siemens 6GK5202-2BB00-2BA3 Migration-Ready IRT Switch: Legacy System Modernization & Compatible Upgrade

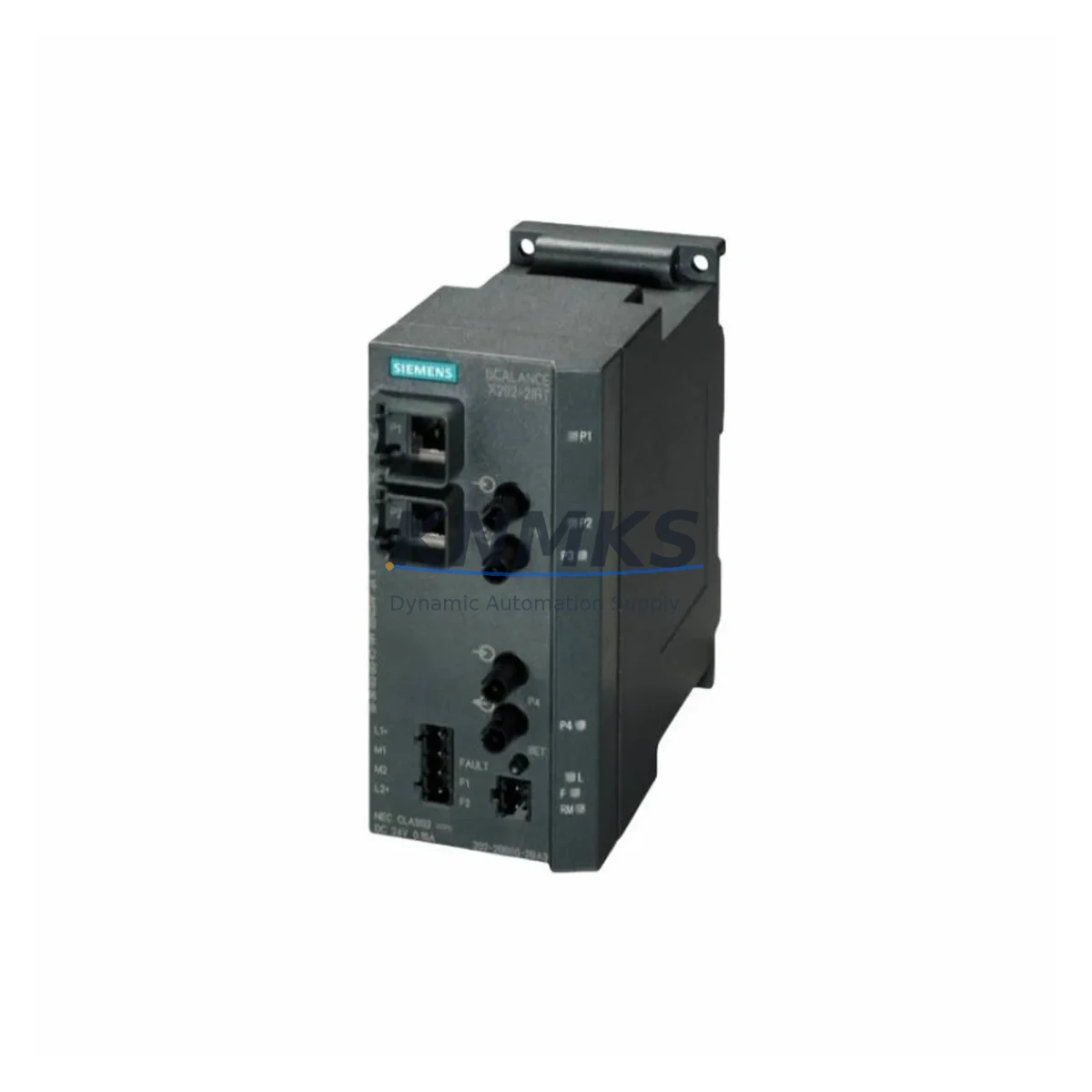

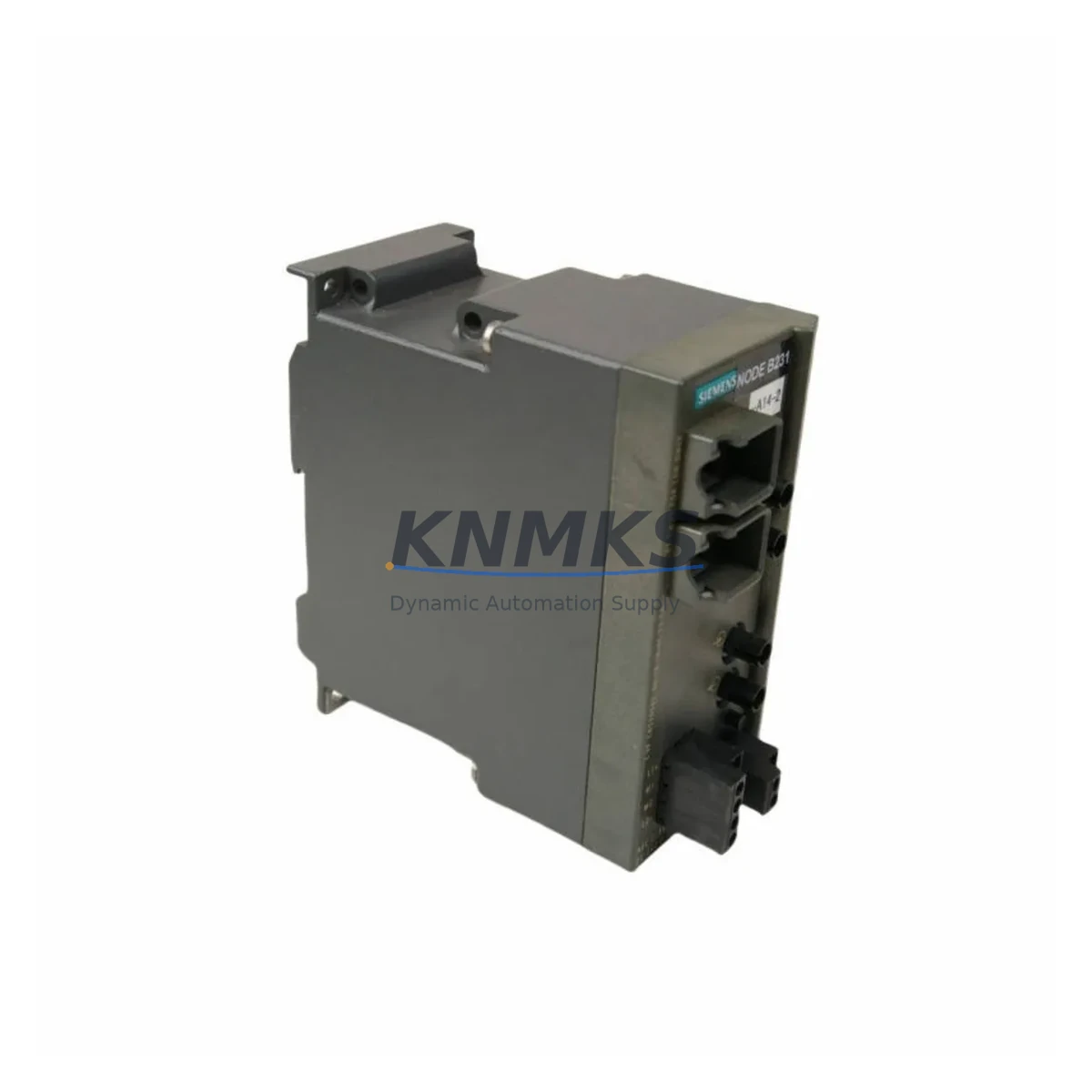

The Siemens 6GK5202-2BB00-2BA3 is a 2-port Industrial Real-Time (IRT) Ethernet switch from the SCALANCE X-200IRT series, purpose-built for PROFINET IRT communication in time-critical automation environments. As legacy SCALANCE X-100 and early X-200 series devices reach end-of-life, the 6GK5202-2BB00-2BA3 has become a primary migration target for engineers modernizing aging control cabinets, upgrading motion-synchronized production lines, and restoring discontinued spare parts in existing SIMATIC-based architectures.

Whether you are replacing a failed node in a ring topology, expanding an IRT domain, or migrating from older PROFIBUS-based infrastructure to PROFINET, this switch delivers the deterministic latency and isochronous real-time performance required by servo drives, CNC controllers, and high-speed I/O systems. Its compact DIN-rail form factor fits directly into existing control cabinet layouts without requiring panel modifications, making it an ideal drop-in replacement during scheduled maintenance windows or emergency breakdowns.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6GK5202-2BB00-2BA3 into a legacy system begins with a thorough audit of the existing network topology. In most PROFINET IRT deployments, the switch operates within a line or ring structure alongside SIMATIC S7-300 or S7-400 CPUs — controllers that remain widely installed in automotive, packaging, and process industries despite their discontinuation. Before swapping the failed or obsolete node, engineers should verify that the upstream CPU firmware supports the GSDML file version associated with the 6GK5202-2BB00-2BA3, as mismatched device descriptions can prevent the IRT domain from synchronizing correctly.

Power supply capacity is a critical checkpoint. The 6GK5202-2BB00-2BA3 draws up to 3.5 W from the 24 V DC rail. In cabinets where a SITOP PSU100S or SITOP PSU200M power supply is already loaded near capacity by existing SIMATIC ET 200SP I/O modules, signal isolators, and relay outputs, adding the switch without recalculating the total load budget risks nuisance tripping or voltage sag during startup. Always confirm available headroom before installation.

Terminal wiring on the 6GK5202-2BB00-2BA3 uses push-in spring-clamp connectors compatible with 0.14–1.5 mm² conductors. In older cabinets originally wired for screw-terminal devices, this may require ferrule installation on existing wire ends — a minor but time-sensitive step during a live-line retrofit. The RJ45 ports accept standard Cat5e or Cat6 patch cables; if the existing installation uses M12 D-coded connectors routed through cable glands, an M12-to-RJ45 adapter or a dedicated SCALANCE XB-200 series switch with M12 ports may be a more appropriate long-term solution.

For systems that include a CP 343-1 Advanced communication processor or a CP 443-1 EX20 on the S7-400 rack, the IRT domain configuration must be re-exported from STEP 7 and re-downloaded after the hardware swap. The IRT topology editor within SIMATIC NET will flag any port interconnection changes, and the sync master role — typically held by the CPU’s integrated PROFINET interface — must be reconfirmed. In multi-switch topologies, the 6GK5202-2BB00-2BA3 operates as an IRT-capable sync slave, forwarding the sync frame with sub-microsecond jitter to downstream devices including SINAMICS S120 drive units or SIMOTION D motion controllers.

Where the retrofit scope extends to HMI modernization, engineers migrating from SIMATIC Panel PC 477 or TP 177B operator panels to current-generation SIMATIC HMI Comfort Panels should confirm that the updated PROFINET address assignments are reflected in the WinCC Flexible or TIA Portal WinCC project. Address conflicts between the new switch’s device name and legacy panel connections are a common source of communication faults during first power-up after a retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during a SCALANCE switch replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure the replacement 6GK5202-2BB00-2BA3 offline using the Primary Setup Tool (PST) or TIA Portal, assigning the correct PROFINET device name and IP address before the unit reaches the cabinet. This eliminates the need for live network configuration under time pressure and reduces the risk of address conflicts that could take the entire IRT domain offline.

Program logic protection is equally important. Before disconnecting the failed switch, engineers should perform a full CPU memory backup — including the data blocks, instance DBs, and retentive memory areas — using a SIMATIC Memory Card or the TIA Portal online backup function. This ensures that if the CPU enters STOP mode during the swap due to a topology change, the original program can be restored without re-downloading from the engineering station.

In ring topologies using Media Redundancy Protocol (MRP), the 6GK5202-2BB00-2BA3 supports MRP client mode, allowing the ring to reconfigure automatically within 200 ms of a link failure. Confirming that MRP is enabled and that the ring manager role is correctly assigned to the primary switch or CPU before beginning the swap prevents a single-point failure from cascading into a full production stop.

Field commissioning after installation should follow a structured sequence: power-on verification, LED status check (PWR, LINK, RJ45 port indicators), PROFINET neighbor detection via TIA Portal online view, IRT domain synchronization confirmation, and finally a functional test of all downstream I/O and drive responses. Documenting this sequence as a site-specific checklist reduces commissioning time on repeat retrofits across multiple production lines.

All units supplied by KNMKS are tested prior to shipment, including power-on verification, port link testing, and PROFINET device name assignment confirmation. Each 6GK5202-2BB00-2BA3 is backed by a support terms confirmed by quotation covering manufacturing defects, with in-stock inventory available for same-week dispatch to minimize production downtime.

Retrofit Support FAQ

Q1: Is the 6GK5202-2BB00-2BA3 a direct replacement for the 6GK5202-2BB00-2BA2?
A: Yes. The 6GK5202-2BB00-2BA3 is the current successor revision of the 6GK5202-2BB00-2BA2 within the SCALANCE X-200IRT series. The physical dimensions, port layout, power supply requirements, and PROFINET IRT functionality are identical. The GSDML file may differ between revisions; download the latest version from the Siemens Industry Online Support portal and update the hardware catalog in TIA Portal before re-downloading the configuration.

Q2: What commissioning steps are required after installation?
A: After mounting on the DIN rail and connecting power and Ethernet cables, use the Primary Setup Tool (PST) or TIA Portal to assign the PROFINET device name matching the original configuration. Confirm the IRT domain synchronizes correctly by checking the sync status in the TIA Portal online diagnostics view. Verify all downstream devices — including any ET 200SP I/O stations or SINAMICS drives — return to RUN state before releasing the line.

Q3: Can this switch be used in a system with mixed PROFINET RT and IRT devices?
A: Yes. The 6GK5202-2BB00-2BA3 supports both PROFINET RT (cycle times ≥ 1 ms) and IRT (cycle times down to 250 µs) on the same network segment. Non-IRT devices connected to the switch will communicate in the RT bandwidth portion of the IRT cycle, ensuring backward compatibility with standard PROFINET controllers and I/O devices without requiring network segmentation.

Q4: What support terms and stock availability does KNMKS provide?
A: KNMKS maintains in-stock inventory of the 6GK5202-2BB00-2BA3 for immediate dispatch. All units carry a support terms confirmed by quotation covering manufacturing defects and are tested prior to shipment. For urgent requirements, same-week delivery is available to most destinations. Contact our team for current stock levels and lead times.
