Siemens 6GK5108-0BA00-2AA3 Maintenance Spare SCALANCE X108: Spare Parts Maintenance for Factory Uptime

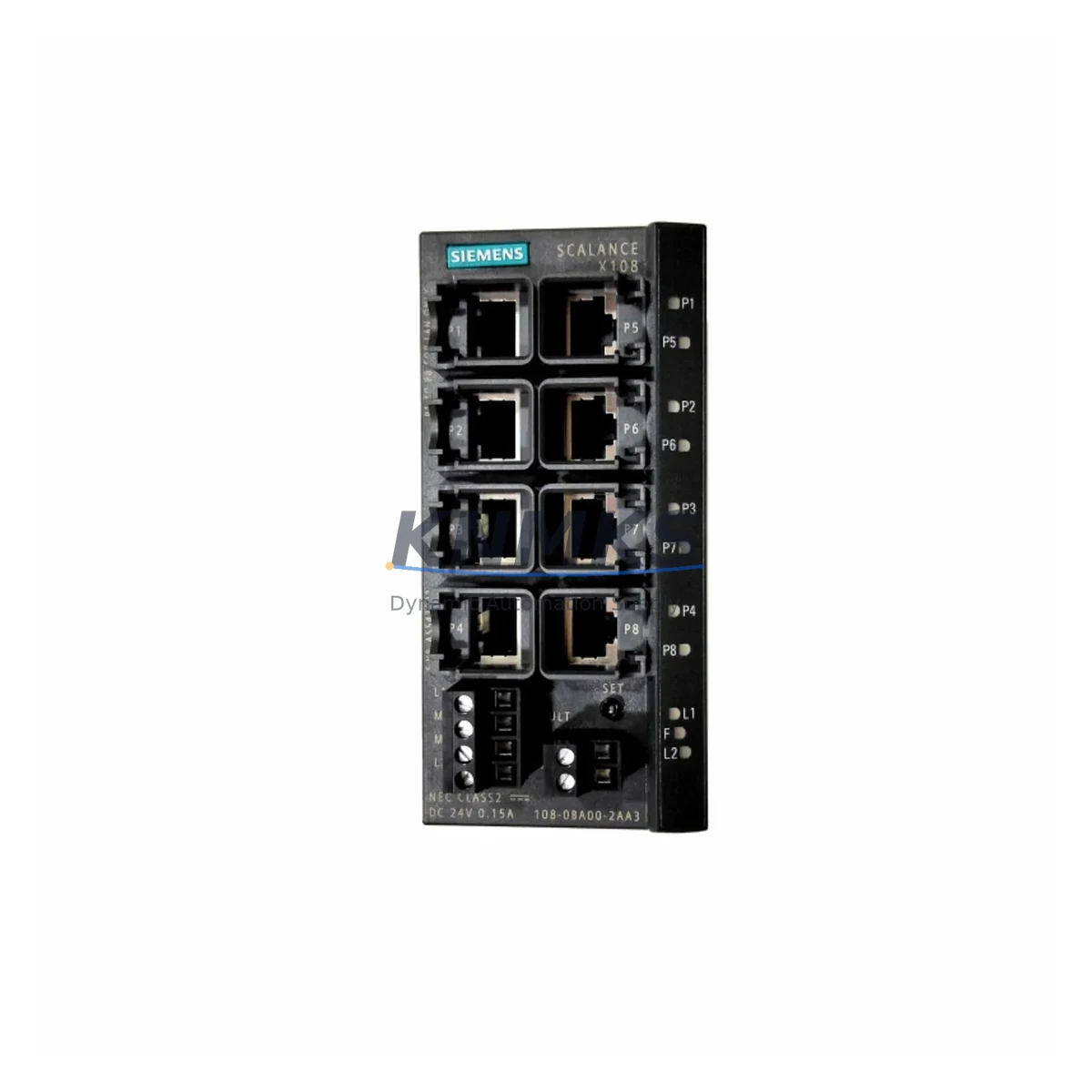

The Siemens 6GK5108-0BA00-2AA3 is an original SCALANCE X108 unmanaged industrial Ethernet switch designed for continuous operation in demanding factory automation environments. As a maintenance-proven spare part, this module supports 8 x 10/100 Mbps RJ45 ports, DIN-rail mounting, and is engineered to sustain network availability across PLC-controlled production lines, distributed I/O cabinets, and legacy SIMATIC S7 control architectures. Whether you are executing a planned annual overhaul, responding to an unplanned network fault, or building a strategic spare parts buffer, the 6GK5108-0BA00-2AA3 delivers the compatibility and reliability that maintenance and procurement engineers depend on.

Every unit shipped by KNMKS undergoes pre-shipment functional verification, is packaged for safe transit, and is backed by a support terms confirmed by quotation — giving your maintenance team the confidence to act fast when uptime is at stake.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SCALANCE X108 switch fails or degrades in a live production environment, the impact extends well beyond the switch itself. Maintenance engineers performing fault isolation on a network segment should simultaneously inspect the 24 V DC power supply feeding the switch — a failing SITOP PSU100S or equivalent 24 V rail can cause intermittent port resets that mimic switch hardware failure. Verify supply voltage at the DIN-rail terminal block before condemning the switch module.

In PROFINET-based architectures, the 6GK5108-0BA00-2AA3 typically connects SIMATIC ET 200SP or ET 200M distributed I/O stations back to the main SIMATIC S7-1500 or S7-300 CPU. When replacing the switch, confirm that all PROFINET device names and IP address assignments are preserved — a misconfigured device name on an ET 200SP head module will prevent the CPU from establishing communication after the switch is restored. Keep a printed or digital record of the PROFINET topology as part of your cabinet documentation.

For control cabinets that also house CP 343-1 or CP 443-1 communication processors, inspect the Ethernet patch cables and RJ45 connectors at the time of switch replacement. Industrial-grade Cat5e or Cat6 patch cables with locking connectors are recommended to prevent accidental disconnection during vibration. Faulty or marginal cables are a common secondary fault that surfaces only after a switch replacement, causing unnecessary repeat downtime.

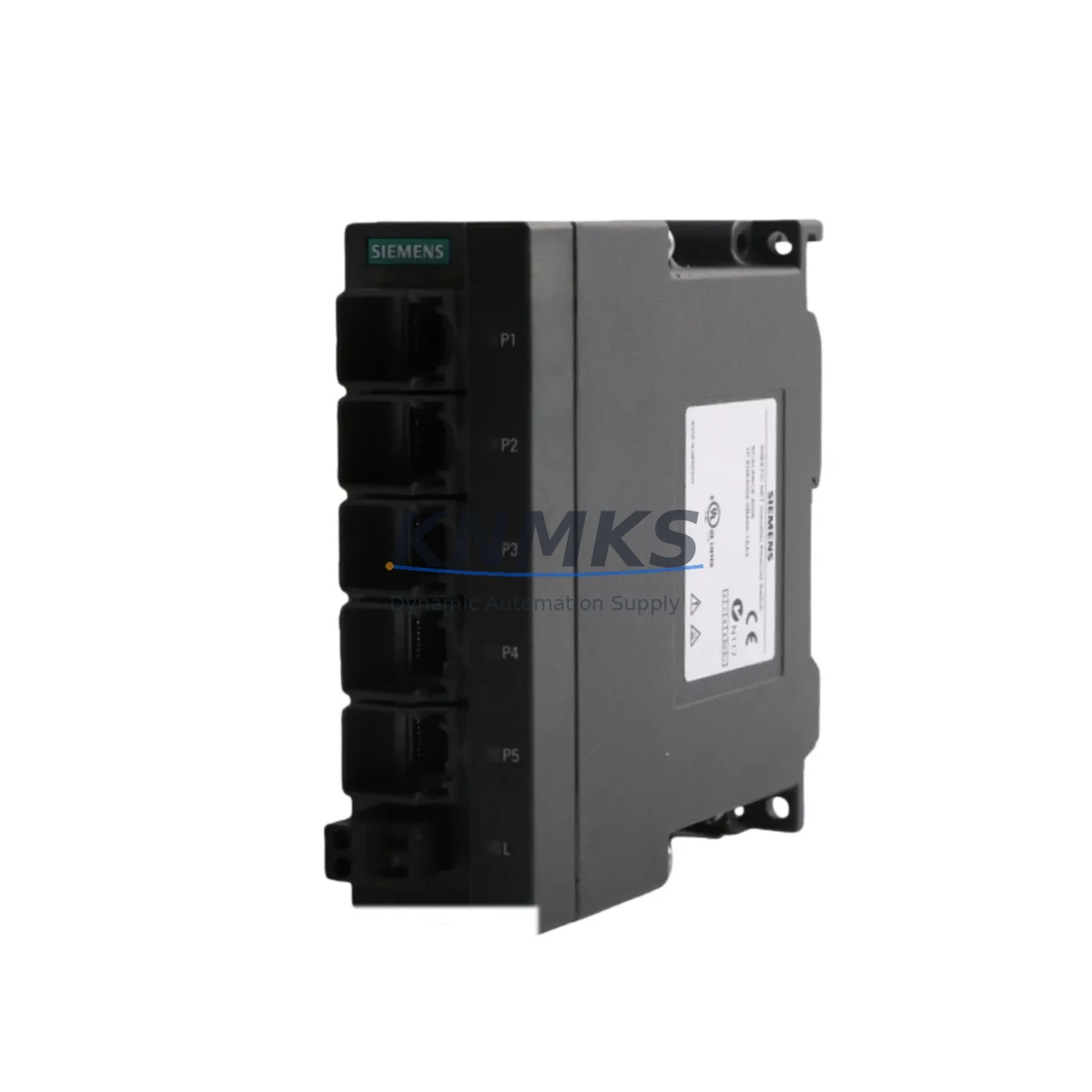

Procurement engineers building annual spare parts lists for SCALANCE X-series infrastructure should also consider stocking the SCALANCE X005 for smaller sub-network segments, and the SCALANCE XB008 for applications requiring a compact unmanaged switch with LED diagnostics. For sites transitioning toward managed switching with VLAN segmentation, the SCALANCE XC208 offers a compatible upgrade path within the same DIN-rail form factor. Additionally, fuse holders and 24 V DC miniature circuit breakers protecting the switch power feed should be included in the spare parts kit — a blown fuse on the switch supply rail is a fast and inexpensive fix that is frequently overlooked until it causes extended downtime.

Where signal isolation is required between the Ethernet network and field instrumentation, SIEMENS SITRANS or equivalent signal isolators installed upstream of the switch supply should be inspected for drift or thermal damage during the same maintenance window. Keeping these components current reduces the risk of cascading faults across the control cabinet.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the 6GK5108-0BA00-2AA3, photograph the existing cable layout and label all RJ45 connections with port numbers. Note the LED status of each port (link, activity, fault) to assist in post-replacement verification.

Step 2 — Power down safely. De-energize the 24 V DC supply to the switch via the dedicated circuit breaker or fuse. Do not rely on unplugging the power connector alone — confirm voltage absence with a multimeter at the switch terminals.

Step 3 — Remove and replace. Release the DIN-rail latch, slide the old unit free, and mount the replacement 6GK5108-0BA00-2AA3 in the same position. Reconnect all RJ45 cables in the documented port order. Reconnect the 24 V DC power connector.

Step 4 — Power up and verify. Restore power and observe the LED indicators. All connected ports should show a solid green link LED within 30 seconds. If a port remains unlit, check the cable and the connected device before suspecting the replacement unit.

Step 5 — Confirm network restoration. From the SIMATIC engineering station or HMI, verify that all PROFINET devices are online and that no CPU fault flags are active. Log the replacement date, technician name, and unit serial number in the cabinet maintenance record.

This workflow minimizes mean time to repair (MTTR) and ensures that the replacement is traceable for support terms and audit purposes. KNMKS ships the 6GK5108-0BA00-2AA3 with a test report confirming port-level functionality, so your team can proceed with confidence from the moment the package arrives.

Spare Parts Support FAQ

Q1: Is the 6GK5108-0BA00-2AA3 a direct drop-in replacement for older SCALANCE X108 units?
Yes. The 6GK5108-0BA00-2AA3 is the current production revision of the SCALANCE X108 platform and is mechanically and electrically compatible with earlier revisions installed on the same DIN-rail. No firmware configuration is required for unmanaged operation — the switch is plug-and-play upon power-up. Confirm the 24 V DC supply polarity before installation.

Q2: What is included in the support terms confirmed by quotation and how does KNMKS verify units before shipment?
Every 6GK5108-0BA00-2AA3 supplied by KNMKS is powered on and tested for port link establishment, LED functionality, and supply voltage acceptance prior to packaging. The support terms confirmed by quotation cover hardware defects under normal operating conditions. Units showing physical damage caused by incorrect installation voltage, reverse polarity, or environmental ingress beyond IP30 are excluded. Contact admin@knmks.com with your order reference to initiate a support terms claim.

Q3: How should I manage long-term spare parts inventory for SCALANCE X108 switches across multiple sites?
For multi-site operations, KNMKS recommends maintaining a minimum of one spare 6GK5108-0BA00-2AA3 per production line or network segment where the switch is a single point of failure. For sites with 10 or more switches, a 10% buffer stock is a practical starting point. Coordinate with your procurement team to establish a standing order or blanket purchase agreement to lock in pricing and ensure availability — SCALANCE X108 units remain in active production, but lead times can extend during peak demand periods.

Q4: Can KNMKS support long-term supply for legacy Siemens SCALANCE X-series products?
Yes. KNMKS maintains stock of current and legacy SCALANCE X-series modules to support customers running older SIMATIC S7-300 and S7-400 installations where network infrastructure upgrades are not yet planned. Long-term supply agreements are available for procurement engineers who need guaranteed availability over a 12–36 month horizon. Contact our team at admin@knmks.com or +86 18359268345 to discuss your requirements.
