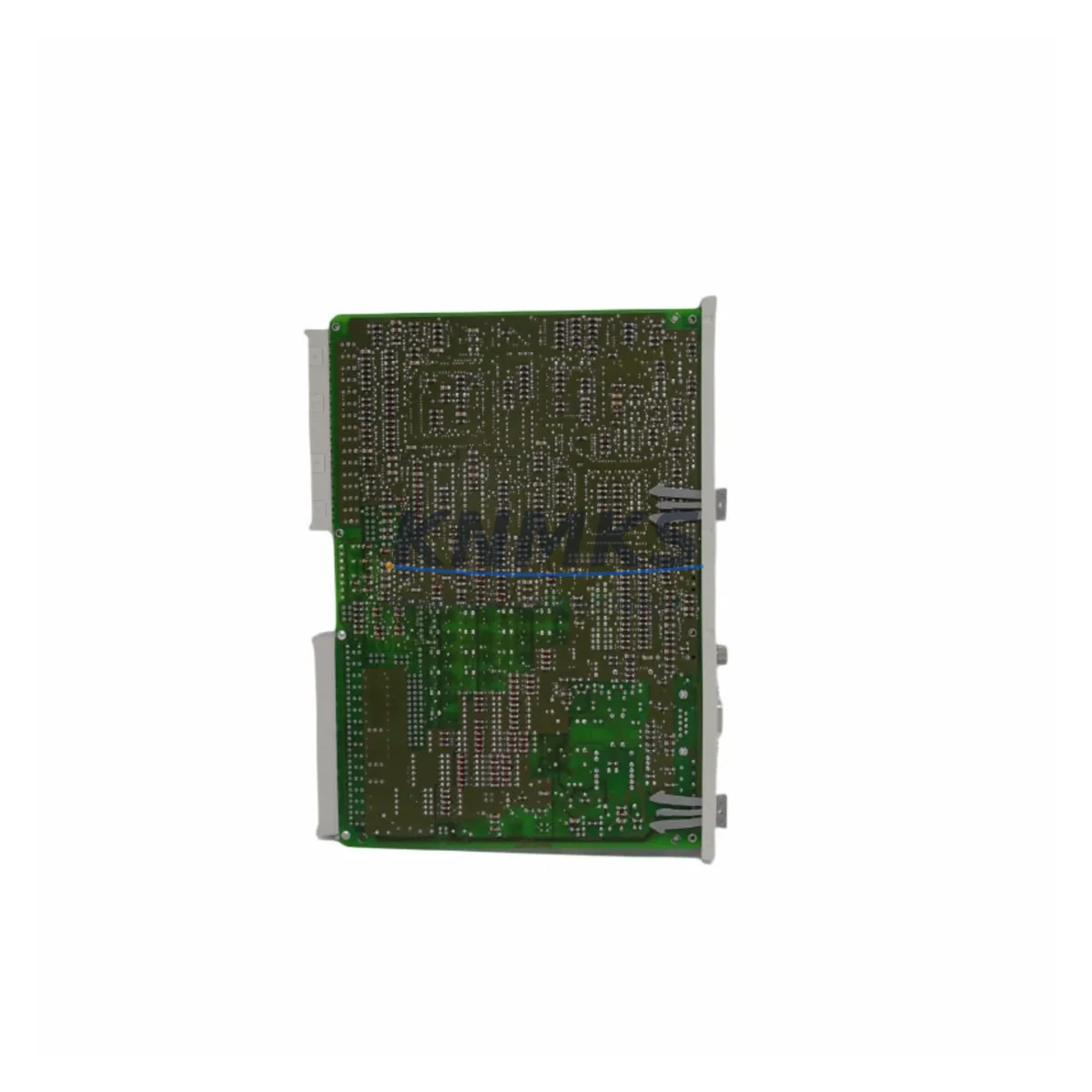

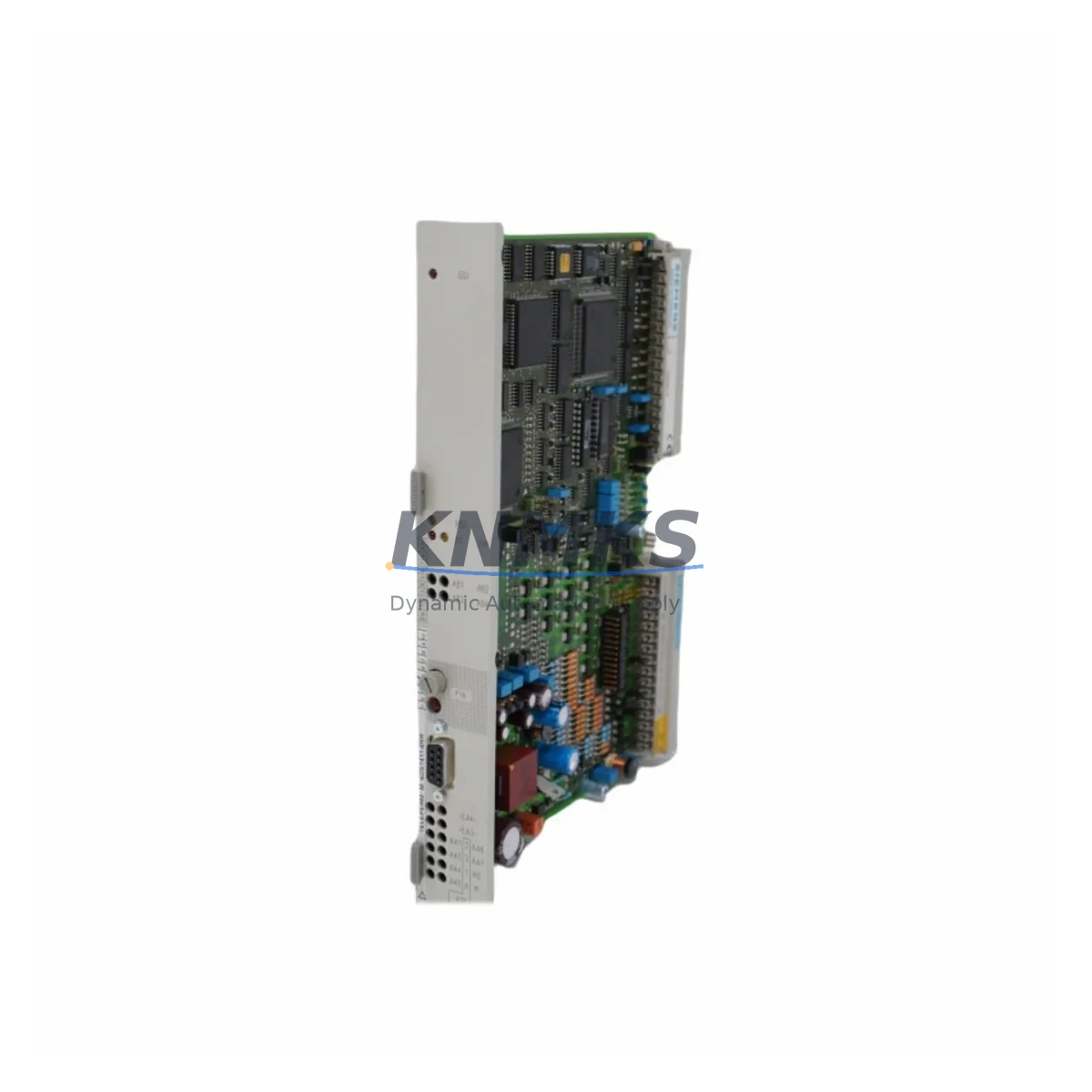

Siemens 6DS1603-8BA Fail-Safe Digital Output Module

Overview

Siemens 6DS1603-8BA Fail-Safe Digital Output Module: Fault Protection for Critical Industrial Control Reliability

The Siemens 6DS1603-8BA is a fail-safe digital output module engineered for the TELEPERM M Distributed Control System (DCS), purpose-built to sustain uninterrupted control loop integrity in the most demanding industrial environments. Designed to meet the rigorous requirements of continuous process industries, this module delivers deterministic output switching, robust surge immunity, and stable signal performance even under conditions of high electromagnetic interference, voltage fluctuation, mechanical vibration, and elevated ambient temperature. For facilities where unplanned downtime carries severe operational, safety, or financial consequences, the 6DS1603-8BA represents a proven, field-validated solution for maintaining control cabinet reliability.

In critical interlock and safety shutdown circuits — such as those found in petrochemical reactors, power generation turbine control panels, and mining conveyor protection systems — the integrity of every digital output channel is non-negotiable. The 6DS1603-8BA provides galvanically isolated output channels that prevent fault propagation between field devices and the control backplane, ensuring that a single-point failure in a field actuator or solenoid valve does not cascade into a broader system trip. This isolation architecture is particularly valuable in high-voltage switchgear panels and motor control centers where transient surges from large inductive loads are a persistent threat to module longevity.

When deployed alongside the Siemens 6DS1400-8BA analog input module and the 6DS1200-8AA digital input module within the same TELEPERM M rack, the 6DS1603-8BA contributes to a fully coordinated I/O strategy that minimizes cross-channel interference and simplifies fault diagnostics. In power distribution and substation automation applications, pairing this output module with the 6DS9400-8AA power supply unit ensures that output channel voltage remains stable during grid disturbances, preventing spurious actuator commands that could compromise process safety. For communication-intensive architectures, the module integrates cleanly with the 6DS1700-8BA TELEPERM M bus coupler, maintaining synchronized data exchange even during high-traffic polling cycles or partial bus faults.

The 6DS1603-8BA is equally suited for harsh physical environments. Its conformal-coated PCB construction resists moisture ingress and corrosive atmospheres typical of coastal chemical plants, offshore platforms, and water treatment facilities. In high-vibration installations such as mining crushers, ship engine rooms, and heavy press lines, the module’s robust mechanical design and secure backplane connector retention prevent intermittent contact faults that are a leading cause of unexplained process trips. For control cabinets operating in dusty or high-humidity conditions, the module’s sealed component layout reduces the risk of insulation degradation and leakage current that can cause false output activation — a critical safety concern in explosive atmosphere zones. Complementing the 6DS1603-8BA with the 6DS9200-8AA TELEPERM M fan tray module helps maintain cabinet thermal equilibrium, extending the operational lifespan of all installed I/O modules under sustained high-load conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A resilient TELEPERM M control cabinet is never built around a single module — it is the result of a carefully coordinated protection strategy across power, I/O, communication, and thermal management layers. The 6DS1603-8BA digital output module anchors the output tier of this strategy, but its reliability is amplified when the surrounding cabinet architecture is equally robust.

On the power supply side, the Siemens 6DS9400-8AA redundant power supply module ensures that output channel voltage remains within specification during mains fluctuations or internal load spikes, preventing the undervoltage conditions that can cause output channels to latch in an indeterminate state. For input signal integrity, the 6DS1200-8AA digital input module provides the upstream process status data that drives output decisions — any degradation in input signal quality directly affects the reliability of output commands, making matched I/O module quality essential.

In process plants with long cable runs between the control room and field junction boxes, surge events induced by lightning strikes or large motor switching are a constant threat. Installing TELEPERM M-compatible surge protection terminal blocks at the cabinet entry point, in combination with the 6DS1603-8BA’s internal transient suppression, creates a two-stage protection barrier that significantly reduces the risk of output channel damage. For facilities running mixed analog and digital I/O in the same rack, the 6DS1400-8BA analog input module benefits from the same cabinet-level EMI shielding practices that protect the digital output tier, reinforcing the case for a holistic cabinet design approach.

Communication continuity is equally critical. The 6DS1700-8BA bus coupler module maintains the TELEPERM M internal bus link between the controller and I/O modules. A bus coupler fault can render all downstream output modules unresponsive, making it a key component to maintain in parallel with the 6DS1603-8BA as part of a comprehensive spare parts inventory strategy.

Critical Industrial Safety Applications

The Siemens 6DS1603-8BA digital output module has demonstrated reliable performance across a broad range of critical industrial sectors where control system failure carries unacceptable safety and operational risk.

In petrochemical and refinery environments, the module drives solenoid valves and relay outputs in emergency shutdown (ESD) and process interlock circuits, where output response time and channel integrity are directly linked to personnel safety and environmental compliance. In thermal and hydroelectric power generation facilities, it controls turbine auxiliary systems, cooling water valves, and generator protection relays — applications where a spurious output or missed command can trigger a full unit trip with significant grid impact.

In underground and open-pit mining operations, the 6DS1603-8BA manages conveyor belt interlocks, ventilation fan controls, and dewatering pump outputs in environments characterized by extreme dust loading, vibration, and temperature cycling. Its conformal-coated construction makes it particularly well-suited for these conditions. In municipal and industrial water treatment plants, the module controls dosing pump outputs, valve actuators, and blower systems in high-humidity, chemically aggressive atmospheres where standard modules often suffer premature failure.

In metallurgical and steel production facilities, the module operates within high-temperature, high-EMI control cabinets adjacent to arc furnaces and rolling mills, where electromagnetic noise levels routinely exceed those found in standard process industries. In port and bulk material handling terminals, it manages ship loader interlocks, stacker-reclaimer controls, and conveyor protection systems that must operate continuously across multi-shift, high-throughput production schedules. In continuous manufacturing lines — including automotive body welding, glass production, and paper mills — the 6DS1603-8BA supports the output control layer of production-critical PLCs and DCS architectures where any unplanned stop directly impacts output volume and customer delivery commitments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Siemens 6DS1603-8BA?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified digital output switching function within the confirmed support period, we will provide a replacement unit or documented resolution support. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on the 6DS1603-8BA before dispatch?
Every 6DS1603-8BA unit undergoes a full functional test prior to shipment, including output channel switching verification, isolation resistance check, and visual inspection for physical damage or component degradation. Only units that pass all test criteria are released for dispatch, ensuring that the module you receive is operationally ready for installation.

Q3: Is the 6DS1603-8BA compatible with all TELEPERM M DCS rack configurations?
Yes. The 6DS1603-8BA is a direct OEM-equivalent replacement for the original Siemens TELEPERM M digital output module of the same part number. It is compatible with standard TELEPERM M I/O racks and backplane bus configurations. If your installation uses a non-standard rack variant or a modified backplane, please contact our technical team with your rack configuration details before ordering.

Q4: Can you guarantee long-term supply availability for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the 6DS1603-8BA to support customers with long-term maintenance contracts, planned turnaround schedules, and emergency replacement requirements. For facilities managing multi-year spare parts programs for legacy TELEPERM M systems, we recommend establishing a standing supply agreement to ensure priority access to stock and stable pricing over your maintenance planning horizon.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6DS1603-8BA

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6DS1603-8BA
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
