SIEMENS 505-7003 Maintenance-Proven Spare Part for Factory Uptime

Overview

SIEMENS 505-7003 Maintenance-Proven Spare Part for Factory Uptime

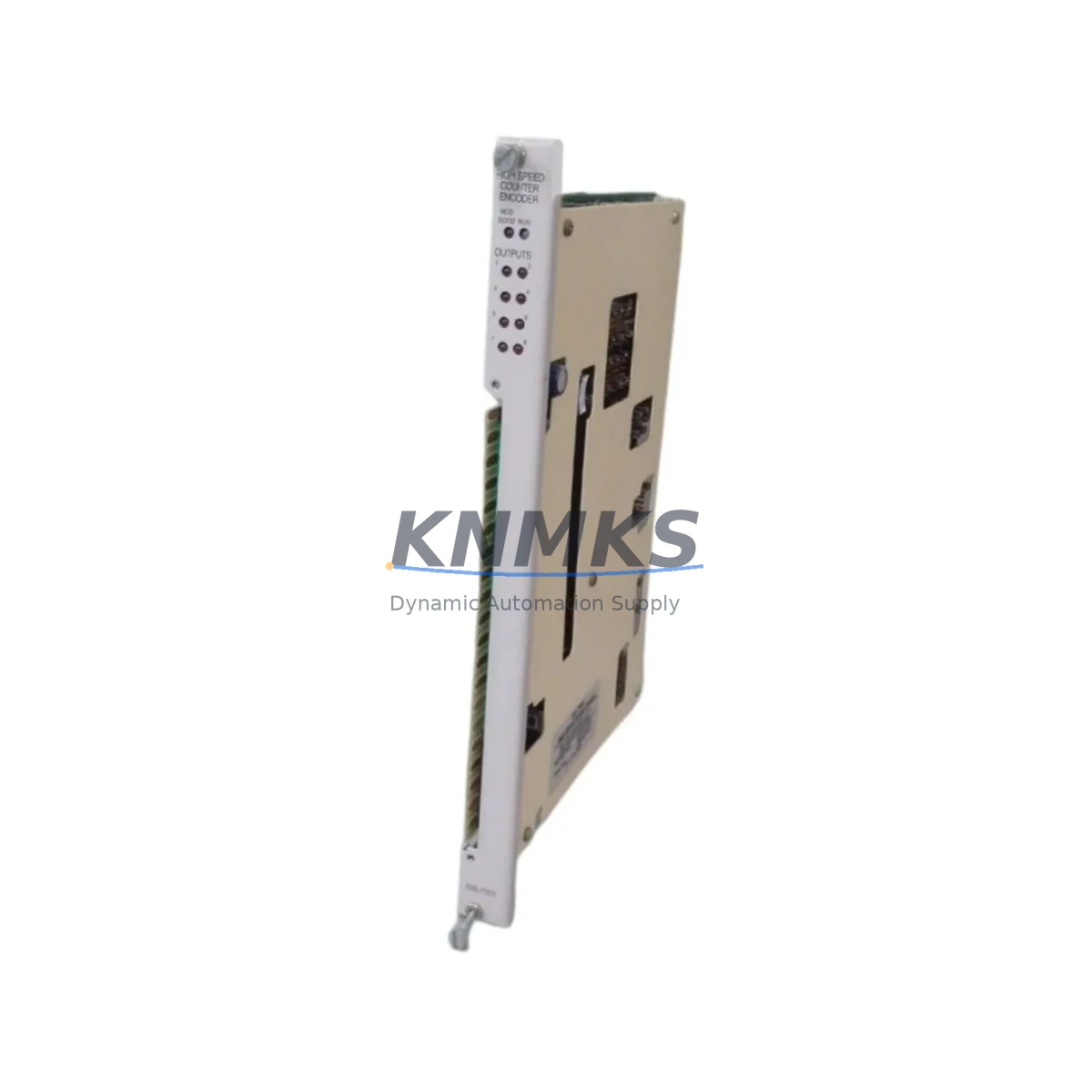

The SIEMENS 505-7003 High Speed Counter Module is a critical spare component for facilities running SIMATIC TI 505 programmable logic controller systems. Designed for high-frequency pulse counting applications in industrial automation environments, this module supports encoder feedback, position tracking, and event-driven control sequences that are fundamental to continuous production lines, packaging machinery, and motion-controlled processes. Maintaining a verified stock of the 505-7003 is a proven strategy for reducing unplanned downtime and protecting factory uptime in aging TI 505 control architectures.

For maintenance engineers managing legacy SIMATIC TI 505 systems, the 505-7003 represents one of the most failure-prone modules in high-cycle environments. Vibration, thermal cycling, and accumulated operating hours accelerate wear on the counting circuitry and input signal conditioning components. Procurement engineers sourcing replacement units should prioritize suppliers who perform pre-shipment functional testing and provide documented support terms confirmed by quotation coverage — both of which are standard with every 505-7003 unit shipped from our inventory.

When replacing the 505-7003 in the field, maintenance teams should treat the event as a full subsystem inspection opportunity. The module interfaces directly with the TI 505 backplane, and any degradation in backplane connector integrity or rack power distribution can cause premature failure of a newly installed unit. Before powering up the replacement, verify that the 505-1101 or 505-1102 power supply module is delivering stable DC voltage within specification, and inspect the backplane bus connectors for oxidation or mechanical damage. A faulty power supply is one of the most common root causes of repeated HSC module failures in TI 505 cabinets.

Field experience also shows that the 24 VDC field wiring connected to the 505-7003 input terminals should be inspected for insulation degradation and proper shielding continuity. Encoder signal cables running near high-voltage conductors or variable frequency drives are particularly susceptible to induced noise that can corrupt count data or trigger nuisance faults. During the replacement workflow, it is advisable to also inspect the 505-6860 or 505-6870 analog output modules sharing the same rack, as signal integrity issues often affect multiple modules simultaneously in electrically noisy environments.

For facilities operating TI 505 systems in continuous process industries, annual maintenance planning should include a spare parts review that covers the 505-7003 alongside related I/O modules such as the 505-4116 discrete input module and the 505-4132 discrete output module. These components share the same rack infrastructure and are subject to similar environmental stresses. Stocking one or two verified spare units of each reduces mean time to repair and eliminates the procurement lead time risk that is common with legacy SIMATIC TI 505 components, many of which are no longer in active production.

Communication module integrity is another area to assess during a 505-7003 replacement. If the TI 505 system uses a TIWAY or CTI 2500 series communication interface, verify that the network module is responding correctly after the HSC module swap. Backplane resets and rack power cycling can occasionally cause communication modules to require re-initialization, particularly in systems that have not been restarted in extended periods. Documenting the pre- and post-replacement system status in the maintenance log supports traceability and simplifies future fault isolation.

Every 505-7003 unit we supply is sourced from verified industrial channels, inspected for physical condition, and functionally tested prior to shipment. Units are shipped with protective packaging appropriate for sensitive electronic components, and each order is supported by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Long-term supply continuity is maintained through our established sourcing network for legacy SIMATIC TI 505 spare parts, ensuring that procurement engineers can plan multi-year maintenance budgets with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for TI 505 systems requires a holistic view of the control cabinet. When scheduling a 505-7003 replacement, maintenance engineers should simultaneously inspect the following components to prevent cascading failures and maximize the value of each planned maintenance window:

The 505-1101 / 505-1102 power supply module should be load-tested to confirm output voltage stability under full rack load. Degraded capacitors in aging power supplies are a leading cause of intermittent module faults. The TI 505 backplane assembly itself warrants visual inspection for cracked PCB traces, corroded bus connectors, and loose rack mounting hardware. The 505-4116 discrete input module and 505-4132 discrete output module sharing the rack should be checked for blown input protection fuses and worn output relay contacts, particularly in high-cycle applications. If the system includes a TIWAY network interface module, verify communication continuity and check for firmware version compatibility with the replacement HSC module. Field wiring terminal blocks and cable shields connected to the 505-7003 should be torqued to specification and inspected for insulation damage. Finally, any signal isolators installed between encoder outputs and the 505-7003 inputs should be tested for signal fidelity, as degraded isolators can cause erratic count behavior that is often misdiagnosed as a module fault.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record the current program status, I/O configuration, and counter preset values from the TI 505 CPU before initiating any hardware changes. Capture a backup of the PLC program if a programming device is available on site.

Step 2 — Safe isolation: Follow site lockout/tagout procedures. De-energize the rack and verify zero voltage at the backplane power input before removing the 505-7003.

Step 3 — Module extraction and inspection: Remove the faulty 505-7003 and inspect the backplane slot connector for damage. Clean the connector with appropriate contact cleaner if oxidation is present.

Step 4 — Replacement installation: Insert the verified replacement 505-7003 into the correct rack slot. Confirm the module address DIP switch settings match the original configuration before seating the module fully.

Step 5 — Power-up and verification: Restore rack power and observe the module status LEDs. Confirm the TI 505 CPU recognizes the module and that counter inputs are responding correctly to encoder signals.

Step 6 — Functional test: Run a controlled test cycle to verify count accuracy, preset function, and output response. Document the test results in the site maintenance log.

This workflow minimizes downtime, maintains system compatibility, and provides a documented audit trail for maintenance compliance requirements.

Spare Parts Support FAQ

Q: Is the 505-7003 still available as a new or tested spare?
A: Yes. We maintain stock of the SIEMENS 505-7003 sourced through verified industrial channels. Every unit is inspected and functionally tested before shipment. Contact admin@knmks.com to confirm current availability and lead time.

Q: What support terms is provided with the 505-7003?
A: All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal industrial operating conditions. Support requests are handled directly through our support team.

Q: How do I confirm compatibility before ordering?
A: The 505-7003 is designed for use in SIMATIC TI 505 series racks. Confirm your rack model, slot address configuration, and firmware version of the TI 505 CPU before ordering. Our technical team can assist with compatibility verification — contact admin@knmks.com with your system details.

Q: Can you support long-term or blanket purchase orders for legacy TI 505 spare parts?
A: Yes. We support long-term supply agreements for maintenance teams managing extended TI 505 system lifecycles. Blanket orders and scheduled delivery programs are available to help procurement engineers maintain spare parts inventory without capital exposure risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

SIEMENS
Siemens

Model / Series

505-7003

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: SIEMENS 505-7003
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
