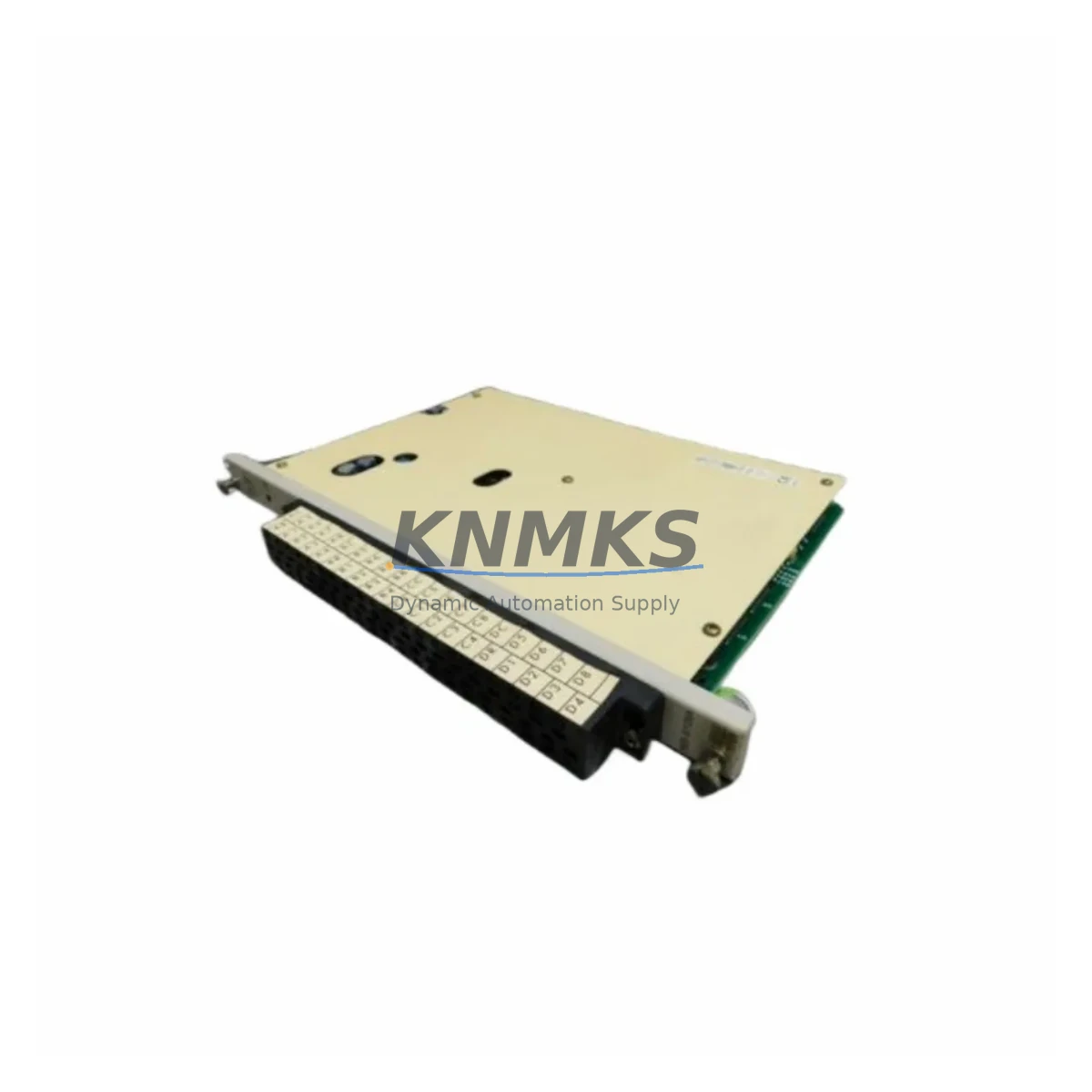

Siemens 505-6108A Fail-Safe Analog Input for Industrial Control Reliability

Overview

Siemens 505-6108A Fail-Safe Analog Input for Industrial Control Reliability

In continuous-process industries where a single signal error can cascade into an unplanned shutdown, the Siemens 505-6108A analog input module delivers the measurement integrity that critical control loops demand. Designed for the SIMATIC 505 programmable logic controller platform, this 8-channel module acquires process variables — temperature, pressure, flow, and level — with the precision and noise immunity required in petrochemical reactors, power-generation auxiliaries, metallurgical furnaces, and water-treatment dosing systems. Its architecture addresses the most common failure modes found in harsh industrial environments: signal drift under electromagnetic interference, input channel cross-talk in densely wired control cabinets, and data corruption caused by ground-loop currents or surge transients on field wiring.

The 505-6108A is engineered to remain stable across wide ambient temperature swings and in the presence of high-frequency EMI generated by variable-frequency drives, large motor starters, and high-current bus bars sharing the same control cabinet. Each input channel incorporates hardware filtering that attenuates conducted interference before it reaches the A/D conversion stage, preventing the signal drift and false readings that trigger nuisance trips or, worse, mask genuine process deviations. When paired with a Siemens 505-6860 digital output module in the same rack, the combination forms a tightly integrated measurement-and-actuation loop capable of executing safety-critical interlock sequences with deterministic scan-cycle timing.

Power integrity is equally important in safety-grade analog measurement. Voltage fluctuations on the 24 V DC backplane rail — caused by inrush currents from solenoid valves or relay coils switching in adjacent slots — can introduce baseline offsets in sensitive analog circuits. The 505-6108A’s internal regulation rejects these rail disturbances, maintaining measurement accuracy even when the Siemens 505-1162 power supply module is operating near its rated capacity during peak-load events. For installations where redundant power is mandatory, the module’s passive backplane interface allows hot-standby power architectures without requiring additional isolation hardware.

Field wiring in mining, port, and shipboard automation environments is routinely exposed to mechanical vibration, condensation, and conductive dust. The 505-6108A’s conformal-coated PCB and robust terminal block design resist the insulation degradation and intermittent contact resistance that cause gradual signal errors in lesser modules. When a field transmitter develops a fault — open circuit, short to ground, or out-of-range output — the module’s channel-level diagnostics flag the condition to the SIMATIC 505 CPU, enabling the control program to execute a safe-state response rather than acting on a corrupted measurement. This diagnostic transparency is especially valuable in water-treatment chlorination loops and chemical-injection systems, where an undetected sensor failure could result in under- or over-dosing with serious safety consequences.

Communication reliability between the 505-6108A and the host CPU depends on the integrity of the SIMATIC 505 I/O bus. In large systems where the rack is located at the far end of a remote I/O drop, bus termination and cable shielding become critical. Complementing the analog input module with a properly configured Siemens 505-6870 analog output module in the same remote rack minimizes bus loading and keeps the control loop entirely within a single communication segment, reducing latency and eliminating the additional failure point of a second remote drop. For applications requiring intrinsic-safety barriers between the 505-6108A and field instruments in Zone 1 or Zone 2 hazardous areas, the module’s input impedance and voltage-clamp characteristics are compatible with leading Zener-barrier and galvanic-isolator products, allowing compliant installations without signal-conditioning amplifiers.

Replacement planning is a practical safety concern for any facility running SIMATIC 505 infrastructure. Aging modules with degraded capacitors or worn connector contacts introduce intermittent faults that are difficult to diagnose under production pressure. Maintaining a verified spare of the 505-6108A — alongside spares for the Siemens 505-4032A digital input module and the Siemens 505-CP1434 communication processor — ensures that a module swap can be completed within a single maintenance window rather than extending an unplanned outage while sourcing parts. Every 505-6108A shipped by KNMKS undergoes pre-shipment functional verification: channel-by-channel accuracy check, isolation resistance test, and bus-interface handshake confirmation, so the replacement module is ready to install without bench testing on site.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system, not a collection of individual components. The 505-6108A performs at its best when the surrounding cabinet architecture is designed to manage power quality, signal integrity, and thermal load simultaneously. On the power side, the Siemens 505-1162 power supply module should be sized with a minimum 20% headroom above the calculated rack load to prevent rail sag during transient events. Surge protection on incoming AC lines and 24 V DC distribution bars shields the entire rack — including the 505-6108A’s sensitive analog front end — from lightning-induced transients and switching surges that propagate through field cable shields.

Signal segregation within the cabinet is equally important. Analog field cables should be routed in dedicated cable ducts, physically separated from 230 V AC power wiring and high-current DC motor circuits. Where separation is not possible, shielded twisted-pair cable with single-point grounding at the cabinet entry eliminates the ground-loop currents that are the most common cause of 4–20 mA signal offset errors. The Siemens 505-6870 analog output module, when installed in the same rack as the 505-6108A, benefits from the same shielding discipline and allows the control engineer to implement closed-loop PID control entirely within the SIMATIC 505 rack without introducing additional signal-conversion stages.

For cabinets in high-ambient-temperature locations — outdoor substations, furnace control rooms, or tropical coastal facilities — thermal management directly affects analog measurement accuracy. Excessive internal temperatures accelerate capacitor aging and shift the gain calibration of A/D converters. Cabinet-mounted heat exchangers or filtered fan units, combined with proper module spacing on the SIMATIC 505 backplane, maintain the operating envelope within which the 505-6108A’s accuracy specifications are guaranteed. The Siemens 505-4032A digital input module installed in adjacent slots for discrete interlock signals should also be considered in the thermal budget, as its power dissipation contributes to the overall rack heat load.

Communication health monitoring rounds out the cabinet protection strategy. The Siemens 505-CP1434 communication processor provides the network interface between the SIMATIC 505 CPU and supervisory SCADA systems. Configuring the CP1434 with watchdog timeout parameters that match the 505-6108A’s scan cycle ensures that a communication interruption triggers a defined safe-state output rather than leaving actuators in their last commanded position indefinitely — a critical requirement in interlock-protected processes.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 505-6108A monitors reactor temperature profiles, feed-flow rates, and pressure differentials across heat exchangers. Its channel-level diagnostics allow the safety PLC program to distinguish between a genuine process excursion and a failed transmitter, preventing spurious shutdowns that cost tens of thousands of dollars per hour in lost production while ensuring that real hazardous conditions trigger the correct protective response.

In electric power generation and transmission substations, the module acquires current-transformer and voltage-transformer secondary signals for protection relay backup and power-quality monitoring. The high EMI environment created by high-voltage switching operations demands the input filtering and isolation characteristics that the 505-6108A provides, ensuring that protection algorithms receive clean, accurate measurements even during fault-clearing events.

In mining and mineral processing plants, the module monitors conveyor belt load cells, crusher motor currents, and flotation-cell level sensors in environments characterized by heavy vibration, conductive dust, and frequent voltage dips caused by large crusher motor starts. Its robust mechanical design and EMI immunity maintain measurement continuity through these disturbances, supporting the continuous-operation mandate of high-throughput ore-processing circuits.

In water and wastewater treatment facilities, the 505-6108A acquires flow, pH, turbidity, and dissolved-oxygen signals for dosing-control loops that must remain accurate 24 hours a day, 365 days a year. Measurement errors in these loops have direct public-health consequences, making the module’s diagnostic transparency and long-term calibration stability essential operational requirements rather than optional features.

In metallurgical and steel-making plants, the module operates in control cabinets adjacent to induction furnaces and arc furnaces that generate intense electromagnetic fields. Its hardware filtering prevents the radiated interference from these sources from corrupting the temperature and flow measurements that govern melt quality and energy efficiency.

In port and maritime automation — ship engine rooms, crane control systems, and terminal automation — the 505-6108A’s tolerance for humidity, vibration, and wide temperature variation makes it a dependable choice for analog measurement in environments where commercial-grade modules fail prematurely and where module replacement requires scheduling around vessel berthing windows or crane maintenance cycles.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the confirmed support period, contact admin@knmks.com with the order number and a description of the fault. KNMKS will arrange a replacement or repair at no additional cost, including return shipping for verified support requests.

Q2: What pre-shipment testing does each 505-6108A undergo?
Every unit is tested for channel-by-channel measurement accuracy across the full input range, point-to-point isolation resistance between channels and chassis ground, and SIMATIC 505 bus-interface handshake confirmation. Test records are retained and can be provided upon request for quality-audit purposes.

Q3: Is the 505-6108A compatible with all SIMATIC 505 CPU models and rack configurations?
The 505-6108A is compatible with the full range of SIMATIC 505 CPUs and standard I/O racks. It occupies one slot and draws power from the backplane. For remote I/O configurations, verify that the remote adapter’s bus-loading specification accommodates the module’s backplane current draw. Contact KNMKS technical support if you require compatibility confirmation for a specific rack-and-CPU combination.

Q4: Can KNMKS guarantee long-term supply of the 505-6108A for multi-year maintenance contracts?
KNMKS maintains dedicated inventory of SIMATIC 505 series modules to support facilities with long equipment lifecycles. For multi-year supply agreements or blanket purchase orders, contact admin@knmks.com to discuss reserved-stock arrangements and pricing. We also offer condition-verified refurbished units as a cost-effective alternative when new stock availability is constrained.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

505-6108A

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 505-6108A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
