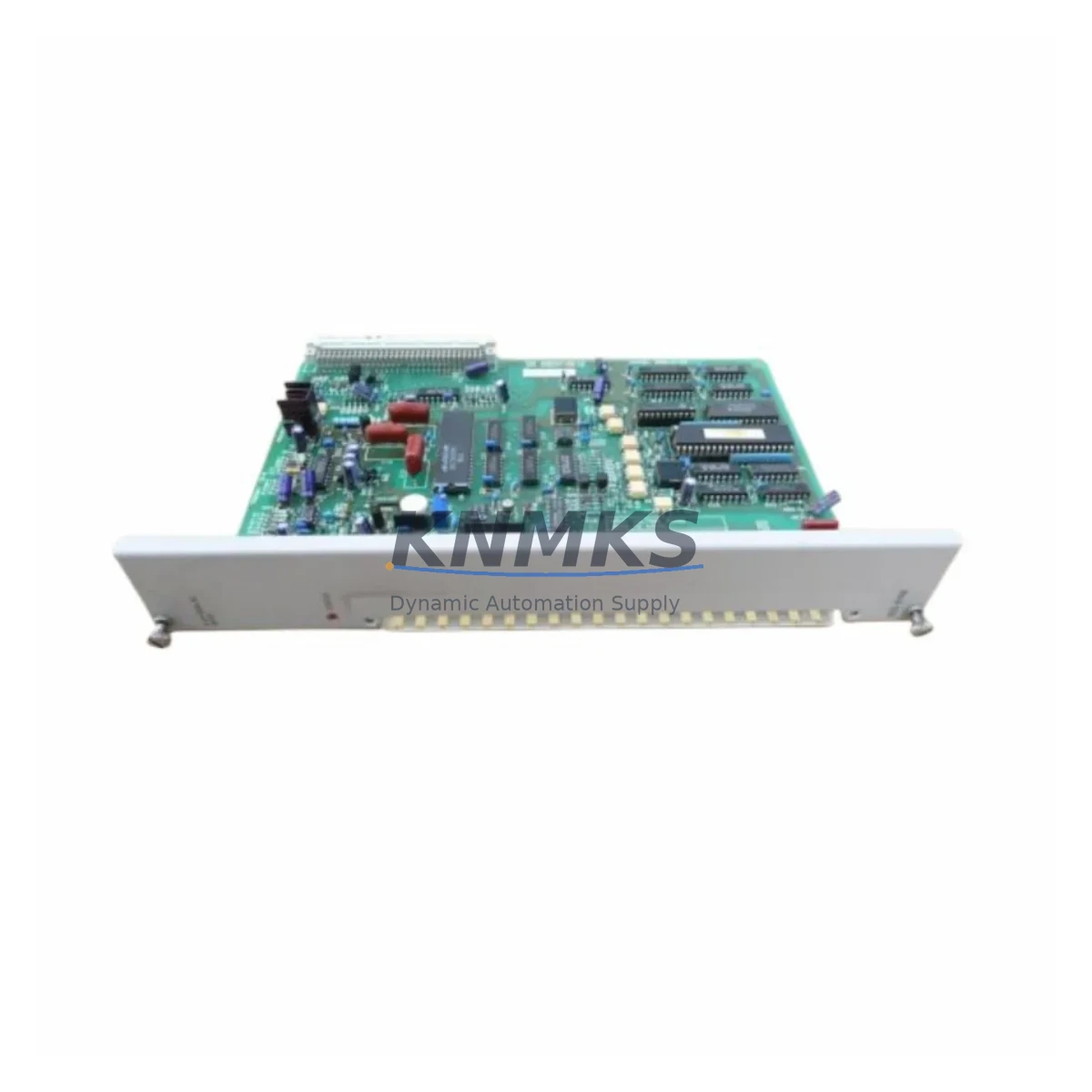

The Siemens 505-6108 is an 8-channel analog input module designed for the SIMATIC 505 PLC platform — one of Siemens’ most widely deployed programmable logic controller series in process automation, discrete manufacturing, and utility control environments. As a maintenance-proven spare part, the 505-6108 plays a critical role in sustaining factory uptime, enabling rapid fault isolation, and supporting long-term system continuity for aging SIMATIC 505 installations.

For maintenance engineers managing legacy control systems, sourcing a verified, original-specification 505-6108 is essential. Signal drift, channel failure, or module-level faults in analog input cards are among the most disruptive events in a PLC-controlled process line. Having a pre-tested, shelf-ready 505-6108 in your spare parts inventory eliminates the risk of extended downtime caused by procurement delays or compatibility mismatches.

This module supports standard industrial signal ranges and integrates directly into the SIMATIC 505 backplane without firmware reconfiguration in most applications, making it a reliable drop-in replacement for failed or degraded units. Each unit dispatched from our facility undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the Siemens 505-6108 analog input module, a thorough maintenance workflow should extend beyond the module itself. Experienced maintenance engineers know that analog input failures are rarely isolated — they often indicate stress on adjacent components within the same control cabinet or electrical loop.

Begin by verifying the SIMATIC 505 power supply module (such as the 505-6860 or equivalent rack power unit) to confirm stable DC bus voltage. Voltage sag or ripple on the backplane supply is a common root cause of analog channel errors and premature module failure. Simultaneously, inspect the 505-1001 CPU module or active processor card for firmware integrity and scan-cycle anomalies that may have been triggered by the faulty input card.

Check all field wiring terminals and signal cables connected to the 505-6108’s input channels. Corroded terminals, loose ferrules, or shielding breaks in instrumentation cables (particularly in 4–20 mA loops) can introduce noise that degrades analog accuracy or causes nuisance faults. If the installation uses signal isolators between field transmitters and the PLC input card, verify isolator output levels and isolation integrity — degraded isolators are a frequent but overlooked contributor to analog input module failures.

For systems with mixed I/O, also inspect adjacent digital output modules (such as the 505-6664 or similar DO cards) sharing the same rack. Inductive load switching on DO channels can inject transients into the backplane that affect analog measurement accuracy. Installing or replacing surge protection devices and rack-level fuse assemblies during the same maintenance window is a cost-effective preventive measure.

If the SIMATIC 505 system includes a communications module (e.g., PROFIBUS DP or serial interface card), confirm that the module’s diagnostic status is normal after the analog input card replacement, as some 505-series racks re-enumerate I/O addresses on power cycle. Finally, if an OP or HMI panel is connected to this PLC, verify that analog tag mappings and alarm setpoints are correctly restored after the module swap.

Site Replacement Workflow

Replacing the Siemens 505-6108 on-site is a structured process that, when executed correctly, minimizes downtime and eliminates the risk of secondary faults:

1. Pre-replacement verification: Confirm the replacement module’s part number, revision level, and channel configuration match the installed unit. Cross-reference the system’s I/O configuration file or hardware catalog to avoid address conflicts.
2. Safe isolation: De-energize the rack or use hot-swap procedures if supported by your 505-series rack configuration. Disconnect field wiring from the module’s terminal block, labeling each wire for accurate reconnection.
3. Module extraction and inspection: Remove the faulty 505-6108 and inspect the backplane connector for bent pins, contamination, or heat damage. Clean the slot if necessary before inserting the replacement.
4. Installation and wiring: Seat the new module firmly into the backplane slot. Reconnect field wiring per the original termination diagram. Verify shield grounding continuity.
5. Power-up and diagnostics: Restore power and observe the module’s status LEDs. Use the SIMATIC 505 programming software to confirm all 8 channels are reading within expected ranges. Compare live values against known process references or calibrated signal sources.
6. Documentation: Record the replacement date, module serial number, and post-installation test results in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement stock unit.

This workflow supports compatibility with legacy SIMATIC 505 installations without requiring PLC program modifications in standard configurations, reducing engineering time and minimizing the risk of introducing new faults during the replacement event.

Spare Parts Support FAQ

Q1: Is the 505-6108 still available as a new or surplus-new unit?
A: Yes. We maintain stock of original and surplus-new 505-6108 modules sourced from verified industrial channels. Each unit is pre-tested before dispatch. Contact our team for current availability and lead times.

Q2: What is the support terms coverage for this spare part?
A: All 505-6108 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers functional defects under normal operating conditions. Our team provides post-sale technical support for installation and compatibility verification.

Q3: How do I confirm compatibility with my existing SIMATIC 505 rack?
A: The 505-6108 is designed for the standard SIMATIC 505 backplane. Provide your rack model, existing module revision, and I/O configuration details to our technical team, and we will confirm compatibility before shipment. We recommend cross-referencing the Siemens SIMATIC 505 hardware manual for slot assignment rules.

Q4: Can KNMKS support long-term or recurring supply of this module?
A: Yes. We support long-term supply agreements for maintenance teams managing multiple SIMATIC 505 installations. Blanket orders, scheduled releases, and priority stock reservation are available. Contact admin@knmks.com to discuss your annual maintenance volume and establish a supply plan.
