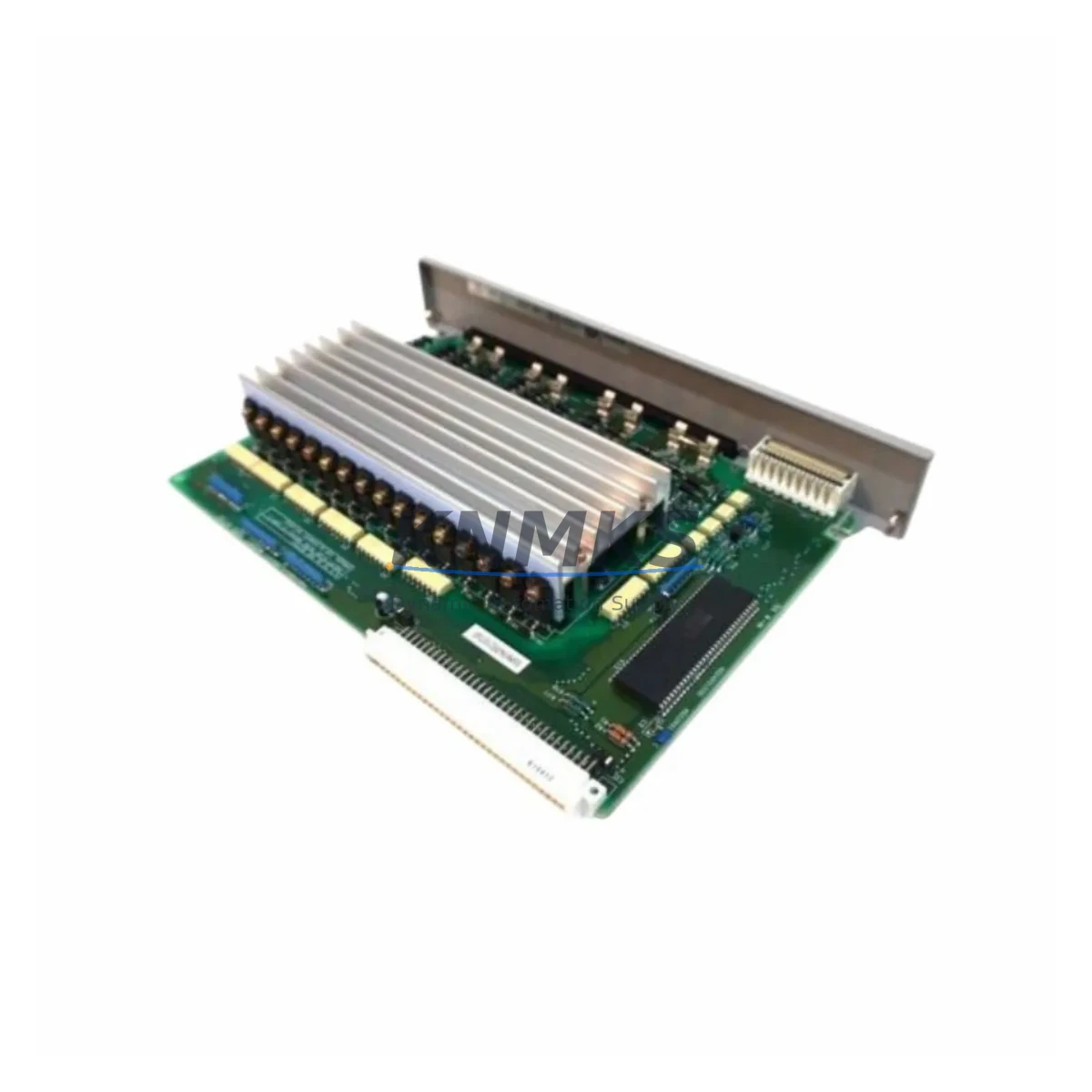

The Siemens 505-4732 is a discrete output module designed for the SIMATIC 505 programmable logic controller platform — one of Siemens’ most widely deployed automation architectures in process manufacturing, automotive assembly, and heavy industrial environments. As production lines age and original equipment manufacturers phase out legacy support, maintaining a verified stock of the 505-4732 becomes a critical element of any plant’s spare parts strategy. This module enables maintenance engineers to execute rapid in-cabinet replacements, restore I/O functionality, and return production lines to full operation with minimal downtime.

At KNMKS, every 505-4732 unit is sourced from verified supply channels, individually inspected, and functionally tested prior to shipment. Each order is backed by a support terms confirmed by quotation, providing procurement engineers with the confidence needed for long-term maintenance planning and capital spares budgeting.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 505-4732 output module fails or shows signs of degraded performance — such as intermittent output faults, blown output channels, or backplane communication errors — the replacement process should be treated as part of a broader cabinet inspection. Experienced maintenance engineers know that a single module failure rarely occurs in isolation. Before returning the system to service, the following components in the same control cabinet or electrical loop should be inspected and verified:

Power Supply Module (e.g., Siemens 505-6860 or equivalent SIMATIC 505 PSU): Confirm that the rack power supply is delivering stable DC voltage within specification. An under-voltage condition is a common root cause of output module faults and can damage replacement units if not corrected first.

I/O Chassis and Backplane: Inspect the SIMATIC 505 I/O rack backplane for bent connector pins, corrosion, or mechanical damage. A faulty backplane slot can cause repeated module failures and should be replaced before installing the 505-4732 spare.

CPU Module (e.g., Siemens 505-6860 or 505-CPU series): Verify that the CPU is communicating correctly with all I/O slots. After replacing the output module, confirm that the CPU recognizes the new module and that no configuration mismatch alarms are active.

Field Wiring and Terminal Blocks: Check all output field wiring connected to the 505-4732 for insulation damage, loose terminations, or overloaded circuits. Overloaded output channels are a leading cause of module failure in high-cycle discrete applications.

Relay and Contactor Loads: If the 505-4732 is driving relay coils or contactors, inspect those devices for coil burnout or contact welding. A shorted relay coil can draw excessive current and damage output transistors or triacs on the module.

Signal Isolation and Fuse Protection: For critical output loops, verify that signal isolators and inline fuses are intact. Replacing a blown fuse or failed isolator alongside the 505-4732 prevents repeat failures and protects the new module from field-side fault conditions.

Maintaining a minimum stock of one to two 505-4732 units as capital spares — alongside compatible power supply modules and a spare CPU — is a best practice for plants operating SIMATIC 505 systems beyond their original design life. KNMKS supports long-term procurement planning with stable pricing, consistent availability, and documented test records for each unit shipped.

Site Replacement Workflow

Step 1 — Isolate and De-energize: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the I/O rack and confirm zero voltage at the backplane power connector before handling any module.

Step 2 — Document Current Configuration: Before removing the 505-4732, photograph or record the field wiring terminations, slot address, and any module DIP switch or jumper settings. This ensures the replacement module is configured identically to the original.

Step 3 — Remove the Faulty Module: Release the module locking mechanism and slide the 505-4732 out of the backplane slot. Inspect the backplane connector for damage before proceeding.

Step 4 — Install the Replacement Unit: Align the new 505-4732 with the backplane slot guides and firmly seat the module until the locking tab engages. Reconnect all field wiring per the documented termination record.

Step 5 — Power-Up and Verify: Re-energize the rack and observe the module status LEDs. Confirm that the CPU recognizes the module, that no fault codes are active, and that all output channels respond correctly to PLC commands.

Step 6 — Functional Test: Execute a controlled output test from the PLC programming terminal or HMI to verify that each output channel activates the correct field device. Document the test result and update the maintenance log.

This workflow applies equally to emergency breakdown replacements and planned annual maintenance shutdowns. For legacy SIMATIC 505 systems where original Siemens support has been discontinued, KNMKS provides a reliable alternative supply channel with consistent lead times and pre-shipment functional testing.

Spare Parts Support FAQ

Q1: Is the 505-4732 still available as a new original part, or is it a refurbished unit?
KNMKS supplies the 505-4732 sourced from verified industrial channels. Each unit undergoes individual inspection and functional testing before shipment. Units are clearly described as original or tested-surplus, and all are covered by a support terms confirmed by quotation. Contact admin@knmks.com for current stock status and condition details.

Q2: How do I confirm compatibility between the 505-4732 and my existing SIMATIC 505 rack?
The 505-4732 is designed for the SIMATIC 505 I/O backplane architecture. Compatibility depends on your rack model, power supply capacity, and CPU firmware version. Provide your full system configuration — including rack model, CPU part number, and existing module list — to our technical team at admin@knmks.com, and we will confirm compatibility before shipment.

Q3: What is your lead time, and can you support urgent breakdown orders?
Standard orders are processed and shipped within 1–3 business days. For urgent breakdown situations, contact us directly at +86 18359268345 to discuss expedited shipment options. We maintain standing stock of high-demand SIMATIC 505 modules to support emergency procurement requirements.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover functional failure under normal operating conditions. If a unit fails within the confirmed support period, contact admin@knmks.com with your order reference and a description of the fault. KNMKS will arrange a replacement or repair at no additional cost. Support terms does not cover damage caused by incorrect installation, overvoltage, or field wiring faults.
