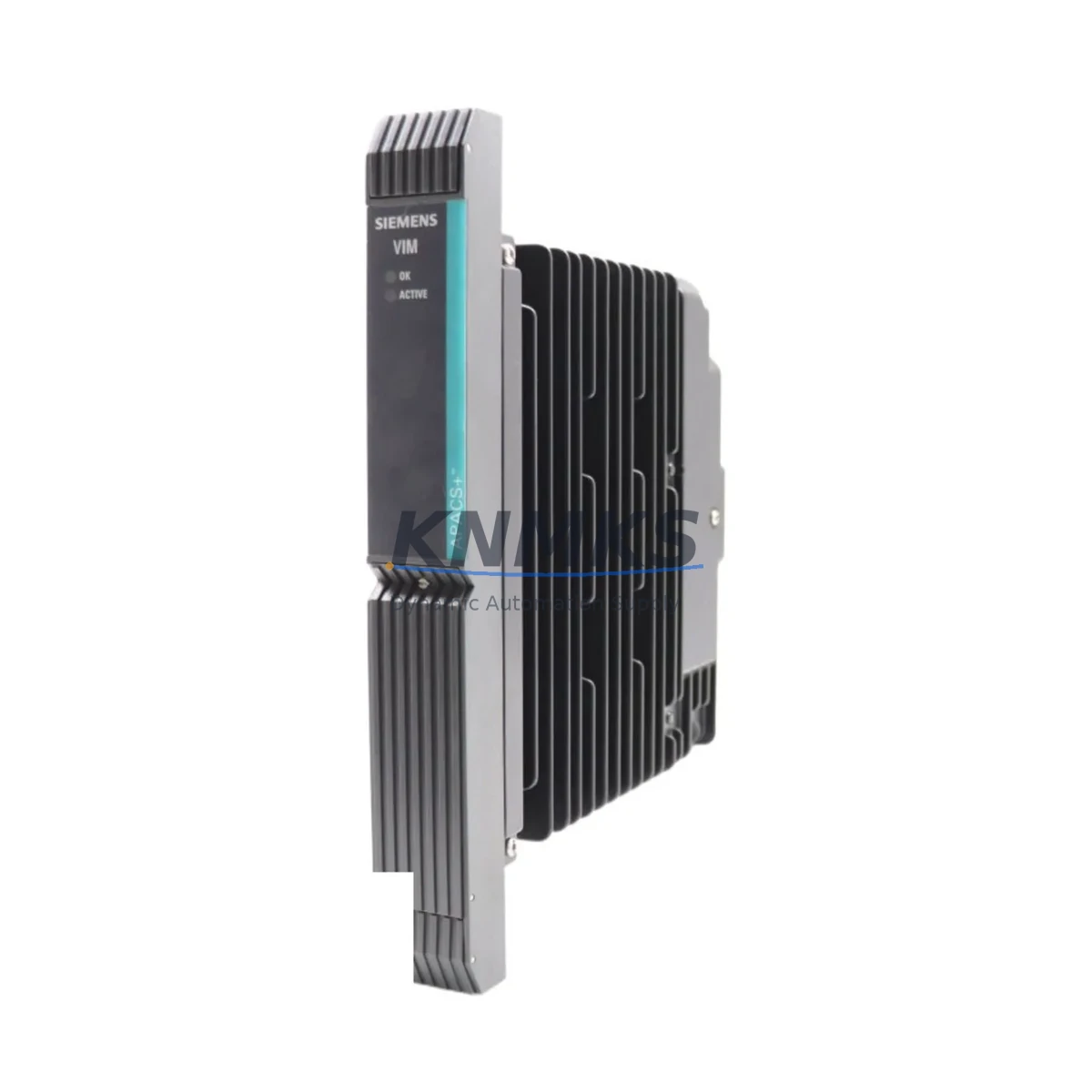

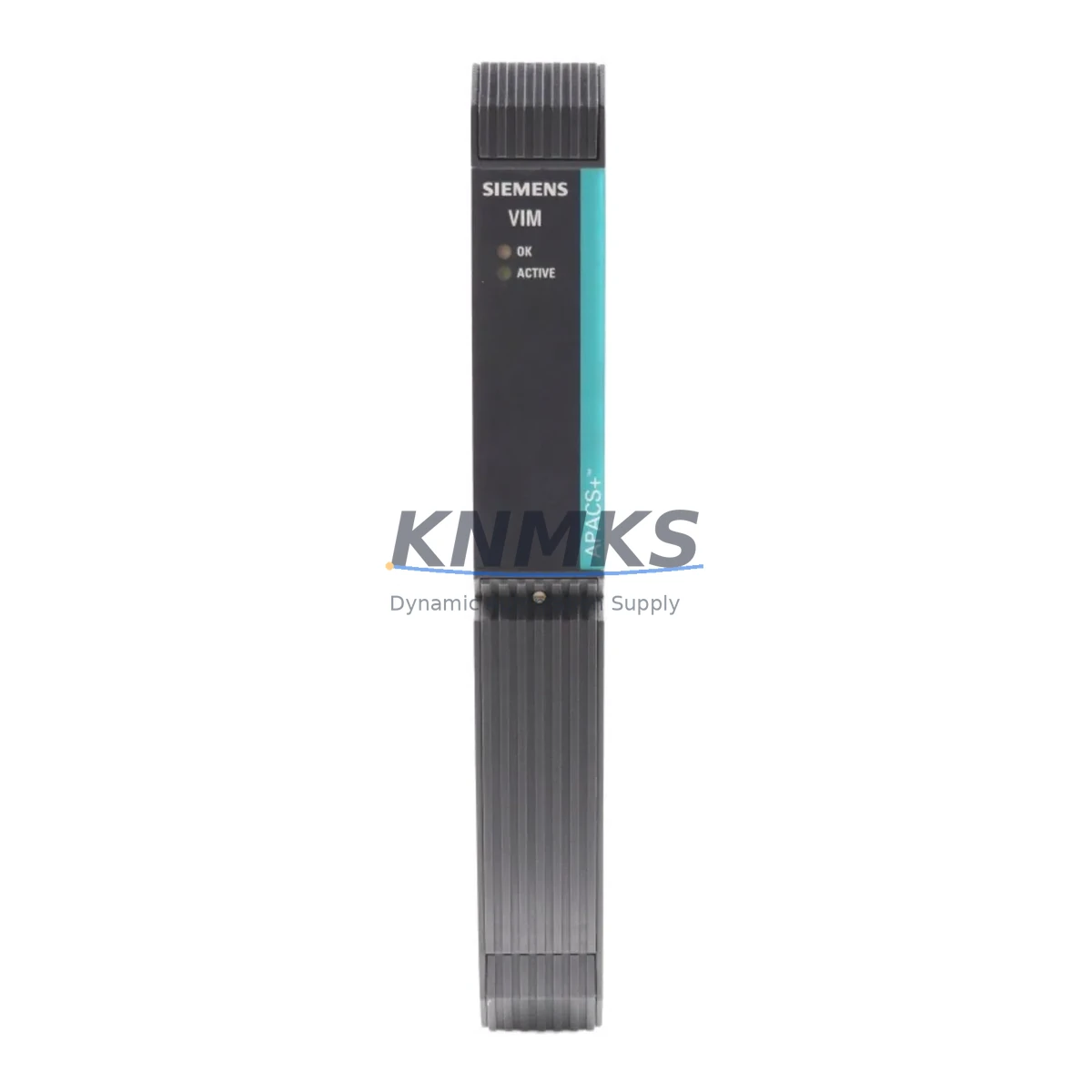

Siemens 39VIMCCN Migration-Ready Voltage Input Module

Overview

Siemens 39VIMCCN Migration-Ready Voltage Input Module for Legacy DCS Systems

The Siemens 39VIMCCN is a voltage input module engineered for the APACS+ and QUADLOG Distributed Control System platforms — two of the most widely deployed process automation architectures in the chemical, oil & gas, power generation, and pharmaceutical industries. As these platforms approach end-of-life and OEM support windows close, the 39VIMCCN has become a critical spare for engineers managing legacy system continuity, unplanned failures, and phased migration programs.

KNMKS maintains verified in-stock inventory of the 39VIMCCN, with each unit subject to pre-shipment functional testing, visual inspection, and firmware version confirmation. All units are backed by a support terms confirmed by quotation and ship with full documentation support.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 39VIMCCN within an active APACS+ or QUADLOG control system requires careful pre-migration planning to avoid signal disruption and unplanned downtime. Engineers should begin by auditing the existing I/O carrier assembly — the APACS+ I/O Carrier Module that houses the 39VIMCCN must be confirmed free of backplane connector damage before the new module is seated.

Power budget verification is equally important. The APACS+ rack power supply — typically a Siemens APACS+ Power Supply Module — must have sufficient headroom to support the replacement module alongside co-installed analog output modules, digital I/O modules, and any 39AITM (Analog Input Thermocouple Module) units sharing the same rack. Overloaded power rails are a common cause of intermittent faults after module replacement.

For systems that include a Siemens QUADLOG Safety Controller in the same cabinet, the replacement sequence must account for safety function inhibit procedures. The QUADLOG platform enforces strict module address validation at startup — any mismatch between the configured I/O map and the physical slot assignment will trigger a fault condition. Confirm the module address DIP switch or software address setting matches the original configuration before powering the rack.

Where the control system interfaces with a Siemens APACS+ Communication Module (such as an Ethernet or Modbus gateway card), verify that the communication link to the DCS historian or SCADA layer remains unaffected during the swap. Signal scaling parameters stored in the controller program — particularly engineering unit conversion for voltage-to-process-variable mapping — should be exported and backed up before any hardware change.

If the retrofit is part of a broader migration from APACS+ to a modern platform such as Siemens PCS 7 or a third-party DCS, the 39VIMCCN can serve as a bridge component during phased cutover. Maintaining the legacy I/O layer while migrating the controller and HMI layers reduces simultaneous change risk. In this scenario, signal isolators or signal conditioners may be required at the field terminal interface to ensure compatibility between the legacy wiring and the new controller’s input specifications.

HMI screen validation is a frequently overlooked step. After module replacement, confirm that all associated faceplate displays, trend tags, and alarm setpoints in the operator station reflect the correct engineering units and signal range for the 39VIMCCN channel. Any discrepancy in the HMI tag database can result in incorrect process readings being presented to operators.

Downtime Control During System Migration

Minimizing downtime during a 39VIMCCN replacement begins with preparation, not execution. Before the maintenance window opens, the engineering team should have the replacement module on-site, the controller program backed up to a portable programming device, and the I/O channel inhibited or placed in manual mode at the DCS level.

For hot-swap capable APACS+ configurations, the 39VIMCCN can be replaced without a full rack power-down — however, this must be confirmed against the specific rack revision and firmware version in use. Attempting a hot-swap on a non-supported configuration risks corrupting the backplane communication state and may require a full rack restart to recover.

Where a cold-swap is required, the recommended sequence is: inhibit the affected control loops, export the current program and I/O configuration, power down the rack, replace the module, restore power, verify module recognition in the DCS configuration tool, re-enable control loops, and perform a live calibration check on the affected voltage input channels. This sequence, when followed precisely, typically allows restoration of normal control within 30–60 minutes for a single-module replacement.

Keeping a documented record of the original module’s firmware version, slot address, and wiring termination layout — ideally photographed before removal — eliminates the most common sources of commissioning delay. KNMKS can provide pre-shipment firmware version confirmation on request to ensure the replacement unit matches the installed base.

Retrofit Support FAQ

Q: Is the 39VIMCCN a direct replacement for the original Siemens unit?
A: Yes. The 39VIMCCN supplied by KNMKS is the same OEM part number and is a direct drop-in replacement. No hardware modification, adapter, or rewiring is required. Terminal assignments and backplane interface are identical to the original.

Q: What pre-shipment testing does KNMKS perform?
A: Each 39VIMCCN unit undergoes functional power-on testing, visual inspection for connector and board condition, and firmware version verification before shipment. A test report is available on request.

Q: How do I confirm wiring compatibility before installation?
A: The 39VIMCCN uses the standard APACS+ I/O carrier terminal block. Confirm the carrier model number matches your existing installation. If the carrier is being replaced simultaneously, verify terminal numbering against the original loop drawing before reconnecting field wiring.

Q: What support terms and after-sales support does KNMKS provide?
A: All 39VIMCCN units are covered by a support terms confirmed by quotation from the date of shipment. KNMKS provides technical support for installation, commissioning questions, and compatibility verification. Contact admin@knmks.com or +86 18359268345 for assistance.
