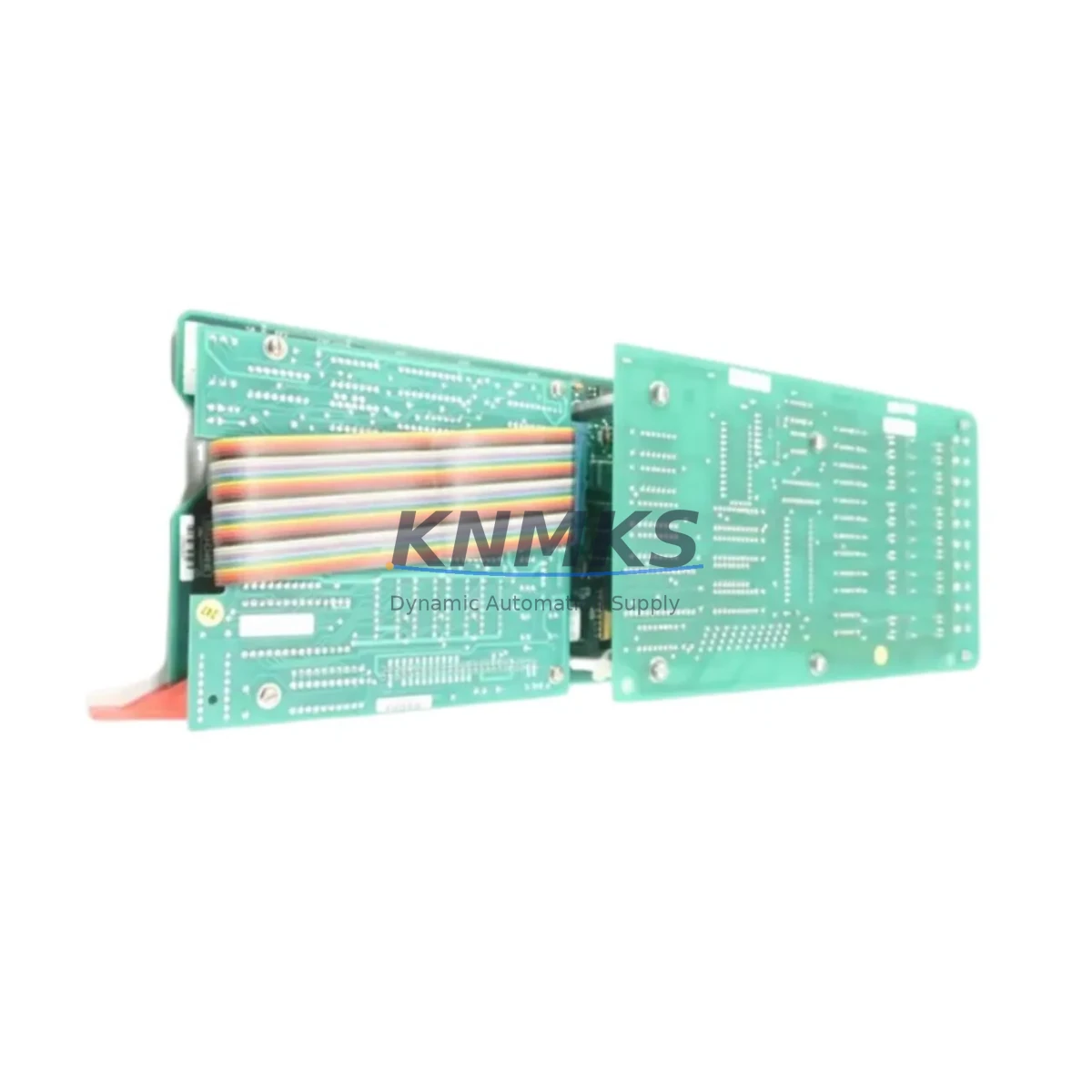

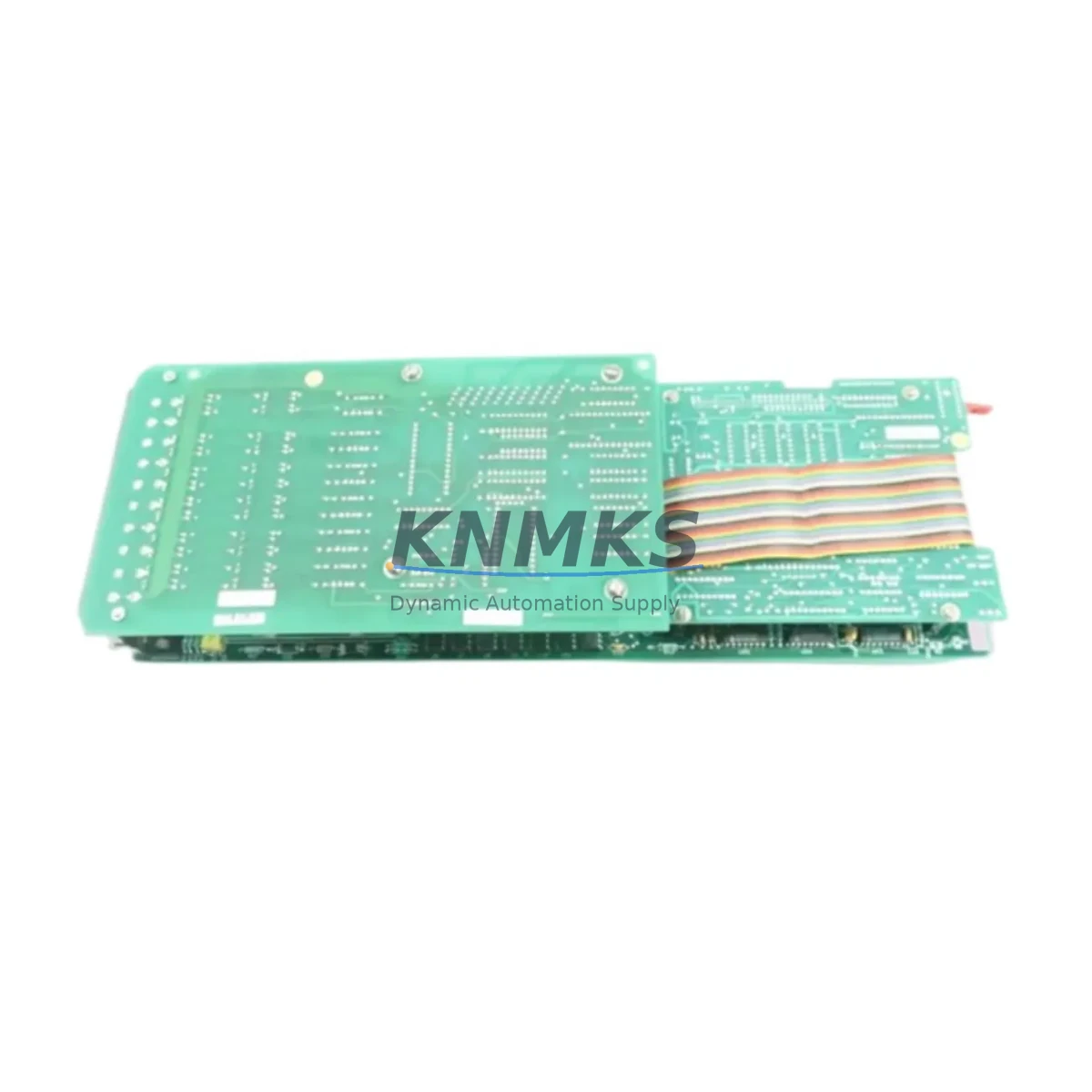

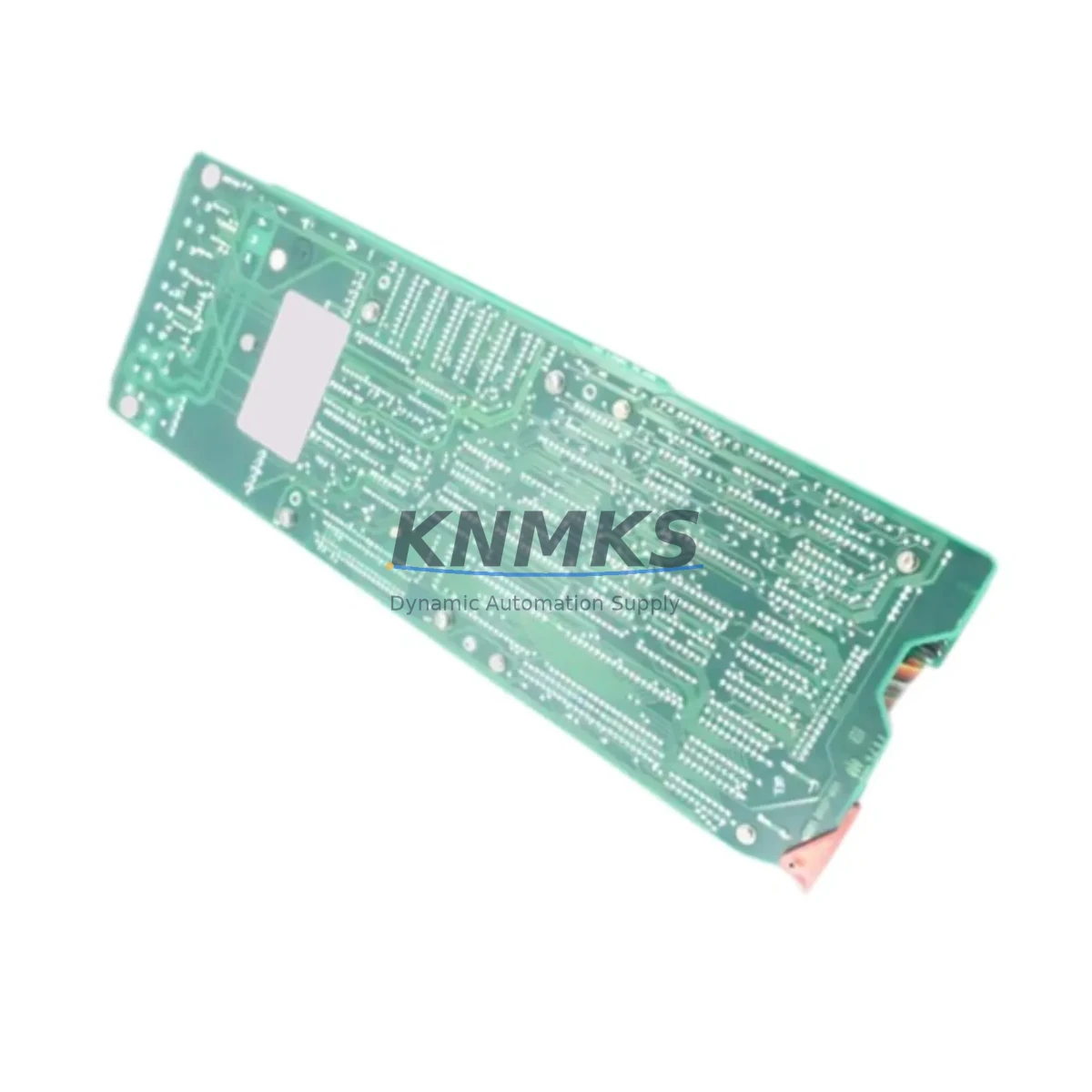

Siemens 383VA21N1F Migration-Ready Multi-Point Display

Overview

Siemens 383VA21N1F Migration-Ready Multi-Point Display for Legacy Control Systems

The Siemens 383VA21N1F is a multi-point display station engineered for the 383 Series distributed control and PLC platform. As legacy automation infrastructure ages and OEM support windows close, the 383VA21N1F has become a critical retrofit component for facilities managing aging control cabinets, discontinued operator panels, and end-of-life display networks. This unit provides a verified drop-in replacement path for sites that cannot afford full system re-engineering but require reliable, spec-accurate hardware to extend operational life by 5–10 years.

Whether your facility is replacing a failed display station mid-campaign, consolidating spare parts inventory ahead of a planned shutdown, or executing a phased migration from a legacy SCADA architecture to a modern DCS backbone, the 383VA21N1F delivers the backplane compatibility, terminal wiring continuity, and firmware alignment needed to minimize engineering rework and commissioning time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 383VA21N1F into a running production environment requires a structured pre-installation audit. Begin by documenting the existing rack layout: confirm the number of occupied slots, the position of the 383 Series power supply module, and the total current draw across all installed I/O and communication modules. The 383VA21N1F adds a defined load to the rack bus; if the existing PSU is already operating near capacity, a supplemental or replacement power module should be sourced before the swap is attempted.

Terminal wiring is typically the lowest-risk element of a 383VA21N1F replacement. The module uses the standard 383 Series terminal block layout, meaning field cables connected to the original display station can be transferred directly without re-labeling or re-routing. However, technicians should photograph and document all terminal assignments before disconnection, particularly on sites where as-built drawings have not been maintained.

Communication link integrity is the most common source of post-swap commissioning delays. The 383VA21N1F communicates over the 383 Series native backplane bus. Before removal of the legacy unit, record the node address, baud rate, and any parity settings stored in the existing module or the associated 383 Series communication interface module. These parameters must be replicated exactly in the replacement unit. On systems where a Siemens SIMATIC S7 series controller or equivalent PLC acts as the bus master, confirm that the controller’s I/O configuration file reflects the correct module type and address before going live.

HMI screen validation is a mandatory step that is frequently underestimated. If the facility operates a Siemens TP or MP series HMI panel connected to the 383 platform, all display tags referencing the multi-point display station must be verified after the swap. Tag names, data types, and polling cycles should be confirmed against the HMI project file. In cases where the original HMI project is unavailable, a live tag scan against the replacement module is recommended before returning the line to production.

For facilities executing a broader control cabinet upgrade—such as migrating from a 383 Series rack to a modern Siemens SIMATIC ET 200 distributed I/O platform—the 383VA21N1F serves as a bridge component, maintaining display continuity on the legacy segment while the new I/O infrastructure is commissioned in parallel. This parallel-run approach is the most effective method for controlling downtime and protecting existing program logic during phased migrations. Signal isolators may be required at the boundary between legacy and new I/O segments to prevent ground loops and ensure signal integrity across the transition zone.

Spare parts lifecycle planning should also account for associated components: 383 Series rack backplanes, termination assemblies, and programming cables used for firmware upload and module diagnostics. Sourcing these items alongside the 383VA21N1F ensures that the retrofit team has everything required to complete the installation without waiting on secondary procurement.

Downtime Control During System Migration

Minimizing unplanned downtime during a 383VA21N1F swap requires preparation at three levels: hardware staging, program backup, and commissioning sequencing.

Hardware staging: The replacement module should be bench-tested and address-configured before it enters the production environment. Where possible, use a spare rack or test bench to power the 383VA21N1F and confirm basic operation against a known-good configuration. This eliminates the risk of discovering a configuration error after the legacy unit has already been removed from the live rack.

Program backup: Before any hardware is touched, upload and archive the complete PLC program, HMI project, and any module configuration files associated with the existing display station. Store backups in at least two locations. If the legacy module holds configuration data that cannot be read by the current programming tool version, escalate to engineering before proceeding—do not assume the replacement module will auto-configure from the rack.

Commissioning sequencing: Execute the swap during a planned maintenance window. Remove the legacy 383VA21N1F, install the replacement, restore terminal wiring, and power up the rack in a controlled sequence. Confirm bus communication is established before releasing the line to operators. Validate all display points against the process values shown on the DCS or SCADA server. Document the commissioning result and update the as-built records to reflect the new module serial number and firmware version.

With proper preparation, a 383VA21N1F replacement can be completed within a standard 4–8 hour maintenance window, preserving existing program logic, field wiring, and HMI screen layouts without modification.

Retrofit Support FAQ

Q1: Is the 383VA21N1F a direct drop-in replacement for the original Siemens 383 Series multi-point display station?
Yes. The 383VA21N1F is designed to the same mechanical and electrical specification as the original 383 Series display station. It uses the same backplane connector, terminal block layout, and communication protocol, allowing direct substitution without cabinet modification or field rewiring in the vast majority of installations.

Q2: What commissioning steps are required after installing the 383VA21N1F?
After physical installation, technicians should verify the module address matches the legacy configuration, confirm bus communication is established with the rack controller, validate all display tags against live process values, and check firmware version compatibility. A full functional test of all display points is recommended before returning the system to production.

Q3: Does the 383VA21N1F ship pre-tested, and what does the support terms confirmed by quotation cover?
Yes. All units are function-tested prior to shipment. The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial use conditions, from the date of shipment. Support requests are supported directly through our sales team at admin@knmks.com.

Q4: Can you supply the 383VA21N1F from stock for urgent replacement requirements?
Yes. The 383VA21N1F is held availability confirmed by RFQ and available for immediate dispatch. For urgent requirements, contact our team directly to confirm lead time and arrange expedited shipping. We maintain inventory of associated 383 Series components to support complete retrofit kits where required.
