Siemens 1FK7063-5AF71-1FB3 Migration-Ready AC Servo Motor

Overview

Siemens 1FK7063-5AF71-1FB3 Migration-Ready AC Servo Motor: Legacy System Retrofit & Compatibility Upgrade

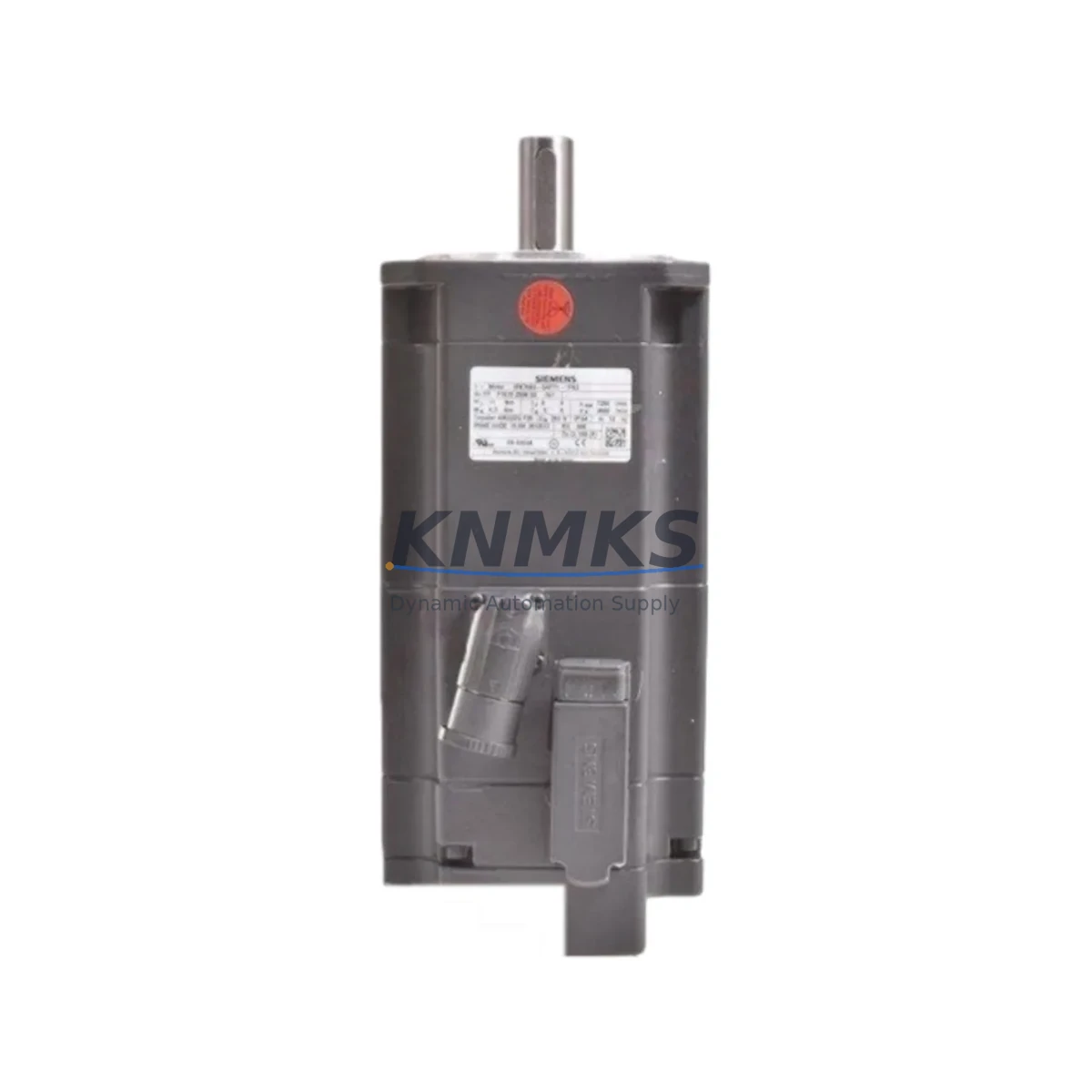

The Siemens 1FK7063-5AF71-1FB3 is a high-performance AC servo motor from the SIMOTICS S-1FK7 series, engineered to serve as a direct migration-ready replacement for aging servo drive systems in manufacturing, petrochemical, energy, and infrastructure automation environments. As legacy control platforms approach end-of-life and OEM support windows close, the 1FK7063-5AF71-1FB3 provides a validated upgrade path that preserves existing wiring infrastructure, encoder feedback topology, and drive parameter sets — dramatically reducing retrofit risk and unplanned downtime.

This motor is fully compatible with Siemens SINAMICS S120 and SINAMICS S110 drive systems, making it a natural fit for control cabinets already running SINAMICS drive modules. Engineers migrating from earlier 1FK6 or 1FT6 series motors will find that the 1FK7063-5AF71-1FB3 maintains the same shaft height and flange dimensions in most configurations, simplifying mechanical installation and reducing the need for custom adapter brackets. The integrated DRIVE-CLiQ encoder interface ensures seamless commissioning with S120 Control Units such as the CU320-2 DP or CU320-2 PN, eliminating manual encoder parameterization steps that typically extend retrofit timelines.

Before initiating a replacement, engineers should verify the existing power supply capacity at the DC link bus, confirm terminal block wiring compatibility at the motor power connector (Connector X1), and validate that the existing SINAMICS drive firmware version supports the 1FK7 motor data set. In multi-axis systems, the motor address assignment within the drive topology must be re-confirmed after physical swap to prevent axis mapping conflicts in the PLC program. HMI screens referencing axis-specific diagnostic variables should be reviewed for tag consistency following the motor exchange.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the motor arrives on-site. When planning a 1FK7063-5AF71-1FB3 installation into an existing SINAMICS-based control cabinet, the engineering team should audit the current power module — typically a SINAMICS S120 PM340 or PM240-2 — to confirm that rated output current and DC link voltage are within the motor’s operating envelope. If the existing power module is undersized for the 1FK7063 frame, a parallel upgrade to a higher-rated power module may be required before commissioning can proceed.

Terminal wiring at the motor power connector must be inspected for conductor cross-section compliance. In older installations, wiring may have been sized for a lower-rated predecessor motor, and upsizing the cable may be necessary to meet thermal derating requirements. The DRIVE-CLiQ cable connecting the motor encoder to the Control Unit — such as the CU320-2 DP — should be replaced if the existing cable shows signs of insulation fatigue or connector wear, as encoder signal integrity is critical for closed-loop position control.

For systems using a SIMATIC S7-300 or S7-400 PLC communicating over PROFIBUS DP, the drive GSD file may need to be updated in the hardware configuration to reflect the new motor dataset. Engineers should export and archive the existing STEP 7 or TIA Portal project before making any hardware configuration changes, ensuring a clean rollback path if commissioning issues arise. In installations where a SIMATIC HMI panel — such as a TP700 Comfort or MP377 — displays axis-specific process values, the tag database should be cross-checked against the new drive parameter set to confirm that speed, torque, and fault diagnostic variables remain correctly mapped.

I/O expansion modules installed in the same rack — for example, a SM321 digital input module or SM332 analog output module — are unaffected by the motor swap but should be functionally tested as part of the post-retrofit acceptance procedure to confirm that the PLC program logic continues to execute correctly across all I/O channels. Where signal isolation between the servo drive and field instrumentation is required, DIN-rail-mounted signal isolators should be verified for correct channel assignment and output scaling following the retrofit.

Downtime Control During System Migration

Minimizing production downtime during a servo motor replacement requires a structured pre-shutdown checklist. Before de-energizing the control cabinet, the maintenance team should capture a full drive parameter backup using STARTER or Startdrive, export the current PLC program from the SIMATIC S7 controller, and document all active fault and alarm states on the HMI. This baseline snapshot ensures that the system can be restored to its pre-retrofit state within minutes if an unexpected issue is encountered during commissioning.

Physical motor swap time for the 1FK7063-5AF71-1FB3 is typically under two hours when the replacement unit arrives pre-tested and the installation team has confirmed mechanical clearances in advance. The DRIVE-CLiQ topology is automatically re-detected by the Control Unit on power-up, reducing manual re-parameterization to a minimum. After power restoration, a controlled jog sequence at reduced speed should be performed to verify encoder direction, brake release function, and speed controller response before returning the axis to automatic mode.

To protect original program logic, no changes should be made to the PLC program during the motor swap unless a firmware incompatibility is identified. If the SINAMICS drive firmware requires an update to support the 1FK7 motor dataset, the firmware upgrade should be performed as a separate, planned maintenance window — not concurrently with the motor replacement — to isolate variables and simplify fault diagnosis. Maintaining control continuity on adjacent axes during the swap is achieved by placing only the affected drive in a safe state while keeping the remaining axes in their normal operating mode.

Retrofit Support FAQ

Q1: Is the 1FK7063-5AF71-1FB3 a direct drop-in replacement for the 1FK6063 or 1FT6063?
In most cases, yes — the 1FK7063-5AF71-1FB3 shares the same shaft height and flange dimensions as the 1FK6063 and is mechanically compatible with the majority of 1FT6063 mounting arrangements. However, engineers should verify the shaft diameter, key dimensions, and brake option code against the existing motor nameplate before ordering. The DRIVE-CLiQ encoder interface replaces the legacy resolver or TTL encoder found on older 1FK6 and 1FT6 units, which requires a compatible SINAMICS drive with DRIVE-CLiQ support.

Q2: What commissioning steps are required after installing the 1FK7063-5AF71-1FB3?
After physical installation, connect the DRIVE-CLiQ cable to the Control Unit and power up the drive. The CU320-2 will automatically identify the motor via the DRIVE-CLiQ protocol and load the corresponding motor dataset. Use STARTER or Startdrive to perform a one-button optimization (speed controller optimization) and verify that the encoder direction matches the axis positive direction defined in the PLC program. Confirm brake function if the -1FB3 brake option is active, and run a controlled jog sequence before returning to automatic mode.

Q3: How is wiring compatibility confirmed before installation?
Compare the existing motor power cable connector type and pin assignment against the 1FK7063-5AF71-1FB3 connector specification in the SIMOTICS S-1FK7 operating instructions. Verify conductor cross-section against the motor’s rated current and the drive’s output current rating. For the DRIVE-CLiQ encoder cable, confirm cable length does not exceed the maximum specified distance for the installed SINAMICS Control Unit. If the existing cable uses a legacy encoder connector, a DRIVE-CLiQ adapter cable or a new cable assembly will be required.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability confirmed?
Every 1FK7063-5AF71-1FB3 unit shipped by KNMKS is subject to a pre-shipment functional test covering insulation resistance, encoder signal integrity, brake operation (where applicable), and shaft runout. The support terms confirmed by quotation cover manufacturing defects and component failures under normal operating conditions from the date of shipment. Stock availability is confirmed at the time of order; for time-critical retrofit projects, contact our sales team at [email protected] or +86 18359268345 to confirm lead time and reserve inventory before your planned maintenance window.
