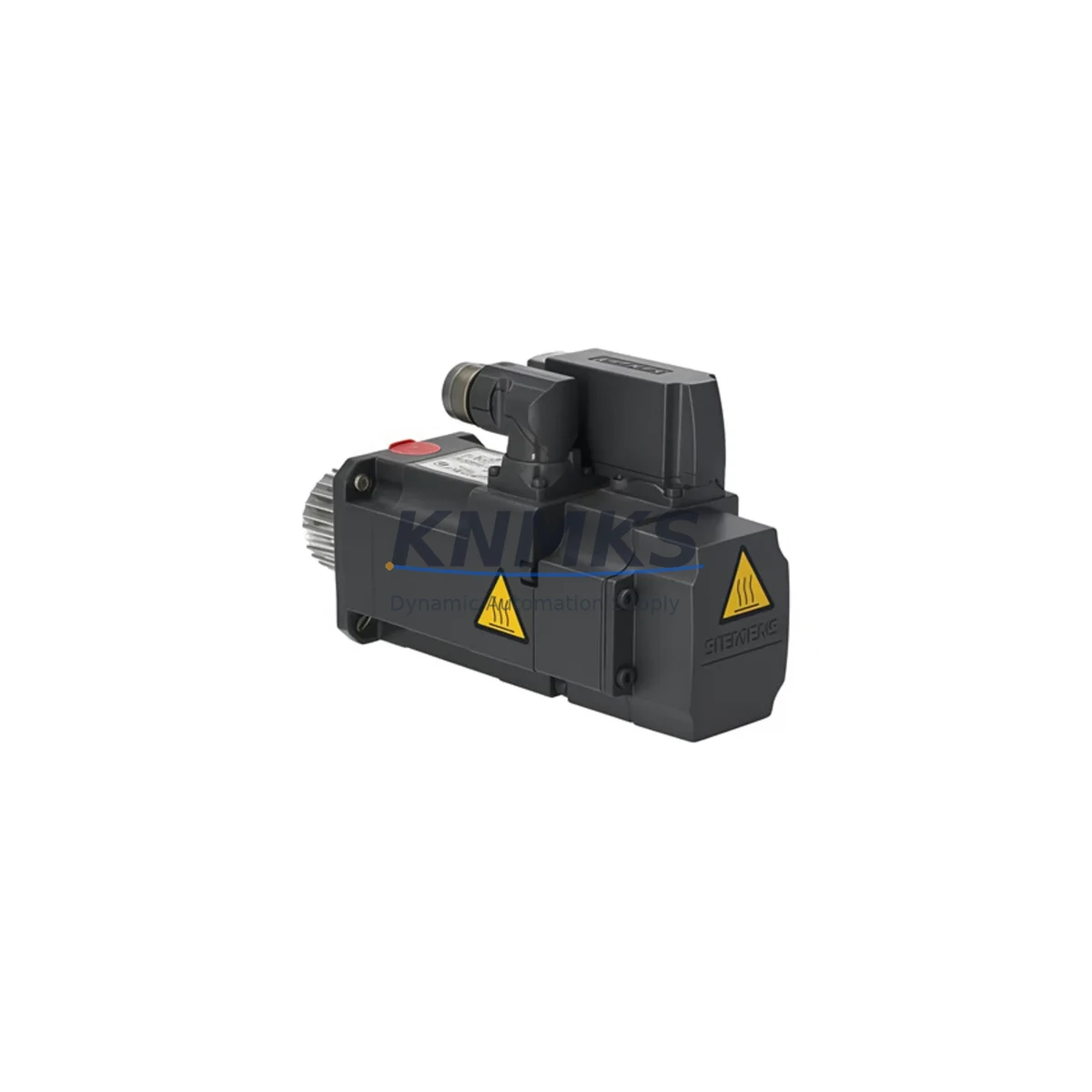

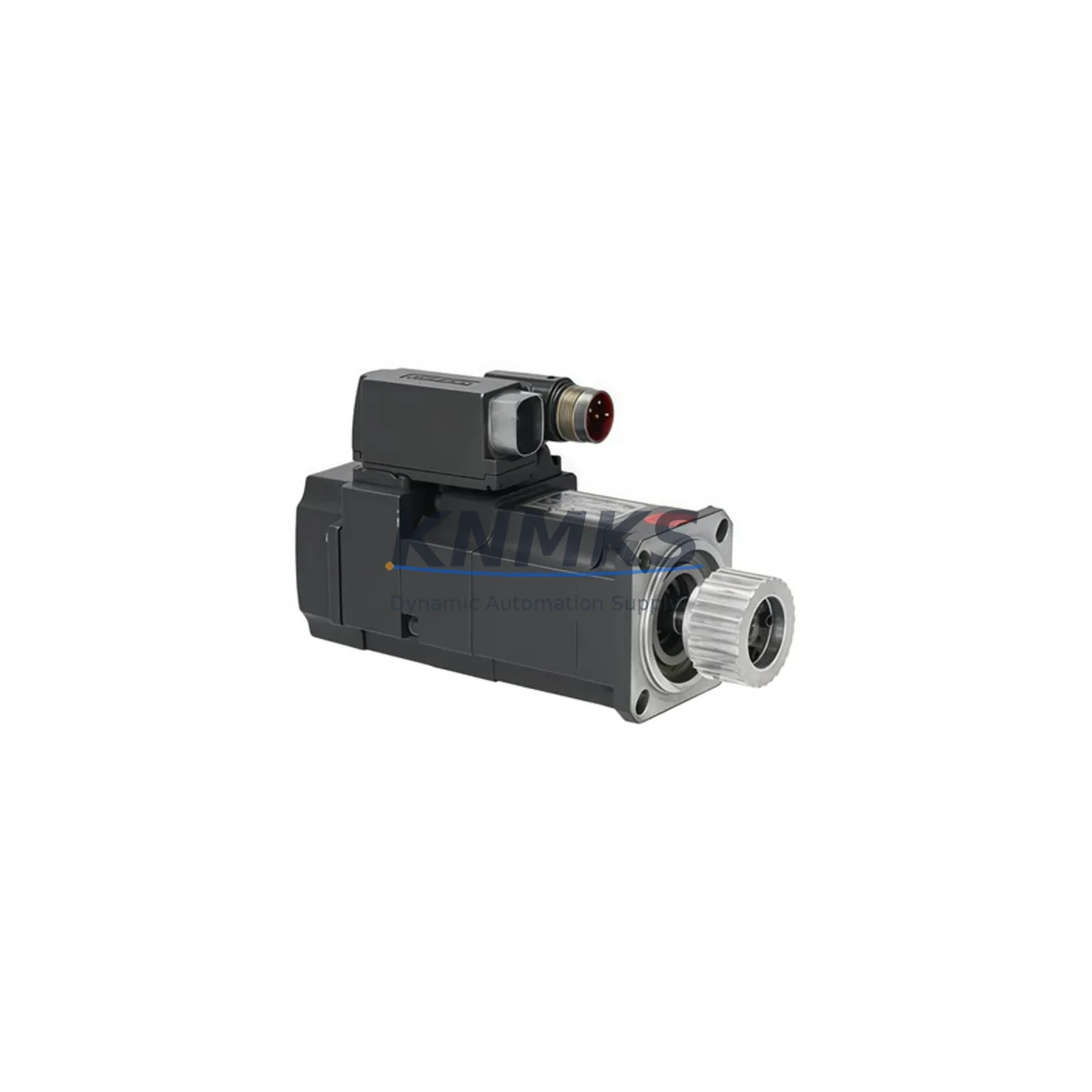

Siemens 1FK7032-5AK71-1LH3 Fail-Safe Servo Motor

Overview

Siemens 1FK7032-5AK71-1LH3 Fail-Safe Servo Motor: Fault Protection and Critical Industrial Field Reliability

The Siemens 1FK7032-5AK71-1LH3 is a compact, high-performance synchronous servo motor from the SIMOTICS S series, engineered to deliver fail-safe motion control in the most demanding industrial environments. Designed for integration with Siemens SINAMICS S120 drive systems, this servo motor provides precise torque and speed regulation while maintaining robust protection against the electrical, mechanical, and environmental hazards that threaten continuous production uptime.

In critical industrial applications — from petrochemical processing lines and power generation auxiliaries to mining conveyors, water treatment pump stations, and metallurgical rolling mills — unplanned servo failures can cascade into costly shutdowns, safety incidents, and regulatory non-compliance. The 1FK7032-5AK71-1LH3 addresses these risks through its integrated safety encoder interface, high-resolution feedback system, and thermally optimized winding design, ensuring that control loops remain stable even under sustained high-cycle duty or transient overload conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 1FK7032-5AK71-1LH3 is most effective when deployed as part of a coordinated control cabinet architecture. In high-reliability servo drive cabinets, it operates in tandem with the Siemens SINAMICS S120 booksize power module, which provides regenerative braking, DC bus management, and integrated STO safety channel support. The DRIVE-CLiQ encoder cable connecting the motor to the drive eliminates analog signal drift — a common source of position error and unplanned axis faults in legacy resolver-based systems.

To protect the servo drive system from power quality disturbances, engineers typically pair the S120 drive with a Siemens SITOP PSU8600 power supply module, which offers buffered 24 VDC output to sustain PLC and safety relay logic during brief mains interruptions. Upstream, a Siemens 3RT2 contactor with integrated surge suppression module handles motor switching duties, preventing inductive voltage spikes from propagating into the control bus.

For safety interlock circuits, the 1FK7032-5AK71-1LH3 integrates cleanly with Siemens SIRIUS 3SK safety relay modules, enabling SIL 2 / PLd-compliant Safe Torque Off (STO) and Safe Stop 1 (SS1) functions without external safety PLCs. In cabinets where thermal management is critical, a Siemens SINAMICS S120 cabinet module with integrated fan and filter unit maintains airflow and prevents drive derating caused by elevated ambient temperatures — a frequent failure mode in enclosed outdoor switchgear or foundry control rooms.

Communication integrity across the servo axis is maintained via PROFINET IRT or PROFIBUS DP fieldbus interfaces on the S120 control unit, ensuring deterministic cycle times even in electrically noisy environments with variable-frequency drives, arc furnaces, or large motor starters operating nearby.

Critical Industrial Safety Applications

The Siemens 1FK7032-5AK71-1LH3 servo motor is selected by automation engineers across a wide range of safety-critical and continuous-process industries:

Petrochemical & Refining: In ATEX-adjacent control zones, the IP65-rated motor body and integrated holding brake (1LH3) prevent uncontrolled axis movement during emergency shutdowns, supporting safe state transitions in reactor feed pump positioning and valve actuator control.

Power Generation: Turbine auxiliary systems and boiler feed control loops demand servo drives that maintain position accuracy through grid disturbances. The 1FK7032-5AK71-1LH3’s DRIVE-CLiQ absolute encoder retains position data through power cycles, eliminating the need for homing routines after unplanned outages.

Mining & Mineral Processing: High dust ingress, vibration from crushers and conveyors, and wide temperature swings challenge standard servo motors. The IP65 enclosure and Class F insulation of the 1FK7032-5AK71-1LH3 sustain reliable operation in these conditions, reducing unplanned downtime on ore handling and screening equipment.

Water & Wastewater Treatment: Pump station automation and sluice gate positioning require servo systems that operate reliably in high-humidity, corrosive-atmosphere environments. The sealed motor construction and STO-compatible safety architecture support IEC 61511 functional safety requirements for water infrastructure.

Metallurgy & Steel: Rolling mill positioning, coiler tension control, and ladle transfer systems expose servo motors to intense radiated heat, electromagnetic interference from large DC drives, and mechanical shock. The SIMOTICS S series thermal design and EMC-hardened encoder interface maintain control loop stability under these extreme conditions.

Port & Marine Logistics: Container crane hoist and trolley axes, ship loader conveyors, and mooring winch controls benefit from the 1FK7032-5AK71-1LH3’s holding brake and high dynamic response, enabling precise load positioning and safe emergency stop performance in outdoor, salt-air environments.

Safety and Quality FAQ

Q1: What support terms does the Siemens 1FK7032-5AK71-1LH3 carry?
Every unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and expedited replacement logistics to minimize your production downtime.

Q2: What pre-shipment testing is performed on each unit?
All 1FK7032-5AK71-1LH3 motors undergo outgoing quality inspection prior to dispatch, including encoder signal verification, insulation resistance testing, and visual inspection of shaft, connectors, and nameplate data. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: Is this motor compatible with existing Siemens SINAMICS S120 installations?
Yes. The 1FK7032-5AK71-1LH3 is fully compatible with SINAMICS S120 booksize and chassis drive systems using DRIVE-CLiQ topology. Motor data sets (MDS) are available in the SINAMICS S120 drive database, enabling plug-and-play commissioning via STARTER or TIA Portal V15 and above.

Q4: Can KNMKS support long-term spare parts supply and replacement planning?
Yes. KNMKS maintains stock of the 1FK7032-5AK71-1LH3 and related SIMOTICS S series servo motors to support planned maintenance cycles, emergency replacements, and end-of-life migration projects. Contact our technical sales team to discuss blanket order arrangements, lead time commitments, and cross-reference support for obsolete variants.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

1FK7032-5AK71-1LH3

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: Siemens 1FK7032-5AK71-1LH3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
