SIEMENS 16249-51-4 Maintenance-Proven Spare Part for Factory Uptime

Overview

SIEMENS 16249-51-4 Maintenance-Proven Spare Part for Factory Uptime

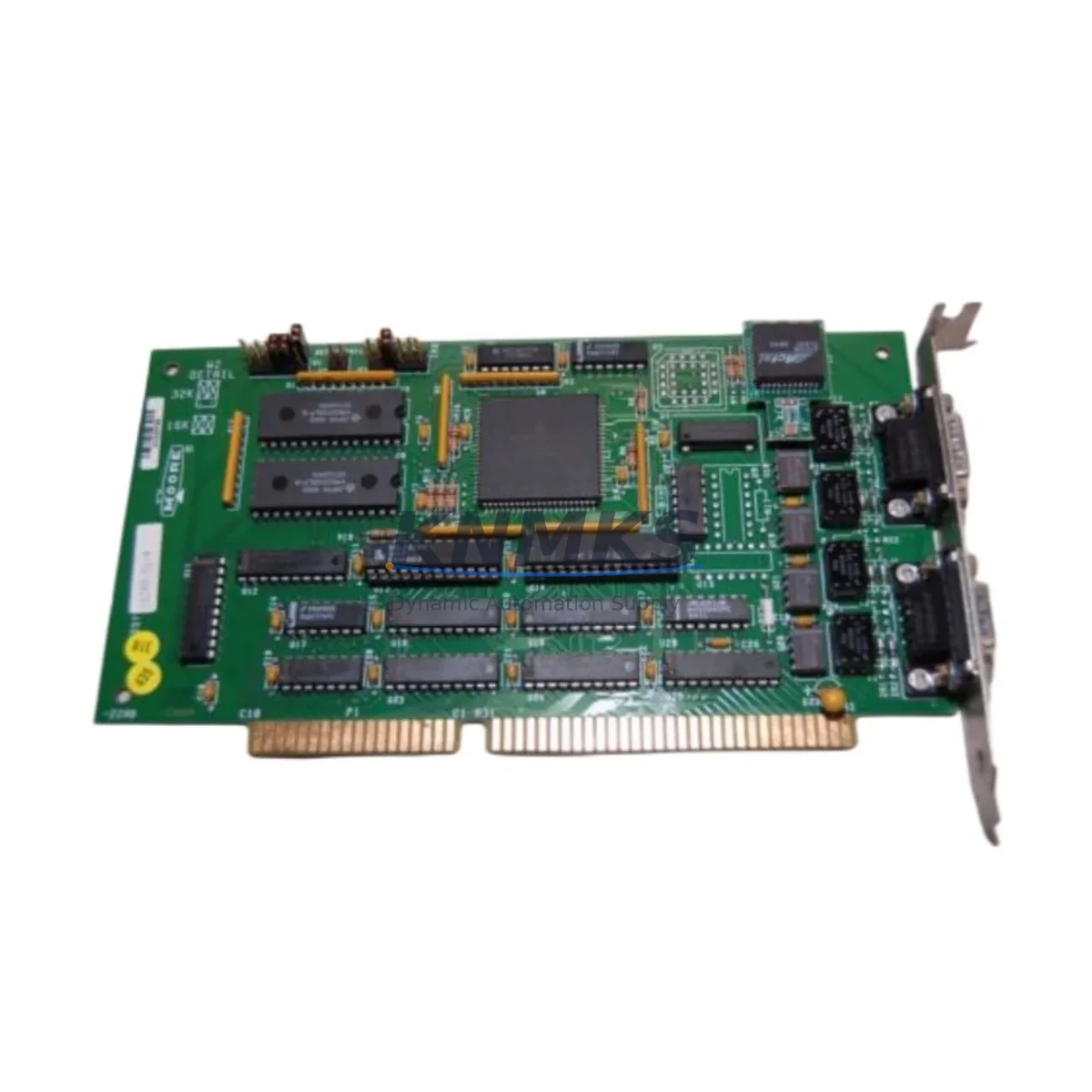

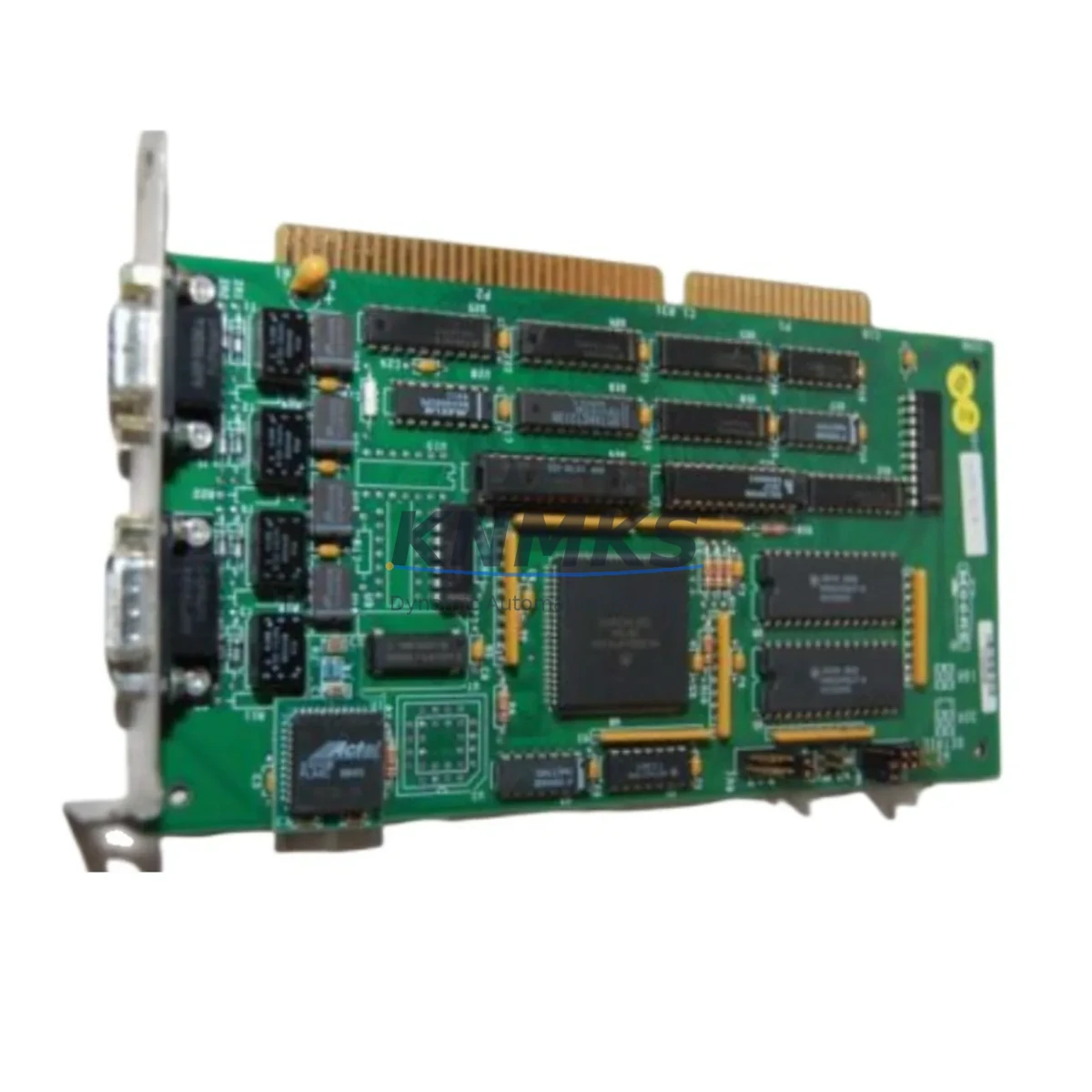

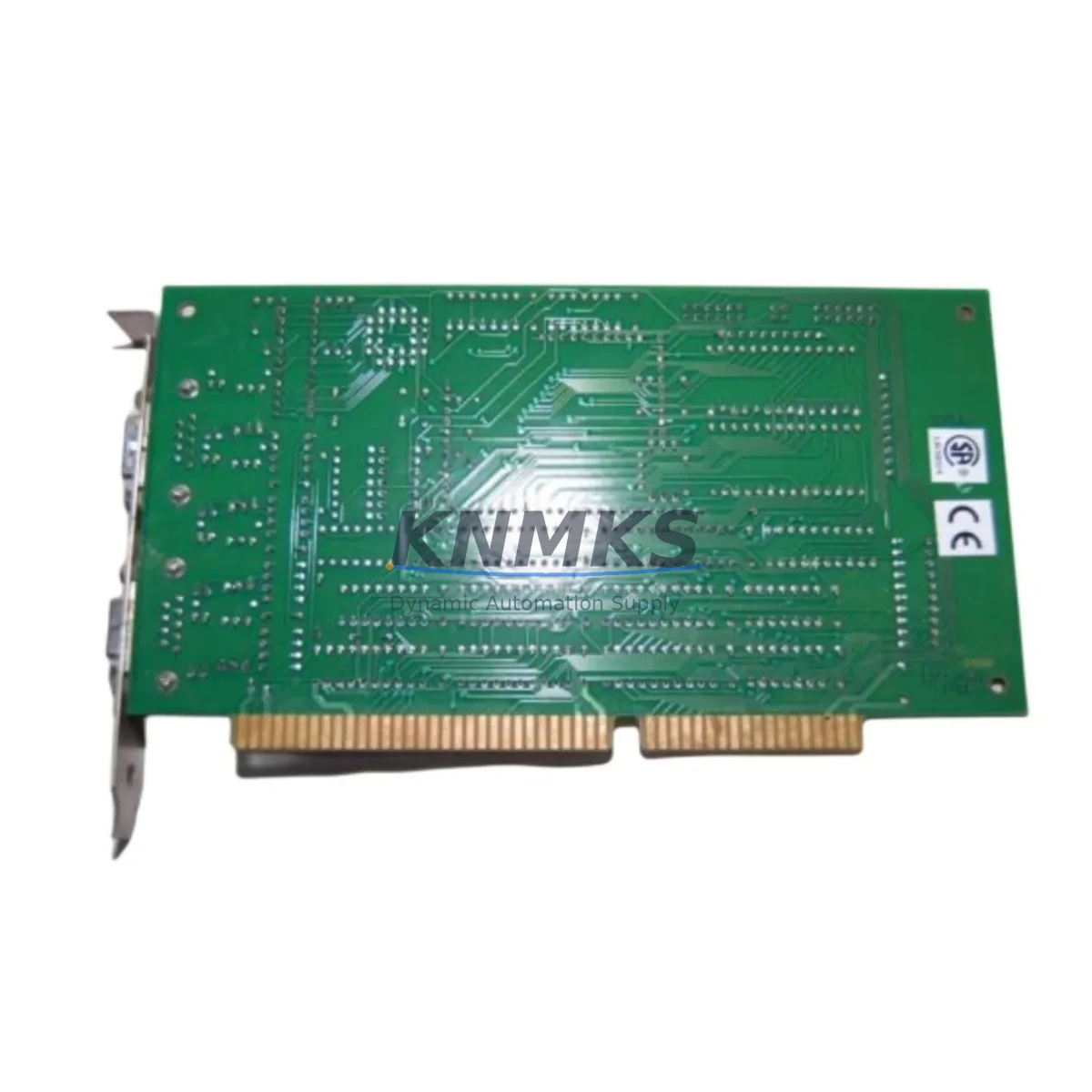

The SIEMENS 16249-51-4 is an M-BUS ISA interface module designed for industrial automation environments where communication integrity and system continuity are non-negotiable. As a maintenance-proven spare part, it supports factory uptime by enabling rapid field replacement of aging or failed bus interface hardware without requiring system reconfiguration or software re-engineering. Whether you are managing a legacy SIEMENS control system, executing a scheduled annual overhaul, or responding to an unplanned line stoppage, having a verified original 16249-51-4 in your spare parts inventory is a critical risk mitigation measure for any maintenance or procurement engineer.

This module serves as the communication bridge between M-BUS field devices and ISA-bus-based host systems, a role that is foundational to metering, energy monitoring, and distributed sensor networks in industrial plants. Its original SIEMENS manufacturing ensures full electrical and protocol compatibility with existing M-BUS master configurations, eliminating the integration risk associated with third-party substitutes. Each unit shipped by KNMKS is tested prior to dispatch and covered by a support terms confirmed by quotation, giving your maintenance team confidence in both immediate deployment and long-term reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SIEMENS 16249-51-4 in the field, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure the restored system operates reliably. Maintenance engineers should begin by verifying the 24 VDC or 5 VDC ISA bus power rail using a calibrated multimeter — voltage instability is a common root cause of interface module failure and must be ruled out before installing the replacement unit. If the cabinet houses a SIEMENS SITOP power supply module, confirm its output voltage and current capacity are within specification for the connected M-BUS load.

The M-BUS wiring harness and terminal blocks connecting field meters to the 16249-51-4 should be inspected for corrosion, loose crimps, and insulation degradation. M-BUS communication is polarity-sensitive, and reversed or intermittent wiring will cause the new module to report the same faults as the failed unit. Check the M-BUS line resistance and verify that the total slave device count does not exceed the module’s drive capacity — typically 60 to 250 unit loads depending on the SIEMENS variant.

For systems where the 16249-51-4 interfaces with a SIEMENS S7-300 or S7-400 PLC via the ISA host card, review the CP communication module configuration in STEP 7 or TIA Portal to confirm the bus address and baud rate settings are preserved after module swap. If the control system includes a SIEMENS OP or TP HMI panel displaying M-BUS meter data, validate that the data tags are refreshing correctly after the replacement is online. Signal isolators or repeaters installed on long M-BUS cable runs should also be checked — a degraded SIEMENS M-BUS repeater can mask communication issues that appear to originate from the interface module itself.

Fuse protection for the ISA bus card slot and the M-BUS line should be inspected and replaced as a precaution during any interface module swap. Spare fuses of the correct rating should be stocked alongside the 16249-51-4 in your maintenance kit. For facilities managing multiple metering points, consider stocking a SIEMENS M-BUS level converter or secondary master module as a backup to support rapid reconfiguration during extended outages.

Site Replacement Workflow

Before removing the failed 16249-51-4, document the current M-BUS device list, primary addresses, and any custom baud rate settings using the existing host software or SIEMENS M-BUS configuration tool. Power down the ISA host system following your site LOTO procedure, then carefully extract the module from the ISA slot, noting the slot position for reinstallation reference.

Insert the replacement 16249-51-4 into the same ISA slot. Reconnect the M-BUS field wiring to the terminal block, verifying polarity. Power up the host system and allow the M-BUS master software to re-enumerate all connected slave devices. Confirm that all meter addresses are recognized and that data polling resumes without CRC errors or timeout faults. If the system uses automatic address assignment, trigger a re-scan cycle from the host software.

This direct replacement approach eliminates the need for firmware updates or driver reinstallation in most SIEMENS ISA-based configurations, significantly reducing mean time to repair (MTTR). For older systems where the ISA host PC is approaching end-of-life, this replacement also extends the operational lifespan of the metering infrastructure without requiring a full system migration, protecting your capital investment and deferring costly upgrades.

Spare Parts Support FAQ

Q1: Is the SIEMENS 16249-51-4 still available as a new original part?
A: KNMKS maintains stock of the 16249-51-4 in both new original and refurbished-tested condition. All refurbished units undergo functional verification and are covered by the same support terms confirmed by quotation as new stock. Contact admin@knmks.com to confirm current availability and lead time.

Q2: How do I verify compatibility before ordering?
A: Confirm your host system uses an ISA bus architecture and that your M-BUS field devices comply with EN 13757. Provide your existing module label or system documentation to our technical team at admin@knmks.com and we will cross-reference compatibility before shipment.

Q3: What is the recommended spare parts stocking strategy for the 16249-51-4?
A: For facilities with more than two M-BUS metering networks, we recommend maintaining at least one spare 16249-51-4 on-site. Given the age of ISA-bus infrastructure, sourcing lead times can be unpredictable. Proactive stocking eliminates the risk of extended downtime while waiting for procurement.

Q4: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before dispatch. In the event of a support terms claim, KNMKS will arrange replacement or repair. Contact admin@knmks.com with your order reference and fault description to initiate a claim.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

SIEMENS
Siemens

Model / Series

16249-51-4

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: SIEMENS 16249-51-4
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
