Renishaw A-2115-001-24 Maintenance-Proven Spare Factory Uptime

Overview

Renishaw A-2115-001-24 Maintenance-Proven Spare Factory Uptime

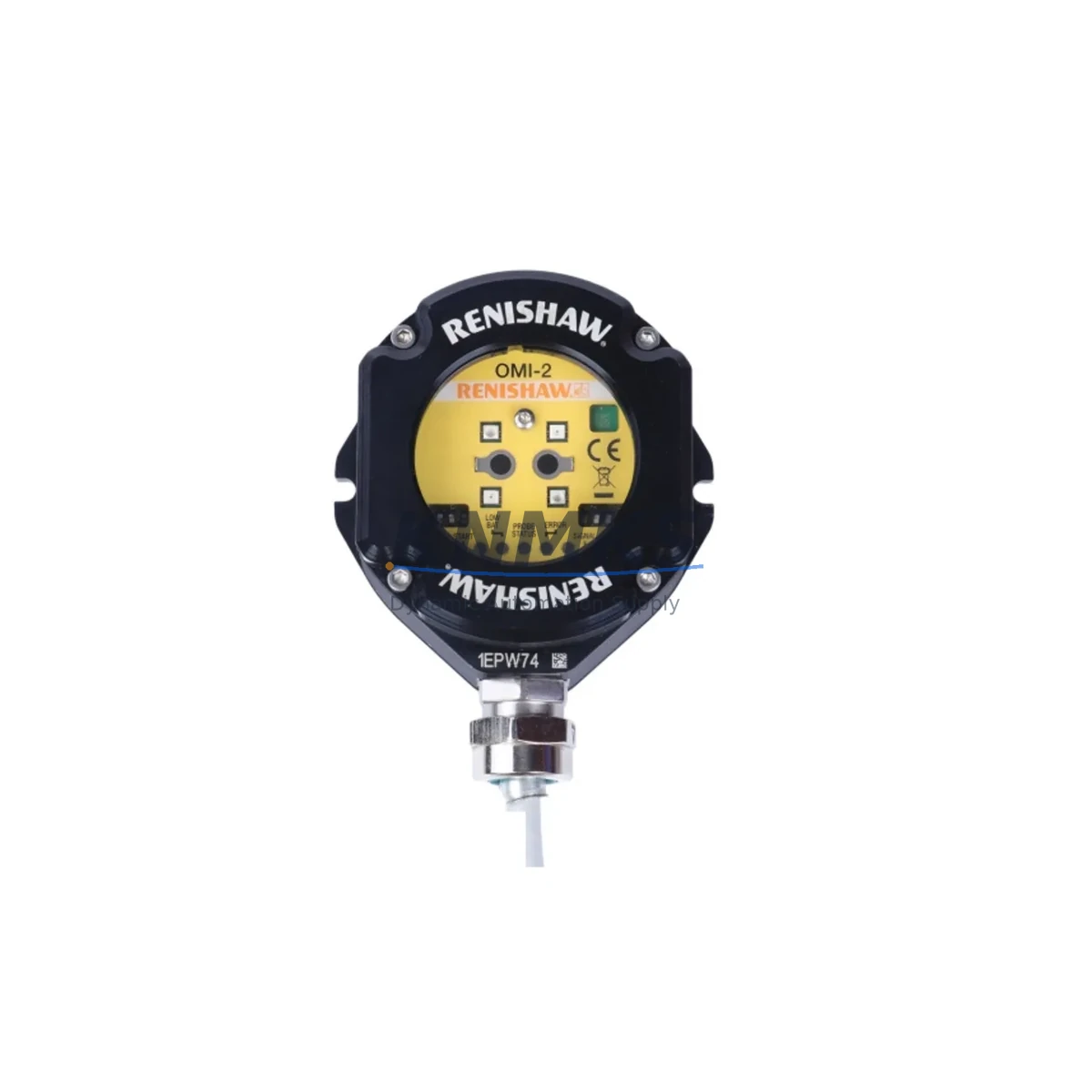

The Renishaw A-2115-001-24 is an original OMI (Optical Machine Interface) spare part engineered for CNC machining centres and precision manufacturing environments where unplanned downtime carries significant production cost. As a direct replacement component within the Renishaw OMI Series, this unit supports optical signal transmission between the machine tool spindle probe and the machine controller, maintaining measurement integrity across high-cycle production lines.

For maintenance engineers managing aging CNC fleets or multi-machine cells, holding a verified A-2115-001-24 in the spare parts cabinet is a proven strategy for rapid fault recovery. When the OMI interface degrades — typically presenting as intermittent probe signal loss, erratic tool-setting readings, or complete communication dropout — replacement with a tested original unit restores system accuracy without requiring controller reconfiguration or software changes.

Procurement engineers sourcing this part should confirm the OMI receiver mounting configuration and cable routing before ordering. The A-2115-001-24 is designed for specific spindle probe systems within the Renishaw TS and OMP probe families, and compatibility should be cross-referenced against the machine’s original Renishaw system documentation or the installed probe model number.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the A-2115-001-24 OMI interface, a disciplined maintenance engineer will not stop at the interface unit alone. The optical signal path in a Renishaw spindle probe system involves several interdependent components, and a failure in the OMI often signals wear or contamination elsewhere in the measurement circuit.

Begin by inspecting the Renishaw OMP probe body (e.g., OMP40-2 or OMP60) for contamination on the optical window — coolant ingress or swarf accumulation on the probe lens is a common cause of signal degradation that can be misdiagnosed as an OMI fault. Next, check the machine interface cable assembly connecting the OMI receiver to the machine controller; damaged shielding or loose connector pins introduce noise that mimics OMI failure.

At the controller end, verify the Renishaw OMM (Optical Machine Module) or equivalent receiver module is correctly seated and that its status LED confirms active optical lock. If the machine uses a Renishaw RMP60 or RMP600 radio probe in parallel with the optical system, confirm that the radio receiver module is not generating interference on the same measurement channel.

For the electrical supply side, inspect the 24VDC power supply rail feeding the OMI system — voltage sag or ripple above 5% can cause optical receiver instability. Check the machine tool fuse block for the measurement system circuit and replace any slow-blow fuses showing signs of thermal stress. Where the OMI output feeds a PLC input card or dedicated measurement interface board, verify input threshold voltages are within the card’s specified range to avoid false-trigger conditions.

Finally, review the probe macro software and tool-setting cycle parameters in the CNC controller. A worn OMI unit may have caused the controller to accumulate offset errors in the tool-length compensation table — these should be reset and re-qualified after the A-2115-001-24 replacement is complete.

Site Replacement Workflow

Replacing the A-2115-001-24 on-site is a straightforward procedure when the correct spare is available and the machine is in a safe, powered-down state. Begin by isolating the machine tool and locking out the spindle drive. Remove the existing OMI receiver from its mounting bracket, noting the cable routing and any strain-relief clips that must be reinstalled.

Fit the replacement A-2115-001-24 to the same mounting position, ensuring the optical window is aligned with the probe’s transmission axis. Reconnect the interface cable, restore power, and run the machine’s standard probe calibration cycle. Confirm that the controller receives a clean, stable signal across the full spindle rotation range before returning the machine to production.

This direct-replacement approach eliminates the need for controller parameter changes, making the A-2115-001-24 a low-risk, high-speed recovery option for maintenance teams operating under production pressure. Keeping one unit in the local spare parts store — alongside the probe body and interface cable — supports a complete first-response kit for OMI-related stoppages.

Spare Parts Support FAQ

Q1: Is the A-2115-001-24 compatible with all Renishaw OMI systems?
The A-2115-001-24 is designed for specific OMI configurations within the Renishaw spindle probe ecosystem. Compatibility should be verified against your machine’s installed probe model and the original Renishaw system documentation before ordering. Our team can assist with cross-reference confirmation prior to dispatch.

Q2: What is the lead time and how is the unit tested before shipment?
Units are tested for optical signal output and electrical continuity before dispatch. Standard lead time is 1–3 business days for in-stock units. Each shipment includes a support terms confirmed by quotation from the dispatch date, covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can this part replace an older or discontinued OMI variant?
In many cases, the A-2115-001-24 serves as a functional replacement for earlier OMI interface units where the mounting footprint and optical alignment are compatible. We recommend providing your existing part number for cross-reference verification before committing to a replacement order.

Q4: Do you support long-term supply for fleet maintenance programs?
Yes. We support scheduled procurement for multi-machine maintenance programs, including blanket orders and consignment stock arrangements. Contact our team to discuss volume pricing, reserved stock allocation, and supply continuity agreements for critical spare parts.
