R. STAHL 9468/32-08-11-C1174 Maintenance-Proven Spare Part for Factory Uptime

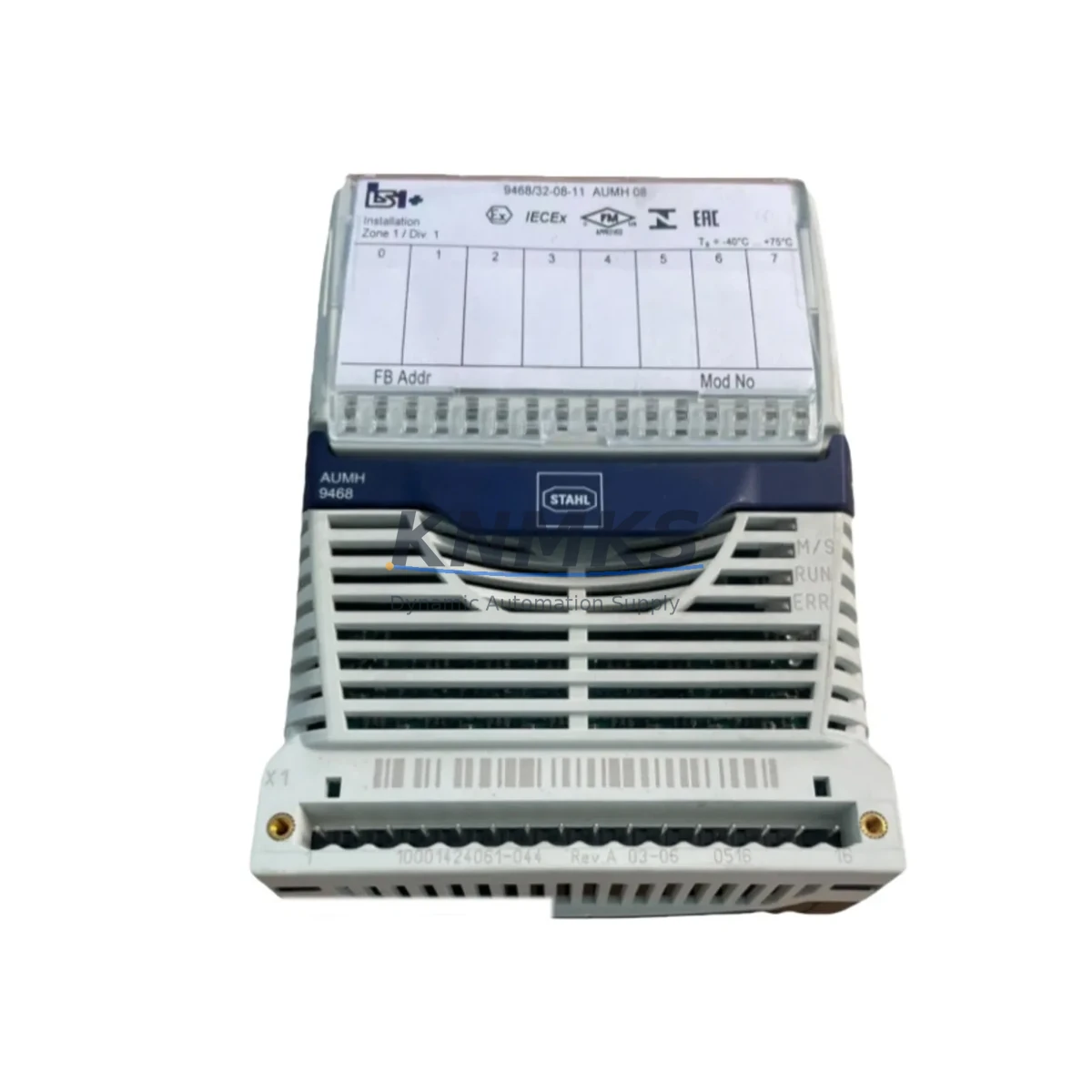

The R. STAHL 9468/32-08-11-C1174 is a certified signal isolator module from the renowned R. STAHL 9468 Series, engineered for continuous operation in hazardous-area industrial environments. Designed to meet the rigorous demands of process automation, this spare part is a critical component in Ex-zone control cabinets, DCS signal conditioning loops, and safety-instrumented systems across petrochemical, pharmaceutical, oil & gas, and heavy manufacturing facilities. Sourced as an original replacement unit, the 9468/32-08-11-C1174 ensures seamless compatibility with existing 9468 Series backplane infrastructure, eliminating the risk of signal drift, ground loop interference, or certification non-compliance that can arise from non-original substitutes.

For maintenance engineers managing aging automation systems, having a verified spare of the 9468/32-08-11-C1174 on the shelf is a fundamental risk-mitigation strategy. Signal isolators in Ex-rated environments are subject to thermal cycling, vibration, and continuous electrical load — all of which accelerate component wear. A proactive spare parts inventory that includes this module directly reduces mean time to repair (MTTR) when a channel failure is detected during routine point-to-point loop checks or during an unplanned shutdown event. Procurement engineers sourcing this part should confirm the full SKU — 9468/32-08-11-C1174 — to ensure the correct channel count, input/output configuration, and ATEX/IECEx certification variant is supplied.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling preventive maintenance around the 9468/32-08-11-C1174, a thorough inspection of the surrounding electrical infrastructure is essential to prevent cascading failures. Begin with the 9468 Series backplane power supply module — a degraded bus voltage will cause erratic channel behavior that can be misdiagnosed as an isolator fault. Verify that the 24 V DC rail feeding the backplane remains within ±1% tolerance under full load.

Next, inspect the field-side wiring terminals and terminal blocks connected to the isolator’s input channels. Loose or corroded terminations in Ex-rated junction boxes are a leading cause of signal noise and intermittent faults that appear to originate from the isolator module itself. If the system uses R. STAHL 9116 Series Zener barriers or 9160 Series galvanic isolators in parallel signal paths, these should be tested for leakage current and isolation resistance simultaneously.

For facilities running Siemens SIMATIC S7 or Yokogawa CENTUM VP DCS systems, confirm that the analog input cards receiving signals from the 9468/32-08-11-C1174 are calibrated and that their input impedance remains within specification. A mismatch here can introduce a 4–20 mA offset that is difficult to trace without isolating the signal chain segment by segment.

Fuse protection on the field loop circuit should also be verified — a blown or weakened fuse upstream of the isolator can cause partial signal loss that mimics a failing module. Additionally, if the control cabinet houses an R. STAHL IS1+ or similar intrinsically safe power conditioner, its output voltage and current limiting characteristics should be confirmed against the 9468 Series system requirements. For facilities with HMI panels connected to the same DCS node, a channel fault on the 9468/32-08-11-C1174 may trigger spurious alarms at the operator station — cross-referencing HMI alarm logs with field measurements is a recommended diagnostic step before committing to module replacement.

Site Replacement Workflow

Replacing the 9468/32-08-11-C1174 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Begin by isolating the affected channel at the DCS or PLC I/O card level and confirming the field loop is de-energized or placed in manual override to prevent process upsets during the swap.

Remove the faulty module from the 9468 Series backplane by releasing the module locking mechanism — no tools are required for standard 9468 Series plug-in modules. Insert the replacement 9468/32-08-11-C1174, ensuring the module seats fully onto the backplane connector. Restore power and verify the channel output at the DCS engineering station. Perform a loop calibration check using a calibrator set to 4 mA, 12 mA, and 20 mA to confirm linearity across the full signal range.

For systems where the 9468/32-08-11-C1174 has been in service for more than five years, it is advisable to replace adjacent modules in the same backplane slot group during the same maintenance window, as thermal aging tends to affect modules installed in the same production batch simultaneously. This approach minimizes the likelihood of a repeat shutdown within the same maintenance cycle and is consistent with best practices for Ex-zone spare parts management. Document the replacement in the plant’s maintenance management system (CMMS) with the new module’s serial number and the date of installation to maintain traceability for safety audits.

Spare Parts Support FAQ

Q1: Is the 9468/32-08-11-C1174 a direct drop-in replacement for older 9468 Series variants?
A: Yes. The 9468/32-08-11-C1174 is designed for plug-in compatibility with the standard 9468 Series backplane. However, always verify the channel configuration suffix (in this case, -C1174) matches your existing system documentation, as different suffix codes denote different I/O configurations or certification variants. If you are replacing a module with a different suffix, consult the R. STAHL 9468 Series system manual or contact our technical team before installation.

Q2: What does the support terms confirmed by quotation cover, and how is it validated?
A: Every 9468/32-08-11-C1174 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Each unit is function-tested prior to dispatch, and a test report is available upon request. Support requests are processed through our after-sales support team at [email protected].

Q3: Can KNMKS support long-term or blanket purchase orders for this part?
A: Yes. KNMKS maintains stock and sourcing channels for the 9468/32-08-11-C1174 to support both emergency single-unit orders and long-term supply agreements. For facilities managing annual maintenance shutdowns or multi-site spare parts programs, we recommend establishing a blanket order to lock in pricing and ensure priority allocation. Contact us at +86 18359268345 to discuss volume pricing and lead time commitments.

Q4: How should this spare part be stored before installation?
A: Store the 9468/32-08-11-C1174 in its original anti-static packaging in a dry environment between -25 °C and +70 °C with relative humidity below 75% (non-condensing). Avoid storing near strong electromagnetic fields or in areas subject to vibration. Inspect the module for physical damage and verify the backplane connector pins are clean and undamaged before installation. Modules stored beyond 24 months should undergo a functional bench test before being placed into service.
