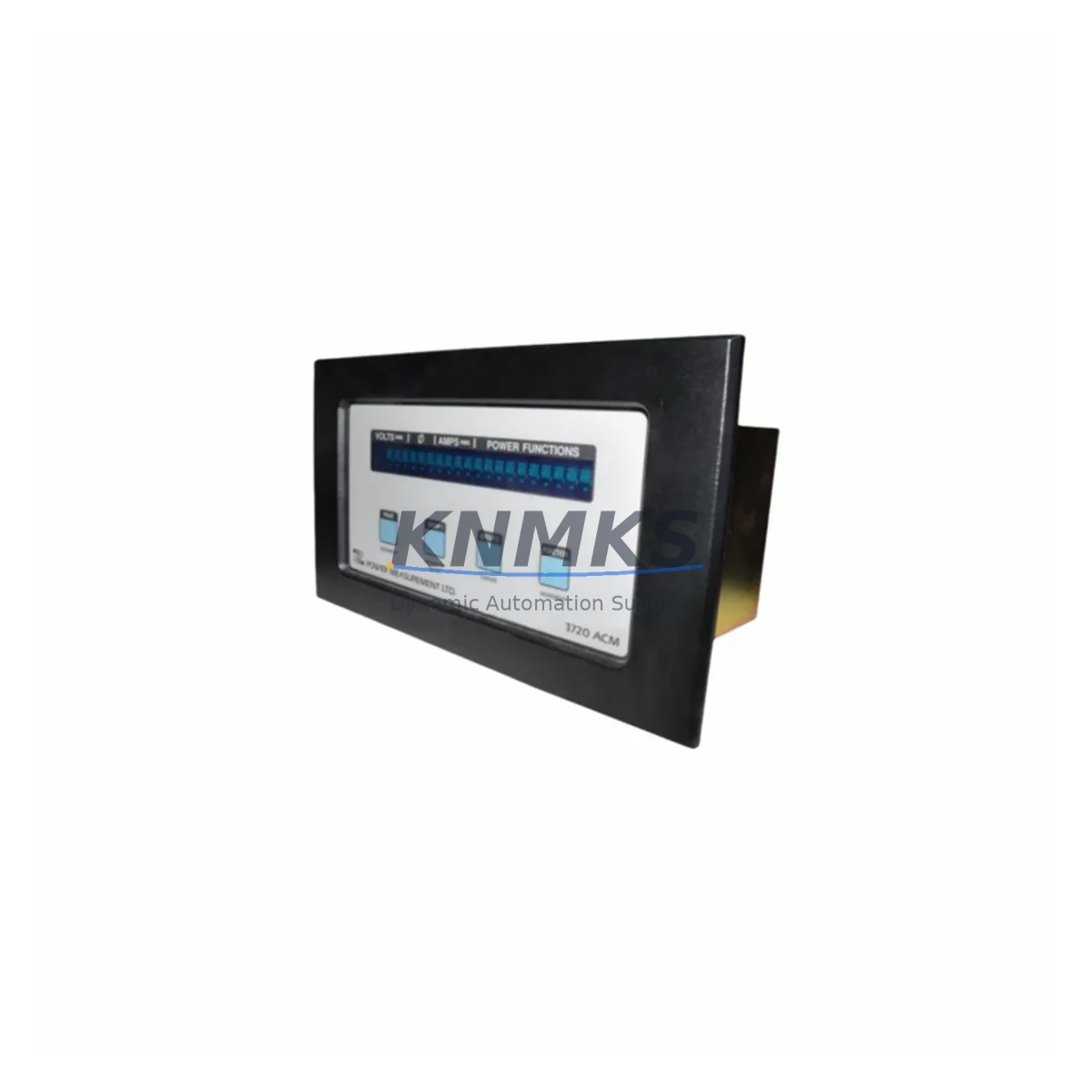

Power Measurement 3720-ACM Fail-Safe Power Quality Meter

Overview

Power Measurement 3720-ACM Fail-Safe Power Quality Meter: Fault Protection and Critical Industrial Reliability

The Power Measurement 3720-ACM is a high-performance ION Series power quality meter engineered for fail-safe operation in demanding industrial environments. Designed to deliver continuous, accurate power measurement across critical control loops, the 3720-ACM addresses the most persistent threats to industrial uptime: voltage sags, harmonic distortion, transient surges, signal drift, and unplanned shutdowns. Whether deployed in a high-voltage switchgear cabinet, a process control room, or a field distribution panel, the 3720-ACM provides the measurement integrity that safety-critical operations demand.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment works, metallurgical smelters, port terminals, and marine vessel power systems — power quality degradation is a leading cause of control system faults, relay misoperation, and costly unplanned downtime. The 3720-ACM is purpose-built to detect, log, and report these anomalies in real time, enabling maintenance teams to act before a disturbance escalates into a process trip or equipment failure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3720-ACM does not operate in isolation — it is most effective when integrated into a layered control cabinet protection architecture. In a typical medium-voltage distribution or motor control center (MCC) installation, the 3720-ACM works alongside complementary components to form a complete power quality and safety monitoring system.

Upstream of the meter, Power Measurement ION 7300 or ION 7600 series meters may handle feeder-level metering, while the 3720-ACM focuses on branch circuit or load-side power quality at the panel level. For installations requiring digital I/O expansion and interlock signaling, the Power Measurement ION 7700 provides advanced relay output capabilities that complement the 3720-ACM’s measurement data. In cabinets where surge and transient protection is critical — particularly in outdoor substations or coastal marine environments — dedicated surge protective devices (SPDs) rated for the panel’s voltage class should be installed on the same bus as the 3720-ACM inputs.

Communication integrity is equally important. The 3720-ACM’s RS-485 Modbus output is typically wired through a Moxa NPort or equivalent serial-to-Ethernet converter to integrate with plant-level SCADA or energy management systems. In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control buildings, shielded twisted-pair cabling and proper grounding of the RS-485 bus are essential to prevent signal corruption that could mask a real power quality event. For cabinet thermal management — a key factor in meter longevity and measurement accuracy — pairing the 3720-ACM installation with a Rittal SK series cabinet cooling unit or thermostat-controlled fan assembly ensures the operating temperature remains within specification even during peak summer loads.

Where the 3720-ACM is deployed in safety interlock circuits — for example, to trigger a load-shedding relay on detection of sustained undervoltage or excessive THD — its output signals should be hardwired through a Pilz PNOZ or equivalent safety relay to ensure the interlock action meets SIL-rated response time requirements. This combination of power quality measurement and certified safety relay logic is increasingly specified in petrochemical and power generation facilities operating under IEC 61511 functional safety standards.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process facilities, even a momentary voltage sag can cause a DCS controller to reset or a critical pump motor to trip, triggering a cascade shutdown. The 3720-ACM’s real-time harmonic and sag monitoring enables predictive maintenance teams to identify deteriorating power quality before it causes a process upset. Its waveform capture capability provides the forensic data needed to distinguish between upstream utility disturbances and internal load-generated harmonics — critical for root cause analysis after an incident.

Power Generation & Substation Control: Generator excitation systems and AVR (automatic voltage regulator) circuits are highly sensitive to power factor and reactive power fluctuations. The 3720-ACM’s high-accuracy kVAR and PF measurement supports reactive power compensation decisions and helps operators maintain grid compliance under variable load conditions.

Mining & Mineral Processing: High-power crushers, conveyors, and ball mills generate significant harmonic currents that stress transformer insulation and cause nuisance tripping of protection relays. Deploying the 3720-ACM at the MCC feeding these loads provides continuous harmonic spectrum data, enabling targeted filter installation and reducing transformer derating losses.

Water & Wastewater Treatment: Pump stations and aeration blower drives are often located in humid, dusty environments with limited maintenance access. The 3720-ACM’s robust panel-mount design and on-board data logging allow remote monitoring of power quality trends without requiring on-site personnel, reducing both operational cost and safety exposure.

Metallurgy & Steel Production: Arc furnaces and induction heating systems are among the most severe sources of voltage flicker and harmonic distortion in industrial power systems. The 3720-ACM provides the measurement resolution needed to quantify flicker severity (Pst, Plt) and harmonic injection levels for compliance reporting and equipment protection.

Port Terminals & Marine Vessels: Shore power connections and onboard generator systems in port and marine applications are subject to frequent load switching, generator paralleling transients, and salt-air corrosion. The 3720-ACM’s wide operating temperature range and surge-tolerant inputs make it a reliable choice for these challenging environments, where measurement continuity directly supports vessel safety and cargo handling efficiency.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3720-ACM?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform to its published specifications within the confirmed support period, KNMKS will arrange replacement or repair at no additional cost. Support requests are supported by our technical team at [email protected].

Q2: What outgoing inspection and testing is performed before shipment?
Every 3720-ACM unit dispatched by KNMKS undergoes a full functional test prior to shipment, including verification of communication output, measurement accuracy, and physical integrity. Units that do not pass inspection are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 3720-ACM compatible with third-party SCADA and energy management systems?
Yes. The 3720-ACM supports RS-485 Modbus RTU communication, which is natively compatible with the vast majority of industrial SCADA platforms, DCS systems, and building energy management systems (BEMS). It also supports the proprietary ION protocol for integration with Schneider Electric / Power Measurement ION Enterprise and PowerLogic SMS software environments.

Q4: Can KNMKS guarantee long-term supply and replacement support for the 3720-ACM?
KNMKS maintains dedicated stock of the 3720-ACM and key ION Series components to support both immediate replacement needs and planned maintenance programs. For facilities operating critical infrastructure, we recommend discussing blanket order arrangements to secure priority allocation. Contact our team at [email protected] or +86 18359268345 to discuss long-term supply agreements.
