PILZ 777080 PNOZ X11P Maintenance-Proven Spare Part for Factory Uptime

Overview

PILZ 777080 PNOZ X11P Maintenance-Proven Spare Part for Factory Uptime

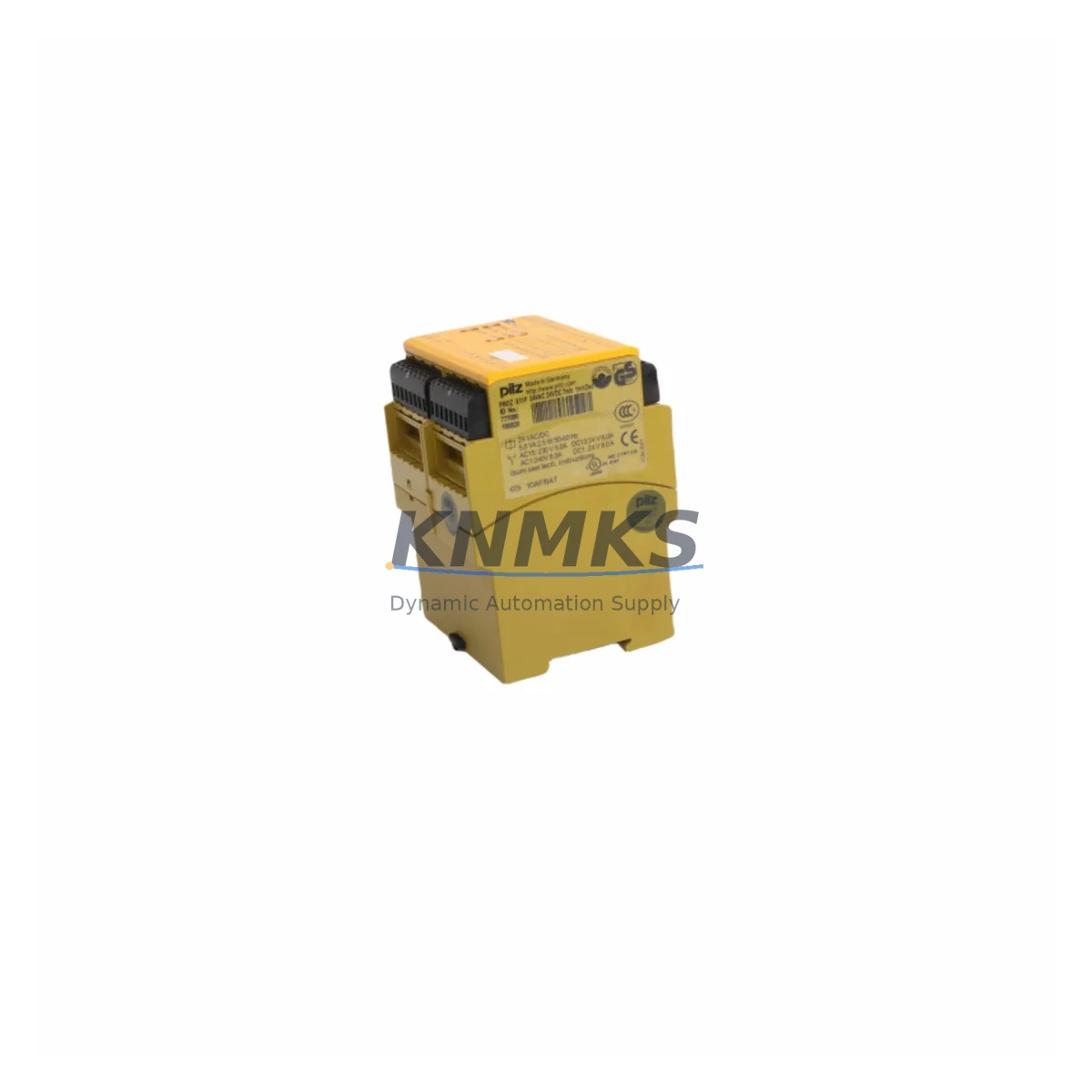

The PILZ 777080 PNOZ X11P is a dual-channel safety relay module from the PILZ PNOZ X Series, engineered for emergency stop, safety gate, and light curtain monitoring in demanding industrial environments. Rated to SIL 3 (IEC 62061) and Performance Level e (EN ISO 13849-1), this module delivers the highest functional safety classification available for machine guarding and process shutdown circuits. With a 24 VDC operating voltage, six safety-rated output contacts, and a compact DIN-rail form factor, the PNOZ X11P is a cornerstone component in safety-critical control cabinets across automotive, food processing, chemical, and heavy manufacturing sectors.

For maintenance engineers managing aging safety systems, sourcing a verified replacement PILZ 777080 PNOZ X11P is a time-sensitive priority. Unplanned downtime caused by a failed safety relay can halt an entire production line within seconds. Stocking a pre-tested, original-specification spare eliminates the risk of extended outages and ensures your safety circuit is restored to its validated state without re-engineering or re-certification delays. Each unit dispatched from our inventory undergoes pre-shipment functional testing and is covered by a support terms confirmed by quotation, giving procurement and maintenance teams full confidence in the replacement part’s integrity before it reaches the site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PILZ 777080 PNOZ X11P is flagged for replacement during a scheduled inspection or after a nuisance trip event, the scope of the maintenance task should extend beyond the relay module itself. Safety relay failures rarely occur in isolation — associated wiring, feedback loops, and downstream contactors are equally subject to wear and should be evaluated concurrently to prevent repeat callouts.

Begin by inspecting the 24 VDC power supply feeding the safety circuit. A PILZ PSS or equivalent DIN-rail power supply with insufficient ripple rejection or voltage droop under load can cause intermittent relay faults that mimic module failure. Verify output voltage under full load before condemning the PNOZ X11P itself. Next, check the safety input wiring: dual-channel E-stop pushbuttons, door interlock switches, and light curtain OSSD outputs must be tested for continuity, cross-fault detection, and correct termination at the relay’s S11/S12 and S21/S22 input terminals.

The output contactors driven by the PNOZ X11P — typically PILZ PMCprotego or third-party safety contactors — should be inspected for contact wear and coil resistance. A welded or high-resistance contactor contact will prevent the safety relay from achieving a clean reset and may generate spurious fault codes in the connected PLC or safety controller. If the installation includes a PILZ PNOZmulti or PSS 4000 safety controller, review the diagnostic log for any recorded safety relay channel discrepancy events before reinstalling the replacement module.

For installations using PILZ PNOZ m B0 or PNOZ m B1 base units in a modular safety system, confirm that the expansion slot assignment and safety function configuration in PNOZmulti Configurator software remain valid after the relay swap. Additionally, inspect terminal blocks and ferrule crimps on the safety circuit wiring — loose connections at Phoenix Contact or Weidmüller terminal strips are a common root cause of intermittent safety relay faults in high-vibration environments. Where signal isolation is required between the safety relay output and a PLC digital input card, verify that any interposing signal isolators or optocouplers remain within their rated input voltage range for 24 VDC logic signals.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the control cabinet and apply LOTO (Lockout/Tagout) per site safety procedures. Confirm 24 VDC bus is at zero volts before opening the cabinet door.

Step 2 — Document Existing Wiring: Photograph or sketch the terminal connections on the existing PNOZ X11P before removal. Record the positions of S11, S12, S21, S22, A1, A2, and all output terminals (13/14, 23/24, 33/34, 41/42, 53/54, 67/68).

Step 3 — Module Removal: Release the DIN-rail locking tab and slide the module clear. Inspect the DIN rail for corrosion or deformation that could affect the new module’s seating.

Step 4 — Install Replacement 777080 PNOZ X11P: Seat the replacement module on the DIN rail and reconnect all terminals per the documented wiring layout. Torque terminal screws to the manufacturer’s specified value (typically 0.5–0.6 Nm for this series).

Step 5 — Power-Up and Functional Test: Re-energize the 24 VDC supply and observe the PNOZ X11P LED indicators. Perform a full safety function test: actuate the E-stop or safety gate, verify output de-energization, reset the circuit, and confirm output re-energization. Log the test result in the site maintenance record.

Step 6 — System Handover: Update the equipment maintenance log with the replacement part number (777080), date, and test result. Notify the process control team that the safety circuit has been restored and validated.

Spare Parts Support FAQ

Q1: Is the PILZ 777080 PNOZ X11P a direct drop-in replacement for older PNOZ X Series safety relays?
The PNOZ X11P shares the same DIN-rail footprint and terminal layout as other PNOZ X Series modules, making it a compatible replacement in circuits previously using the PNOZ X10P or similar 6-output variants. Always verify the safety function configuration and output contact count against your original circuit diagram before installation. If the existing circuit was designed for a different output count or reset mode, minor wiring adjustments may be required.

Q2: What pre-shipment checks are performed on each unit?
Every PILZ 777080 PNOZ X11P dispatched from our inventory is subjected to functional verification testing prior to shipment. This includes supply voltage application, input channel actuation, output contact continuity measurement, and reset circuit validation. Units that do not pass all test criteria are quarantined and not dispatched. A support terms confirmed by quotation is provided from the date of dispatch, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for PNOZ X Series safety relays?
For facilities operating multiple machines with PNOZ X Series safety circuits, a recommended inventory strategy is to maintain a minimum of one replacement unit per five installed modules, with a review cycle aligned to your annual maintenance shutdown. Given that PILZ periodically transitions product lines, securing stock of the 777080 PNOZ X11P now mitigates the risk of future availability gaps. We support long-term supply agreements and can reserve allocated stock for scheduled maintenance programs.

Q4: Can this module be used in new installations, or is it only suitable as a replacement spare?
The PILZ 777080 PNOZ X11P is fully suitable for both new installations and direct replacement applications. It meets current SIL 3 / PLe certification requirements and is compatible with modern safety circuit design standards. For new machine builds, confirm with your safety engineer that the PNOZ X11P’s safety function parameters align with the required safety architecture (Category 4, PLe) as defined in your machine risk assessment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

777080 PNOZ X11P
Assorted Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: Other Brands 777080 PNOZ X11P
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
